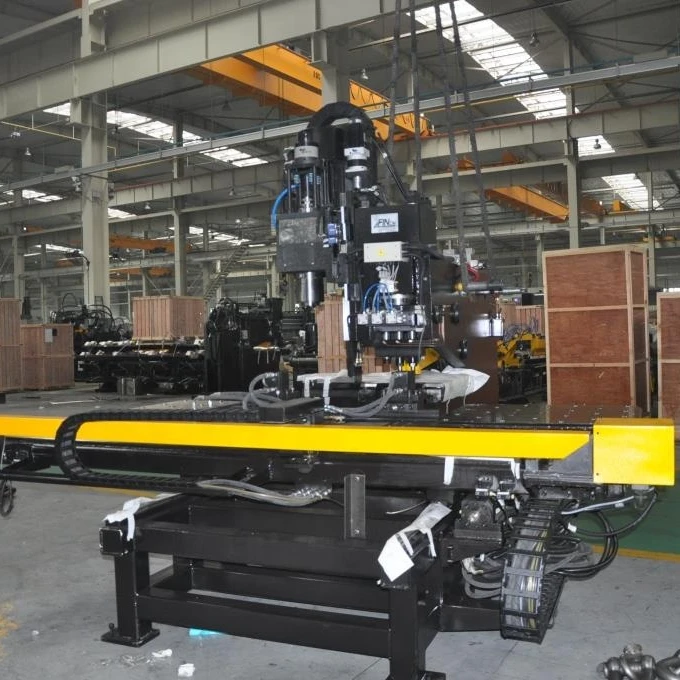

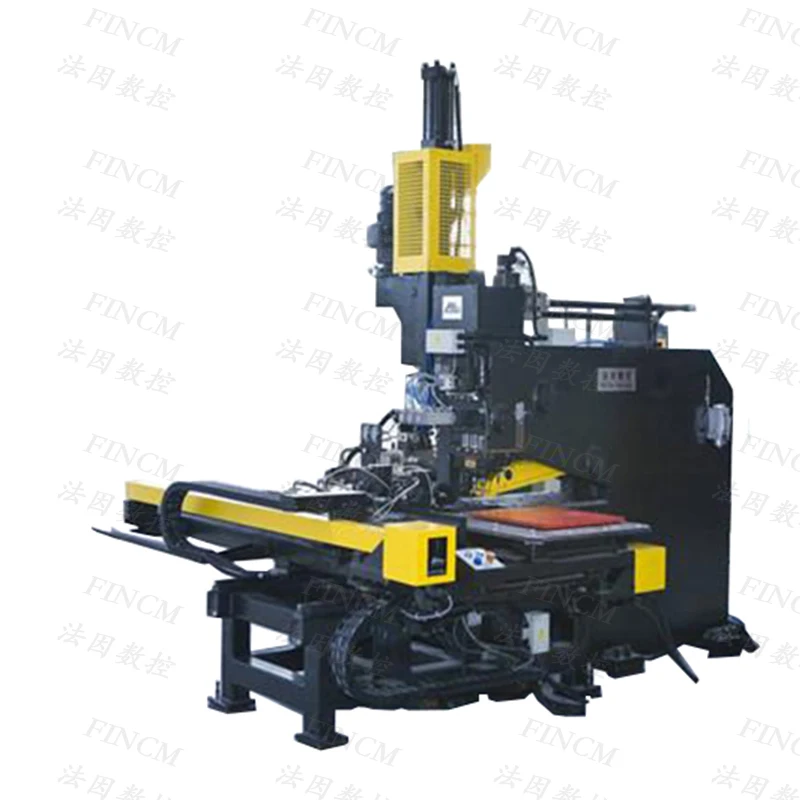

PPHD123 CNC гидравлический сверлильный станок железный

PPHD123 CNC гидравлический сверлильный станок железный

Категория: Punching Machines >>>
Поставщик: Shandong,Fin,Cnc,Machine,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.32 $*	0.43 $*
Aug-19-2025	0.47 $*	0.32 $*
Jul-19-2025	0.52 $*	0.92 $*
Jun-19-2025	0.7 $*	0.18 $*
May-19-2025	0.49 $*	0.14 $*
Apr-19-2025	0.77 $*	0.46 $*
Mar-19-2025	0.94 $*	0.11 $*
Feb-19-2025	0.5 $*	0.98 $*
Jan-19-2025	0.35 $*	0.32 $*

Характеристики

Products Description

Punch force					kN	1200
Max. size of workpiece					mm	1500×800mm
Workpiece thickness range					mm	5～25
Station	Number of punching and typing dies				3
Processing capacity	Maximum punch diameter			mm	φ26
		Maximum diameter of borehole			mm	φ40
		For Q235 steel, σ B≤ 580mpa, φ 26 × 25mm(diameter* plate thickness) For Q420 steel, σ B ≤ 680mpa, φ 26 × 20mm (diameter * plate thickness)

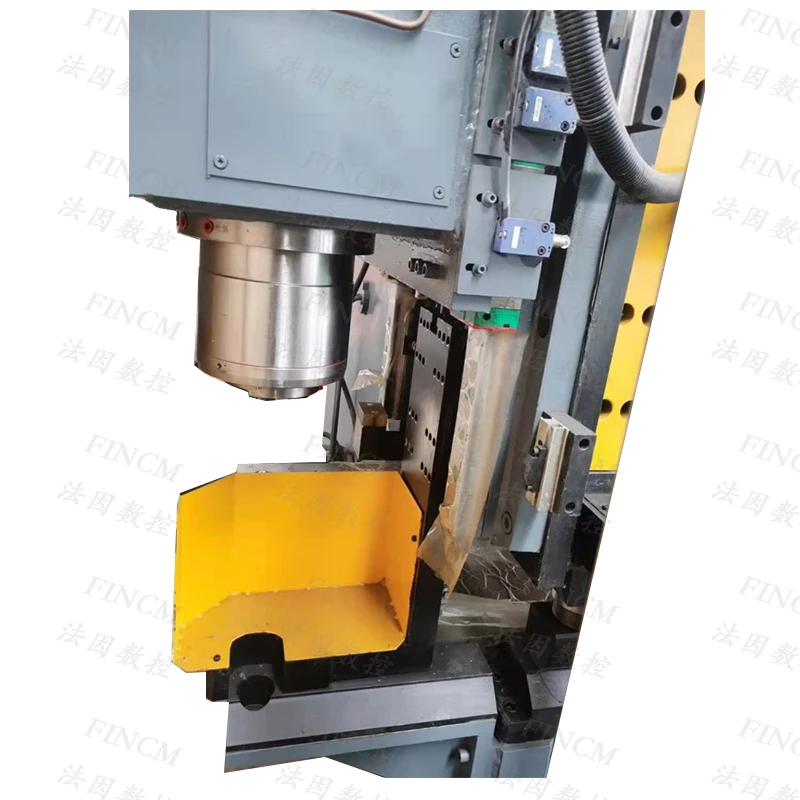

Spindle Drilling mould number						BT50
Max. speed of spindle:					r/min	3000
Min. distance between hole and plate edge					mm	25
Clamp Number						2
system pressure			high pressure	MPa	24
system pressure				low pressure	MPa	5.5
air pressure					MPa	0.5

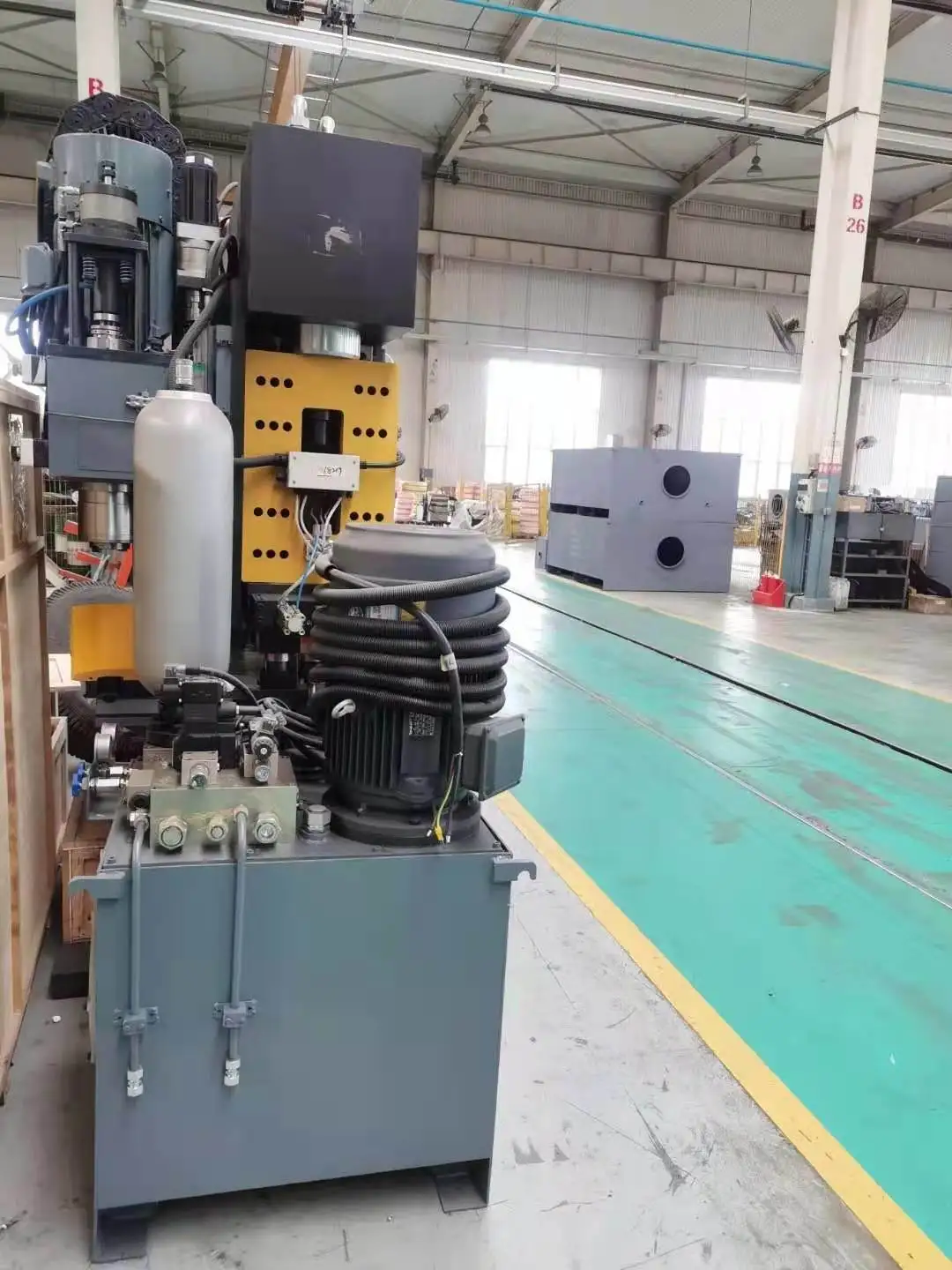

Motor power of hydraulic pump					KW	22
Number of CNC axes					pie	2
X-axis servo motor power					KW	2
Y-axis servo motor power					KW	2
Cooling mode of hydraulic system						water-cooling
Tool cooling mode						Oil cooled (micro)
Total power					KW	26
Machine dimensions (L × w × h)					mm	3600×3200×2300
Machine weight					kg	8200

Company Profile

Shandong FIN C N C MACHINE CO., LTD is located in Jinan high tech Development Zone, is committed to the development, research, design, manufacture, sales of CNC machine tools, such as processing angle bar, beam channel profiles, steel plates, tubesheet and flanges and other integrated equipment professional company. It is mainly used in iron tower, steel structure, heat exchanger, boiler, bridge, truck and other industries
Strong R & D center with 30 engineers team, 20 years of experience from year 2001, 280 staff, plant area about 270,000 sqm., very harsh quality control of every component and the whole machine.
FIN C N C machines exported to 50+ countries across globe market. All top ranked tower manufacturers, steel structure fabricators and power station makers, bridge/railway manufacturers, truck makers are our clients.
Main products: C N C Angle Line, C N C Beam Drilling Sawing Machine, C N C Plate Drilling Machine, C N C Rail Processing Machine, C N C Tubesheet Flange Drilling Machine, Truck beam plate punching machine.
One measure of the outstanding quality of our machines is their longevity: many FIN machines have been in operation for more than 17 years! Many clients are continually placing repeated orders which verified well our machines’ perfect quality and reliable performance.
The company drafted many China national standards for C N C angle line machine and C N C beam drilling sawing machine and C N C plate drilling machine.

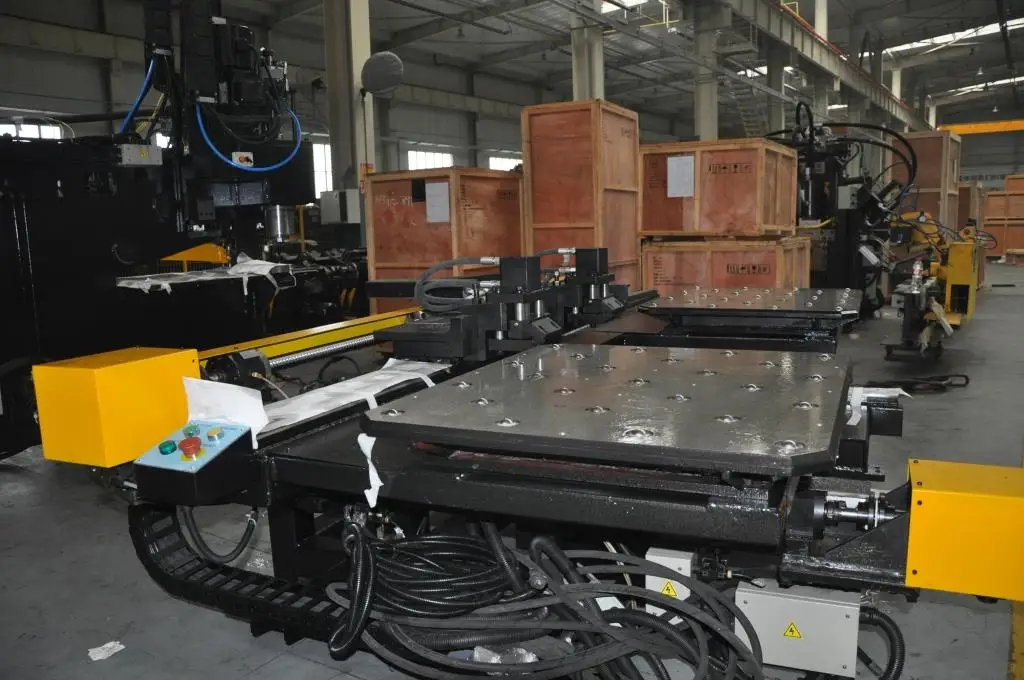

Production Workshop

1. We have a professional research and development team
2. The machine is widely used in the industry.
3. The performance and quality of the machine are reliable.
4. It has been exported to more than 50 countries in the world.
