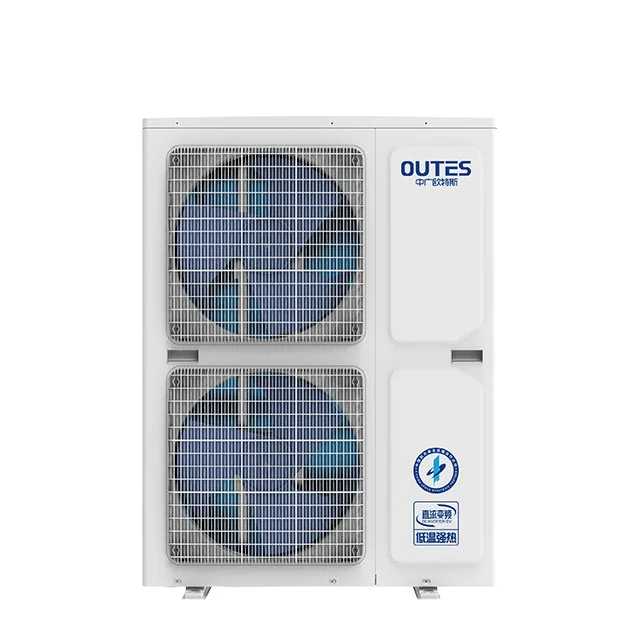

12KW DC инвертор R410a EVI домашнее охлаждающее отопление CE A ++ энергетическая этикетка с Wi-Fi воздушным источником Тепловой Водонагреватель тепловой
- Категория: Heat Pump Water Heaters >>>
- Поставщик: Zhejiang,Zhongguang,Electrical,Co.,Ltd.,Ningbo,Branch
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 0.44 $* | 0.23 $* |
| Aug-17-2025 | 0.24 $* | 0.32 $* |
| Jul-17-2025 | 0.52 $* | 0.15 $* |
| Jun-17-2025 | 0.51 $* | 0.14 $* |
| May-17-2025 | 0.66 $* | 0.90 $* |
| Apr-17-2025 | 0.45 $* | 0.8 $* |
| Mar-17-2025 | 0.43 $* | 0.38 $* |
| Feb-17-2025 | 0.15 $* | 0.93 $* |
| Jan-17-2025 | 0.83 $* | 0.29 $* |
Характеристики
Video Description
Product Family
Product Overview
Modes: AUTO/ECO/FAST/MULT
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material Electronic
Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Cool Air Function
Built-in Magnesium Rod & Anion Anode for anti-corrosion
Enamel water tank with external aluminium micro-channel coil
50mm foaming insulation material Electronic
Electric Heater back up for cold winter
Built-in Internal Solar water coil or boiler water coil are optional for Muti-thermal connection
Auto Weekly Disinfection
Weekly Timer
Vacation Function
Auto-Restart
Cool Air Function
Product Specification
Model | / | AAb21R1/200E | AAb21R1/300E | |
Water Tank Volume | L | 200 | 300 | |
Applicable Persons | 4 | 6 | ||
Hot Water Yield | L/h | 45 | 45 | |
Power Supply | V/Ph/Hz | 220~240V/1/50Hz | 220~240V/1/50Hz | |
Water Outlet Temp. Default/Max.） | ℃ | 55（Heat Pump) Max.75 (HP+E-heater) | ||
Running Ambient Temp. | ℃ | -25℃~46℃ （Heat Pump+Electric Heater),-7℃~46℃ （Heat Pump) | ||
Heating Capacity (Heat Pump) | W | 2100 | 2100 | |
Heating Input Power (Heat Pump) | W | 535 | 535 | |
Heating Input Current (Heat Pump) | A | 3 | 3 | |
Back Up Tubular Electric Heater | kW | 2 | 2 | |
Rated Input Power(HP+E-Heater) | W | 3160 | 3160 | |
Rated Input Current(HP+E-Heater) | A | 13.8 | 13.8 | |
Noise | dB(A) | ≤40 | ≤40 | |
Compressor | GMCC/Rotary | GMCC/Rotary | ||
Fan Motor | DC Motor | DC Motor | ||
Fan Motor Power | W | 40 | 40 | |
Fan Motor Fan Speed | RPM | 830 | 830 | |
Air Side Heat Exchanger | Finned Tube | Finned Tube | ||
Water Side Heat Exchanger | Aluminium Micro-Channel | Aluminium Micro-Channel | ||
Electric Shock Proof Grade | / | Class I | Class I | |
Waterproof Protection Grade | / | IPX4 | IPX4 | |
Water Tank Working Pressure | MPa | 1.0 | 1.0 | |
Water Tank Max.Pressure | MPa | 1.20 | 1.20 | |
Water Tank Inner Diameter | mm | ∅500 | ∅540 | |
Water Tank Height | mm | 1141 | 1486 | |
Net Weight/Gross Weight | Kg | 120/130 | 130/140 | |
Net Dimension（DxH) | mm | ∅600x1685 | ∅640x1892 | |
Packing Dimension(DxWxH) | mm | 725x725x1910 | 737x737x2125 | |
Water Connection Size（Inner Thread) | mm | 3/4" | 3/4" | |
Throttling Type | Electric Expansion Valve | Electric Expansion Valve | ||
Solar Water Coil Surface(Optional) | m2 | 1.2 | 1.2 | |
Boiler Water Coil Surface(Optional) | m2 | 0.50 | 1 | |
Duct Dimension | mm | ∅180*2000 | ∅180*2000 | |
Refrigerant | / | R134A/850g | R134A/850g | |
Tapping Cycle | L | L | XL | |
COPDHW | W/W | 3.16 | 3.39 | |
ErP Class | A+ | A+ | ||

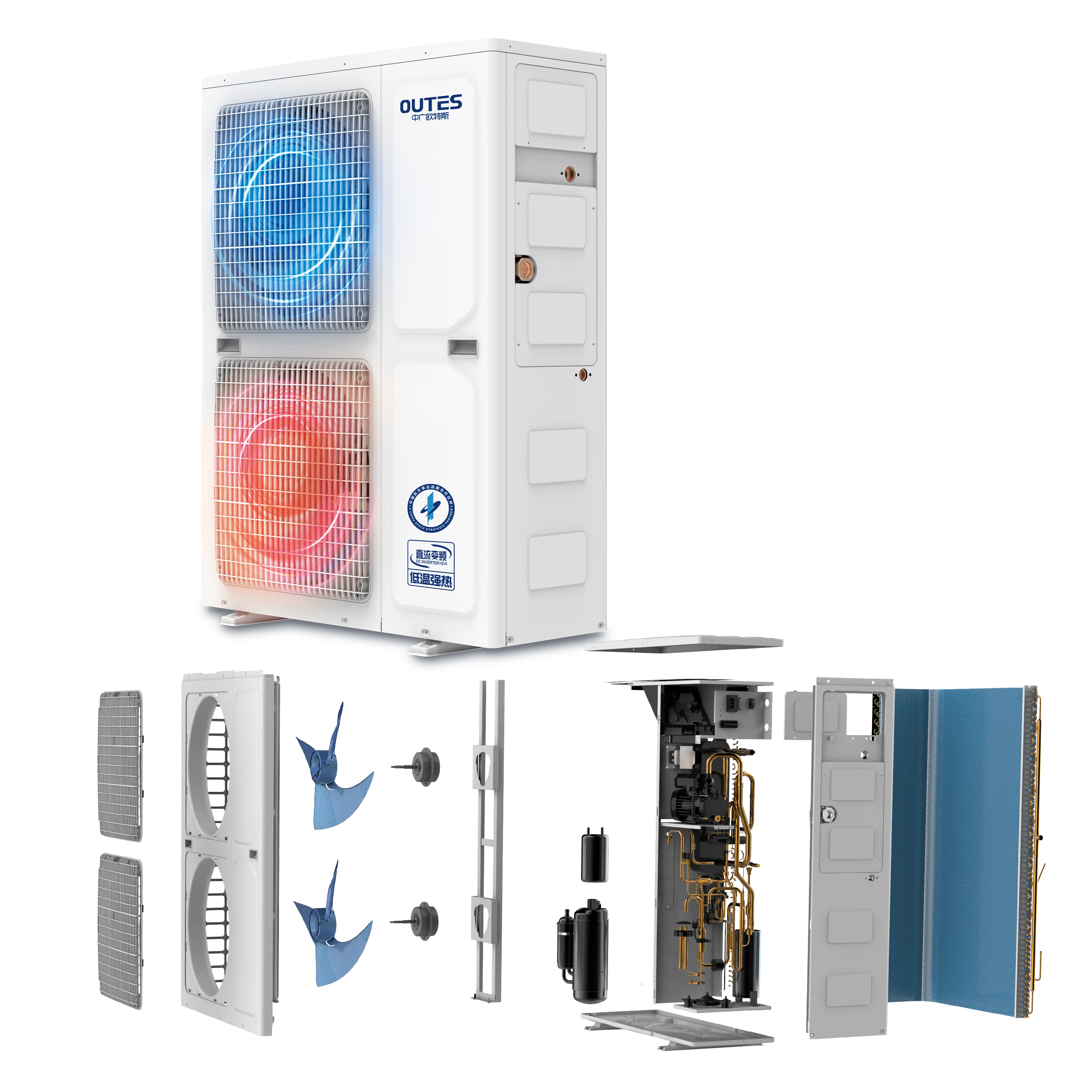

Details Images
细节图一
细节图二
细节图三
Application
Recommend Products
About OUTES
OUTES was established in 2 0 0 6 with an industry park of 500,000m2, specializing in sales, R&D and manufacturing air conditioner, Cooling & Heating heat pump, Hot Water heat pump, Swimming Pool heat pump, Commercial heat pump, Fan Coils, Air Ventilation Unit, Water Purification Equipment and Pressure Water Tank.
OUTES has reputation in domestic market. With 2000 distributors, 1000 After-sales Service Center and 10 local warehouse.
FAQ
Q1: How about your delivery time ?
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
A1: Generally, it will take 35 to 40 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
Q2: How about your delivery time ?
A2: EXW, FOB,...etc.
Q3: How about your delivery time ?
A3: Generally, we pack the heat pump in brown cartons or plywood. If you have legally registered patent, we can pack the heat pump in your branded boxes after getting your authorization letters.
Q4: What is your sample policy?
A4: We accept the sample order, but the customers have to pay the sample cost and the courier cost.
Q5: Do you test all your goods before delivery?
A5: Yes, we have 100% test before we pack the goods for delivery.
Q6: How about your delivery time ?
A6: 2 years warranty on the whole unit. The spare parts must be non-humanly damaged, usually we give to customer 1% spare parts free of charge for maintenance according to order cost during the warranty period.
