Керамический нагреватель/нагревательный корпус с постоянной температурой PTC 12-220 В 50-100
- Категория: Home Heater Parts >>>
- Поставщик: Shanghai,Yidu,Electronic,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.29 $* | 0.48 $* |
| Aug-15-2025 | 0.38 $* | 0.17 $* |
| Jul-15-2025 | 0.48 $* | 0.12 $* |
| Jun-15-2025 | 0.41 $* | 0.22 $* |
| May-15-2025 | 0.14 $* | 0.55 $* |
| Apr-15-2025 | 0.8 $* | 0.44 $* |
| Mar-15-2025 | 0.19 $* | 0.77 $* |
| Feb-15-2025 | 0.69 $* | 0.4 $* |
| Jan-15-2025 | 0.53 $* | 0.31 $* |
Характеристики
Product Description
PTC Ceramics Thermistor/PTC Air Heater/PTC Heating Element
1. Rated Voltage(Optional): 12-220V AC/DC(the power line does not distinguish between positive and negative)
2. Rated Power(Optional): 50-100W (R=24℃,5~7m/s wind flow velocity)
3. Size: 95*31*25mm
Product Name | PTC Air Heater |
Heat Material | PTC Thermistor |
Heat Methods | Heat Radiation by Air Flow |
Lead Wire | Silicone High Temperature Line |
the Length of Lead Wires | 200mm |
the Length of Bare Wires | 10mm |
Surface Insulate | Yes |
Application | Air Conditioning Units / Electric Heater /Car / Equipment/ General Electric Appliance/ Air Curtain Machine / Humidifier |

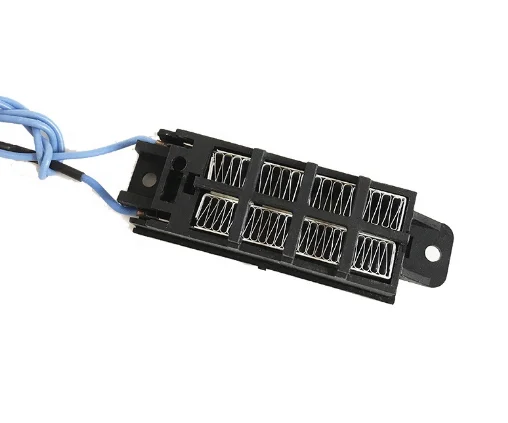

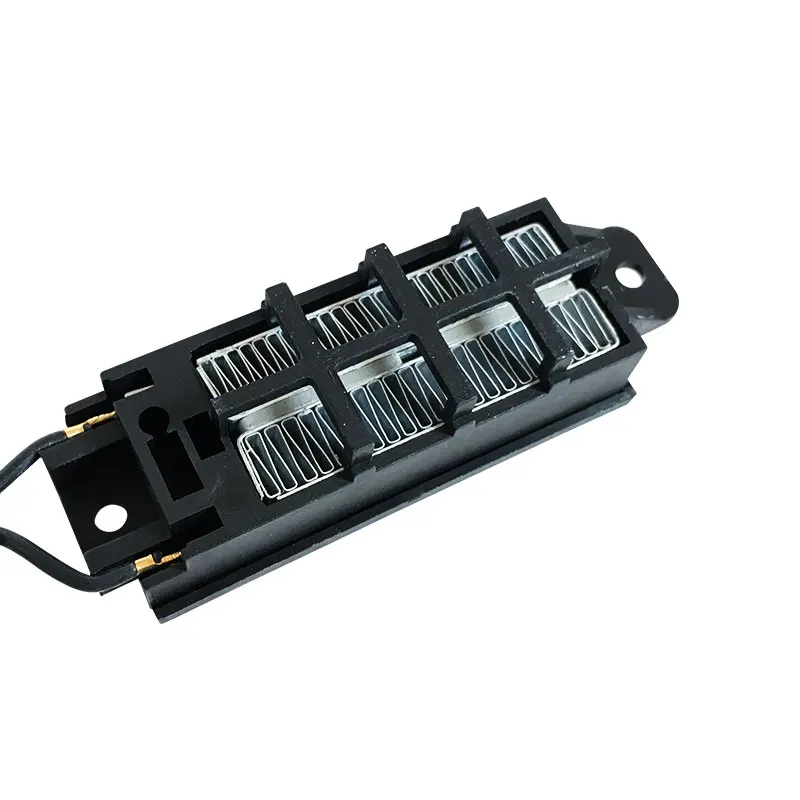

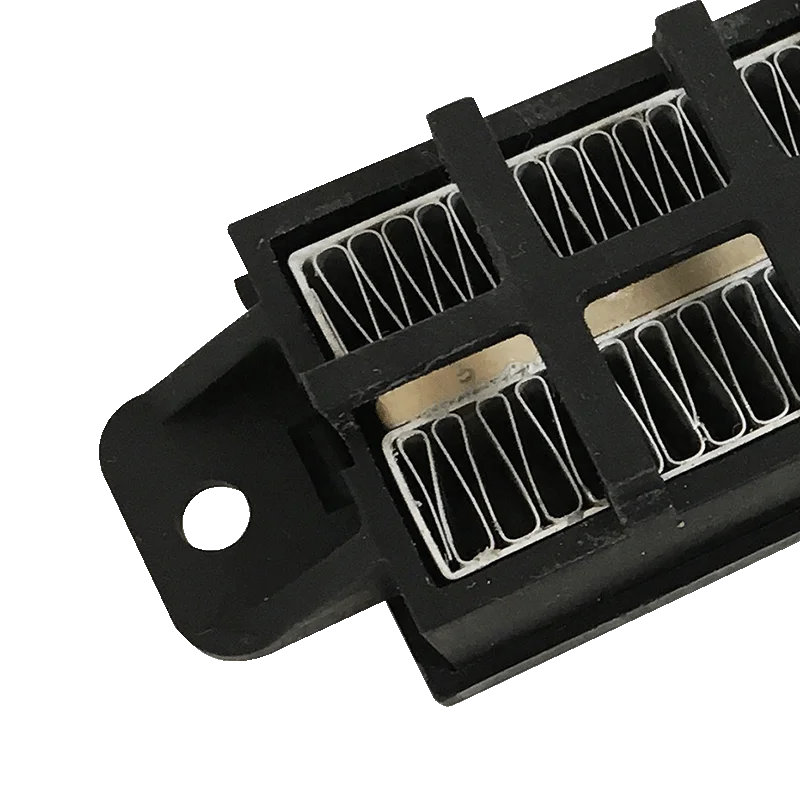

Products Show
Products Dimension
Instruction manual:
1, The power line does not distinguish between positive and negative, you can freely link power 12-220V(According to the selected voltage).
2, When the heater is dry, low thermal efficiency, it is recommended to use with the fan.
3, Can be placed under a wet environment, but can not be placed in water.
4, For the first time, will produce a small amount of smoke, is a normal phenomenon, it will disappear within a short time.
5, Both ends of the product wearing bracket (PA66 high temperature nylon)
6. Test: Ambient temperature 24 degrees Celsius, the wind speed: 3.3 m / s, distance from the outlet 10 cm. Hot air temperature of about 40-50 degrees Celsius.
7, Under normal circumstances, PTC heater in a very short time after the start, it will have an impact power, which is about 1.5 to 3 times the rated power, but will rapidly decline, which is normal. Please buyers understand!
8, Life: about: 3--5 years.
Our Company
Subway heater
Quality Certification
Packing & Delivery
Packing Details : Packing, 50pcs/carton
Delivery Details : 1-5 days after order
1.Logistics packaging
2. Suitable carton size
Application
Hot Selling
High quality
PTC Fan Heater
High quality
PTC Air Heater
High quality
PTC Heater With Aluminum shell
FAQ
Q: Are you trading company or manufacturer ?
A: We are professional PTC factory.
Q: Can you customize different requirements products?
A: Sure, we have a professional R & D team, so we can customize different sizes, power, voltage... according to your specific requirements.
Q: How long is your delivery time?
A: Generally it is 1-3 days if the goods are in stock. or it is 5-10 days if the goods are not in stock, it is according to quantity.
Q: Do you provide samples ? is it free or extra ?
A: Yes, we could offer the sample for free charge but do not pay the cost of freight.
Q: What is your terms of payment ?
A: Payment<=3000USD, 100% in advance. Payment>=3000USD, 50% T/T in advance ,balance before shippment.
If you have another question, please send us your RFQ.
