4-8 мм панельная сетчатая сварочная машина китайский
- Категория: Wire Mesh Making Machines >>>
- Поставщик: Anping,County,Laien,Wire,Mesh,Machine,Manufacturing,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 67830.83 $* | 71222.69 $* |
| Aug-19-2025 | 67260.82 $* | 70623.30 $* |
| Jul-19-2025 | 56430.93 $* | 59252.13 $* |
| Jun-19-2025 | 66120.54 $* | 69426.26 $* |
| May-19-2025 | 57570.55 $* | 60449.6 $* |
| Apr-19-2025 | 64980.39 $* | 68229.5 $* |
| Mar-19-2025 | 64410.99 $* | 67631.46 $* |
| Feb-19-2025 | 63840.1 $* | 67032.80 $* |
| Jan-19-2025 | 63270.40 $* | 66434.88 $* |
Характеристики
Product Description

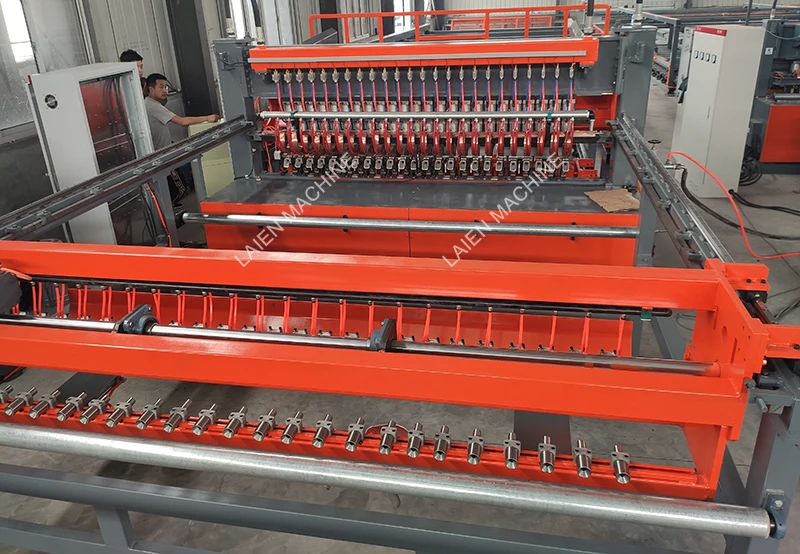

Per cut wire feeding Wire Mesh Welding Machine
cross wire and line wire all feeding by per cutting wires
Coil Wire and per cut wire feeding Wire Mesh Welding Machine
Semi-Automatic PET Bottle Blowing Machine Bottle Making Machine Bottle Moulding Machine
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Product Paramenters
Raw material:Low carbon steel wire, stainless steel wire and rebar wire.
Advantage:
1.Taiwan Delta PLC control and touch screen more stable.More technical parameters (such as speed,mesh size)can be set and adjusted on the touch screen.Very convenient for workers to operate.
2.Good CuCrZr of electrodes,transformer cooled by water.
3.Both wires are pre-cut and finished mesh panel more nice.

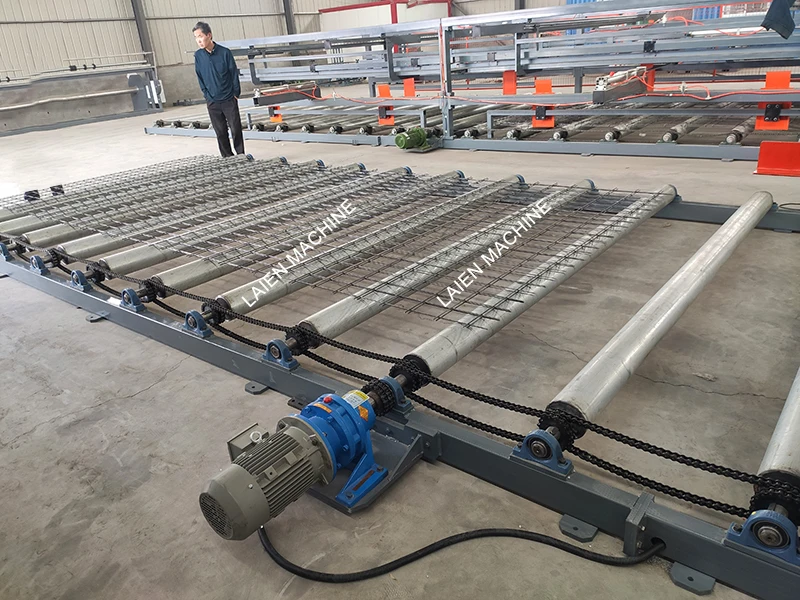

4.Longtitude wire fed automatically by raw material feeding device.Finished mesh pulled automatically by pnematic device.More loading capacity for the cross wires.Save more manual labor and time.
5.Working speed more fast and production capacity more improved.
Program | HWJX2000 | HWJX2500 | HWJX3000 |
Number of electrodes | 20 | 24 | 30 |
Max.mesh width | ≤2000mm | ≤2500mm | ≤3000mm |
Wire diameter | 5-12/3-8mm | 5-12/3-8mm | 5-12/3-8mm |
Product length | 3-12m | 3-12m | 3-12m |
Cross wire space | 100-300mm | 100-300mm | 100-300mm |
Line wire space | 100-300mm | 100-300mm | 100-300mm |
Electric capacity | 1500KVA | 1700KVA | 2100KVA |
Working speed | 40-60times/min | 40-60times/min | 40-60times/min |
Auxiliary Machines
Wire Straightening and cutting machine
Ribbed wire making machine
Wire drawing machine

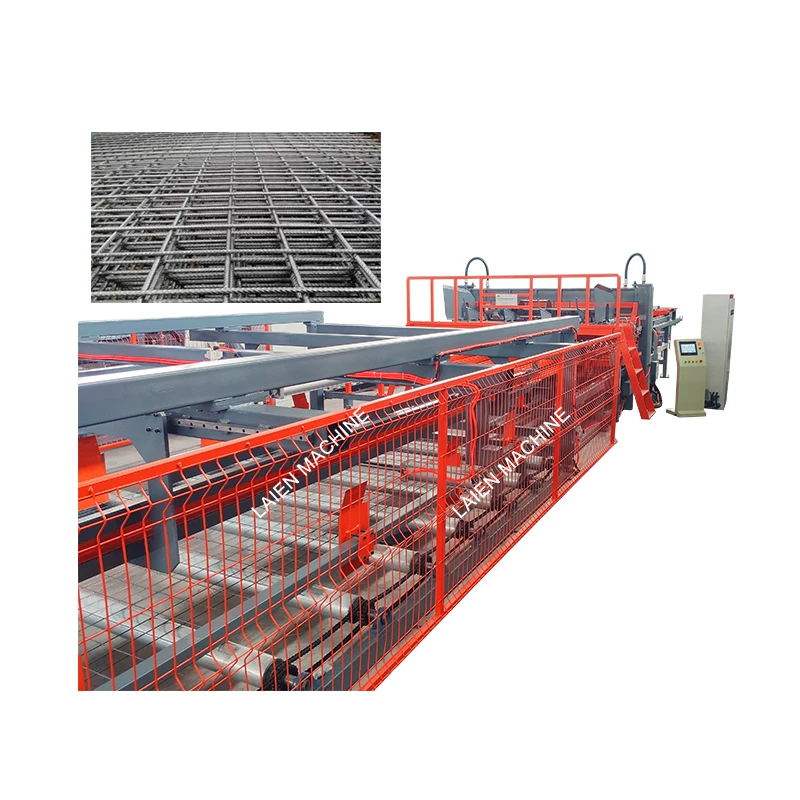

Finished product
Usage:
Products are widely used in the floor &wall reinforcing mesh in the building,reinforcing mesh in the tunnel,bridge and road.
Other Sizes Wire Mesh Welding Machines You may Interesting | ||||||||
Loading
After Sales Service
ABOUT AFTER SALES SERVICE:
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE:
1. Warranty period: Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
1. Machine to be installed and commissioned by our technicians. We can send our technician to install the machine accordingly if the buyer need.
2. Training: the buyer should charge of visa, return ticket, food and accommodation overseas and USD100/person/day for salary.
3. Technician: Normally need one or two technician.
4. Training time: one week (contains the time of installation and adjustment)
5. It is in same condition if the buyer need the seller to send the interpreter.
GUARANTEE:
1. Warranty period: Except the wearing parts, 12 months guarantee for machine and 6 months guarantee for electric appliance after shipment. During guarantee time, if the parts are broken caused by the product problem, seller will offer the parts by free,and we will provide the technical support for the whole life.
2. Breakage problem: If the parts were broken caused by the mishandling by buyer, buyer needs to buy the parts from seller.
√: Are you the factory?
Yes, our factory design and produce kinds of different wire mesh machines.
√: Where is your factory located? How can i visit there?
Our factory is located in anping, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if you from guangzhou come here, then you can choice take air , it will need about 3hours.
√: What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's require.
√: How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the accurate price.
√: What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others.... It is negotiationable.
√: Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
√: How long is your delivery time?
Usually it will need about 30 days after received the deposit.
√: How long of your warranty?
Usually one year warranty.
Yes, our factory design and produce kinds of different wire mesh machines.
√: Where is your factory located? How can i visit there?
Our factory is located in anping, hebei, China.when you prepare to come here, please tell me your place, then i can tell you how to come here, for example, if you from beijing come here, then you can choice take the fast train, it will need about 1.5hours. if you from guangzhou come here, then you can choice take air , it will need about 3hours.
√: What is the voltage ?
To ensure each machine runs well in different country and region, we will choose different voltage according to customer's require.
√: How much is your machine ?
The machine price is related to the specification, so please first tell us your detail specification, then we can offer you the accurate price.
√: What is your payment terms?
Usually 30% T/T in advance, 70% T/T before shipment or irrevocable L/C at sight or others.... It is negotiationable.
√: Do your supply includes installation and debugging ?
Yes. We can send at least one of our engineer to your factory for installation and debugging. The cost will be quoted separately if you need such service.
√: How long is your delivery time?
Usually it will need about 30 days after received the deposit.
√: How long of your warranty?
Usually one year warranty.
