Лучшая цена полностью автоматическая оцинкованная сварная сетчатая машина для скота/птичьей

Лучшая цена полностью автоматическая оцинкованная сварная сетчатая машина для скота/птичьей

Категория: Wire Mesh Making Machines >>>
Поставщик: Anping,County,Laien,Wire,Mesh,Machine,Manufacturing,Co.,Ltd.

Цена:9 800,00 $ - 11 000,00 $*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	11662.9 $*	12245.73 $*
Aug-19-2025	11564.24 $*	12142.54 $*
Jul-19-2025	9702.43 $*	10187.74 $*
Jun-19-2025	11368.72 $*	11936.37 $*
May-19-2025	9898.43 $*	10393.81 $*
Apr-19-2025	11172.32 $*	11731.37 $*
Mar-19-2025	11074.13 $*	11628.83 $*
Feb-19-2025	10976.54 $*	11525.59 $*
Jan-19-2025	10878.98 $*	11422.23 $*

Характеристики

Product Description

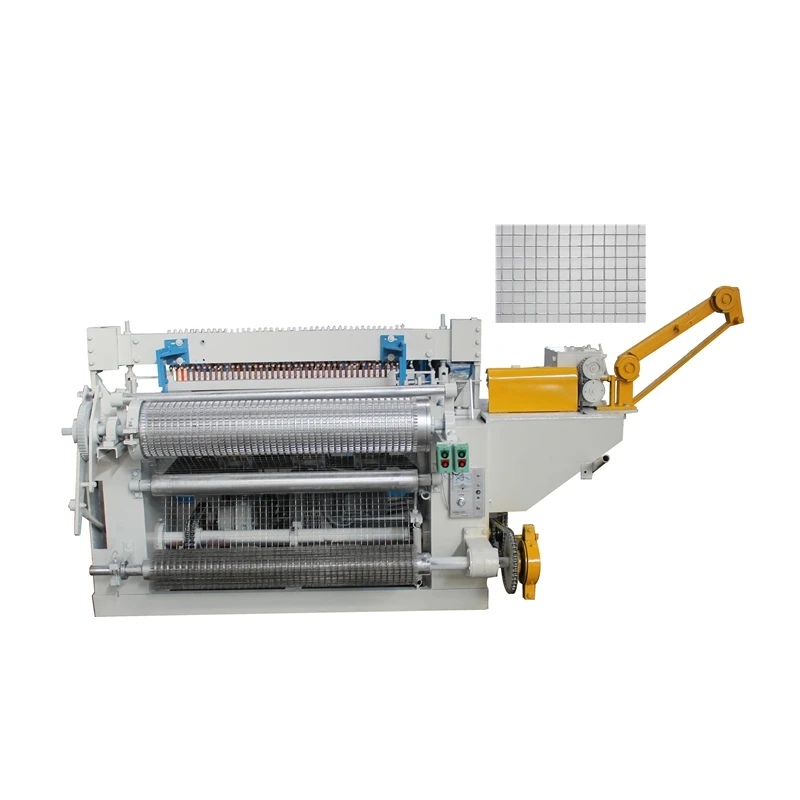

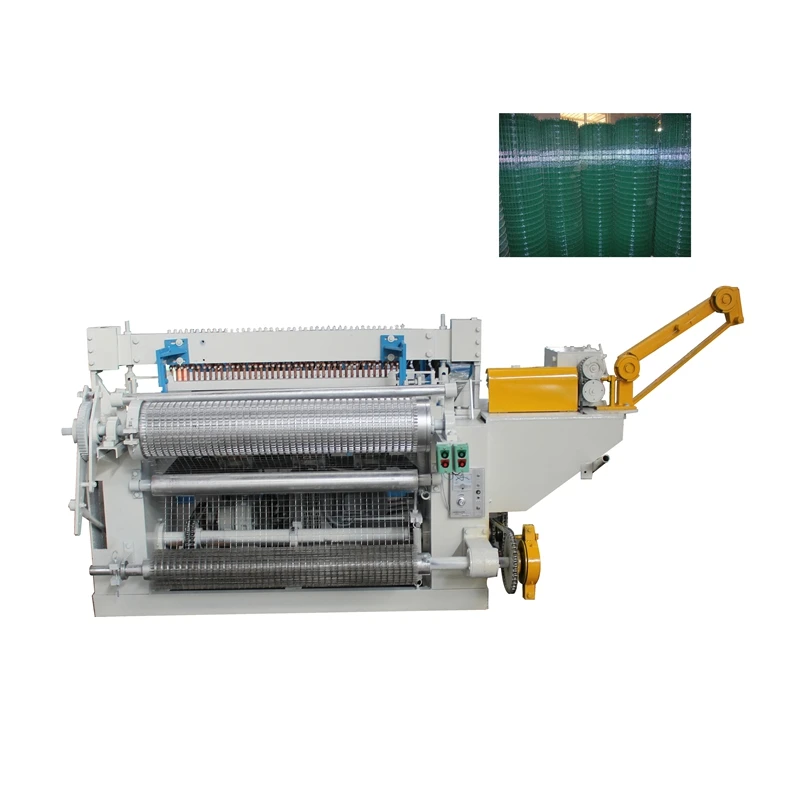

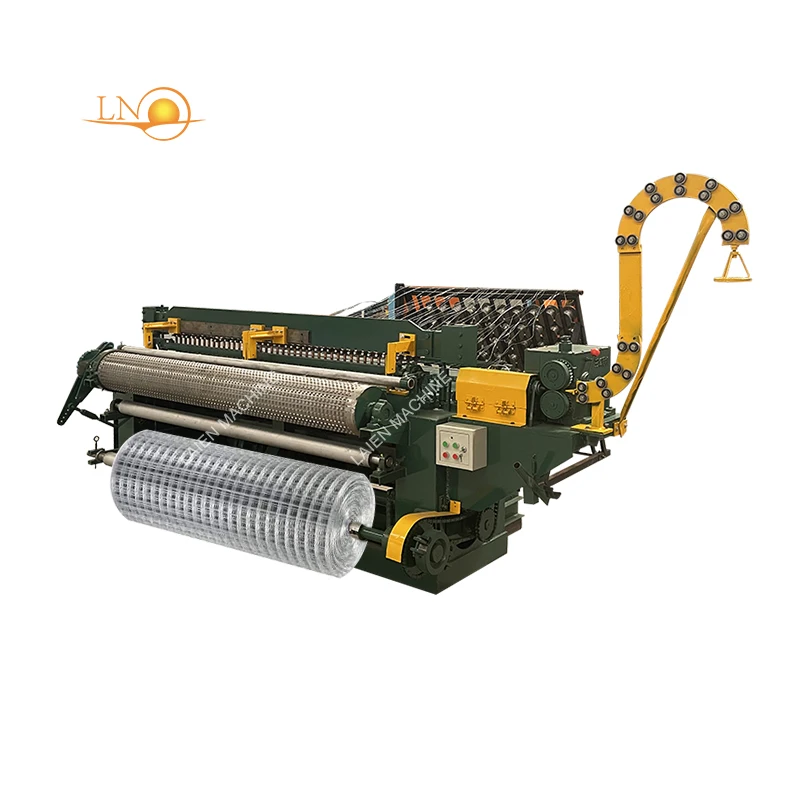

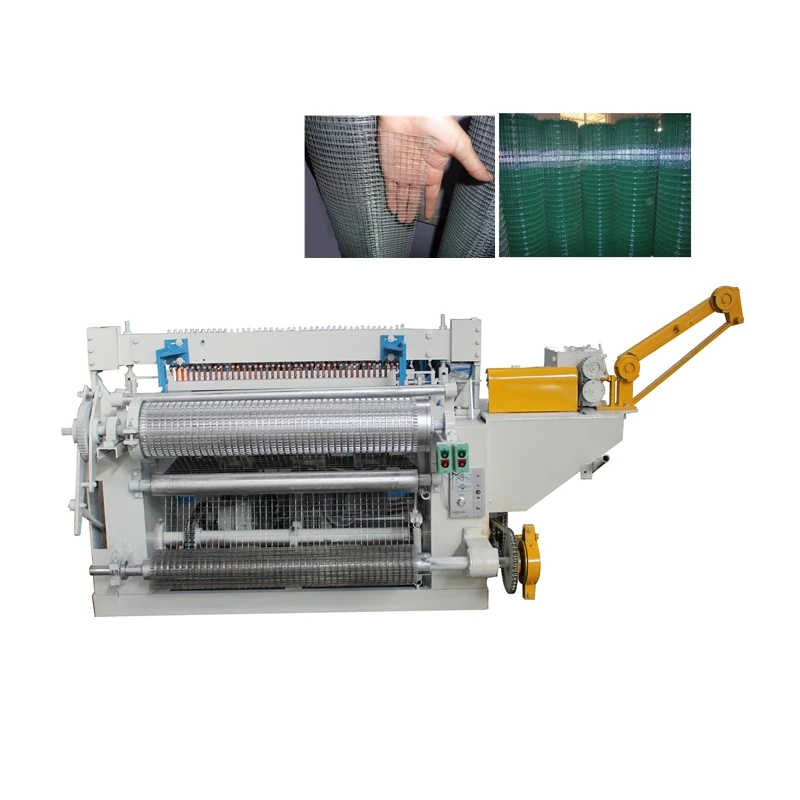

High speed electric welded wire mesh machine production line

Electric Welded Wire Mesh Machine is used for making welded wire mesh in the rolled. It is widely used in industry, mining,
agriculture, construction, transportation, such as the animal fence, window guard, channel fences and decorations.
Our welded wire mesh machine can be customized as customer required different specification.

Product Application

The raw material is suit for low-carbon wire, galvanized wire, stainless steel wire etc.
The production line consists of main mesh welding machine, electrical control cabinet, repairing machine, repairing table, bobbin machine, bobbins, bracket for longitude wires, wire pay off stand.

Usage:
The finished welded wire mesh widely used in mining, commerce, transportation, construction (walls with nets, floor heating network), decorating, landscaping protection, all sectors of the fence, concrete roads, airport runways, tunnels, bridges, pipelines communication, water conservancy, power plant, dam, harbor, river beware wall, warehouses and other types of construction of the reinforced concrete structure with a net.

Popular specification of welded wire mesh as below:

1.Mesh width:1.5m,1.8m 2m and 2.5m

2.Popular opening size:12.5mm,25mm, 50mm

Warmly tips:we can design the machine according to your wire diameter,mesh hole size and mesh width.

	Specification
Item	DHWJ-1	DHWJ-2	DHWJ-3	DHWJ-4	DHWJ-5	DHWJ-6
Mesh size(mm)	1/4''-2''	1/2''-2''	1/2''-4''	1''-4''	2''-6''	1''-6''
Wire diameter(mm)	0.5-0.8	0.8-1.2	0.8-1.8	0.8-1.8	1.2-2.5	1.2-2.5
Net Width(M)	1.2	1.2	1.5/2	1.5/2	2/2.5	2/2.5
Rated Voltage	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ	380V,50HZ
Motor Power(KW)	2.2	2.2	2.2	4	6	6
Max Speed(rows/mim)	75	100	120	80	75	80
Dimension(M)	2.31.31.4	2.31.31.4	31.751.65	31.751.65	31.751.65	31.751.65
Weight(T)	1.5	1.5	2.5	3.5	4	5

Advantage

Both longitude wire and cross wire can be feeded from wire coils automatically. It also have the advantage such as design reasonable, low noise, more stable, easy operation and electro-magnetism adjustable speed for welding. The mesh size is precise and the machine can be set the mesh width and mesh length according to customer’s requirement.

Accessories

WIre pay-off stand

Mending mesh table

Mending machine

Mesh mending table

Finished product

Finished product

Finished product application

Certifications
