Бесщеточный контроллер двигателя Yuyang King YKZ12080EA 1200-1500 Вт для электродвигателя ступицы колеса
- Категория: Motor Controllers >>>
- Поставщик: Taizhou,Tongshuo,Trade,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 184.46 $* | 188.95 $* |
| Jul-19-2025 | 149.59 $* | 152.36 $* |
| Jun-19-2025 | 181.86 $* | 185.89 $* |
| May-19-2025 | 180.61 $* | 184.2 $* |
| Apr-19-2025 | 144.24 $* | 147.3 $* |
| Mar-19-2025 | 177.34 $* | 181.47 $* |
| Feb-19-2025 | 175.49 $* | 179.52 $* |
| Jan-19-2025 | 174.50 $* | 177.24 $* |
Характеристики
Products Description

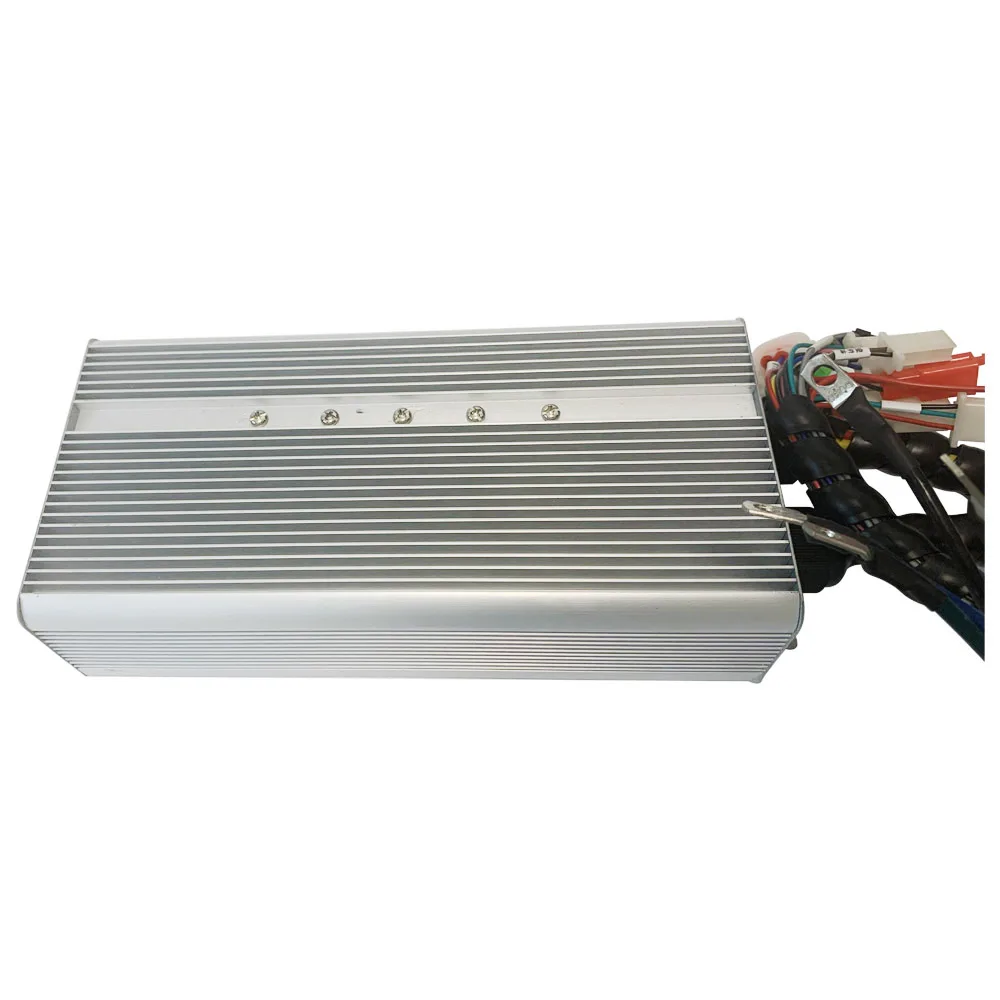

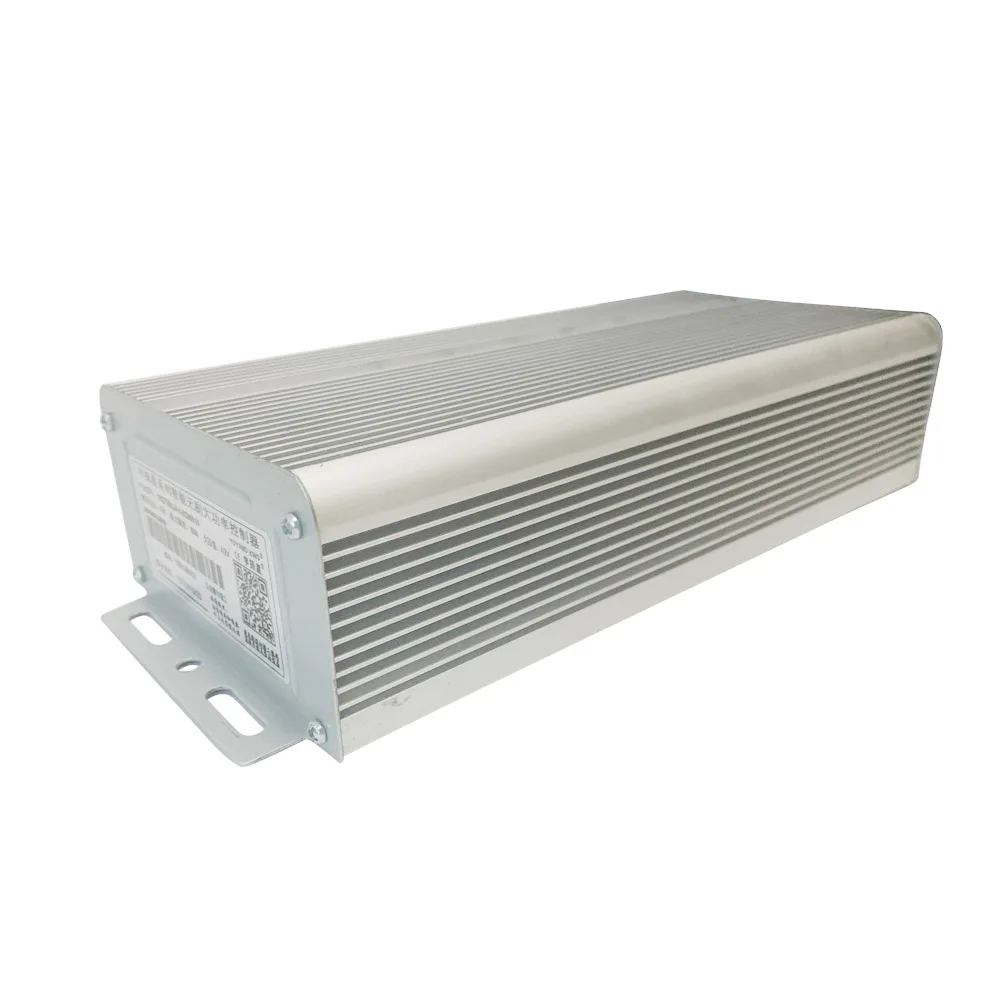

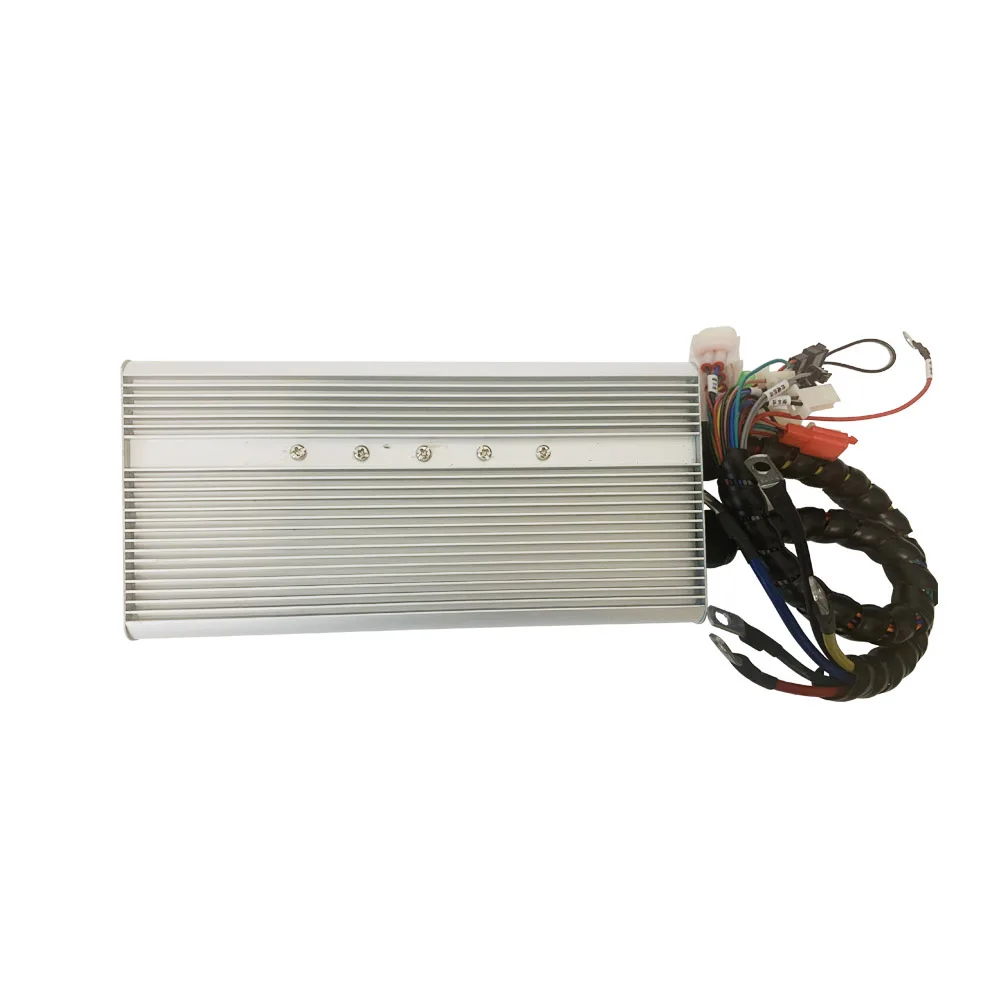

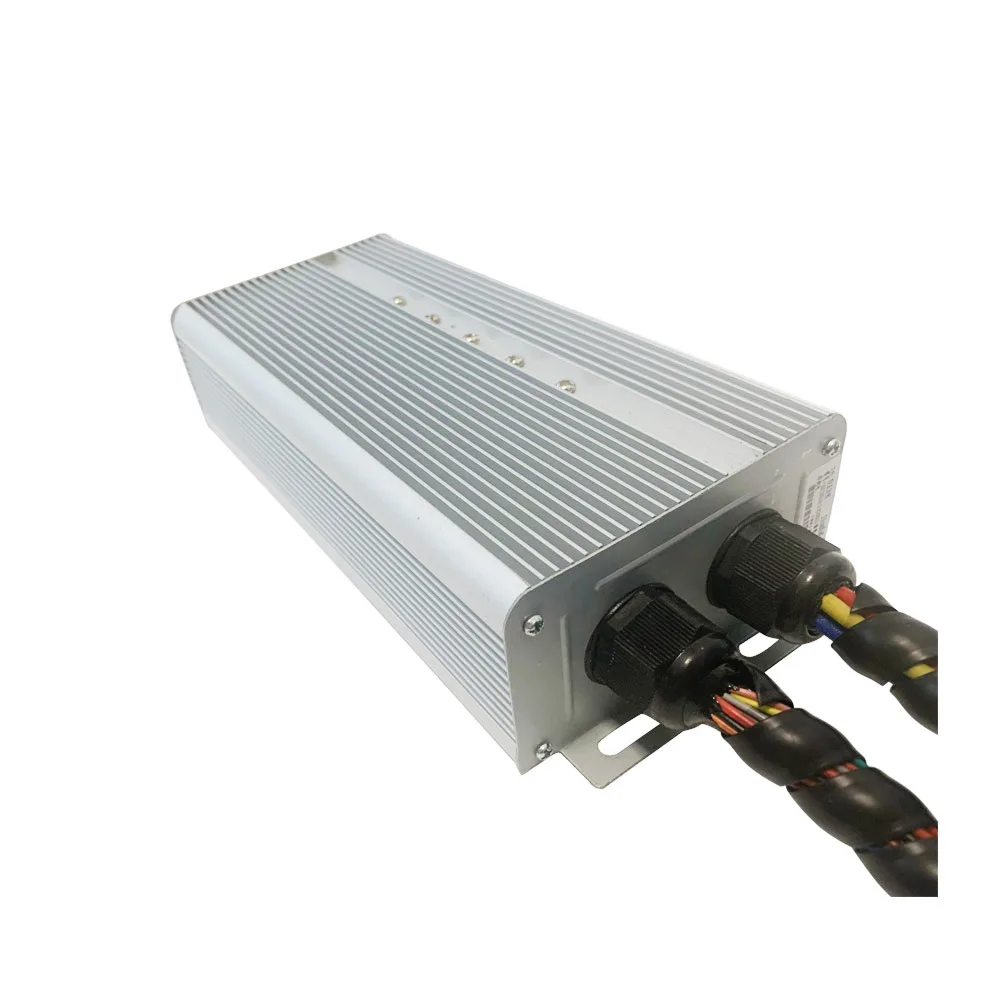

Yuyang King YKZ12080EA 1200-1500w Brushless Motor Controller for electric wheel hub motor |
It's special design for QS brushless motor controller for Conversion Kits, which can match with QS HUB MOTOR Rated Power 1200w~1500w.
Key Features
1). Very Easy connect
2). Can match with almost brushless DC motor
3). Soft start can be adjusted
4). Programmable by dongle
1. Generally SPEC
1. power supply:60V~120V, Limitied current: 80A , Max phase current: 210A
2. Product Size: 280mmx117mmx60mm
3. Net Weight: 1.66kg
4. Testing way: Hall sensor
5. Including: 1pc controller + 1pc Function harness
P.S.: For Software & Manual, please contact with us freely.
It support dongle Function with dongle Adapter.
1). Very Easy connect
2). Can match with almost brushless DC motor
3). Soft start can be adjusted
4). Programmable by dongle
1. Generally SPEC
1. power supply:60V~120V, Limitied current: 80A , Max phase current: 210A
2. Product Size: 280mmx117mmx60mm
3. Net Weight: 1.66kg
4. Testing way: Hall sensor
5. Including: 1pc controller + 1pc Function harness
P.S.: For Software & Manual, please contact with us freely.
It support dongle Function with dongle Adapter.
2.YKZ12080EAcontroller drawing
Here is drawing of our normal YKZ12080EA controller,280mmx117mmx60mm
Here is drawing of our normal YKZ12080EA controller,280mmx117mmx60mm
3.Pin Definition
4.Other Motor Kits and more controller models
If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.
If you are interested on more models of controller, pls. refer to below data sheet, and click the hyperlink of picture.
5.Questions before order
1).Pls. contact with sales first if you don't know how to connect the controller with motor and other parts.
2). If you want to buy the controller separately, please advise us the parameters of your matching motor?
Such as Motor Voltage, Wattage, Speed...
3). If you need any other special functions for this controller, please feel free to contact to us. Thank you!
More Products
Our Company
Certifications
Packing&Shipping
FAQ
Q1. Are you trader or manufacture?
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
A: We're manufacture.
Q2. How long is your production time?
A: Generally, the production period is 12-14 working days(6 working days per week).
The specific delivery time depends on the items and the quantity of your order.
Q3. How long is your warranty time?
A: For motor, the warranty time is one year and three months. For other parts, the warranty time is one year.
Q4. About Customs Clearance
For some special countries with strict customs for import, so pls. confirm it firstly to us that you have ability to do customs clearance, otherwise we will not take on heavy responsibilities for this issue, return money and goods are not support.
Special countries list:
Argentina, Brazil, Egypt, Turkey, Iran,Portugal,Romania, Kazakhstan, Ukraine, Yeman etc.
Some countries name not listed, the salesman will inform you in time if you placed the order online directly. Thank you for your understanding.
05. Does your products with CE certification?
Yes, our motor with Certification (CE, CCC), and our factory with certification of ISO9001, TS86949
