Mini rubber tree tapping machine Gewindeschneidmaschine 1000mm power tapping automatic machine
Product Description

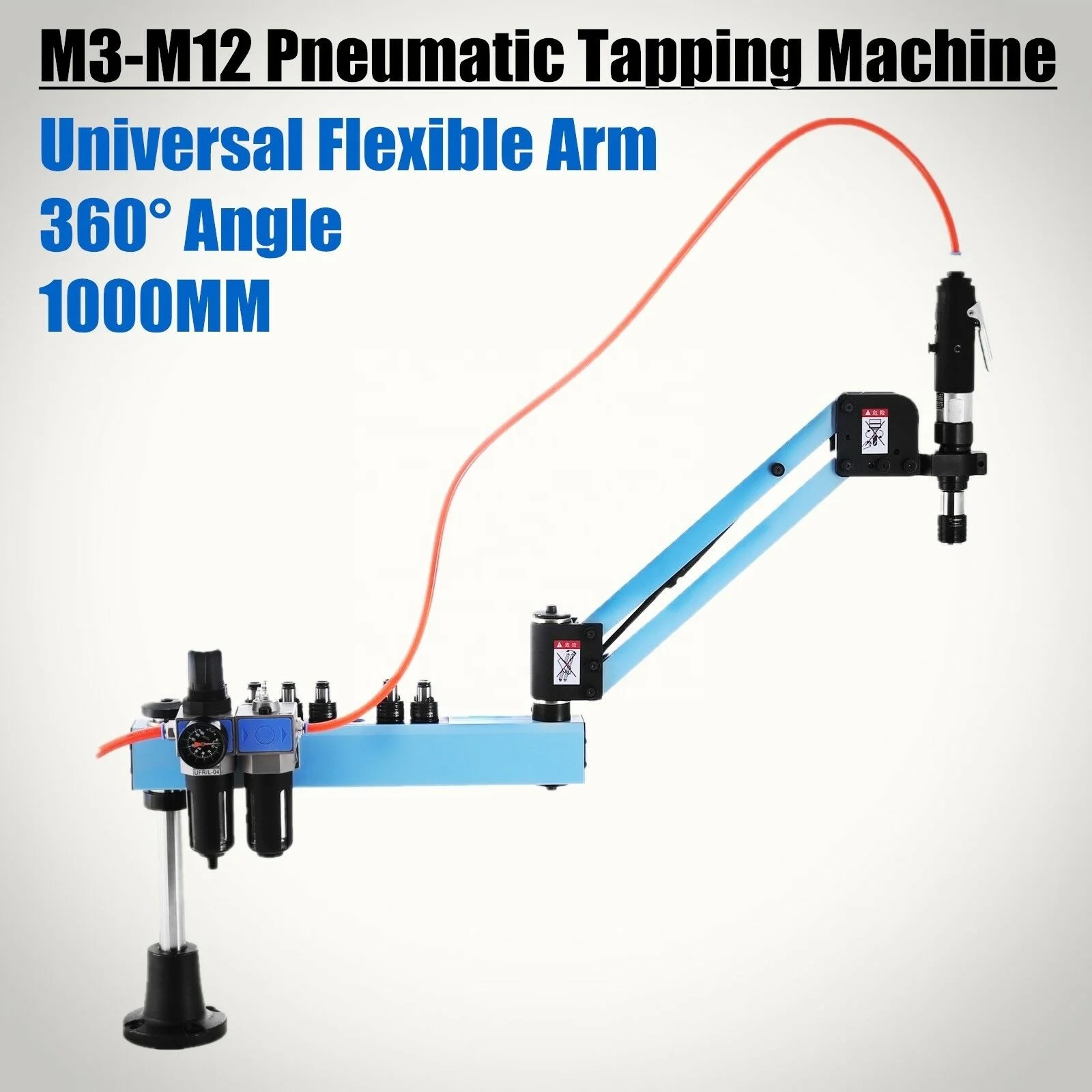

Vertical Type Pneumatic Air Tapping Machine Flexible Arm 1000mm
This pneumatic tapping machine is applicable to all machinery manufacturing industry, machine tools, automobile and motorcycle parts,aircraft engines, tooling, plastic, printing, packaging, engineering and other general purpose machinery industries. This is an effective pneumatic tapping machine with easy operation and low work intensity. No fixture or clamp is needed when heavy workpiece is applied.
Note
ISO standard M3-M12 tap collets in the package are serving as a extra gift, you can choose to use them or buy other tap collets which are suitable for your own need.
Kindly note that we do not assume any responsibility if the tap collets we provide are not suitable.
Features
- Driven by compressed air, provides safe, rapid and efficient work.
- Super torsion with less air flow pressure and smaller air volume (6-8kg/cm²)
- Able to tap on varies materials including sundry steel, iron, copper, wood, aluminum and plastic.
- Overload protected collet chuck produces high precision threads while less screw tap damages.
- Handy and easy operation, no pursuit of experience or much effort.
- Much less manufacturing cost compared with applying CNC machining center, milling machine with tapping machine or manual tapping.
- Extra large working radius of 1000mm, no moving or fixing is needed when tapping heavy workpieces.
- Rapid positioning and cutting velocity increases working efficiency for fast cost-recovering.
- Tapping without break with both through-holes and blind-holes.
- Able to tap both vertically and horizontally, ensuring high precision at the same time.
Instructions
- Torsion has been set before leaving the factory, however it must be adjusted after a period of usage or has been used to tap tough materials.
- As torsion collets provide high precision, please use and store carefully.
- When pneumatic motor does not spin: This is usually due to insufficient pneumatic power. Please check whether pneumatic pressure is in the range of 6-8kg/cm².
- When pneumatic motor spins with torsion collet slipping: Material under tapping may be too tough or of high viscosity, please turn up the torsion.
- Machine should be taken care and operated by permanent staff. Stop operating if abnormal noise occurs and deal with malfunctions until it’s back to normal.
*Sizes of the tap collets (ISO standard):
M3 tap: 3.15X2.5; M4 tap: 4X3.15; M5 tap: 5X4; (M6 tap: 6.3X5); M8 tap: 6.3X5; M10 tap: 8X6.3; M12 tap.9X7.1.
Feature
- Tapping for various materials.
- Rapid re-positioning.
- High accuracy thread.
- Increased production capacity.
- Extraordinary load operation, will not damage main motor.
- Adapt to any work environment.
- Through-hole/blind-hole unceasingly tool.
Specifications
- Motor diameter: 38mm
- motor speed: 400RPM

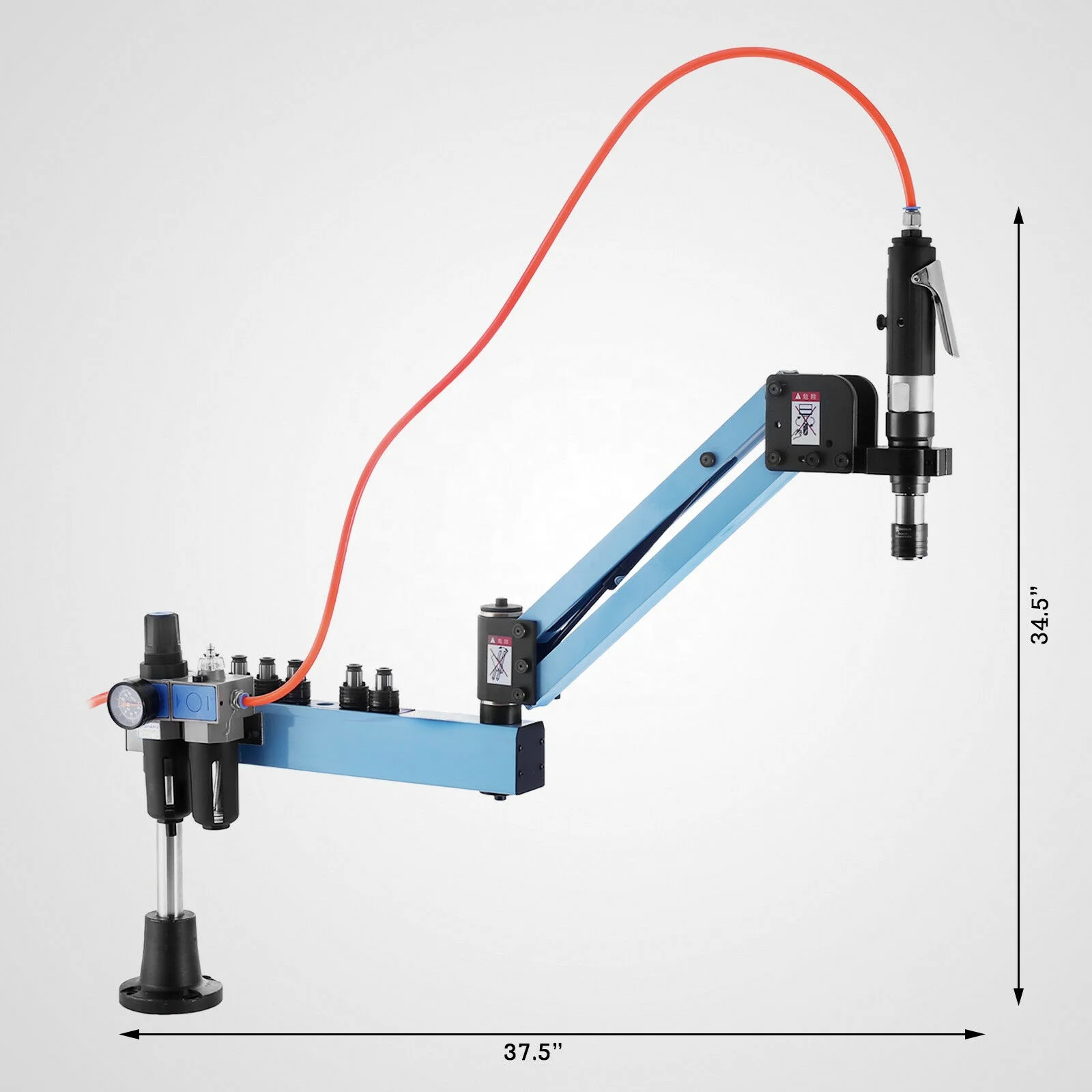

- Working area: Radius 100-1000mm
- Spindle working type: Vertical
- Atmospheric pressure: 6-8kg/cm²
- Gross Weight: 20kg
- Package Dimensions: 620*390*160mm (24"*15"*6")
Package Content
- 1 XTapping Machine (worktable not included)

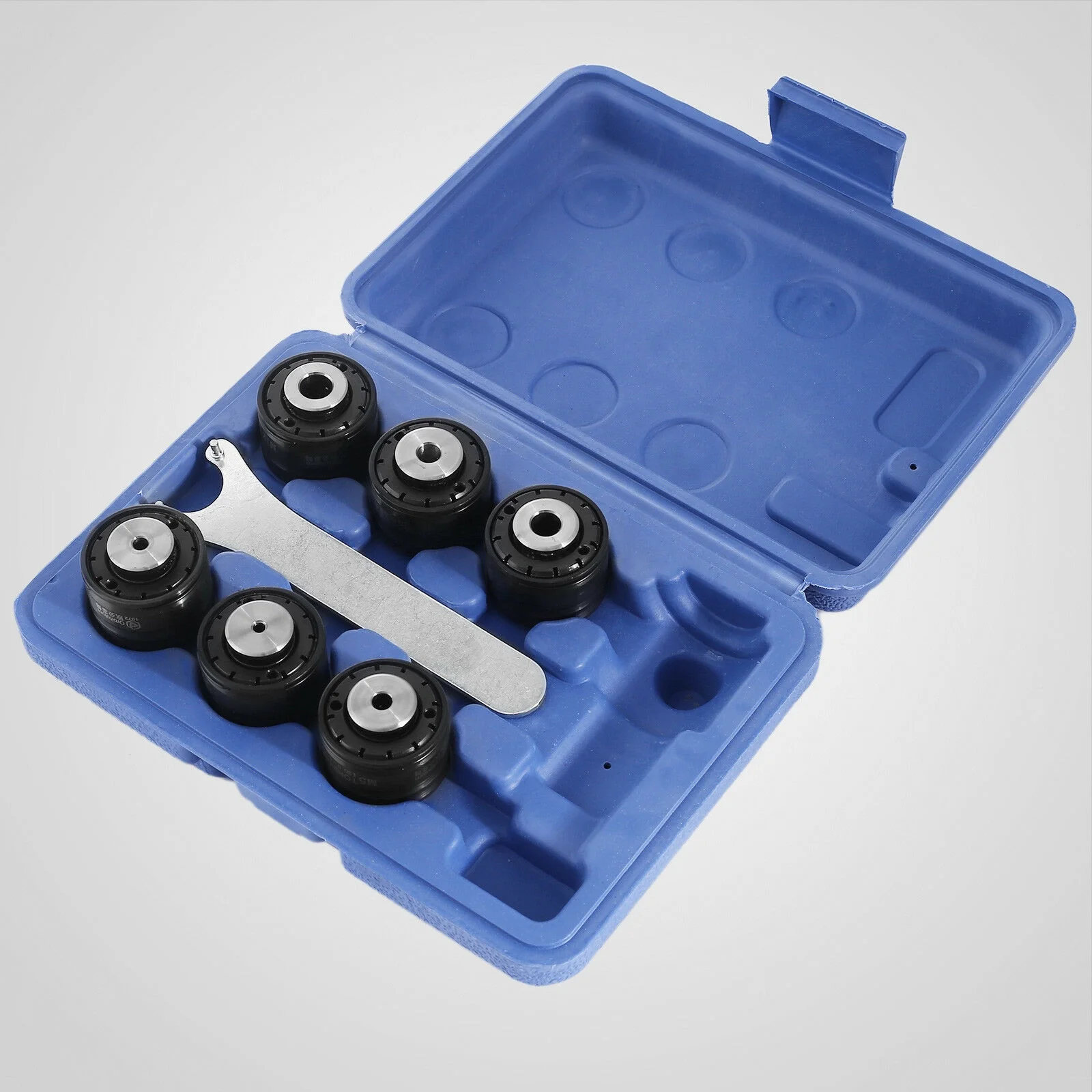

- 6 X Tap Collets: M3, M4, M5, (M6), M8, M10, M12 (extra gift)
- 1 X User Manual
