Машина для экструзии кабеля видеонаблюдения машина производства вспенивающей проволоки линии электрических
- Категория: Cable Manufacturing Equipment >>>
- Поставщик: Dongguan,HOOHA,electrical,machinery,company,limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 157080.85 $* | 164934.24 $* |
| Aug-17-2025 | 155760.76 $* | 163548.8 $* |
| Jul-17-2025 | 130680.59 $* | 137214.21 $* |
| Jun-17-2025 | 153120.97 $* | 160776.65 $* |
| May-17-2025 | 133320.1 $* | 139986.73 $* |
| Apr-17-2025 | 150480.39 $* | 158004.98 $* |
| Mar-17-2025 | 149160.43 $* | 156618.66 $* |
| Feb-17-2025 | 147840.46 $* | 155232.99 $* |
| Jan-17-2025 | 146520.63 $* | 153846.46 $* |
Характеристики
Introduction

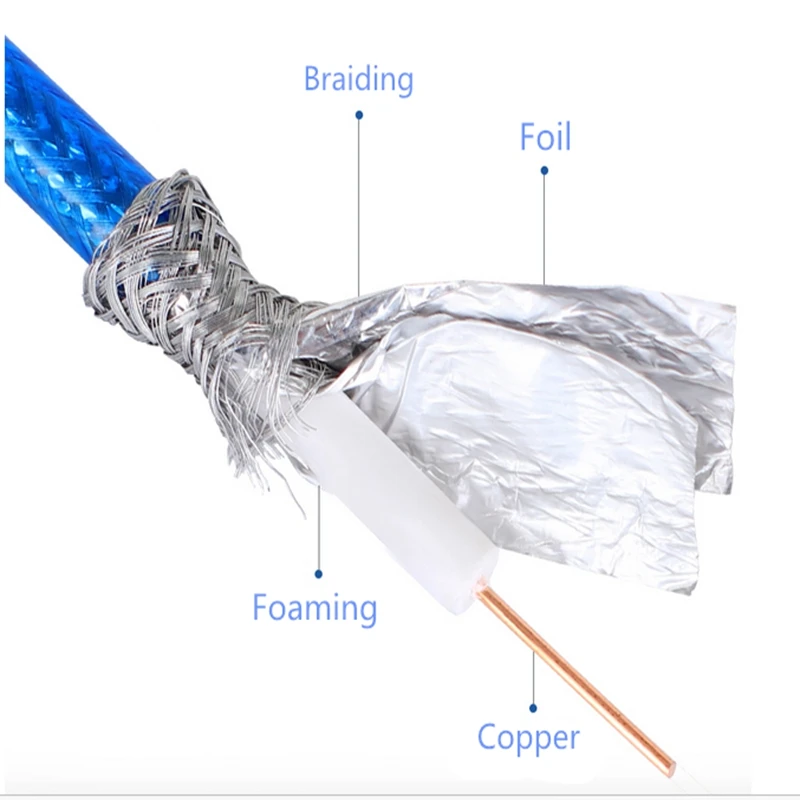

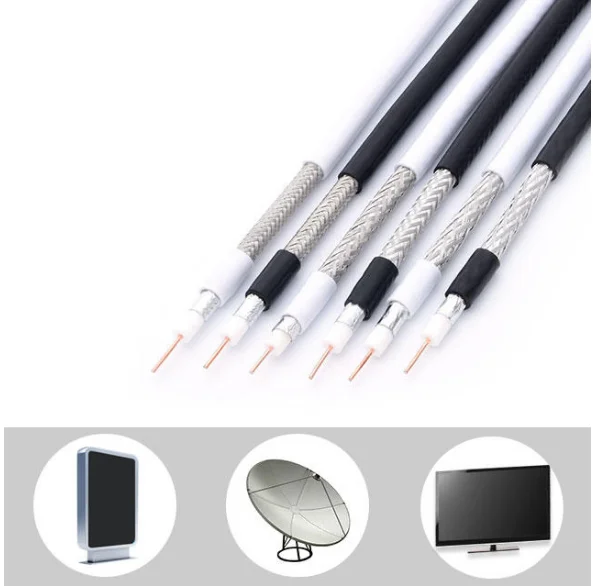

The central conductor of the cable is BC. BC stands for Bare Copper wire. And it also can be CCS. CCS stands for Copper-clad-Steel. BC has a great electric conductivity. It ranks second only to silver. But its price is higher. CCS is relatively cheaper. With the skin effect in high frequency, CCS is used to transmit signals in a coaxial cable. (Such as the
connection between TV and VCD, outdoor antenna and CCTV, etc.)So compared to the hard wire, copper wire has greater strength of
the expansion. It also can be used as the aerial cable over long stances in the high mountains or across the rivers.
connection between TV and VCD, outdoor antenna and CCTV, etc.)So compared to the hard wire, copper wire has greater strength of
the expansion. It also can be used as the aerial cable over long stances in the high mountains or across the rivers.
INSULATION --- FOAM PE

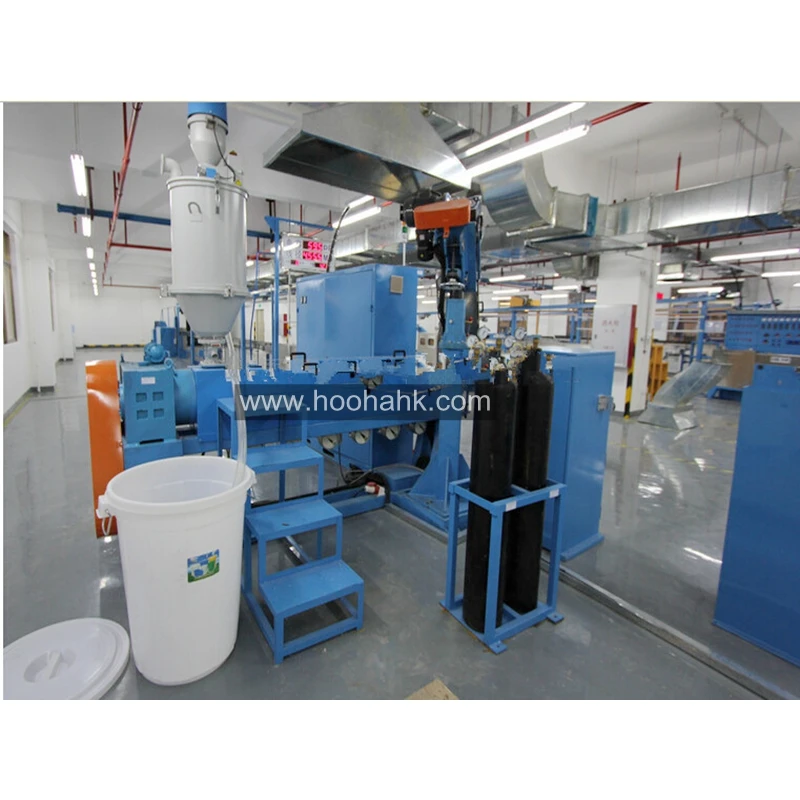

Physical Foaming → HH-E-65+35 Physical Foaming Two Layer Co-extrusion Machine

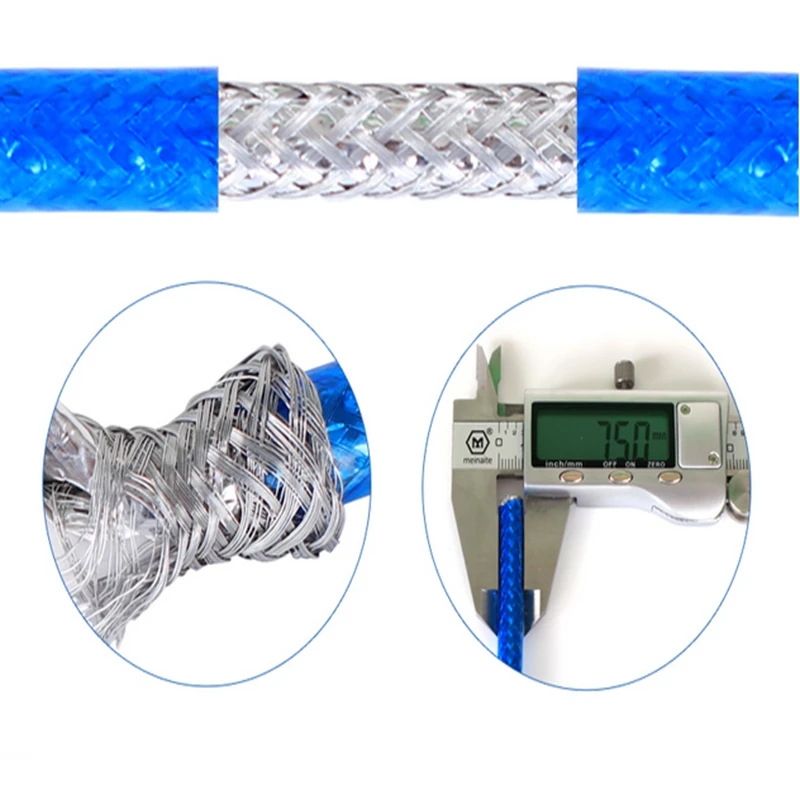

Braiding
1.There are three types of shielding.The first one is the standard shielding. The structure is single-sided APC(Aluminum-plastic composite) tape plus braiding.
2.Then the second one is the triple-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape. Lastly the third one is the four-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape plus braiding.
3.The shield can help to reduce signal interference. It can prevent the outside condition from affecting the transmission. Likewise, it can prevent the transmission from affecting the outside condition.
4.The shielding also serves as an outer conductor. The greater thickness and higher density of shielding is, the higher strength of protection will be.The materials of the shielding are various. They include aluminum-polymer taped wrapping, copper braiding, copper taped wrapping,etc. So far coaxial cables have adopted the braiding of Al-Mg Alloy Wire. So they can increase the strength and reduce cost. The copper wire and copper-clad aluminum wire are a bit expensive. Thus, its usage number isn’t large.
2.Then the second one is the triple-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape. Lastly the third one is the four-layer shielding. The structure is single-sided APC tape plus braiding plus double-sided APC tape plus braiding.
3.The shield can help to reduce signal interference. It can prevent the outside condition from affecting the transmission. Likewise, it can prevent the transmission from affecting the outside condition.
4.The shielding also serves as an outer conductor. The greater thickness and higher density of shielding is, the higher strength of protection will be.The materials of the shielding are various. They include aluminum-polymer taped wrapping, copper braiding, copper taped wrapping,etc. So far coaxial cables have adopted the braiding of Al-Mg Alloy Wire. So they can increase the strength and reduce cost. The copper wire and copper-clad aluminum wire are a bit expensive. Thus, its usage number isn’t large.
JACKET--- PVC SHEATH

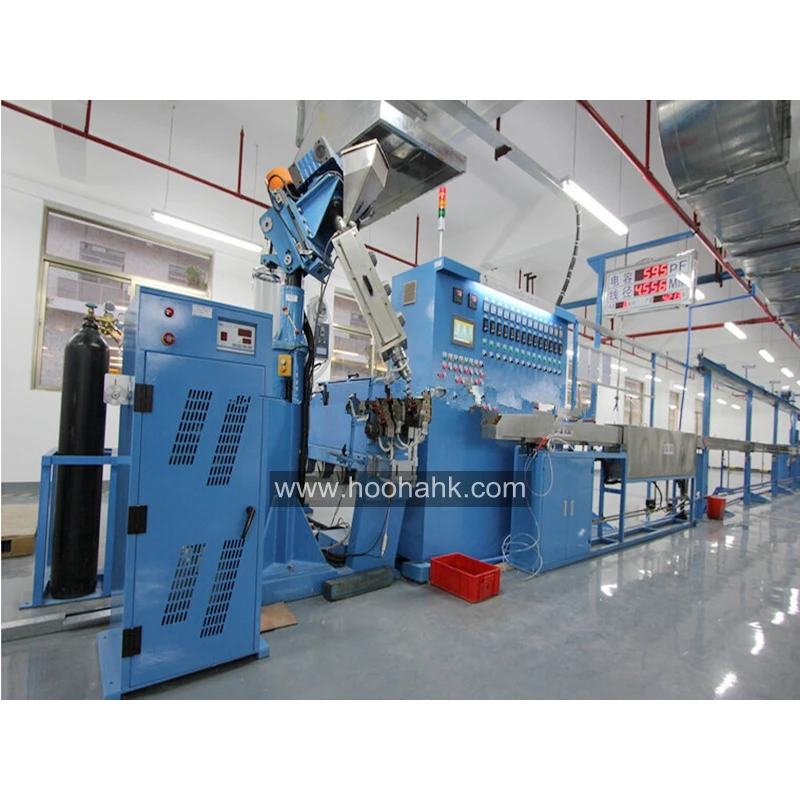

70/80 PVC SHEATHING MACHINE
CONSISTING COMPONENTS
Magnetic Power Tension Pay Off
2. Dancer / straigter
3. Main extruder
4. Automated loader & dryer
5. Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer(selectable)
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. PLC Master control Panel
Magnetic Power Tension Pay Off
2. Dancer / straigter
3. Main extruder
4. Automated loader & dryer
5. Crosshead
6. Single /Double layer Moving trough
7. Main cooling trough
8. Water wiper
9. Digital Diameter controller
10. Mark printer(selectable)
11. Accumulator
12. Capstan
13.15KV Spark tester
14. Meter counter
15. Dual shaft type Take up
16. PLC Master control Panel
Mr Bi
Senior power cable engineer for more than 40 years
Mr Liu
Extrusion machine operator for more than 15 years
Mr Chen
Network cable engineer from machine to material for more than 15 years
FAST ANSWER QUESTIONS :
Q1:What is your main brand for the electrical and mechanical parts?
A:China famous brand and taiwan brand.
Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like
Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge
Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge
Q5:Could you do the design for the whole plant
A: Yes , we can.
Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .
Q7:What's the payment terms?
A:T/T,50% deposit and 50% balance before delivery
Q8:How long the guarantee?
A: one year and charge for repair the whole life.
Q9: Do you have a video tips for the machine running?
A. Yes,we have,our youtube channel : tiezhong chi / hooha co.,ltd
A:China famous brand and taiwan brand.
Q2:Could we appoint the parts brand?
A: Yes,SIEMENS, Danfoss,Yaskawa, or theirs that you like
Q3:Could you please arrange the installation and commissioning?
A: Yes,we could and the buyer pay the charge
Q4:Could you arrange the production education?
A:Yes,we could and the buyer pay the charge
Q5:Could you do the design for the whole plant
A: Yes , we can.
Q6:What is the difference with other supplier?
A:What we could offer to other customer is not only the machine itself, also we could offer: factory design, production process design , QC control and education and assist machine and raw material offering .
Q7:What's the payment terms?
A:T/T,50% deposit and 50% balance before delivery
Q8:How long the guarantee?
A: one year and charge for repair the whole life.
Q9: Do you have a video tips for the machine running?
A. Yes,we have,our youtube channel : tiezhong chi / hooha co.,ltd
