Product Overview

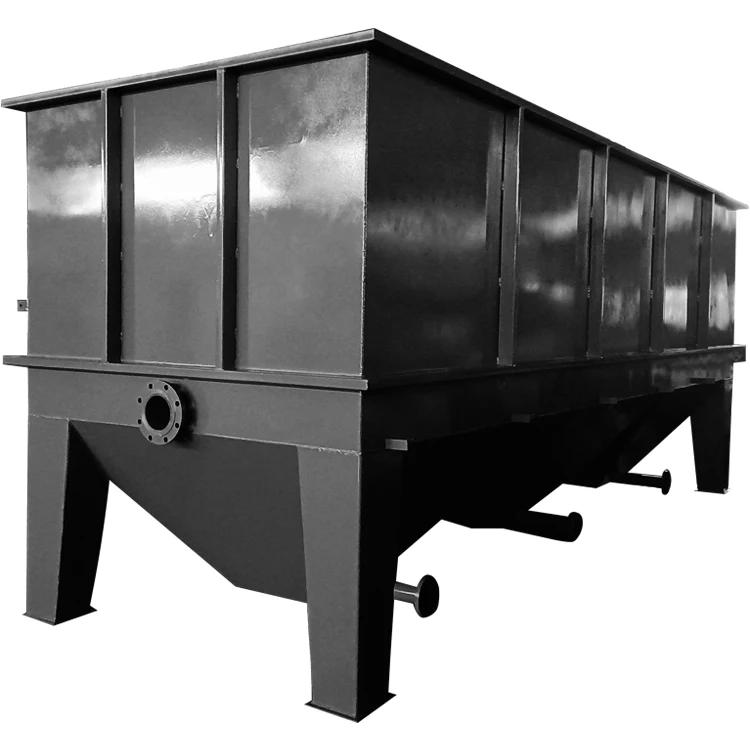

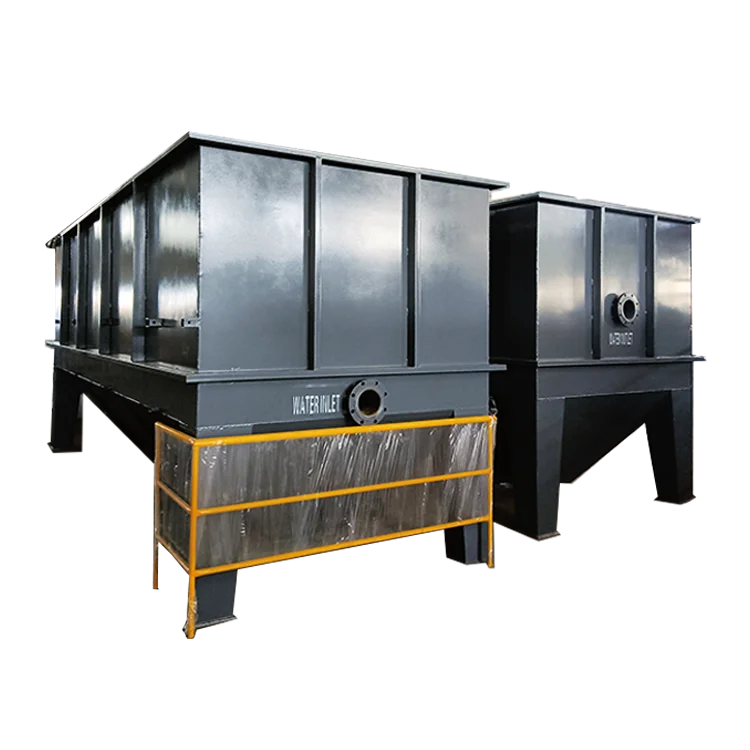

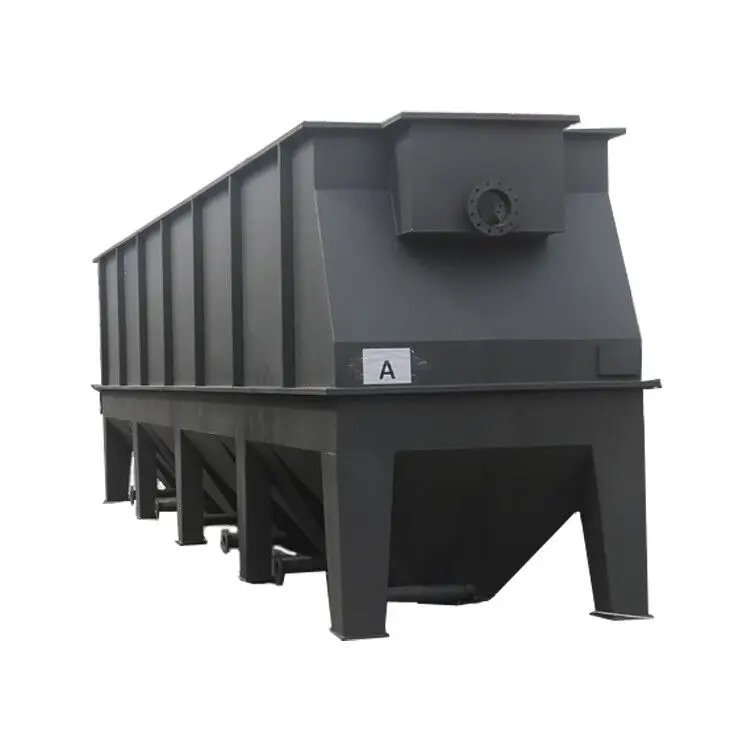

Lamella clarifier
The lamella clarifier also called inclined plate sediment tank, It is kind of high efficient combined type settling tank; set many dense inclined tube packing in sediment area, to make the suspended impurity in water sediment, water rise flow along inclined tube, the separated sludge down to the tank bottom along the inclined tube by gravity, then discharge it in concentration. Such tank can improve sediment efficiency 50~60%, it can improve treatment capacity 3~5 times in the same area. It can design different flow rate inclined plate sediment device according to raw waste water test report, it need dose flocculant usually.
Inclined plate sediment water purifier is format by install 60° dip angle inclined tube above the sludge suspended layer, to make the suspended solids or floc alum flower by dosing flocculant accumulate into thin sludge later in inclined tube downside superficial area, slide back to sludge suspended layer rely on gravity, then settling in sludge collecting hopper, discharge into sludge tank by sludge pipe for separate treatment or comprehensive utilization. The supernatant fluid gradually rise to water collecting pipe discharge or reuse.
Inclined plate sediment water purifier is format by install 60° dip angle inclined tube above the sludge suspended layer, to make the suspended solids or floc alum flower by dosing flocculant accumulate into thin sludge later in inclined tube downside superficial area, slide back to sludge suspended layer rely on gravity, then settling in sludge collecting hopper, discharge into sludge tank by sludge pipe for separate treatment or comprehensive utilization. The supernatant fluid gradually rise to water collecting pipe discharge or reuse.
FEATURES AT A GLANCE
1)Simple structure,without wearing parts,wear well,decrease maintenance
2)Steady operation,easy operation
3)Small power,save energy
4)Small occupy area, low investment, high efficient
5)Short retention time, high sediment efficiency, no sludge backflow.
2)Steady operation,easy operation
3)Small power,save energy
4)Small occupy area, low investment, high efficient
5)Short retention time, high sediment efficiency, no sludge backflow.
Right elevation
Left elevation
Front elevation
PRODUCT SPECIFICATIONS
Model | YMXG-5 | YMXG-10 | YMXG-20 | YMXG-30 | YMXG-40 | YMXG-50 | YMXG-60 |
Flow rate(m3/h) | 5 | 10 | 20 | 30 | 40 | 50 | 60 |
Size(m) | 3.8*2*2.2 | 4.6*2*2.2 | 5.6*2*2.2 | 6.5*2*2.2 | 8.0*2*2.2 | 9.6*2*2.2 | 11.6*2*2.2 |
We can customize according to wastewater flow rate and quality.
PRODUCT CONFIGURATION
Lamella media
Electric valve
dosing system
SALES AND SERVICE NETWORK

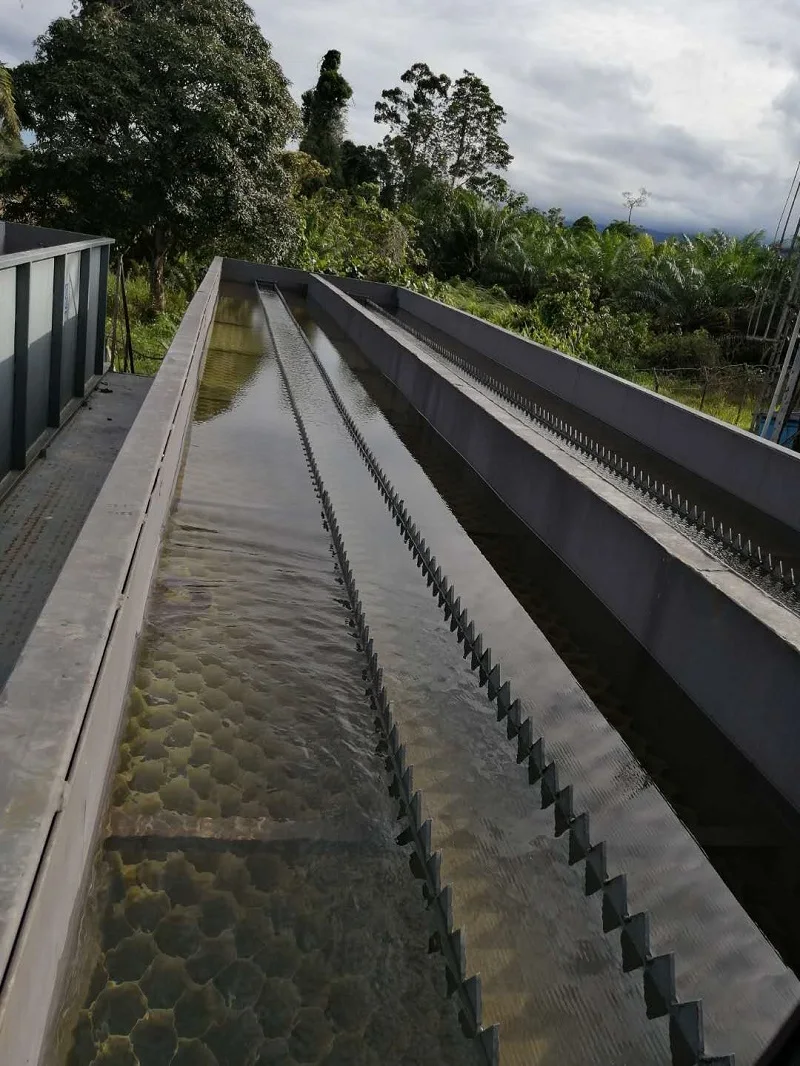

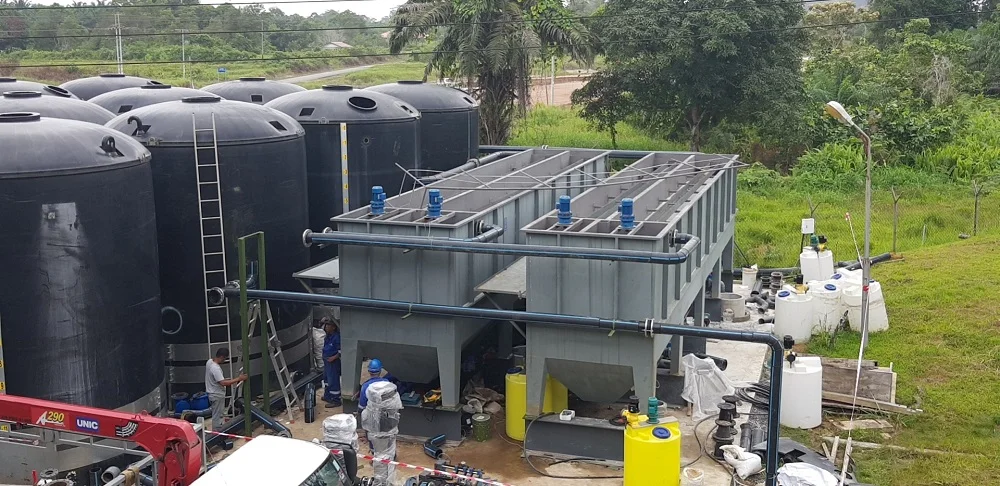

Successful Project
Project in Malaysia
Project in Indonesia
Project in Chile

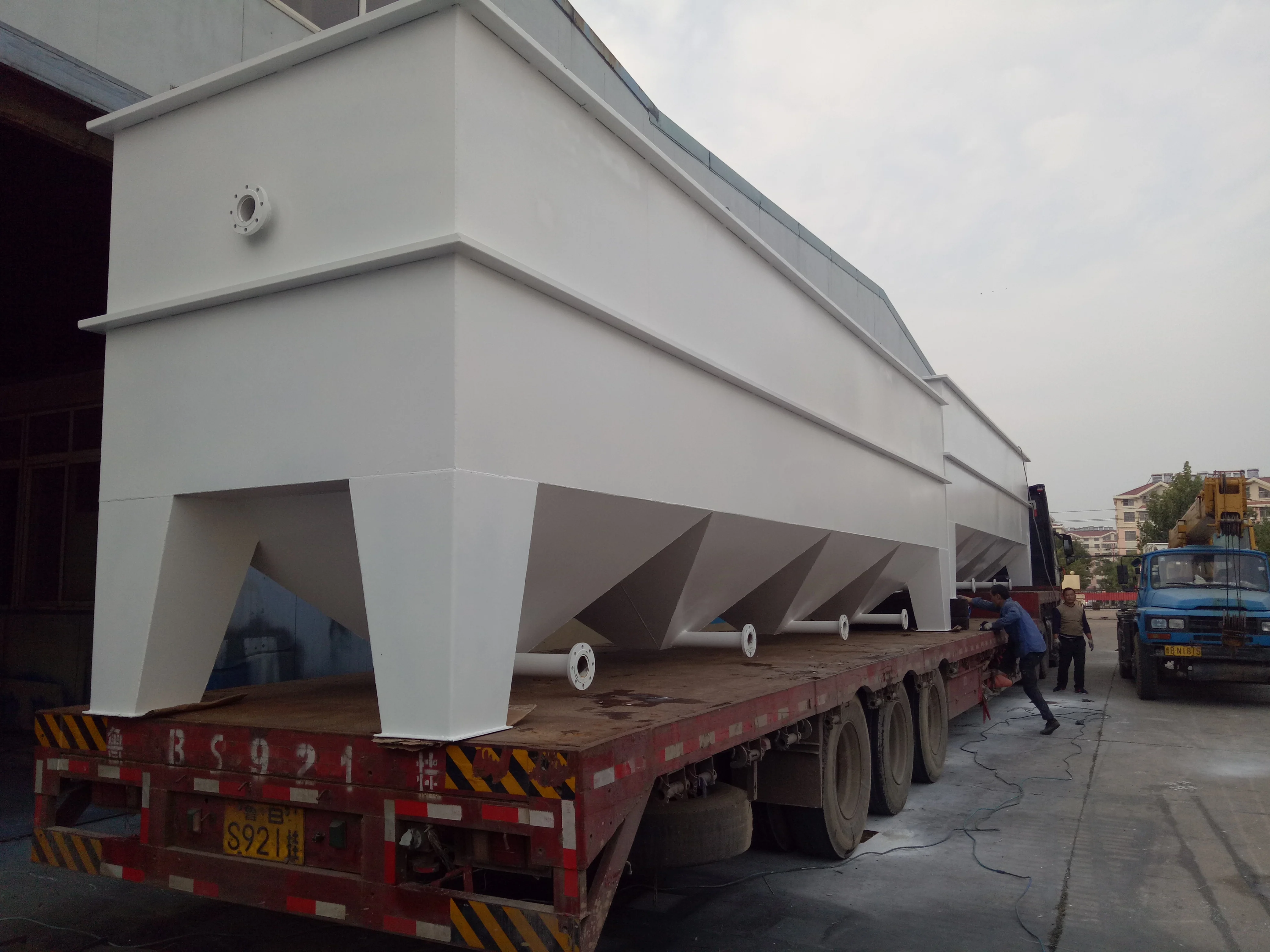

Package and Shipping
FAQ
