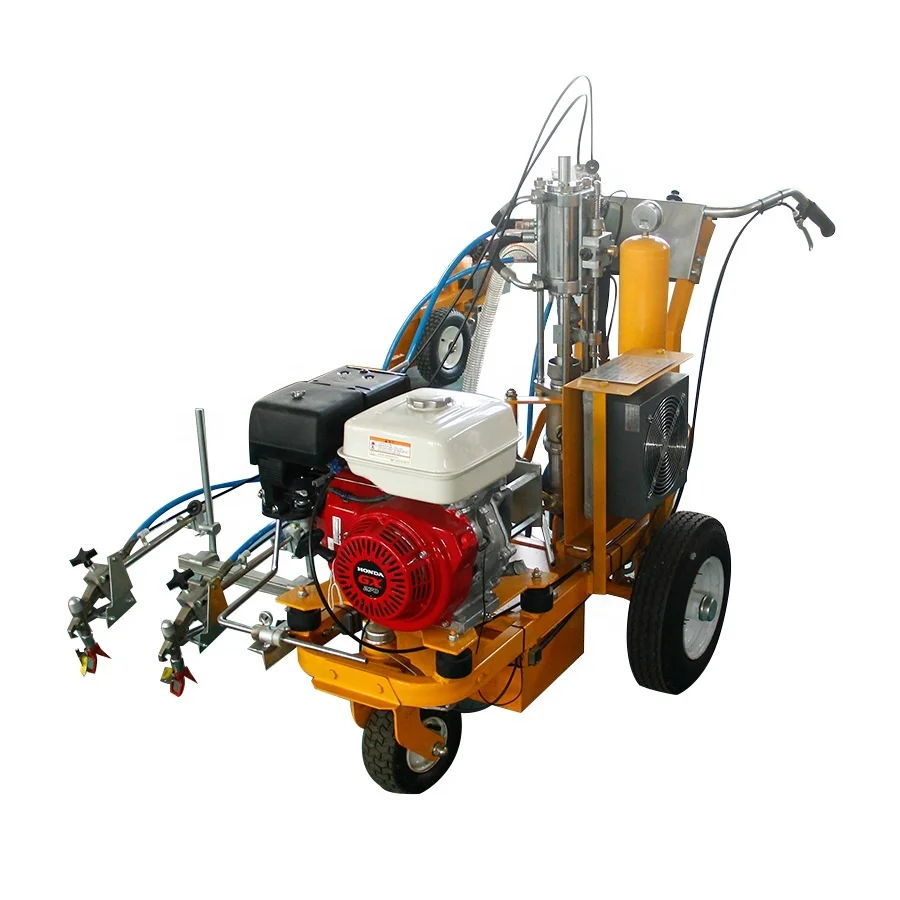

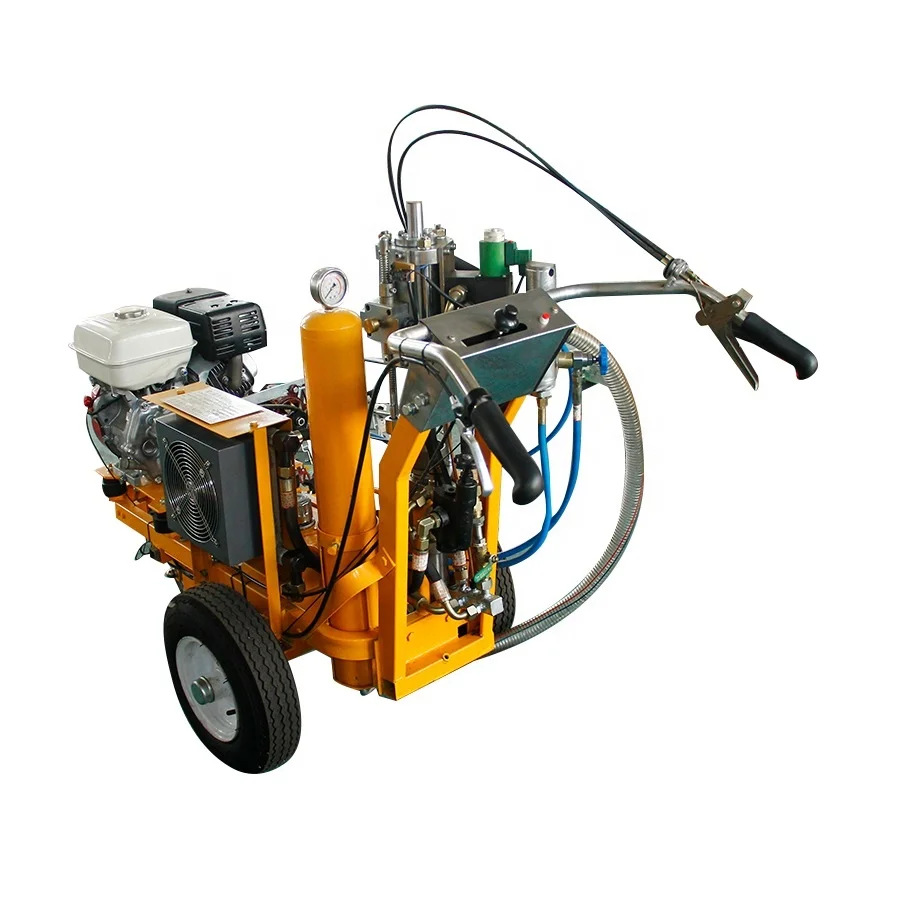

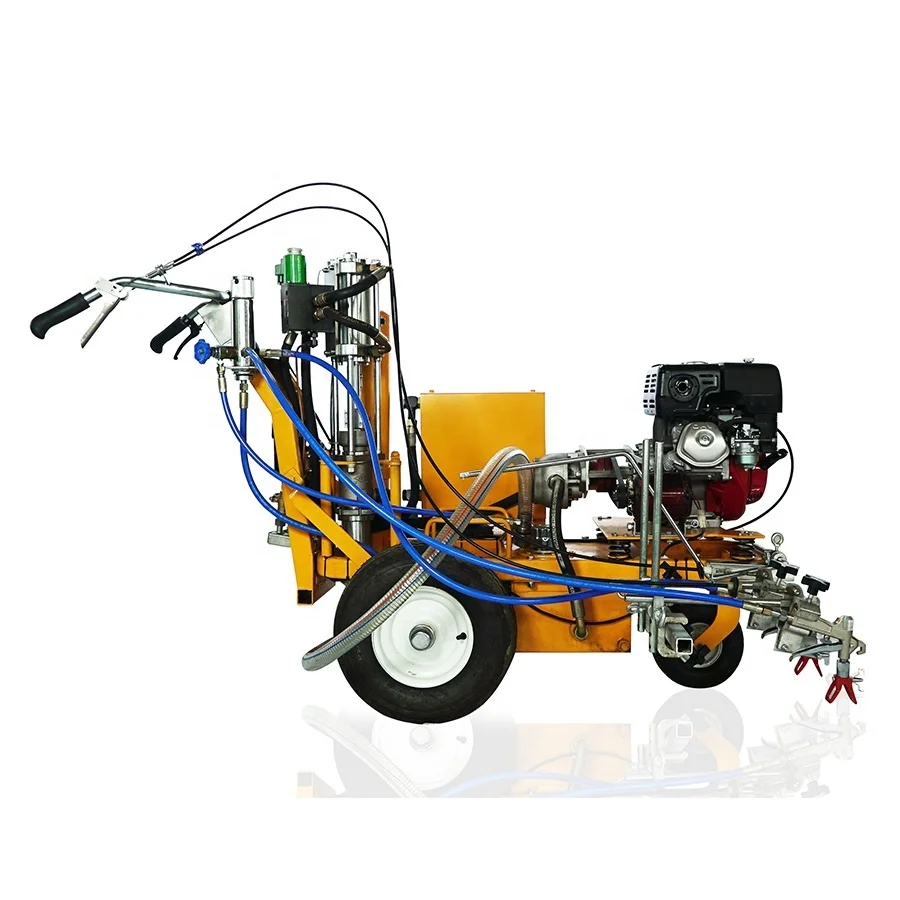

Hot selling product road strip line painters marking machine spray

It is special equipment to normal temperature paint construction.
It is suitable for roads, highway, parking lot,airport, station.it can mark a straight line, dotted line, curve, zebra
crossing,arrows, etc.
It is the spray equipment with high pressure,equal discharge and airless.
It use gasoline engine to drive single plunger pump to work, which can generate high pressure inside the machine.
The spray lines are common in thickness and angles are clear. Because of the direction bar in the spraying gun, the line can be adjusted to certain width conveniently.
Equipped with the computer line controller, the space between dotted lines can be changed according to the project requirements.

Engine

9HP gasoline engine

Work pressure

10-18Mpa

Max Flow

18L/min

Spraying width

0-300mm(single gun)

0-600mm(double gun)

Spraying thickness

0.2-0.4mm

Size and Weight

1800×1020×1100mm 180kg
