Road playground hot-melt marking machine self-propelled road surface

Road playground hot-melt marking machine self-propelled road surface

Категория: Road Marking Machines >>>
Поставщик: Shandong,China,Coal,Industrial,&,Mining,Supplies,Group,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-19-2025	0.46 $*	0.68 $*
Aug-19-2025	0.80 $*	0.74 $*
Jul-19-2025	0.10 $*	0.58 $*
Jun-19-2025	0.99 $*	0.98 $*
May-19-2025	0.80 $*	0.81 $*
Apr-19-2025	0.87 $*	0.58 $*
Mar-19-2025	0.98 $*	0.86 $*
Feb-19-2025	0.18 $*	0.32 $*
Jan-19-2025	0.21 $*	0.14 $*

Характеристики

Product Description

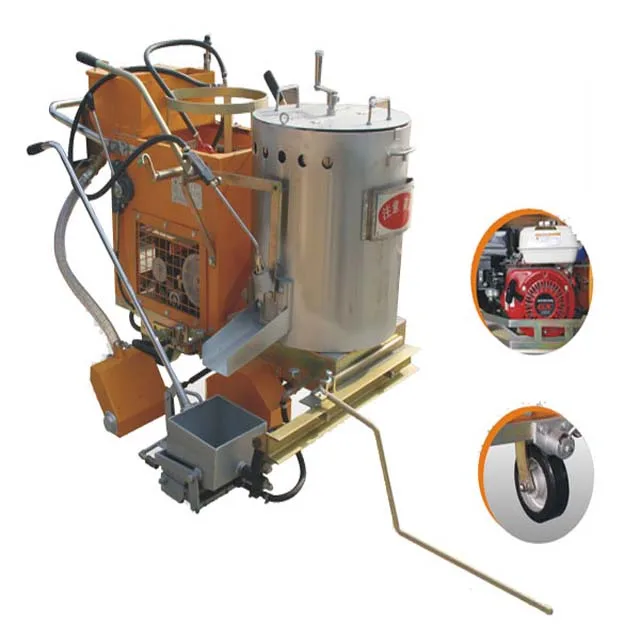

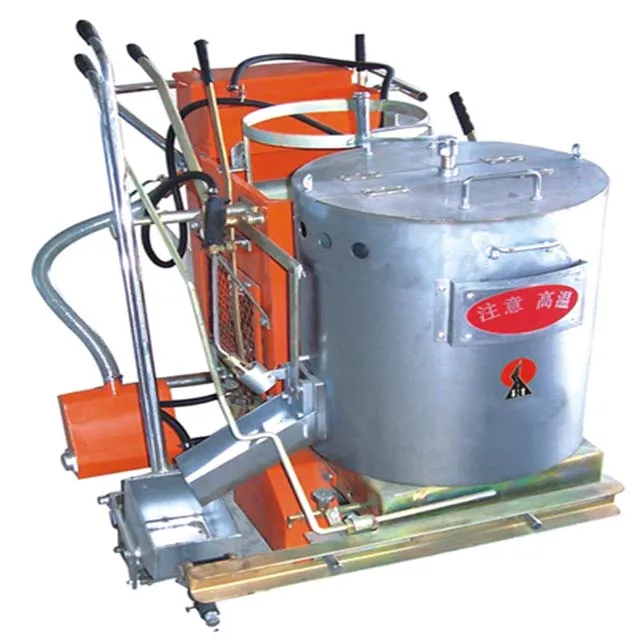

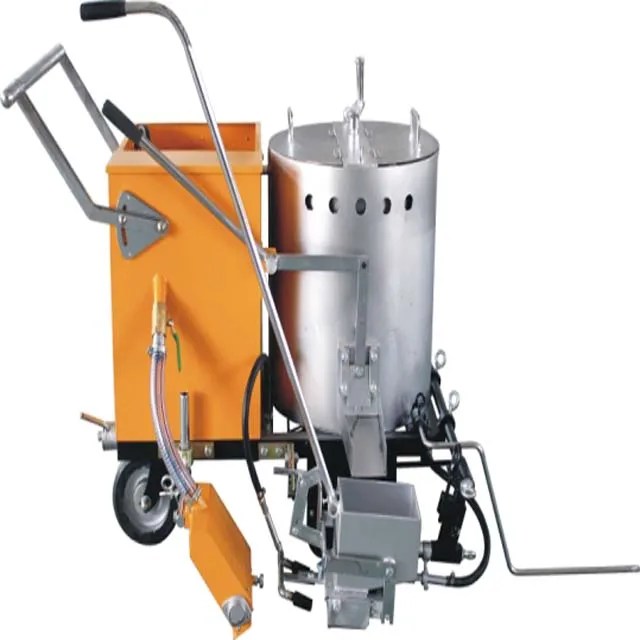

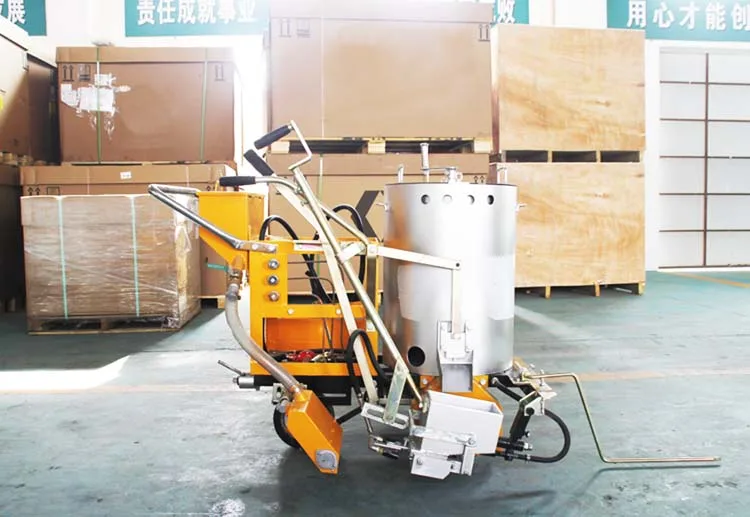

The ZM320 self-propelled hot-melt marking machine is equipped with a stepless variable speed walking system that can move forward and backward freely, which greatly improves the construction efficiency and is suitable for sloped hot-melt construction roads. Cooperate with the hot melt kettle to complete the difficult marking construction. The equipment uses a specially manufactured high-precision cast iron marking bucket to ensure the road surface is marked. The glass bead spreader is equipped with a speed control Buffer device. The marked lines have high construction quality, fast speed, flexible operation and easy maintenance.

Specification

Model	LXD320
engine	Japan Honda 5.5HP Liquefied Engine
Paint bucket	Double-layer stainless steel heat preservation and heating barrel, capacity 120kg, plug in manual stirring device, detachable device.
Glass beads storage box	10kg/box
Paint bucket width	It can be replaced according to engineering needs (50/100/150/200/300/400/ 450mm> Width, thickness can reach range 1.2-2.5mm
Walking speed	More than 400m/h
Crossing bucket	Made of high-precision ultra-thin material, the bottom knife used is wear-resistant, anti-deformation, anti-oxidation,The scraper structure ensures that the marking lines are neat, the head is uniform, and the thickness is uniform.
Maximum climb	15 degrees
Rubber wheel	Specially made rubber wheels for wear resistance and heat resistance, the rear tail wheel is equipped with a locator to ensure that the car.The body is oriented in a straight line or steered in a curve. "
Heating method	A 15kg liquefied petroleum gas tank supplies gas to the built-in heater of the paint bucket, the front and rear burners of the marking bucket and the external ignition gun, respectively, and the fire power is controlled by the ignition gun.
