Цифровой rs485 modbus мультипараметрический монитор аквакультура система мониторинга


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.94 $* 0.35 $*
Aug-18-2025 0.22 $* 0.57 $*
Jul-18-2025 0.94 $* 0.78 $*
Jun-18-2025 0.78 $* 0.28 $*
May-18-2025 0.94 $* 0.67 $*
Apr-18-2025 0.95 $* 0.84 $*
Mar-18-2025 0.54 $* 0.50 $*
Feb-18-2025 0.41 $* 0.64 $*
Jan-18-2025 0.45 $* 0.46 $*

Характеристики



Indusrty Digital multi parameter PH Ammonia NH3 NH4 Nitrate NO3 Dissolved Oxygen Sensor Water Quality Analyzer For Hydroponic





multi-parameter online analyzer: multi-parameter Online analyzer can simultaneously measure: conductivity, TDS, resistivity,
temperature, pH, ORP, dissolved oxygen, oxygen saturation, chlorine, total of nine parameters. The channels are
independent, non-switch conversion, without disturbing each other.

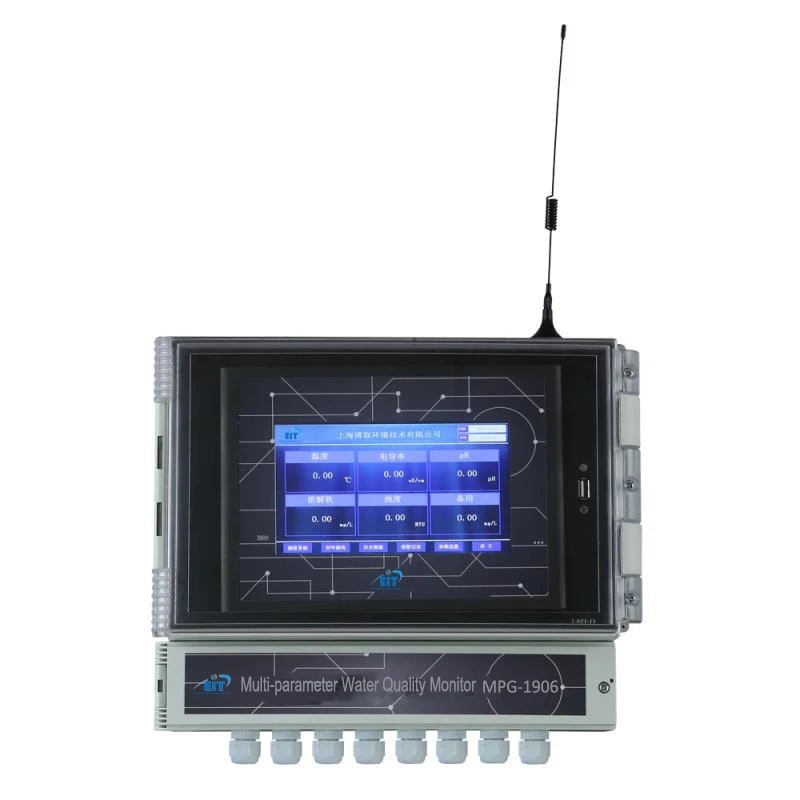

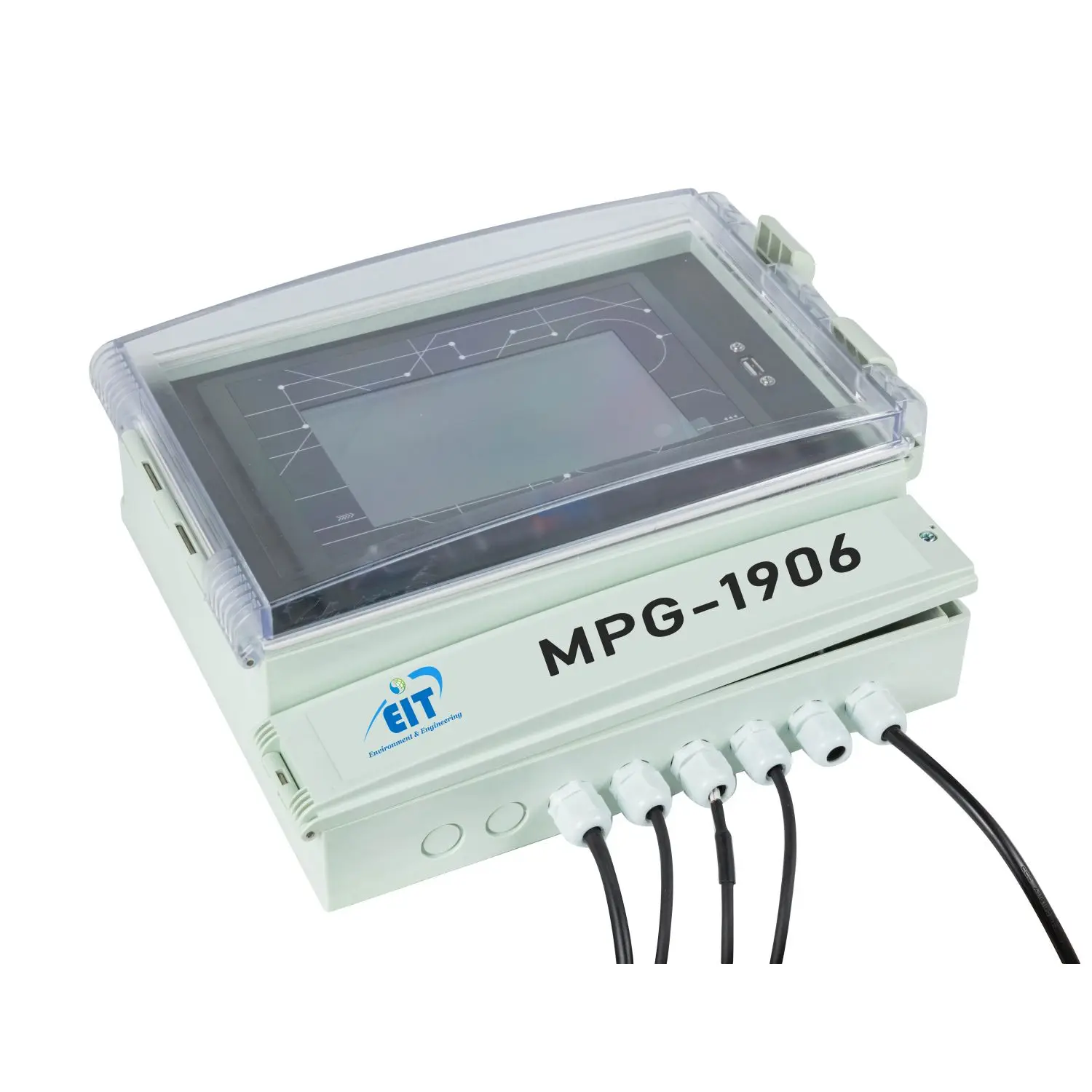

Introduction of MPG-1906 Multi-parameters Water Quality Meter


1) The MPG-1906 multiparameter water quality meter is new generation water quality analyzer developed by EIT Solutions.
2) It can be designed to measure different water quality parameters as customers need,
3) such as pH,ORP,Dissolved oxygen,Turbidity,TSS(MLSS),COD,Ammonia nitrogen(NH3-N),BOD,Color,Hardness,Conductivity,Ammonium(NH4+),Nitrate(NO3-),(NO3-N) etc.


2


Technical Features of Multi-parameters Water Quality Meter


1)Real-time water quality measurement.
2)All water quality sensor is RS485 Modbus ensure precision to collect data.
3)Easy operation,all operation will will in one touch screen.
4)Datalogger function,all measured data will be recorded.
5)Download,MPG-1906 multi-parameters water quality meter is with USB interface, user can download report by excel type.
6)Wireless function for operation,users only need insert local SIM card,then they can check all data on mobile App or website.


MPG 6099-5_.jpg














Technical Parameters

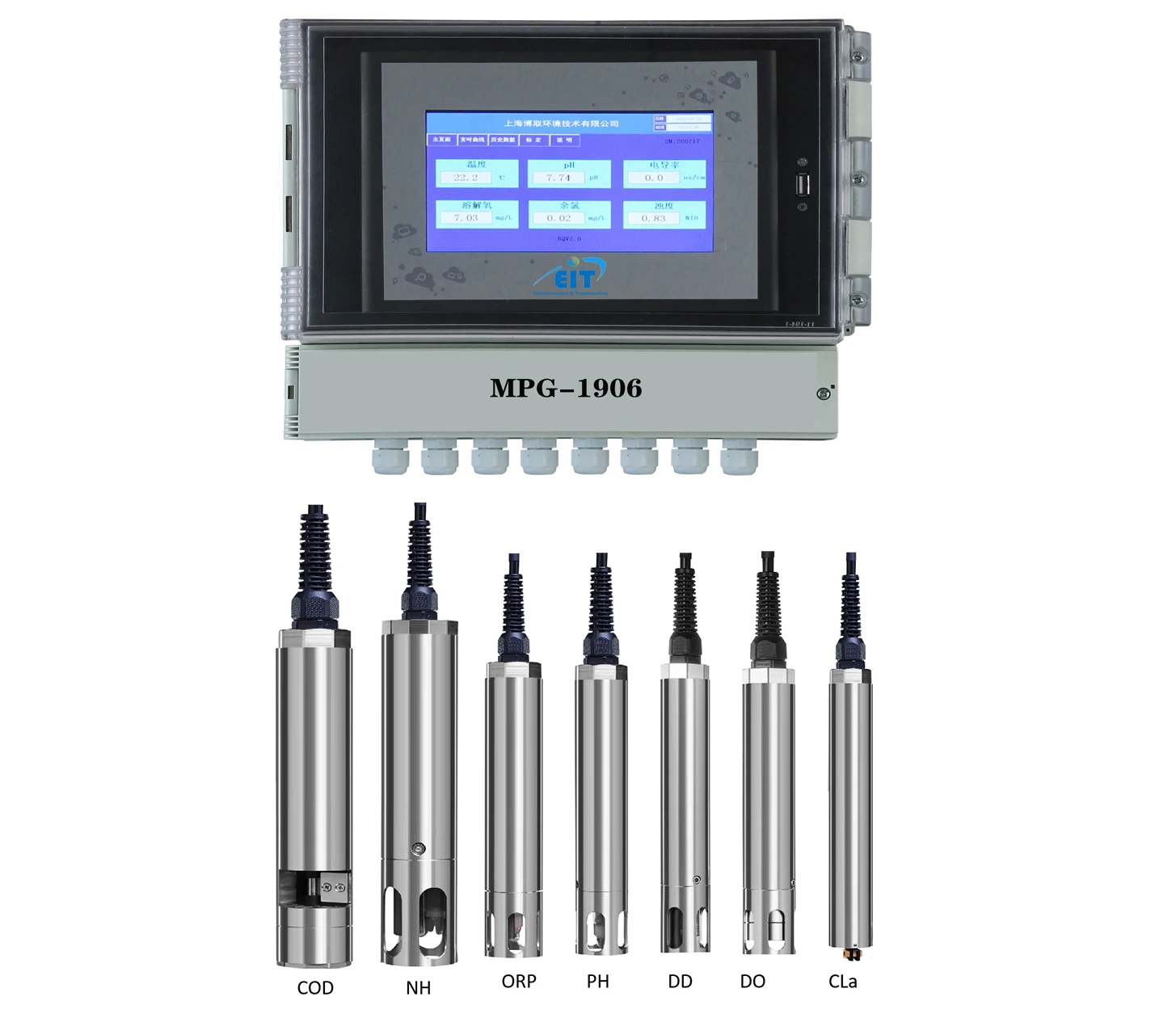

Standard Electrode Parameters
































































































































Depth (Pressure)



Principle



Pressure-sensitive Method



Range



0-61m(Maximum withstand pressure depth: 30M)



Resolution



2cm



Accuracy



±0.3%



Temperature



Principle



Thermistor method



Range



0ºC~50ºC



Resolution



0.01ºC



Accuracy



±0.5ºC



pH sensor



Principle



Glass electrode method



Range



0-14 pH



Resolution



0.01 pH



Accuracy



±0.1 pH



ORP Sensor



Principle



Glass electrode method



Range



-1000mV ~+1000mV



Resolution



0.01mV



Accuracy



±5mV



Conductivity sensor



Principle



A pair of platinum gauze electrode



Range



1us/cm-2000 us/cm(K=1) 100us/cm-100ms/cm(K=10.0)



Resolution



0.1us/cm~0.01ms/cm(Depending on the range)



Accuracy



±3%



Turbidity sensor



Principle



Light scattering method



Range



0-1000NTU



Resolution



0.1NTU



Accuracy



± 5% or 0.3NTU, whichever is greater



DO Probe



Principle



Fluorescence



Range



0 -20 mg/L;0-20 ppm;0-200%



Resolution



0.1%/0.01mg/l



Accuracy



±3% or ±0.3 mg/L, whichever is greater





















































































































Chlorophyll sensorPrincipleFluorescence
Range0-500 ug/L
Resolution0.01 ug/L~0.1 ug/L, Depending on range
Accuracy±5% of the signal level corresponding value of
1ppb Rhodamine WT Dye
Blue-green algae sensorPrincipleFluorescence
Range200-300,000cells/mL
Resolution25cells/mL
Accuracy±10% of the signal level corresponding value
of 1ppb Rhodamine WT Dye
Ammonia nitrogen SensorPrincipleIon selection
Range0.1~100mg/L-N
Resolution0.01mg/L-N
Accuracy±10% or ±2mg/L
Nitrate nitrogen SensorPrincipleIon selection
Range0.5~100mg/L-N
Resolution0.01mg/L-N
Accuracy±10% or ±2mg/L
Chloride SensorPrincipleIon selection
Range3~1000mg/L
Resolution0.01~1mg/L
Accuracy±10% or ±2mg/L
Fluoride SensorPrincipleIon selection
Range0.5~1000mg/L
Resolution0.01~1mg/L
Accuracy±10% or ±2mg/L
















Different Sensor, Different Price, Choose the Model and Contact Suppier For Best Price!






Customer Case




1





Packaging & Shipping




Certifications


.png





Company Information


EIT SOLUTIONS is the biggest factory for Water Analyzer Instrument in Shanghai City China. We build the first High Temp Laboratory in China.and produce more than 100000 sensors and instruments every year.
EIT mainly products includes
Online PH Meter/ORP/pH sensor
Industrial Conductivity meter/sensor
Online Acid/Alkali meter/sensor
Online Dissolved oxygen meter/sensor
Online Turbidity meter/sensor
Online Residual/total chlorine meter/sensor
Online Ion meter/sensor
Online COD/BOD/Heavy metals meter
Flow Meter/Level meter/pressure sensor







Exhibitions


.png








FAQ



Q:Could I visit your factory?
A:Welcome!Our factories are located in Shanghai,China
Q:Tell me about your quality control?
A:Our company owns two factories,12 years' experience in this industry.It is quality and service keeping us stand still.Our QC team check and examine every single instrument strictly before shipping.
Q:Could you provide me the shortest lead time?
A:We have inventory for standard models.Please tell me your detailed requirements,we will send to you as early as we can.
Q:How soon can you arrange the production?
A:Once getting your product confirmation and receiving your payment,we will arrange the production immediately.
Q:What is the warranty for your product?
A:Warranty:1 years;Lifetime maintenance.
