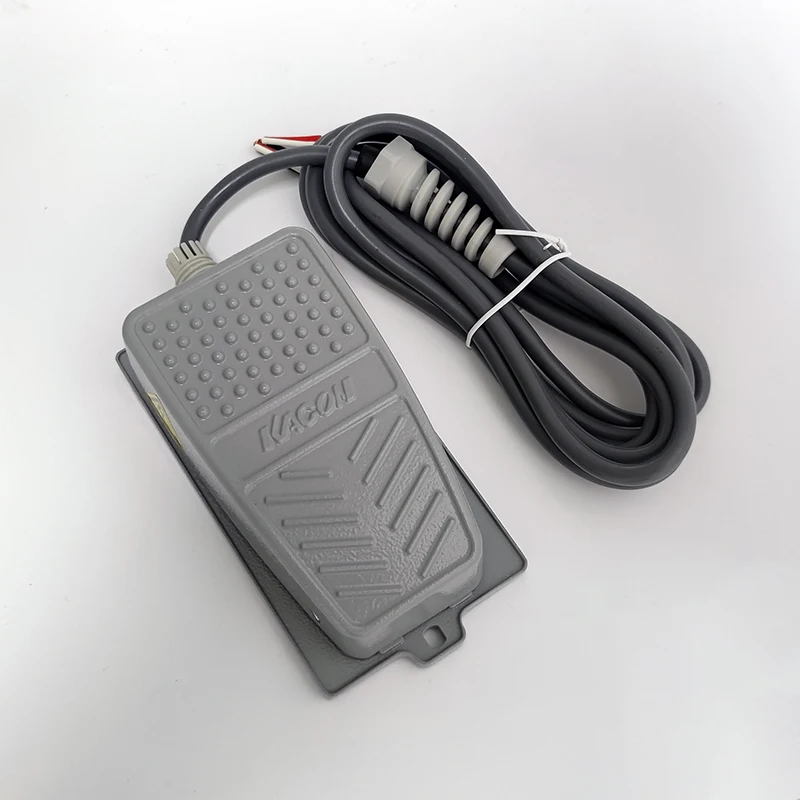

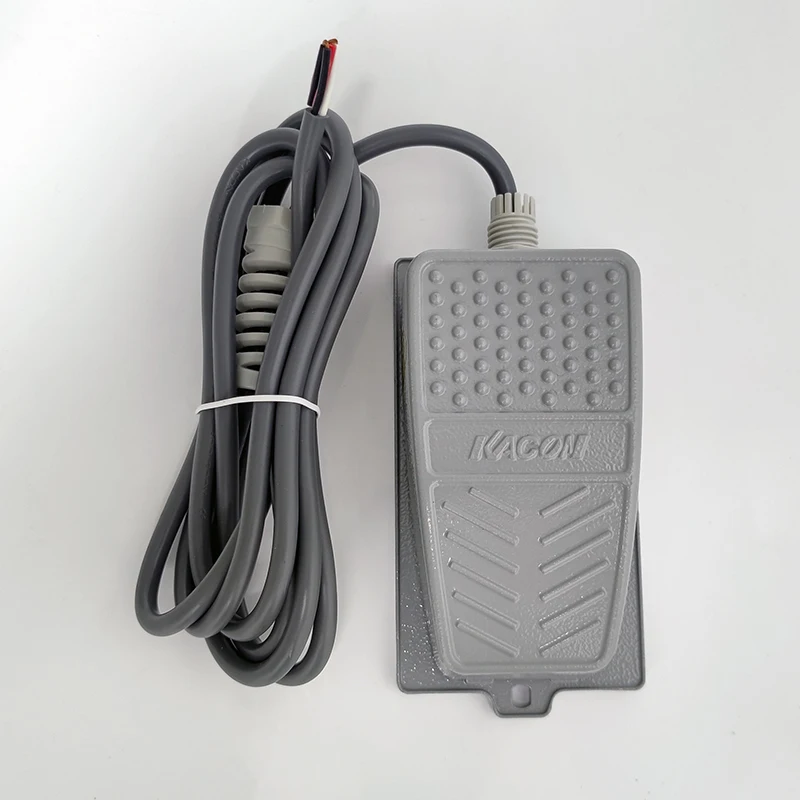

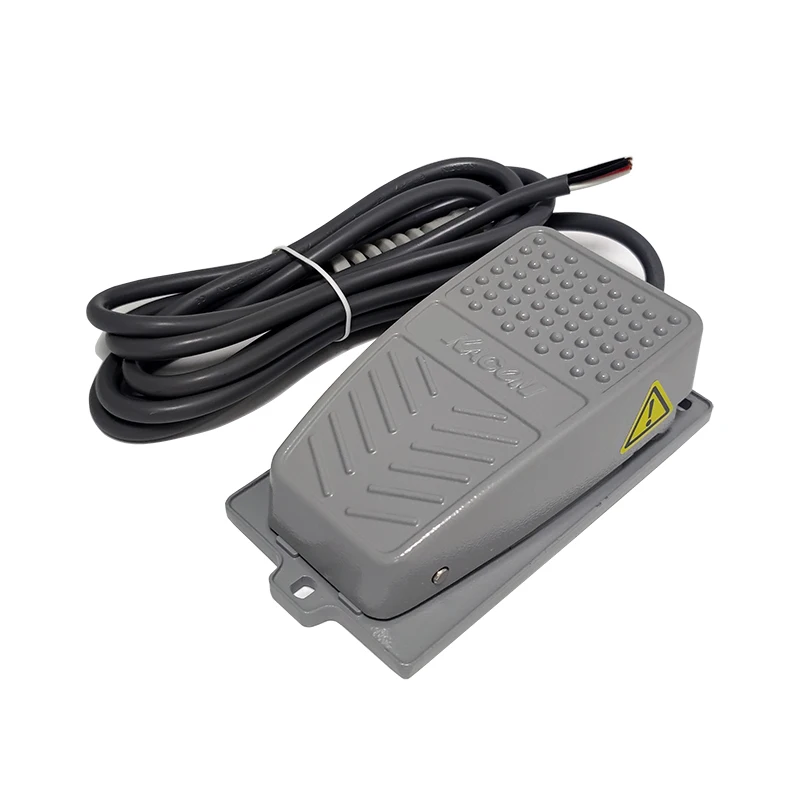

Миниатюрный промышленный алюминиевый Педальный Ножной Переключатель KACON серого цвета с кабелем 2
- Категория: Other Switches >>>
- Поставщик: Yueqing,Cleanlysis,Import,&,Export,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-19-2025 | 6.62 $* | 6.34 $* |
| Jul-19-2025 | 5.84 $* | 5.46 $* |
| Jun-19-2025 | 6.61 $* | 6.2 $* |
| May-19-2025 | 6.80 $* | 6.95 $* |
| Apr-19-2025 | 5.95 $* | 5.54 $* |
| Mar-19-2025 | 6.11 $* | 6.94 $* |
| Feb-19-2025 | 6.76 $* | 6.10 $* |
| Jan-19-2025 | 6.0 $* | 6.86 $* |
Характеристики
Specification

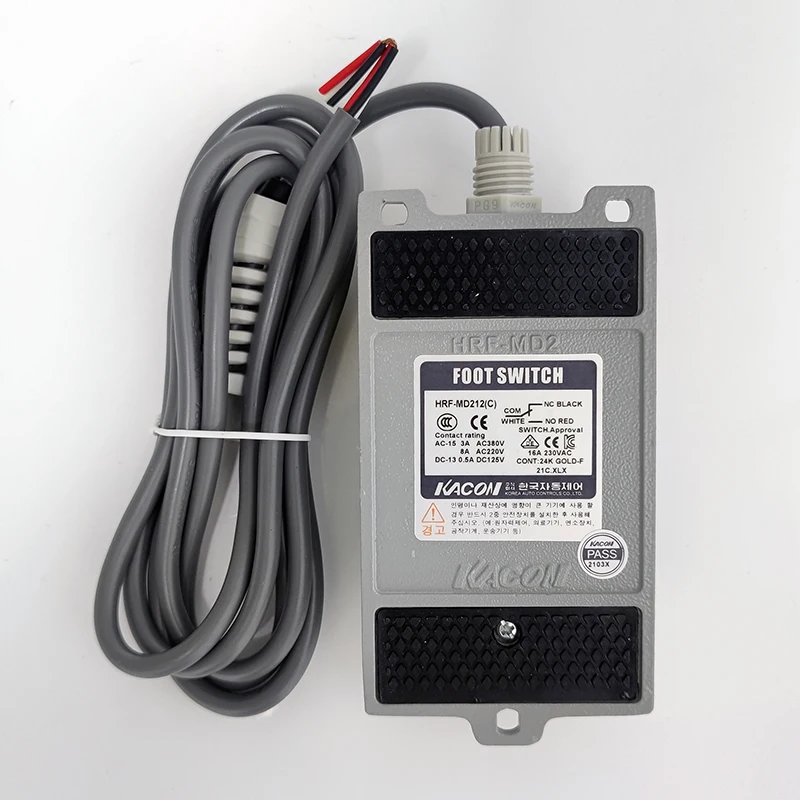

| Part Number | HRF-MD212 |
| Contact Form | 1C(1a+1b) |
| Rated Current | 10A 250VAC |
| Built-in Switch | V15F-01C(CE,UL certified) + 24k gold plate |
| Material | Aluminium Alloy |

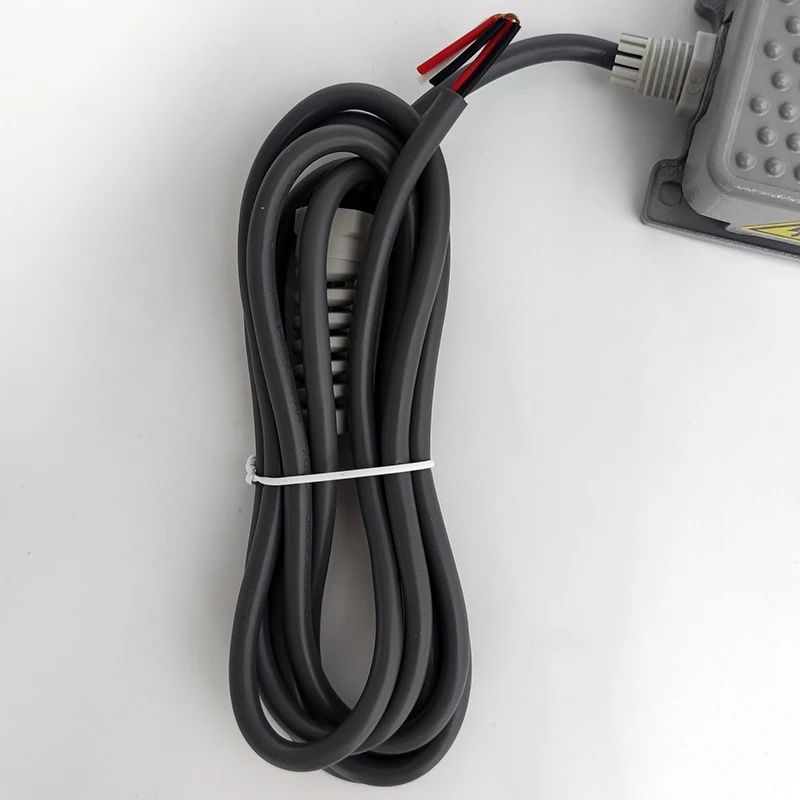

| Cable outlet | 0.5mm² × 3 Wire × 2m |
| Certification | CE, CCC |
| Degree of Protection | IP54 |
| Contact Resistance | <50mΩ |
| Insulation Resistance | above 100mΩ at 500VDC |
| Withstand Voltage | ≥2000VAC(one minute) |
| Mechanical Life | above 106 times |
| Electrical Life | above 105 times |
| Operating Temperature | -25℃ ~ +70℃ |
| Operating Humidity | 45%≤85%RH |
Dimension
Contact Form
Part Number Description
| HRF-HD, MD Series Part Number Description | |||
| HRF- 1, 2, 3, 4 | |||
| 1, Type | M : Medium Duty Type | H : Heavy Duty Type | |
| 2, Material | No mark : Plastic | D : Die-Casting | |
| 3, Safety Cover (H type only) | N : top | NX : top + side | NS : top + side + front |
| LX : top + side + safety kick lever | |||
| 4, Operator Type | No mark : Momentary | 3 : Maintained | |
Company
Yueqing Xijie Electric Co., Ltd. is located in Xinguang Industrial Zone, Liushi town, Wenzhou city, Zhejiang province, China. It's 11 km from the train station, 39 km from the airport.
Main products are industrial relay for auto control, relay socket, time switch, foot switch, AC contactor and so on.
We've got OEM service experience for customers from UK, Germany, Malaysia and so on. MOQ as low as 50 pcs is available for some of our products, such as time switches.
As an officially authorized agent of Korea Kacon Auto Controls Import&Export Co., Ltd, we provide a discount rate of Kacon foot switch, limit switch, micro switch, relay, push button, etc.
