Product Description


Multi-Cartridge Liquid Filter Housing
Liquid filter is an indispensable device in the transmission medium pipeline. It is usually installed at the inlet end of pressure reducing valve, pressure relief valve, fixed water level valve or other equipment to eliminate impurities in the medium and protect the normal use of valves and equipment. When the fluid into a certain specification of the filter cartridge, its impurities are blocked, and clean filtrate is discharged from the filter outlet, when the need to clean, as long as the removable filter cartridge is removed, after processing can be re-loaded, therefore, the use and maintenance is very convenient.



Product Name
Multi-Cartridge Liquid Filter Housing
Material
Stainless steel(ss304   ss316l)
Designed Pressure
10bar / 16bar
Max Temperature
80℃
Inlet/Outlet
Tri-clamp/ Flanged  DN25/DN38/DN50/DN65
Filter Cartridge
PP/PES/PTFE/PVDF
Length
10 inches /  20 inches  / 30 inches / 40 inches
Filter Number
3-round
Surface Treatment
Mechanical polishing /Sandblasting
Interface
226/222
Polishing Type
Mirror polishing, electrolytic polishing

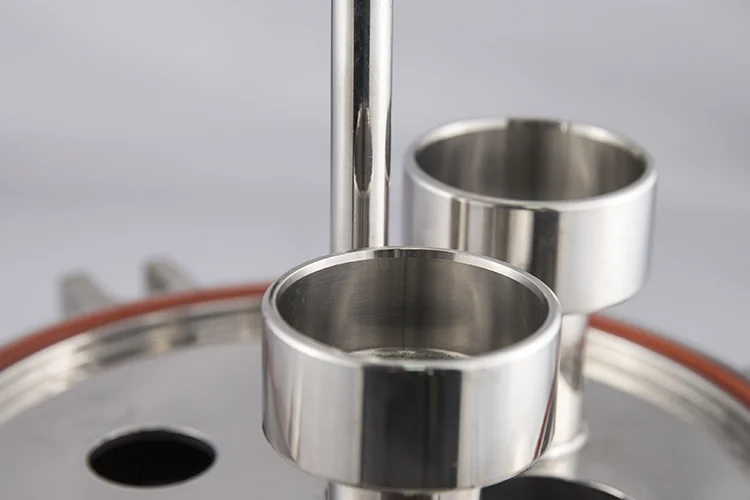

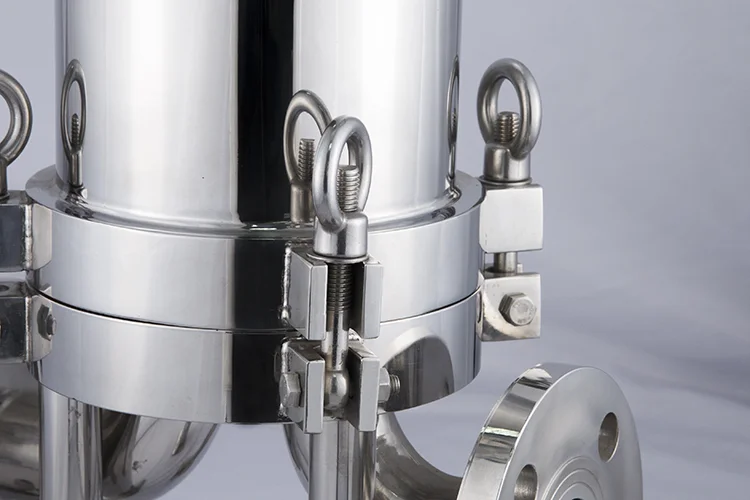

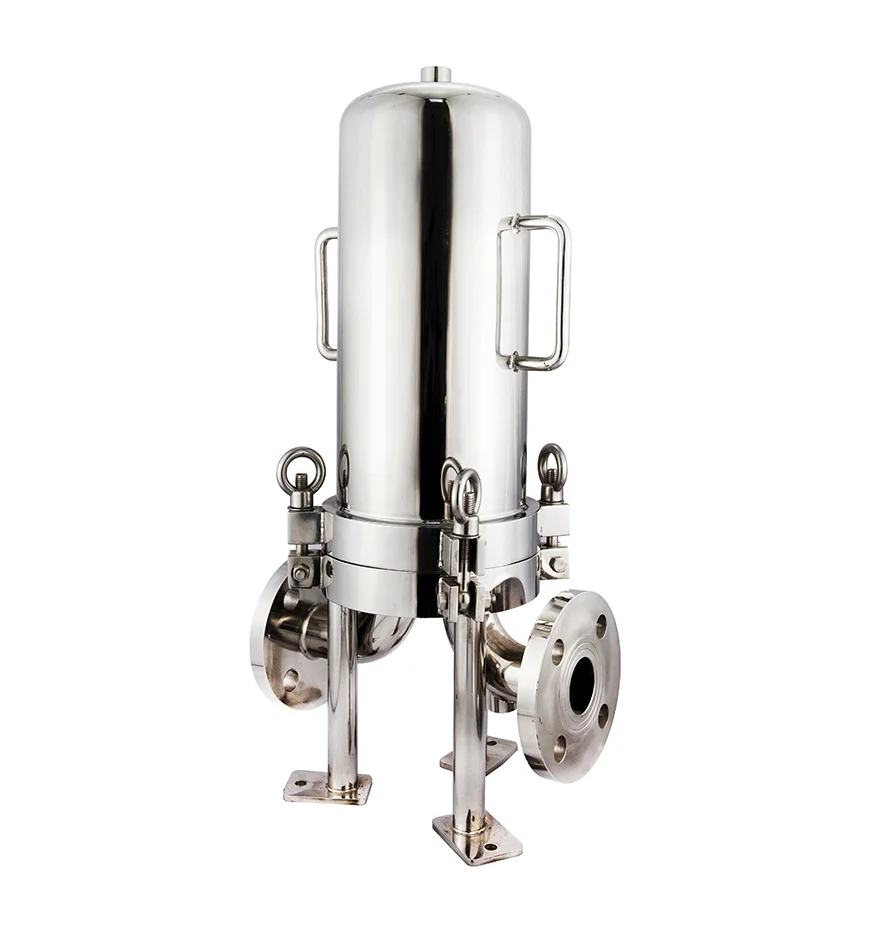

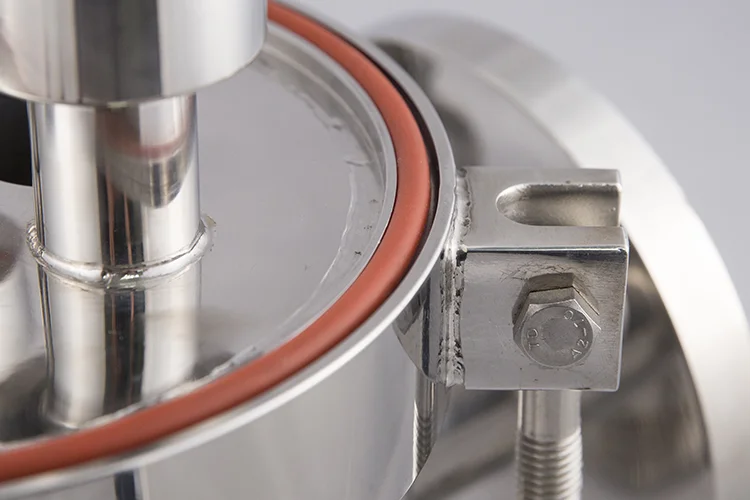

Products Show
















Selection Table


Cartridges
Inlet/Outlet
Nos.
Length
(inch)
Material
Mode
Size
Steal Ring
Exhaust Nozzle
Outfall
Filter Interface
3-round
10
SUS304
Tri-Clamp
3/4''(DN20)
S-Silicone
K-Quick-opening
K-Quick-opening
222

20
SUS316L
Clamp Flanged
1'' (DN25)
E-EPDM
L-Needle Valve
L-Needle Valve
226

30


1 1/2''(DN38)
F-Viton
W-None
W-None

40


2''(DN50)
T-PTFE





2.5''(DN64)





Our Company


Factory1

Our Factory

Factory2

Office Building



Factory3

Our Warehouse

Factory4

Our Team





Our Produces


1.Filter Cartridge
2. Air Filter Housing
3. Disc Filter


4. Bag Filter Housing
5. Corrosion Resistant Filter
6. Activated Carbon Filter




Application




FAQ


Q: Are you trading company or manufacturer ?

A: We are factory.



Q: How long is your delivery time?

A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.



Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.



Q: What is your terms of payment ?

A: Payment<=1000USD, 100% in advance. Payment>=1000USD, 30% T/T in advance ,balance before shippment.
