Yuchai YCR280 280kNm роторная буровая установка soilmec буровые
- Категория: Mine Drilling Rig >>>
- Поставщик: Maxizm,Construction,Machinery,(Qingdao),Co.,Ltd.Maxizm,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 30259772.79 $* | 31772761.17 $* |
| Aug-19-2025 | 30005488.56 $* | 31505762.19 $* |
| Jul-19-2025 | 25174096.55 $* | 26432801.49 $* |
| Jun-19-2025 | 29496921.65 $* | 30971767.38 $* |
| May-19-2025 | 25682664.2 $* | 26966797.82 $* |
| Apr-19-2025 | 28988353.68 $* | 30437771.71 $* |
| Mar-19-2025 | 28734069.85 $* | 30170772.6 $* |
| Feb-19-2025 | 28479786.95 $* | 29903775.48 $* |
| Jan-19-2025 | 28225502.26 $* | 29636777.76 $* |
Характеристики

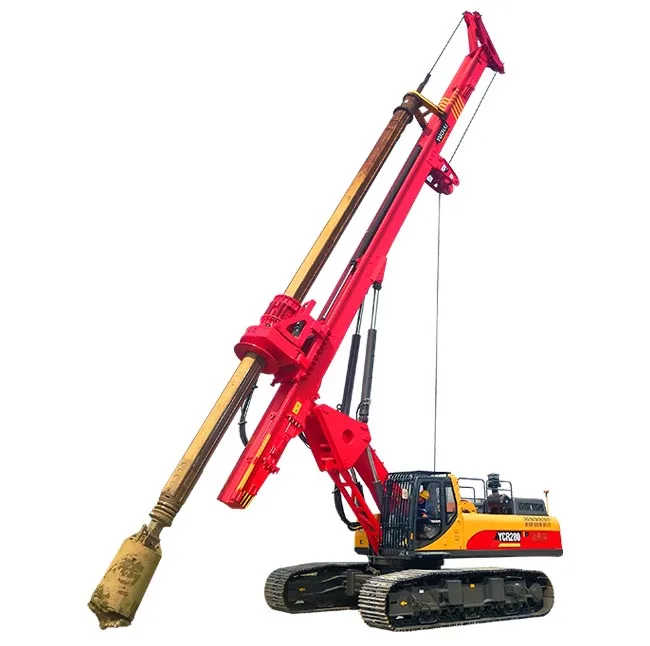

Yuchai YCR280 280kNm rotary drilling rig soilmec piling rigs
Contact us
Hana Che
Sales Director
Whatsapp/Wechat/Mobile: +86 17854169033
E-mail:
Maxizm Construction Machinery (Qingdao) Co., Ltd.
Tel: +86 053285796888-8011 Web:https: //www.maxizm.com/
Facebook: https://www.facebook.com/profile.php?id=100068562252811
Product Description
The YUCHAI rotary drilling rig integrates all the advanced technology and construction methods accumulation of Yuchai Pile-driving(Changzhou) Co.,Ltd. and realizes the innovative application and upgrading of many technologies,and reached the emission standard of the third stage of national regulations.The machine is specially designed and developed for construction fields such as rural infrastructure construction, reconstruction works of old and dilapidated buildings, project for real estate in district and county,municipal construction, railway restructuring and construction, power transmission and transformation tower construction, and mobile base station construction. It is equipped with imported power hydraulic system assembly, and characterized in reliable and stable performance,high construction efficiency and fuel saving, delicate and safe structure,convenient and flexible transition, good adaptability to stratum, high-quality pile sinking,etc.
Parameters
| Chasis | ||
| Engine Model | QSM11-C330 | |
| Rated Power | 246/2100 | 268/2100 |
| Track width (margin)(mm) | 4400 | |
| Track shoe width(mm) | 800 | |
| Traction Force(kN) | 520 | 510 |
| Power Head | ||
| Max.output torque(kN.m) | 260 | 280 |
| Rotary Speed(rpm) | 6-25 | 6-24 |
| Max.pull-down piston push(kN) | 200 | 220 |
| Max.pull-down piston pull(kN) | 280 | 250 |
| Max.pull-down piston strike(mm) | 5000 | |
| Main winch | ||
| Max.pulling force(kN) | 260 | |
| Max.pulling speed(m/min) | 55 | |
| Wire Rope Diameter(mm) | ∅32 | |
| Auxiliary winch | ||
| Max.pulling force(kN) | 80 | |
| Max.pulling speed(m/min) | 25 | |
| Wire Rope Diameter(mm) | ∅20 | |
| Working inclination Angle | ||
| Forwards Backwards(°) | 5 | |
| Side Backwards(°) | ±4 | |
| Hydraulic System | ||
| Max.working pressure of main pump(Mpa) | 34 | 32 |
| Drilling hole | ||
| Max.Drilling Diameter(mm) | 2500 | |
| The max.drilling depth(m) | 80 | |
| Main machine | ||
| Total working weight(T) | 83 | 90 |
| Transportation weight(T) | -- | 70 |
| Transporting state size(mm) | 16165*3300*3510 | 16565*3300*3510 |
| Working state size(mm) | 10520*4400*22270 | 11070*4400*22770 |
| Recommended drilling pipe type | ||
Pictures
