Автоматическая гидравлическая штамповочная машина из нержавеющей


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-17-2025 0.38 $* 0.69 $*
Aug-17-2025 0.12 $* 0.76 $*
Jul-17-2025 0.52 $* 0.81 $*
Jun-17-2025 0.69 $* 0.58 $*
May-17-2025 0.44 $* 0.73 $*
Apr-17-2025 0.90 $* 0.50 $*
Mar-17-2025 0.79 $* 0.43 $*
Feb-17-2025 0.49 $* 0.44 $*
Jan-17-2025 0.7 $* 0.64 $*

Характеристики



Products Description


Brief Introduction

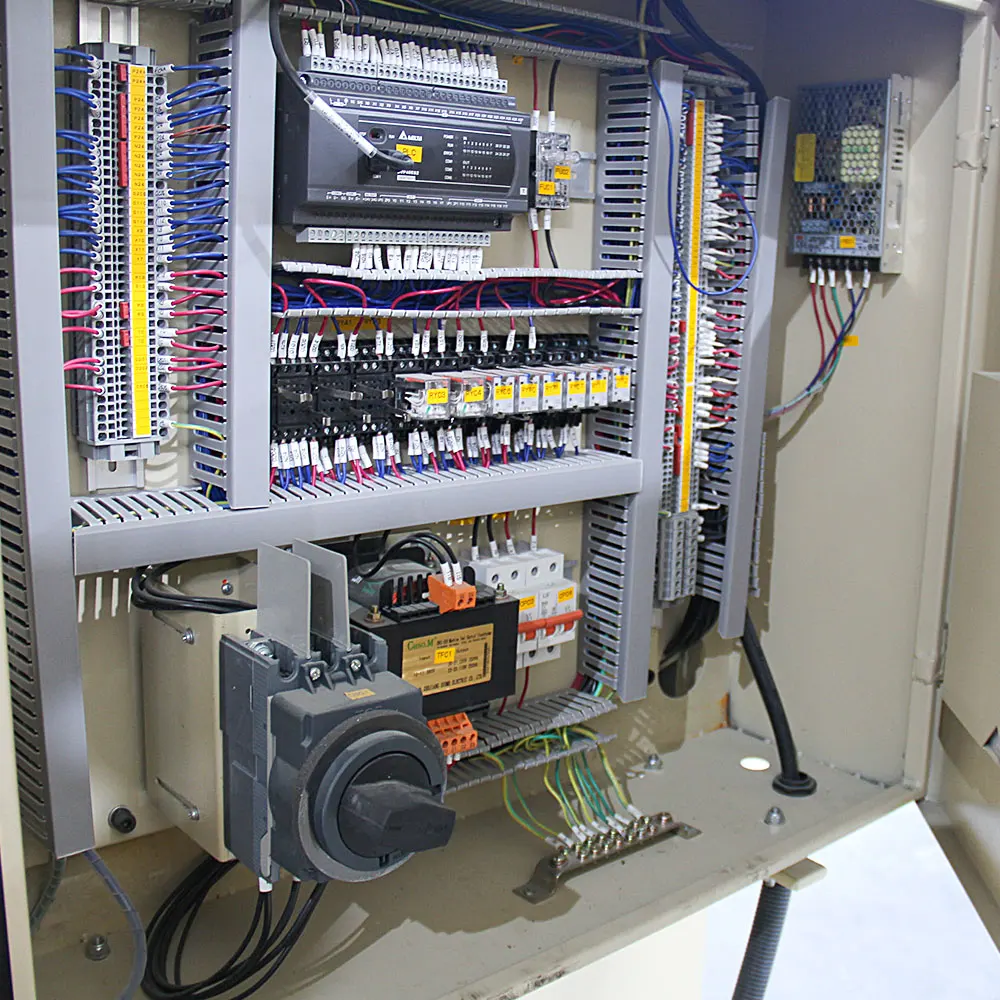

pneumatic clutch heavy duty power press machine , high precision , low noise , use PLC +Touch screen controller , machine with miss feeder function , easy connect with feeder and other accessories .









Characteristic

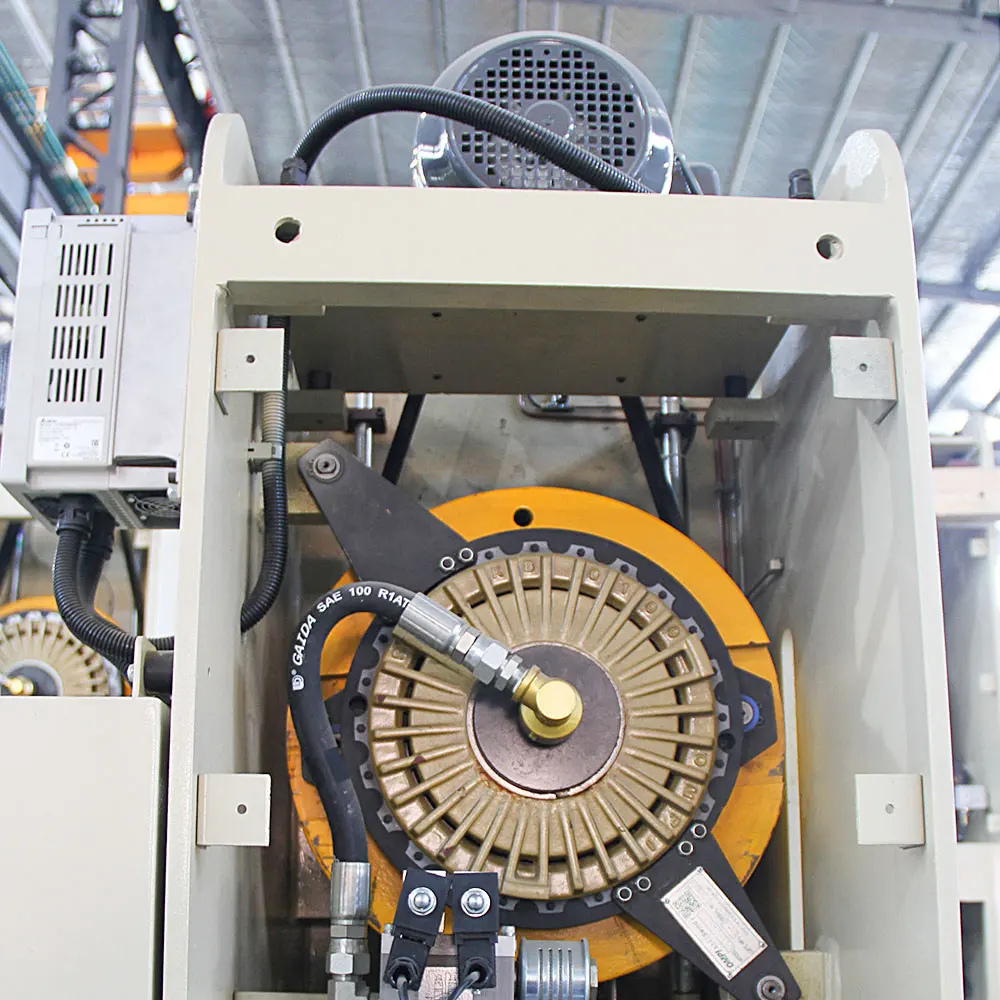

OMPI clutch , ( MADE IN ITALY ) , running

safety and very lower noise

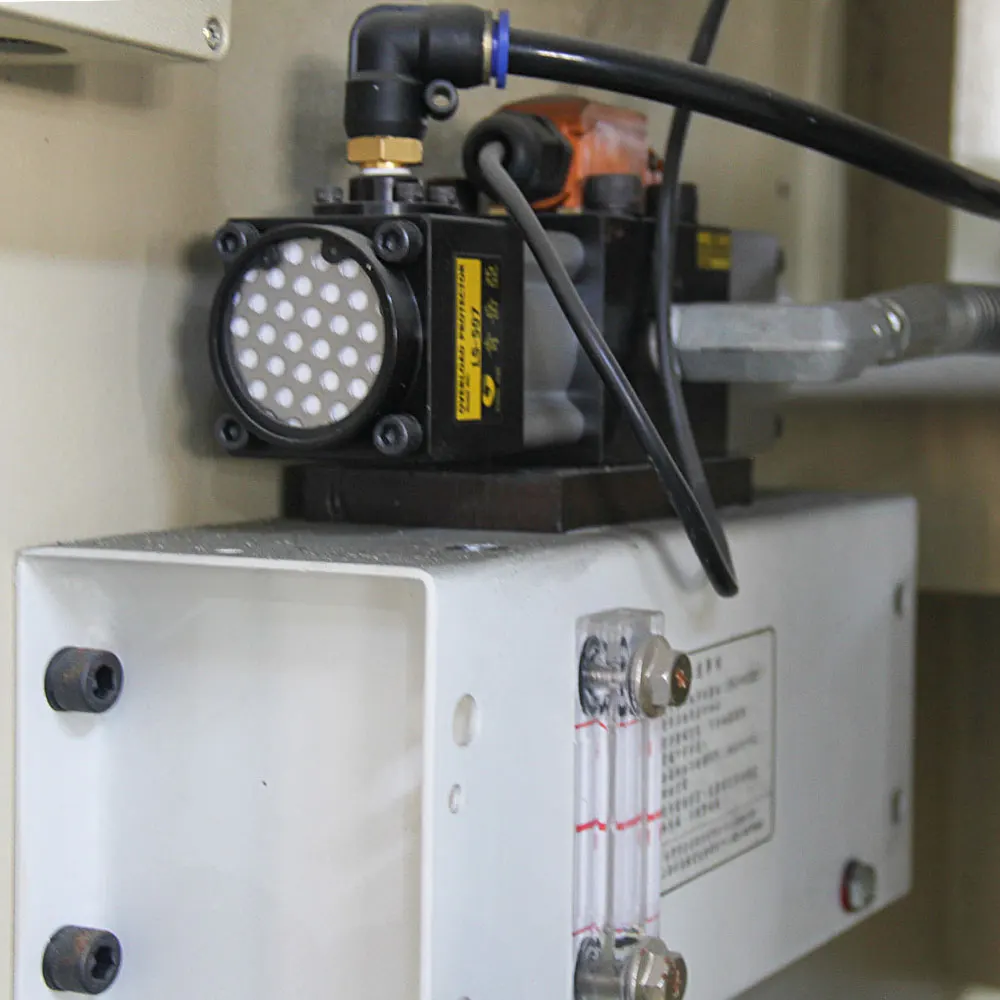

overload protection , when machine overload working , will auto stop to protection the crank


auto lubrication pump ,
dry clutch
CE standard electrical parts




Specification


Item
APA-200B
Model
V
H
Capacity
Ton
200
Rated tonnage point
mm
6
3
Speed changing
s.p.m
20-50
40-70
Stable speed
s.p.m
35
Stroke
mm
200
90
Die height
mm
460
510
Slide adjustment
mm
100
Slide area
mm
850*550*90
Bolster area
mm
1350*820*140
Shank hole
mm
dia65
Main motor
kw
18*4
Slide adjust device
HP
Electrical driving
Air pressure
kg/cm2
6
Presses precision

GB(JIS)1CLASS
Presses dimension
mm
2740*1620*3690
Presses weight
Ton
19
Die cushion capacity
Ton
10
Stroke
mm
80
Die cushion effective area
mm2
650*420


Item
Brief Description
Machine Body
Basic Parts
Steel plate welded structure, through vibration aging treatment, the overall heat ageing annealing treatment. (Double aging
treatment)
Bolster
basic parts
Made from Casting HT200,through annealing treatment
Crank
Basic Parts
Made from Forging, through flaw detection ,surface quenching, nitriding processing
Fly Wheel
Basic Parts
Casting HT200,Through Annealing Treatment
Worm
Basic Parts
Zinc-based alloys
Worm Gear
Basic Parts
Made from 45# steel
Connecting Rod
Basic Parts
Made from Ductile iron, cast iron, and throughnormalizing treatment
Ball Head and Screw
Basic Parts
Made From 45# steel, surface by Nitriding treatment
Balance Cylinder
Parts
Cylinder Body Inside Through Honing Processing


Recommend Products




Company Profile




Our Service




Overseas after sales service outlets
TOPTECH SMAC MACHINERY LIMITED(Canada)
Address:Office and showroom, unit 5, 5510 Ambler Dr Mississauga, ON, L4W2V1, CANADA
Office:905 238 8912
Contact: Mrs Merry NA

COMPANY REPRESENTATIVE (EGYPT)
Address: Ibn Khaldon St. -Villa No.16-6th District-Obour City-Cairo-Egypt
Tel & Fax: +20244823499
Cell phone: +201223960211
Contact: Ahmed Refaat

SJR MACHINERY LIMITED(Algeria)
Adress: cité 128 logements Bater numéro 71 Sidi el DJILLALI sidi bel abbes 22000 att to Mr mezouar Mohammed
mobile number 0542 695 457 and 0770 551 807
Tel: 0542 695 457 ,0770 551 807
Email:Mezouarstar@gmail.com


Packing & Delivery




We choose the best packaging, the most excellent
logistics services, to ensure that your goods faster and safer to reach the destination.


FAQ


Q.What are your normal lead times?
A.Our company typical lead times range from 3-4weeks after receipt of order.

Q.What are the terms of payments you offer?
A.We accept payment of T/T, L/C, and Western Union, cash, O/A etc.

Q.What kind of package do you offer?
A.Normally in plywood case, to make sure all goods in good condition.

Q.What is the MOQ for your production?
A.The MOQ depends on your requirements for color, logo and so on. For some normal items, we have in stock, the MOQ is 1 set.

Q.Do you have CE certification
A.Yes, we have CE certification, machine quality is one year guaranteed.

Q.How to control the quality of the products?
A.We have always placed great emphasis on the quality level is maintained. Moreover, the principle we always maintain is "to provide customers better quality, better price, and better service".


Automatic Stainless Steel Making Hydraulic Punching Machine
