DJL-16 автоматический Фармацевтическое Оборудование механический счетчик таблеток
- Категория: Pharmaceutical Machinery >>>
- Поставщик: Herun,Machinery,(shanghai),Co.,Limited
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-17-2025 | 18445.84 $* | 19367.36 $* |
| Aug-17-2025 | 18290.16 $* | 19205.57 $* |
| Jul-17-2025 | 15345.87 $* | 16112.28 $* |
| Jun-17-2025 | 17980.42 $* | 18879.18 $* |
| May-17-2025 | 15655.78 $* | 16438.60 $* |
| Apr-17-2025 | 17670.85 $* | 18554.5 $* |
| Mar-17-2025 | 17515.32 $* | 18391.80 $* |
| Feb-17-2025 | 17360.46 $* | 18228.98 $* |
| Jan-17-2025 | 17205.11 $* | 18065.83 $* |
Характеристики
Certifications
Product Paramenters
Model | DJL-8 | DJL-12 | DJL-16 | DJL-24 | DJL-36 | ||||
Applicable bottle shape | Round and square bottle (10~500ml） | ||||||||

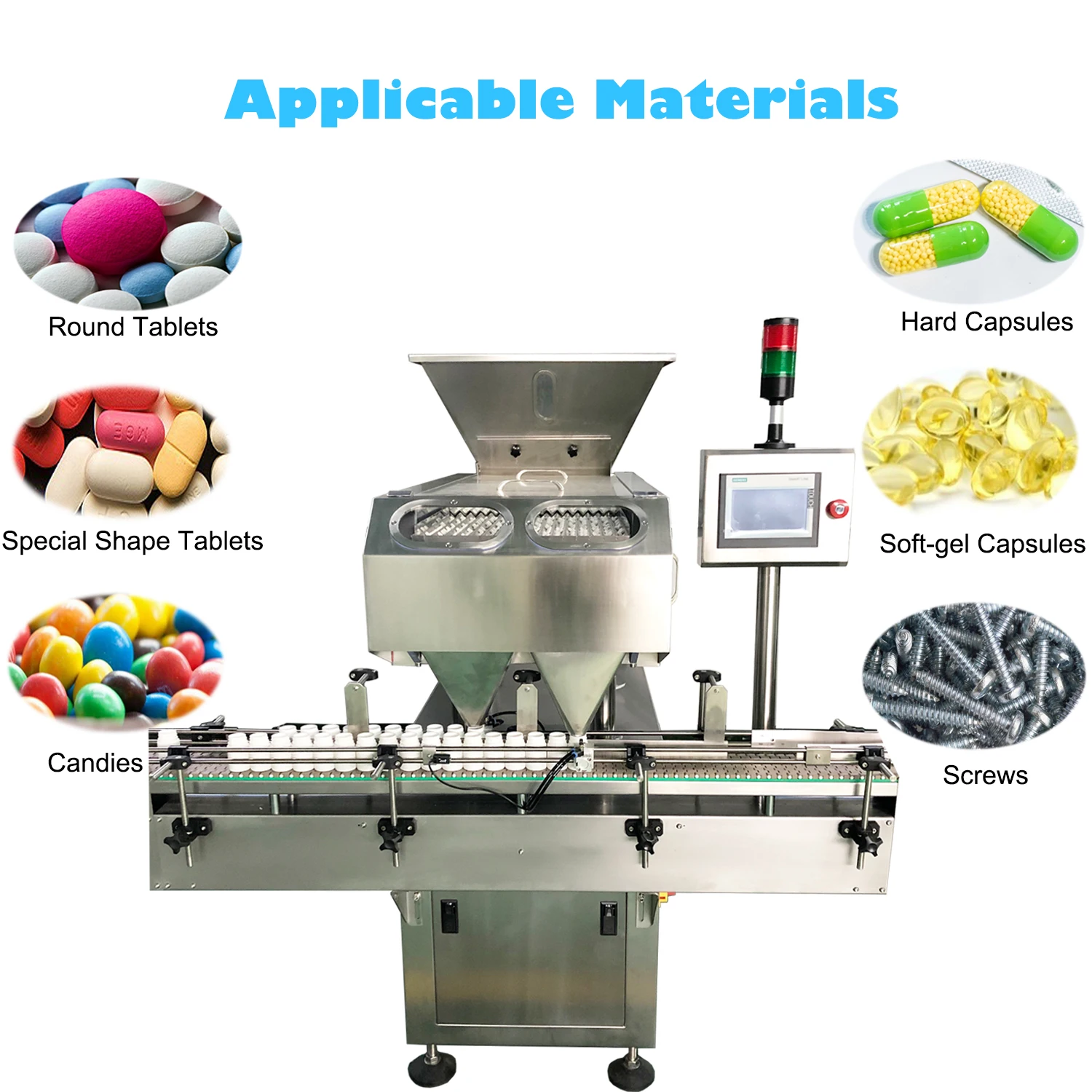

Filling material | Φ0~5# capsule, soft-gel, Φ5.5～12 compressed tablet & special-shaped tablet, sugar coated tablet，Φ3～12 pill | ||||||||
Production capacity（bottles /min） | 10-30 | 20-40 | 20-80 | 20-90 | 40-120 | ||||
Bottling volume range(pc) | 2-9999（Customizable） | ||||||||
Power supply（V/HZ/KW） | 220/50/0.6 | 220/50/0.8 | 220/50/1.2 | 220/50/1.5 | 220/50/2.2 | ||||
Accuracy rate | 99.8% | ||||||||
Air pressure（Mpa） | 0.6 | ||||||||
Overall Dimension（mm） | 1360*1350*1650 | 1360*1350*1650 | 1360*1350*1650 | 1760*1350*1650 | 2160*1450*1650 | ||||
Weight（KG） | 300 | 420 | 520 | 620 | 680 | ||||
Configuration List
NO. | Description | Manufacturer |
1 | Motor | TQG(Taiwan,China) |
2 | Photoelectric Sensor for Bottle | ORMON |
3 | Photoelectric Head for Counting | Everlight Electronics., Ltd of Taiwan |
4 | Pneumatic Components | ShangHai Xingchen |
5 | Switch Button | French Schneider |
6 | Human Computer Interface | Siemens |
7 | Main Control Chip | Imported from STMicroelectronics Co., Ltd. |
8 | The Leakage Switch | French Schneider |
9 | Switching Power Supply | French Schneider |
Germany Brand
Reliable Quality

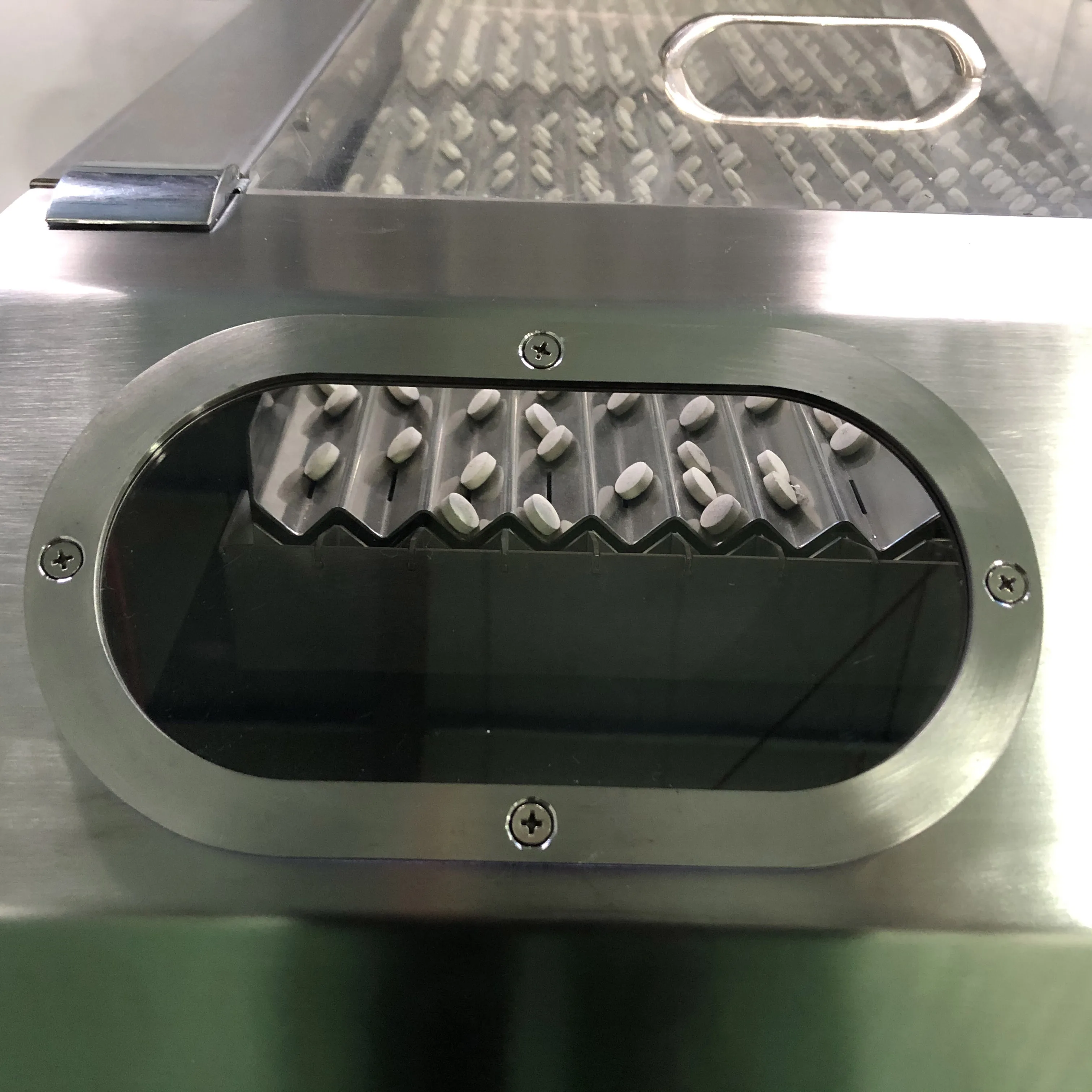

Multi-Size Vibration Channels

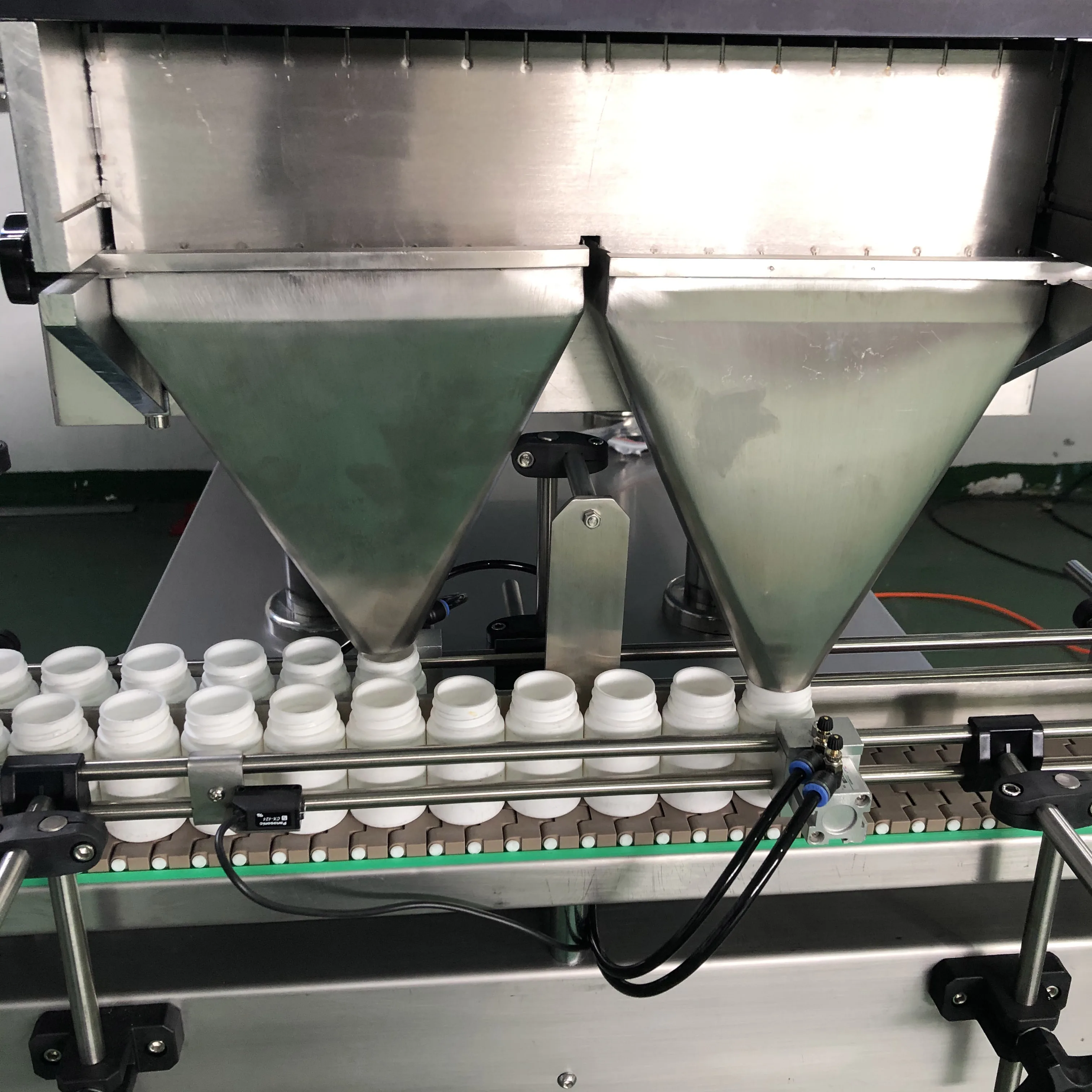

The Filling Nozzles (Can be customized at different requirments)

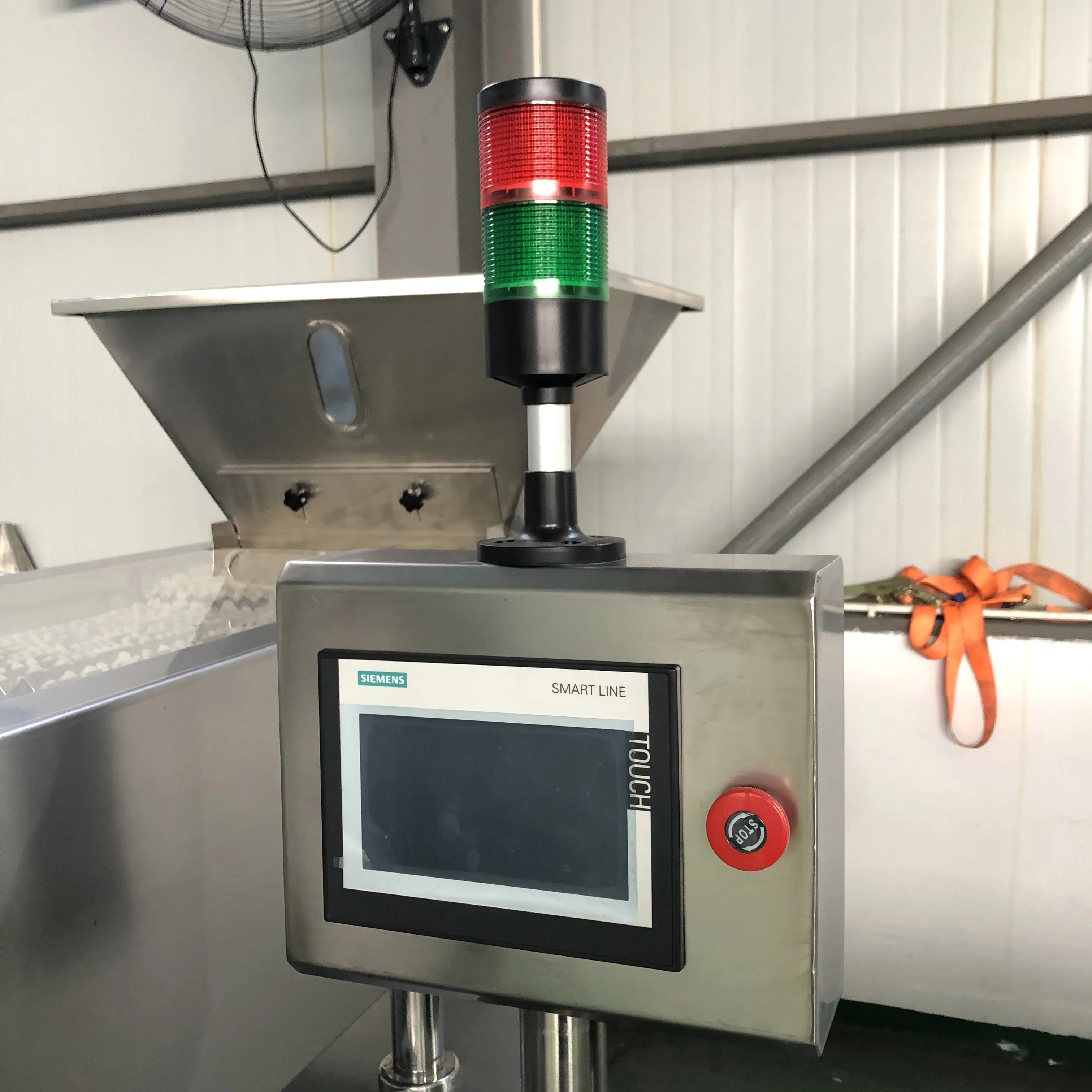

Microprocessor Control Panel (Counting and Filling accuracy rate over 99.8%)
The height of nozzle can be adjusted
Stainless Steel Frame with 2 Windows (Latest Design)
Gross Weight:691KG
Net Weight: 521KG
Packing Dimension: 1810*1570*1600mm
Packing Dimension: 1810*1570*1600mm
Product packaging
Plastic film wrap to avoid machine scratches
The machine will be wrapped in 360 degrees
The machine will be packed with export standard wooden case
Company Profile
Herun Machinery (Shanghai) Co. Limited, located in Shanghai, is a professional manufacturing and trading company for pharmaceutical machinery, with CE certificates covering all the equipments we produced. Herun Machinery is member of China Association for Pharmaceutical Equipments, supplying generally 6 categories of products, such as mixer, tablet press machine, coating machine, automatic capsule filling machine, blister packing machine, counting and packing machine, to pharmaceutical and
food industry.
food industry.
We have a top R&D team to control the standardized process in the production and make our machines to meet at maximum the customer's strict requirements. We provide OEM/ODM, and after-sales service to overseas customers. Customers of more than 20 countries choose us for the cooperation because of our professional experience of 12 years.
FAQ
Q1: Where is your factory? How can I visit your factory?
A1: Our factory is located in Shanghai. We are warmly welcome you to
visit the production base if you have a travel plan.
visit the production base if you have a travel plan.
Q2: How can I know your machine is designed for my product?
A2: If you don't mind, you can send us material sample and we test it on the machine. During that time, we will take video and clear ,pictures for your reference. If possible, we even can hold video conversation online with you.
Q3: How can I trust you for the first transaction?
A3: Please note that our above business licenses and certificates. And if you don't trust us, we can use Alibaba
Trade Assurance service. it will protect your money during the whole transaction.
Trade Assurance service. it will protect your money during the whole transaction.
Q4: How about the after service and guarantee period?
A4: We make the warranty of 12 months from the machine's arrival in buyer's facility. With a professional team of experienced technicians, we can serve abroad and do the best after-sale service to assure the machine's perfect operation.
Q5: How can we contact you?
A5: Please leave a message and click "send" to send us an inquiry.
Please find our contact information on this page, then you can communicate with us by Email,
WeChat, Skype, WhatsApp, QQ, Facebook, phone, etc.
