Печь для отжига хорошего

Категория: Industrial Furnace >>>
Поставщик: HEBEI,HTK,TECHNOLOGY,CO.,LTD

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-20-2025	0.55 $*	0.8 $*
Aug-20-2025	0.85 $*	0.82 $*
Jul-20-2025	0.0 $*	0.68 $*
Jun-20-2025	0.94 $*	0.85 $*
May-20-2025	0.48 $*	0.59 $*
Apr-20-2025	0.17 $*	0.58 $*
Mar-20-2025	0.79 $*	0.96 $*
Feb-20-2025	0.90 $*	0.38 $*
Jan-20-2025	0.28 $*	0.3 $*

Характеристики

Product Description

Multifunctional High temperature Hot sale metal wire annealing furnace

Furnace lining,:furnace body side, back, front, top, oven door adopt the whole fiber lining,
Bogie composite furnace lining: support the workpiece car lining at the bottom of the (QZ) - 1.0 light clay brick, heat
preservation brick masonry insulation thermal insulation layer, the upper with high thermal shock resistant large heavy brick set
prescription form, its high strength, large brick support artifacts weight good impact resistance;Squares in the use of
lightweight brick clay brick, heavy setting of composite lining, and longitudinal and transverse YanTai left arch expansion joint,
in order to prevent the fire brick up outside.

Technical Parameters

Main technical parameters

Main specifications
3.1 furnace size of diameter :1250mm
3.2 loading height: 2500mm
3.3 Heating mode: electric heating
3.4 Power supply: 380v 50HZ
3.5The highest use temperature:800℃
3.6 Heating power:120kw
3.7 Control section:automatic
3.8 The precision of temperature control:±10℃
3.9Aloading capacity: about 2-3ton
3.10.Temperature rise:about 6Hours
3.11 Cooling way :Natural cooling
3.12 1pc Annealing furnace+1pc Electronic control box +2pc furnace tank
3.13 Power consumption: 120 KWH for each hour
3.14 weight of one set: about 3tons

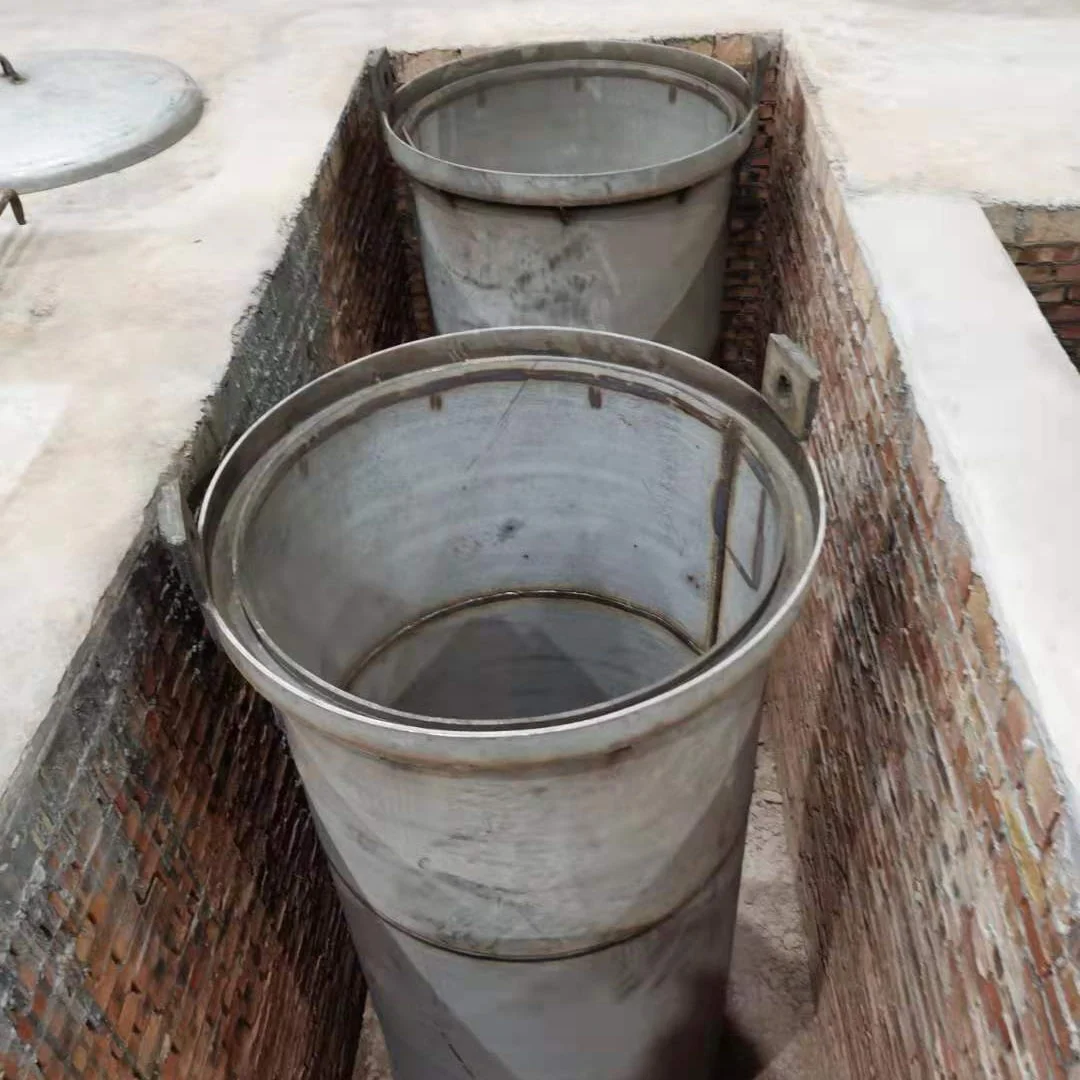

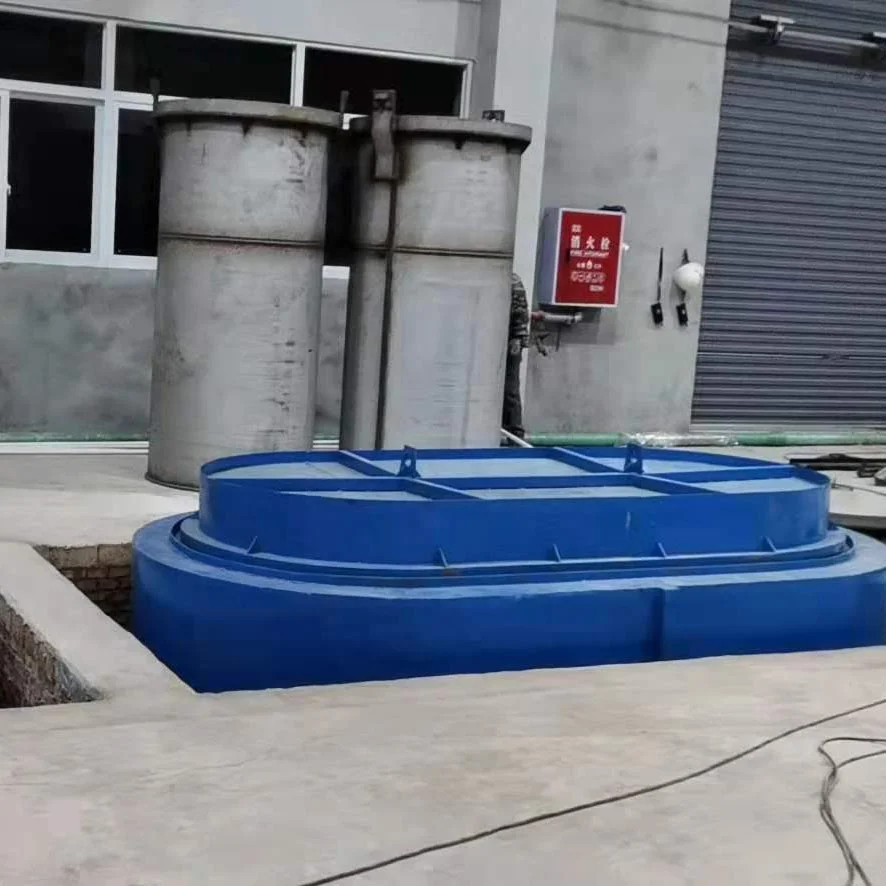

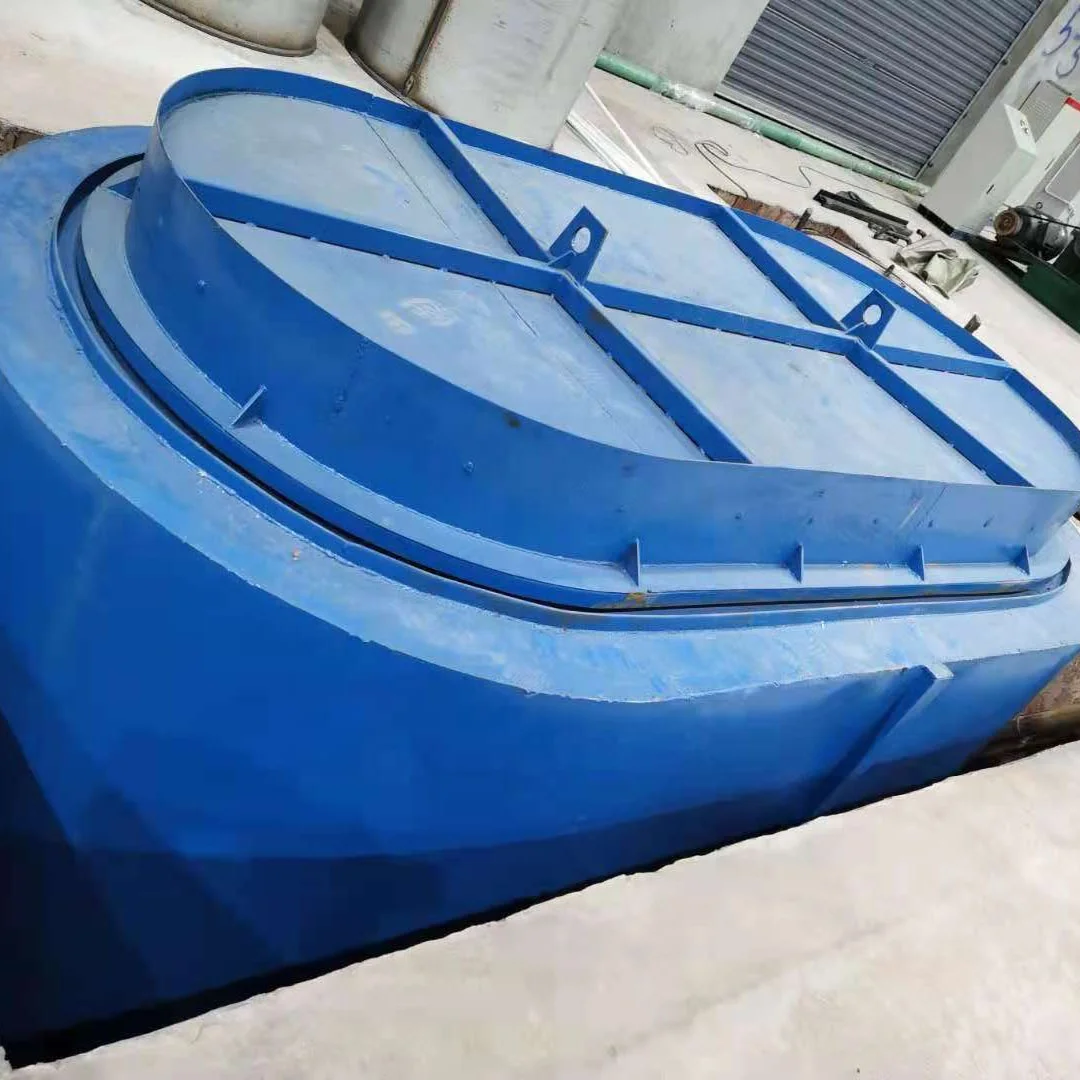

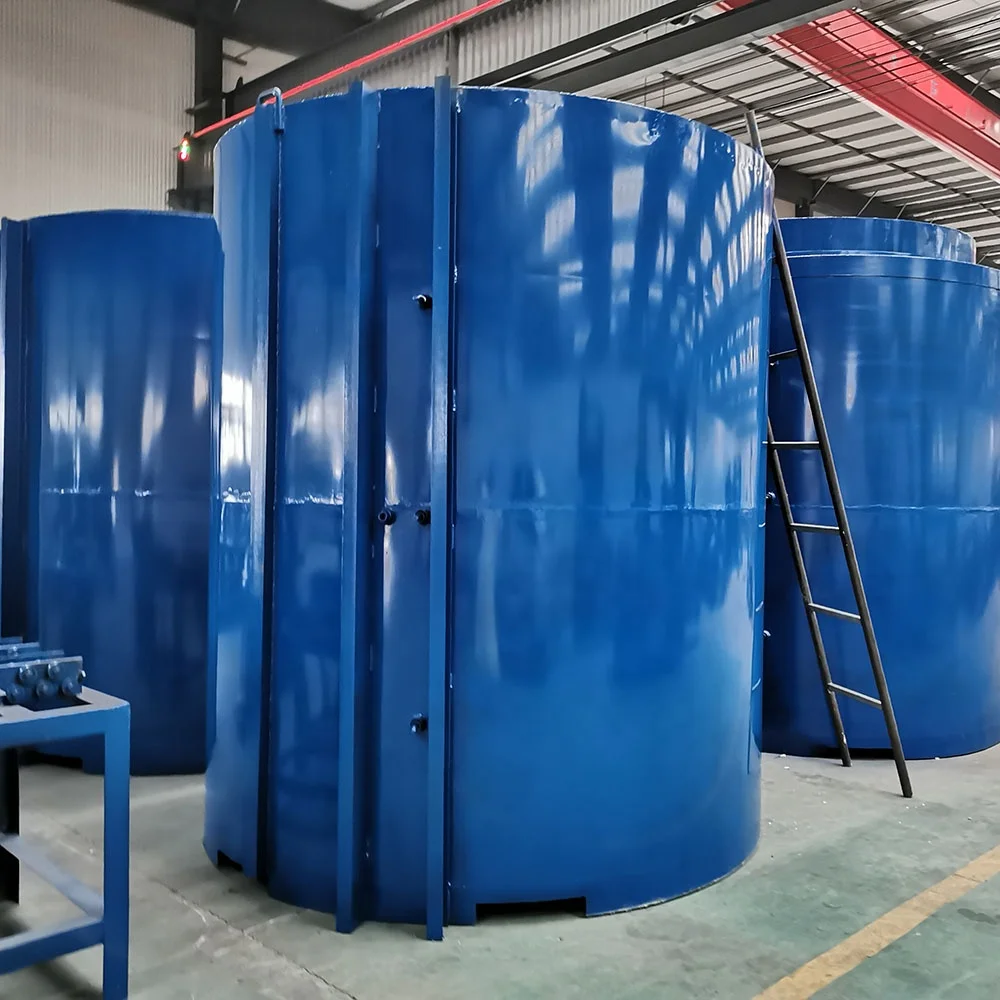

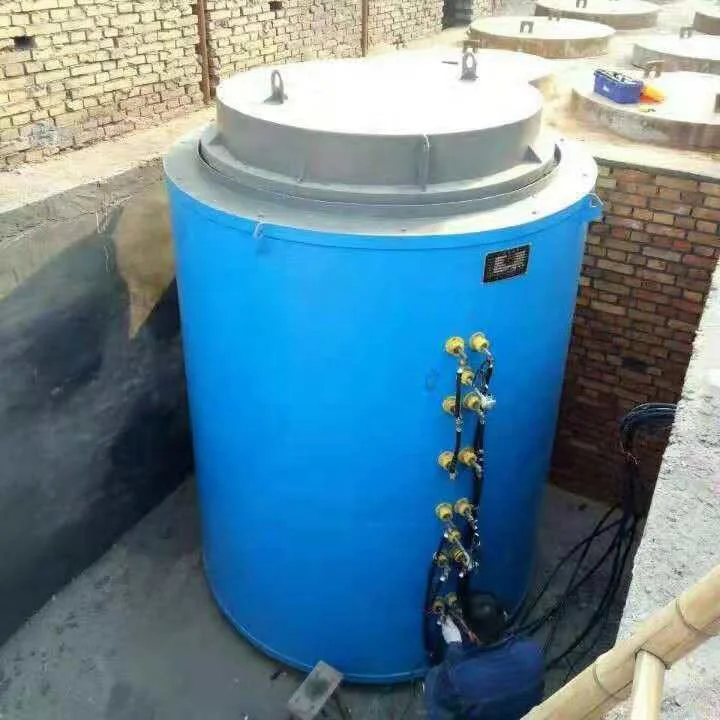

Detailed Images

Machine Parts

Name: furnace body side

Material:cast steel after special treatment

Hardness: more than 65HRC

Main Features

Name: Furnace lining

Material :SS304

Control box

Control section:automatic

Ralated Product

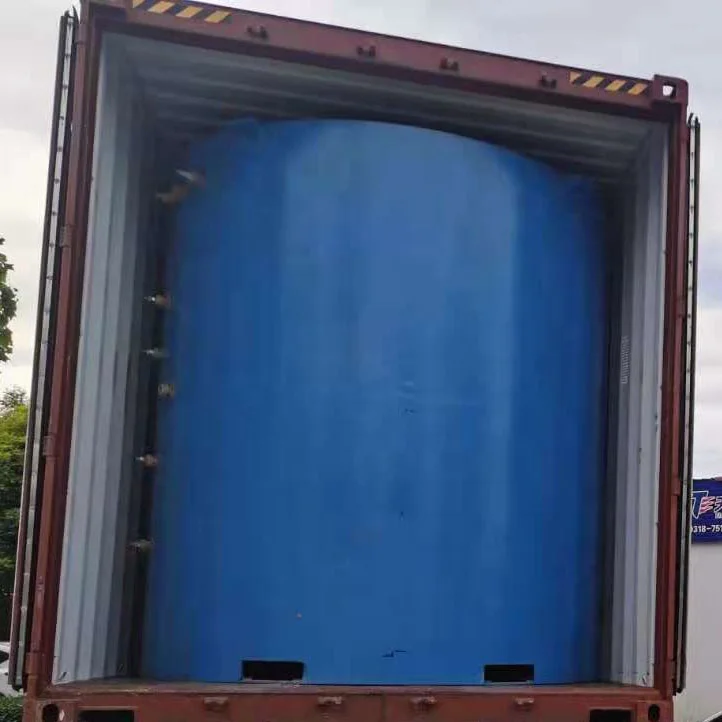

Packing & Delivery

FAQ

1, What is your strong point in this machine ?
Q: We have several models of wire drawing machine for your choice. Most important, we cooperate with wire factories.
We have rich experience in wire prouction which can make your worker to use the machine more earlier and quickly

2. I do not know how to make chocie for these machines, can you help to choice ?
Q: Be sure, it is our honor, you tell us which size of wire you want to do ,we will customised suitable machine as your requirement and conditions

3. Quality how to guarantee ?
Q: Our machine main frame 1 year. 24 online servie, any problems you have, welcome to contact me at first time.

4. If we can visit your factory ?
Q: Be sure, you can visit our factory ,also can visit our cooprated wire factory for learning.

5. If we recevie machine, but have problem,how to do ?
Q: At first time, we will check machine and solve it. If our problem, we will resposiable for it.

But to be honor it that our machine do not have problem untile now.
