Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
5-литровая HDPE PP бутылка jerrycan пластиковая Экструзионная выдувная формовочная
- Категория: >>>
- Поставщик: Shanghai,Ipanda,Intelligent,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-15-2025 | 0.50 $* | 0.35 $* |
| Aug-15-2025 | 0.82 $* | 0.57 $* |
| Jul-15-2025 | 0.26 $* | 0.9 $* |
| Jun-15-2025 | 0.99 $* | 0.71 $* |
| May-15-2025 | 0.63 $* | 0.72 $* |
| Apr-15-2025 | 0.91 $* | 0.96 $* |
| Mar-15-2025 | 0.75 $* | 0.34 $* |
| Feb-15-2025 | 0.24 $* | 0.48 $* |
| Jan-15-2025 | 0.52 $* | 0.7 $* |
Характеристики
Product Description
Features
●Adopting double crank to adjust mould ,heavy locking mould, stable and fast ,Adopt infrared oven to heat the preform , the preform rotated and heated equally.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment,easy and safe to operate.
● The air system has been divided into two parts: pneumatic action part and bottle blow part to meet the different requirements for the action and blow .
● The machine is also equipped with muffler and oiling system to lubricate the mechanical part of the machine.
● The machine can be operated in the step-by-step mode and the semi-auto mode.
● The machine is small with low investment,easy and safe to operate.
Product details

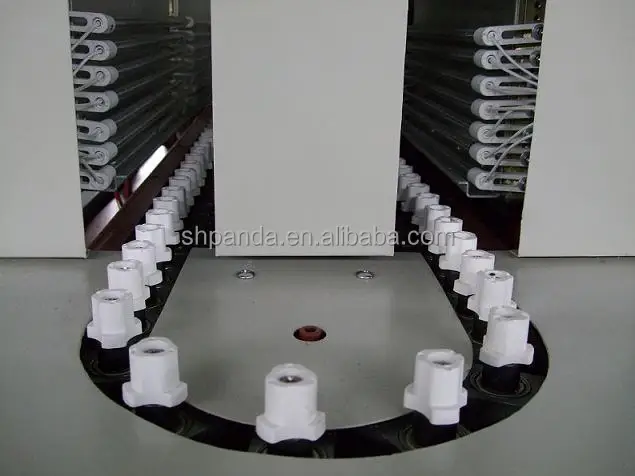

Infrared Preform Oven:
Heat the PET preform to suitable soft condition for blowing; Blower: do the whole bottle blowing process,including sealing,
stretching, blowing, exhausting and blow mold’s moving, which is controlled by advanced PLC control system.
stretching, blowing, exhausting and blow mold’s moving, which is controlled by advanced PLC control system.
Patent Blow Air Heating System & Pre-blow Function
Plays important role for producing high quality bottles, eliminate bottle whiten appearance.

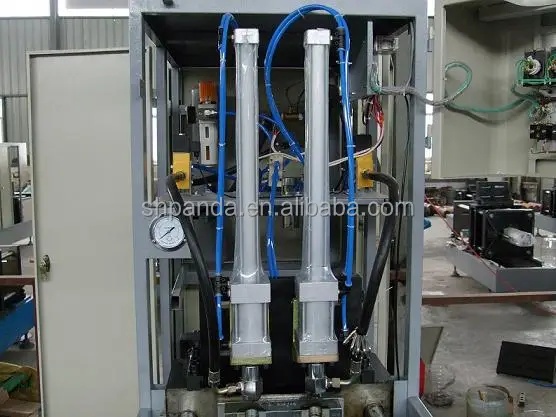

Blowing system

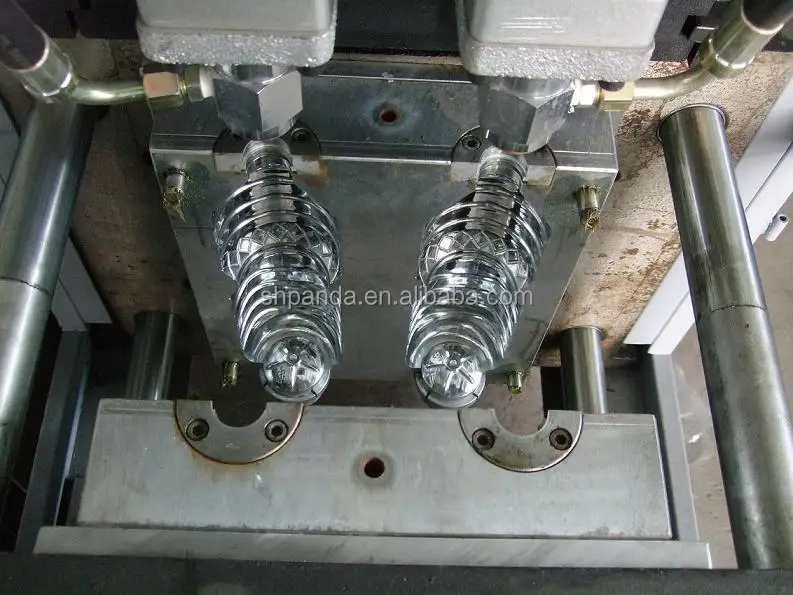

blow mould

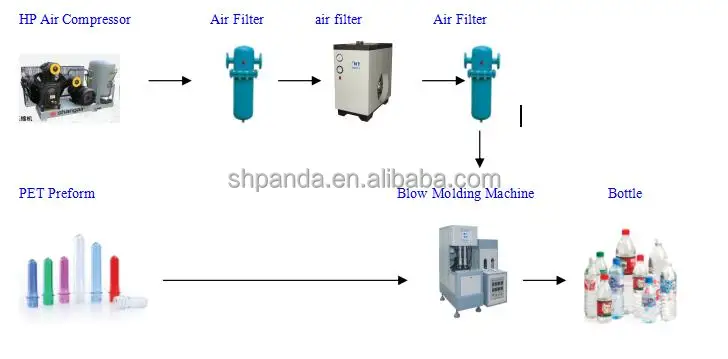

Flow Chart
Working process
Theoretical output | 800--1000 pcs/h | ||
Finished bottle | Max. bottle volume | 2L | |
Max. neck diameter | 80mm | ||
Max. bottle diameter | 110mm | ||
Max. bottle height | 365mm | ||
Mold specifications | Cavity | 2 cavity | |
Mold thickness | 110mm-230mm | ||
Open stroke | 180mm | ||
Electrical system | Power voltage | 380v/3Phase/50HZ | |
Installation power | 14kw | ||
Actual power consumption | 5kw | ||
Air source | Recommend air compressor | 1.2m³/min 30Kg | |
Cooling water | Recommend water chiller | 5HP | |
Blowing machine size | Length*width*height/weight | 1630*620*1590mm/650kg | |
Heater size | Length*width*height/weight | 1780*570*1380mm/350kg | |
VR
Service
Before order service
We will according to your requirement make details quotation for you.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.
After order service
We will start to make machine,and take some picture by 10 days of our production process .
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
After-sales service
We will testing machine ,and take some video and picture to you if u not come to china inspect machine.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 1 years guaranteen.In 1years you can get all spare parts free from us.we can send you by express.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 1 years guaranteen.In 1years you can get all spare parts free from us.we can send you by express.
Company Profile
Our Advantages
FAQ
Q1: What is your company's main products?
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
