Diesel Engine 300m 600meters Deep Water Welling Drilling Rig/Rock Well Drilling Rig Machine/hard rock crawler driller
HQZ series drilling rig has the compact body. The fuselage width only 1.9 meters, fully suitable for farming courtyard home drilling or other narrow condition drilling. Drilling depth up to 240-300 meters.
Fully hydraulic control is convenient and flexible: can adjust the drilling speed, torque, and promote axial pressure, anti-axial pressure, propel and improve the speed to meet the different conditions use of drilling tools and different construction needs.
Fully hydraulic control is convenient and flexible: can adjust the drilling speed, torque, and promote axial pressure, anti-axial pressure, propel and improve the speed to meet the different conditions use of drilling tools and different construction needs.
Technical Parameter
Diesel Engine 300m 600meters Deep Water Welling Drilling Rig/Rock Well Drilling Rig Machine/hard rock crawler driller
Model | HQZ-180L |
Overall weight （T ) | 3.5 |
Dimension (mm ) | 3400*1500*2400 |
Drilling diameter (mm ) | 130-245 |
Drilling depth (m) | 180 |
One-time advance length of the drill(mm) | 3000 |
Traveling speed （km/h ) | 2.5 |
Climbing ability (max ) | 25° |
Minimum Ground Clearance (mm） | 250 |
Working Air Pressure (mpa ) | 1.45 - 2.5 |
Air consumption(m³/min) | 15 - 27 |
Main machine power （kw) | Yunnei 42Kw |
Rotary Speed (rpm) | 38 - 80 |
Rotary torque (Nm) | 4000-5000 |
Product Details
Diesel Engine 300m 600meters Deep Water Welling Drilling Rig/Rock Well Drilling Rig Machine/hard rock crawler driller

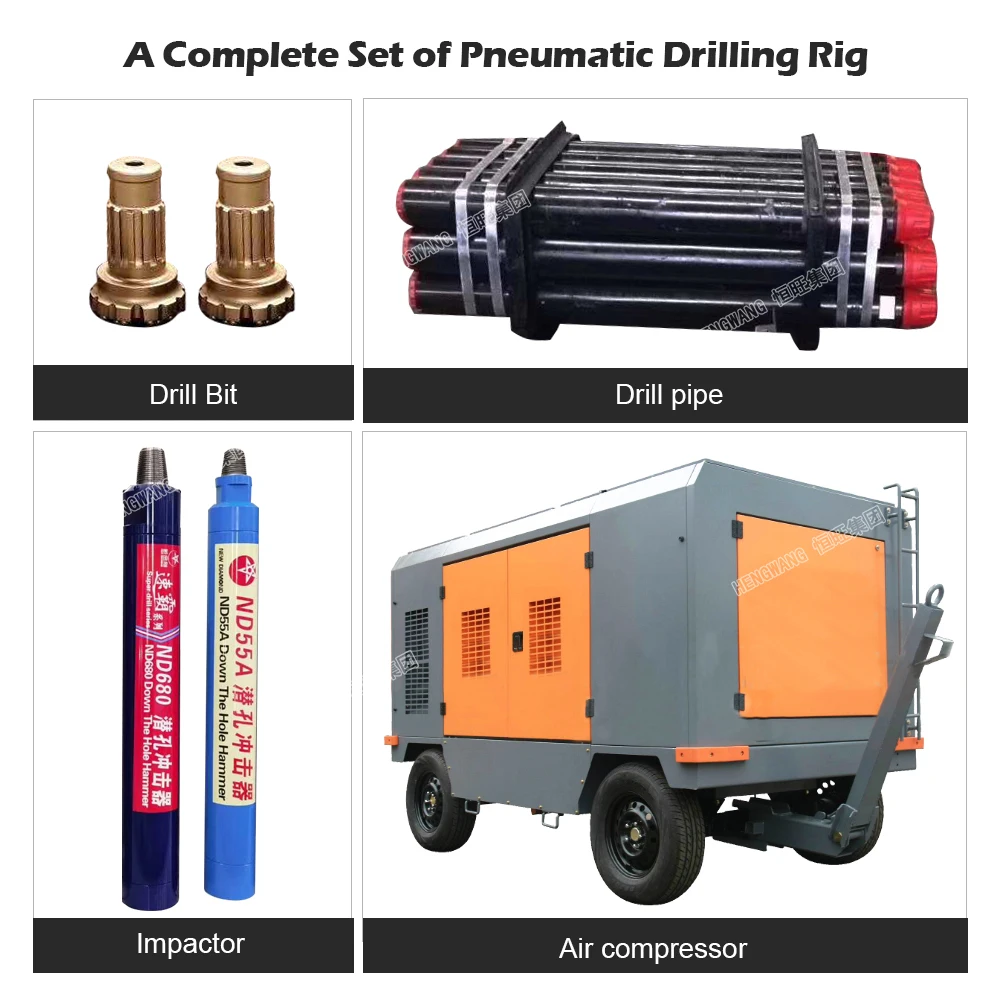

The pneumatic drilling rig working with air compressor, this photo showing you the full set accessory, like compressor, drill rod and DTH drill bit and on.

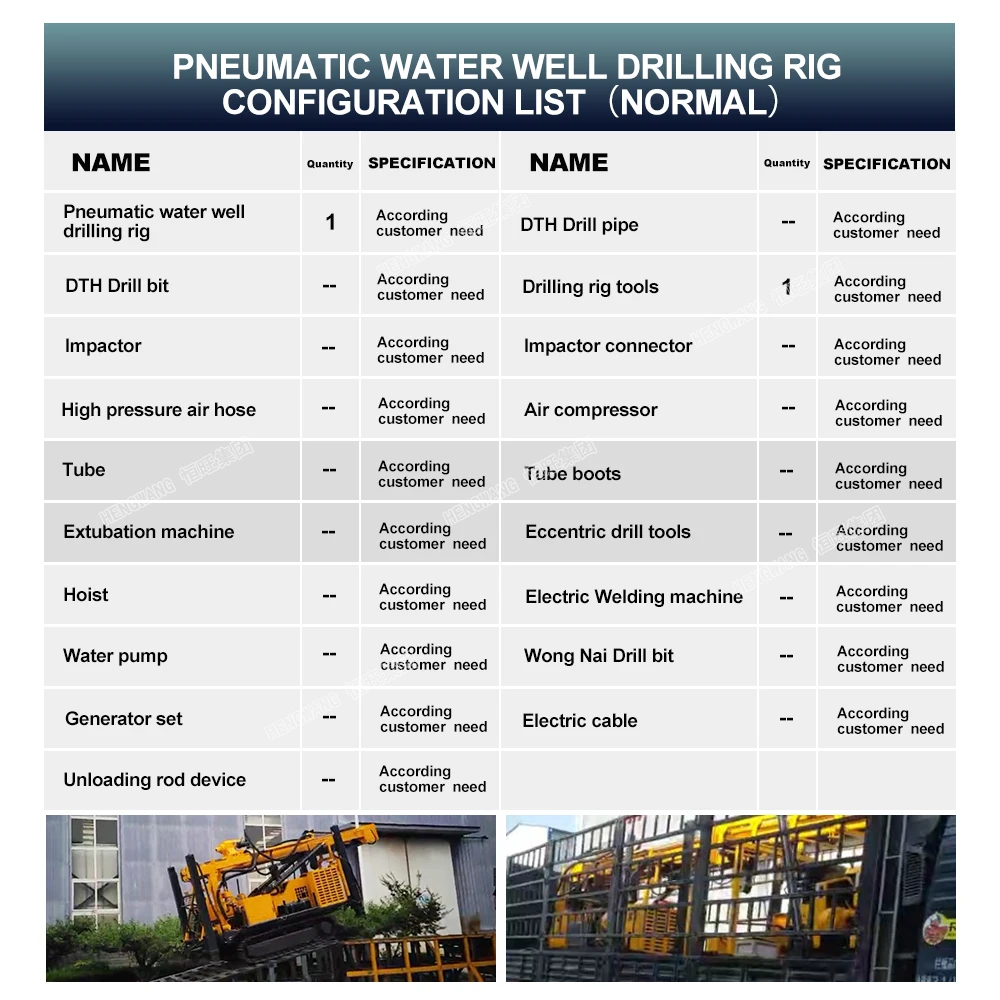

The shipping details about this rig , can loading into the truck, 20" and 40" container
