Мощный равномерный лазерный диодный модуль с красной линией 635 нм 650 1 мВт 5 лазер TTL
- Категория: Laser Equipment Parts >>>
- Поставщик: Elite,Optoelectronics,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.96 $* | 0.19 $* |
| Aug-18-2025 | 0.79 $* | 0.18 $* |
| Jul-18-2025 | 0.47 $* | 0.23 $* |
| Jun-18-2025 | 0.25 $* | 0.71 $* |
| May-18-2025 | 0.23 $* | 0.7 $* |
| Apr-18-2025 | 0.82 $* | 0.38 $* |
| Mar-18-2025 | 0.37 $* | 0.87 $* |
| Feb-18-2025 | 0.95 $* | 0.55 $* |
| Jan-18-2025 | 0.45 $* | 0.9 $* |
Характеристики
Specification | Powell Lens | ||||||||||||
Wavelength(nm) | 640nm, 520nm | ||||||||||||
Wavelength Tolerance(nm) | ±5.0 | ||||||||||||
Output Power(mW) | 0-1000mW | ||||||||||||
Laser Modes | Pulse | ||||||||||||
Line Thickness at 1/e2(Line Width/Beam Width) | ≤110μm (@380mm), ≤130μm (@380±10mm), ≤130μm (@380±10mm) | ||||||||||||
Fan Angles | 75° (uniform line) | ||||||||||||
Divergence | 1.20mrad | ||||||||||||
Optics | Glass lens | ||||||||||||
Laser Drive Modes | CW, Analog Modulation, Digital Modulation, Computer Control | ||||||||||||
Operating Current | <1800mA | ||||||||||||
Operating Voltage | 12.0VDC | ||||||||||||
CDRH Class | Class II | ||||||||||||
MTBF | >8000 Hrs. | ||||||||||||
Dimensions | 130x52x48mm (with computer interface) | ||||||||||||
Case Material | Aluminum black anodized | ||||||||||||
Storage Temperature | -40℃ to 85℃ | ||||||||||||
Operating Temperature | -20℃ to 50℃ | ||||||||||||
High output uniform line laser module with wavelength 405nm~850nmm
Product Features
• Uniform Line
• Superior Line and Focusing Quality
• High Pointing Stability
• Digital and Analogue Modulation
• High Power Stability (APC control)
• Low Operating Current
• Superior Line and Focusing Quality
• High Pointing Stability
• Digital and Analogue Modulation
• High Power Stability (APC control)
• Low Operating Current
Red 640nm and green 520nm uniform line laser showing on exhibition
• Wide voltage working range
• High reliability
• Long life span
• User adjustable focus
• Two interfaces of digital and analog control for convenient equipment integration.
• High reliability
• Long life span
• User adjustable focus
• Two interfaces of digital and analog control for convenient equipment integration.
ELITE Uniform Line Laser “Special Lens” with the exclusive patent is the best choice for Machine Vision, 3D Scanning, and Measurement. The unique design and technology provide uniform intensity and uniform linewidth.

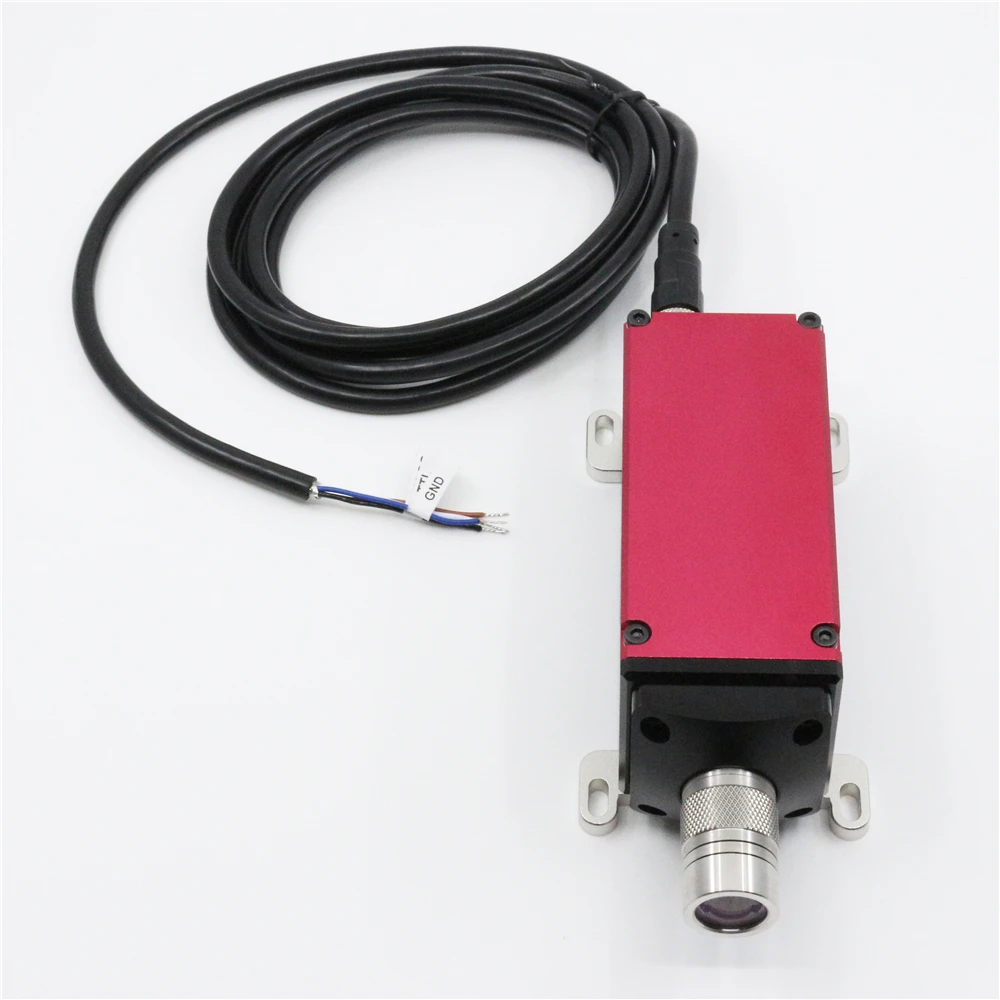

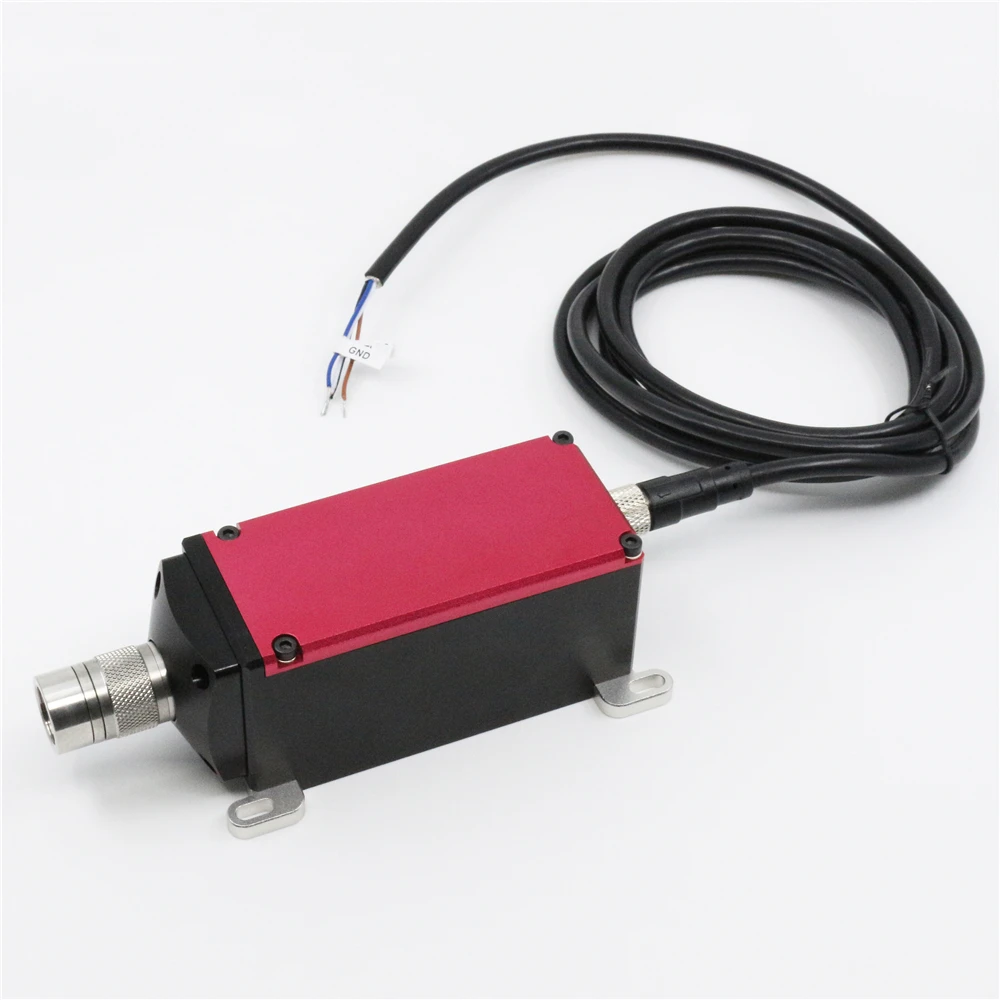

This Powell uniform line laser module could be connect with 4 wires: GND, Analog, TTL and DC12V
Payment and Shipping:
Payment method: Wire Transfer, T/T, PayPal,
Shipping method: FedEx (Default), DHL, UPS, TNT, SF, EMS
Shipping method: FedEx (Default), DHL, UPS, TNT, SF, EMS
