Австралийский стандарт AWTA огнестойкий светоотражающий теплозащитный пузырьковый изоляционный материал для
- Категория: Other Heat Insulation Materials >>>
- Поставщик: Suzhou,Star,New,Material,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.34 $* | 0.20 $* |
| Aug-16-2025 | 0.49 $* | 0.3 $* |
| Jul-16-2025 | 0.50 $* | 0.52 $* |
| Jun-16-2025 | 0.71 $* | 0.79 $* |
| May-16-2025 | 0.0 $* | 0.57 $* |
| Apr-16-2025 | 0.55 $* | 0.87 $* |
| Mar-16-2025 | 0.42 $* | 0.33 $* |
| Feb-16-2025 | 0.45 $* | 0.6 $* |
| Jan-16-2025 | 0.78 $* | 0.15 $* |
Характеристики
Product Description
The product ( Thermal insulation/reflective aluminium bubble foil insulation ) consists of two layers of aluminum foil with
plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
plastic bubble laminated between the aluminum foil,provides excellent insulation: Reflects up to 97% of radiant energy in addition to resisting other types of heat transfer from conduction, convection and radiation. The two side aluminum foil forms an effective barrier against moisture, air currents and vapors.
Item | Heat insulation material/reflective aluminium bubble foil insulation | ||||||
Main Structure | 1) Al / bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 2) Al / bubble + bubble / Al (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 3) Al / bubble / white PE anti-flaming sheet (bubble: ¢ : 10mm, H: 4mm or H: 2.5mm) 4) Al / white anti-flaming bubble / Aluminum with blue color (bubble: ¢ : 20mm, H: 7mm) 5) AL / white anti flaming bubble / woven cloth /AL ( bubble: ¢ : 20mm, H: 7mm ). Normal roll size: 1.2m x 40m / roll, various lengths available upon requests | ||||||
Thickness | 4mm or customzied | ||||||

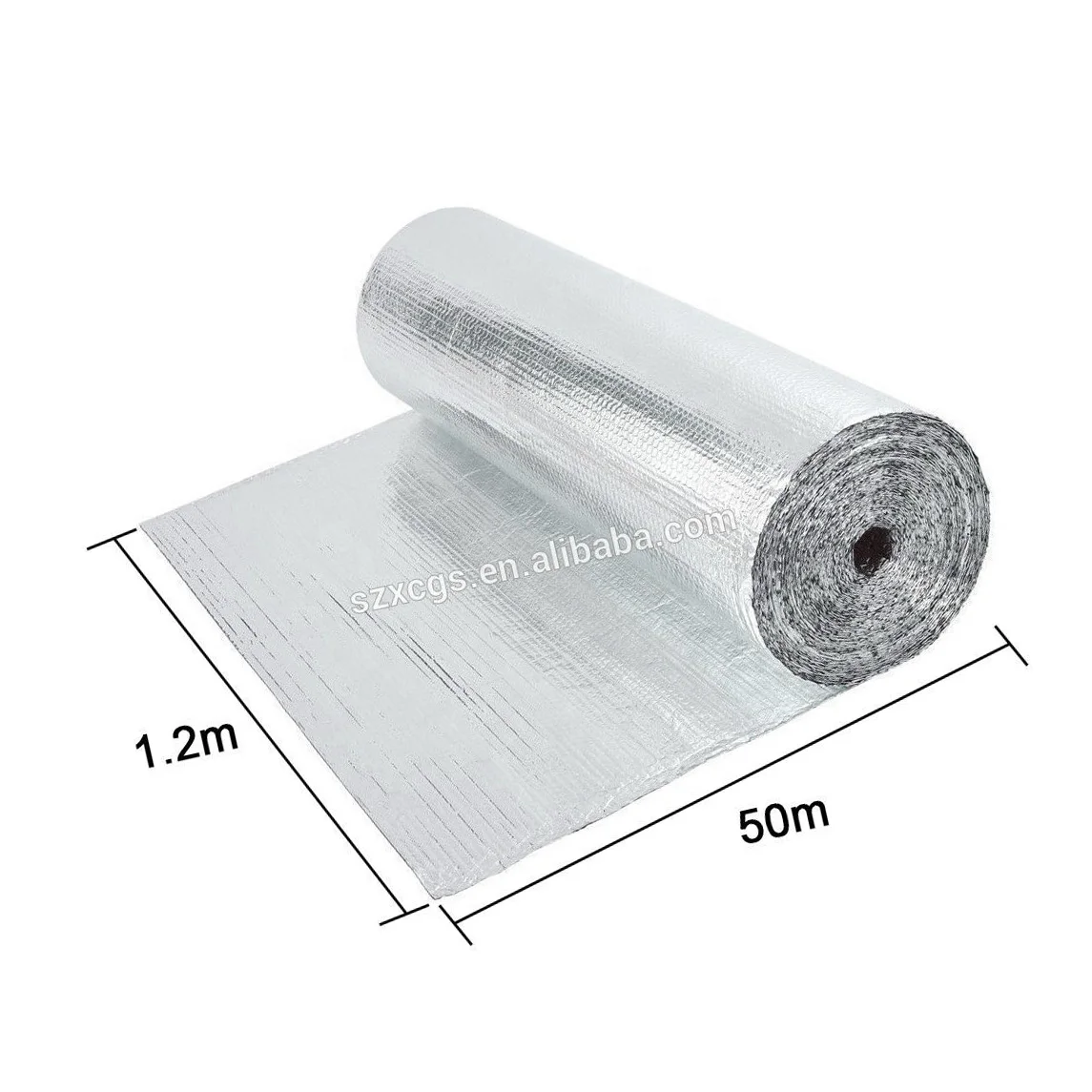

Roll Size | 1.2*40m per roll | ||||||
Reflectivity | 97% | ||||||
Bubble Size | 10*2.5/10*3/10*4/10*5/20*7/25*8/25*10 | ||||||
Logo Printing | OEM Available | ||||||
Details Images

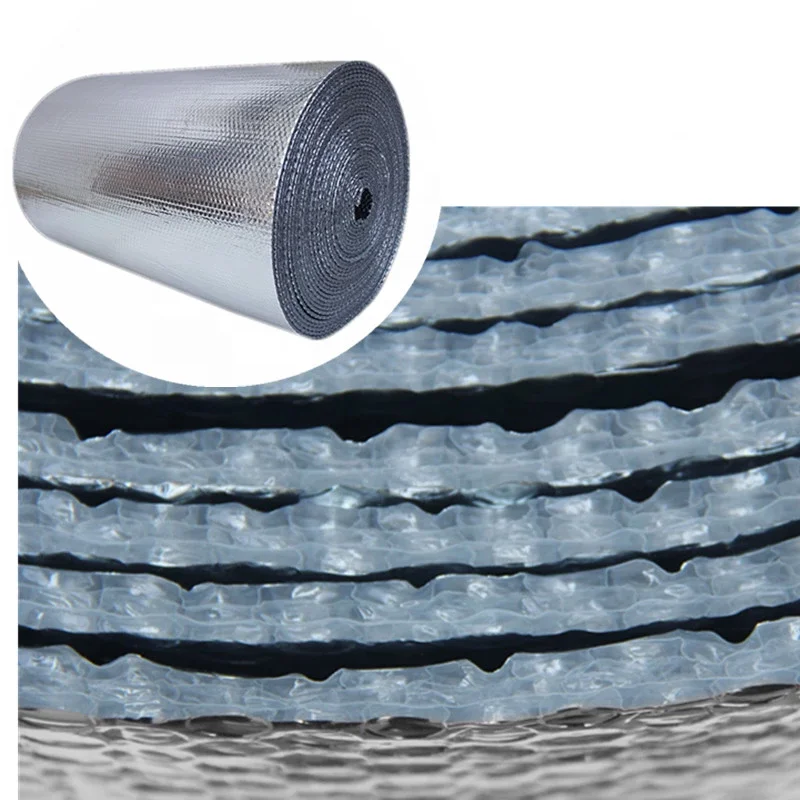

Aluminium Foil Bubble Insulation.

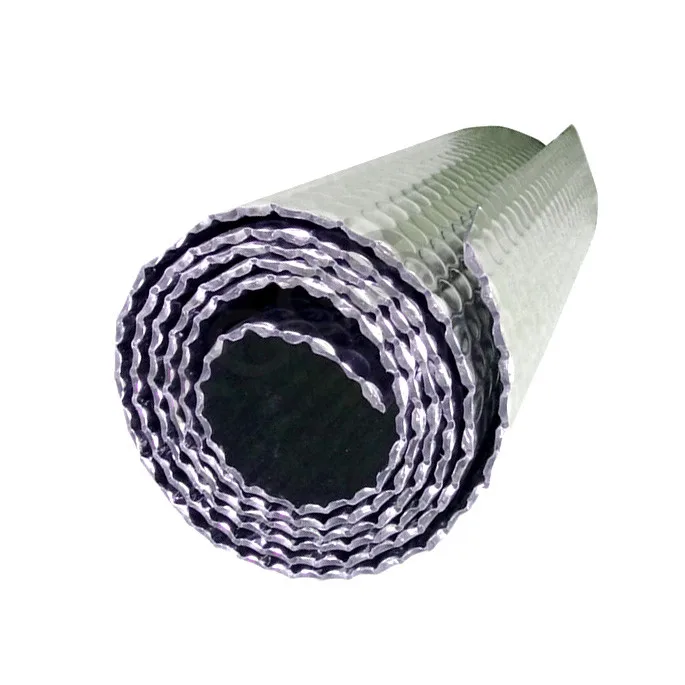

Reflective Bubble Foil Insulation

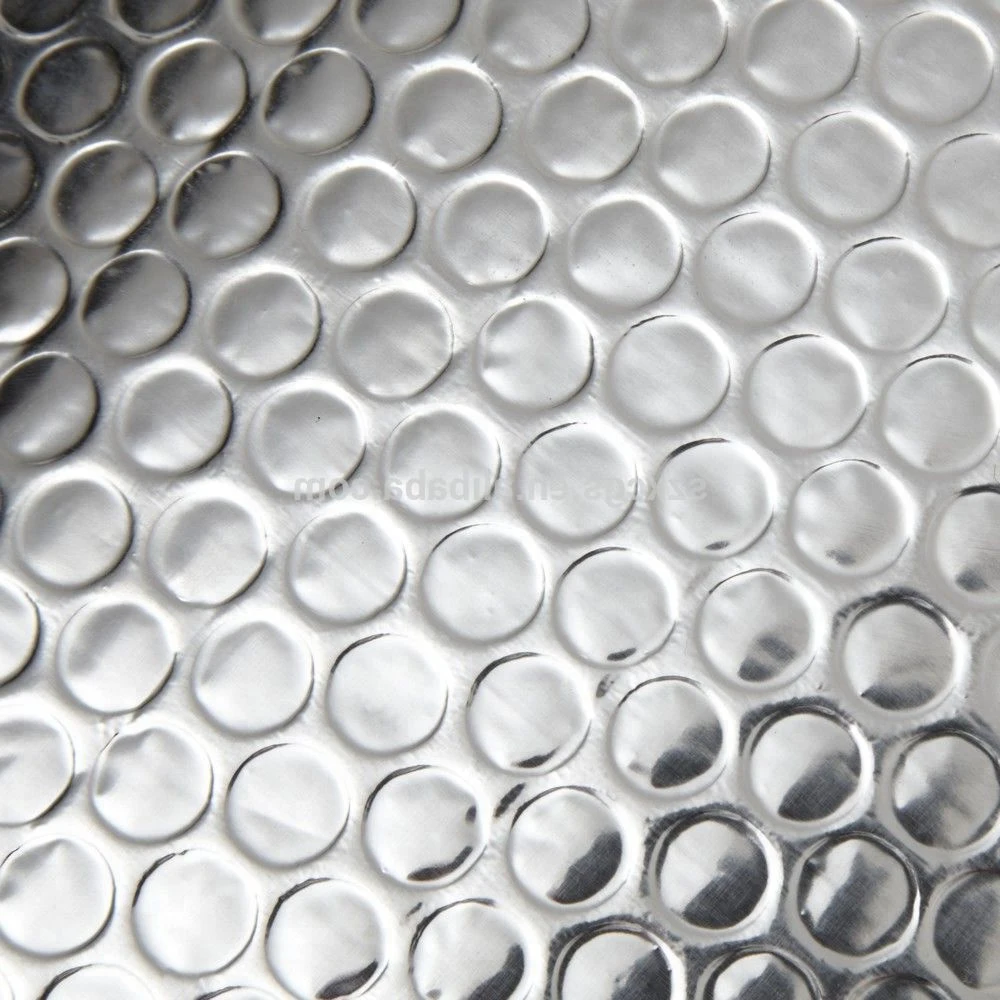

Bubble Insulation

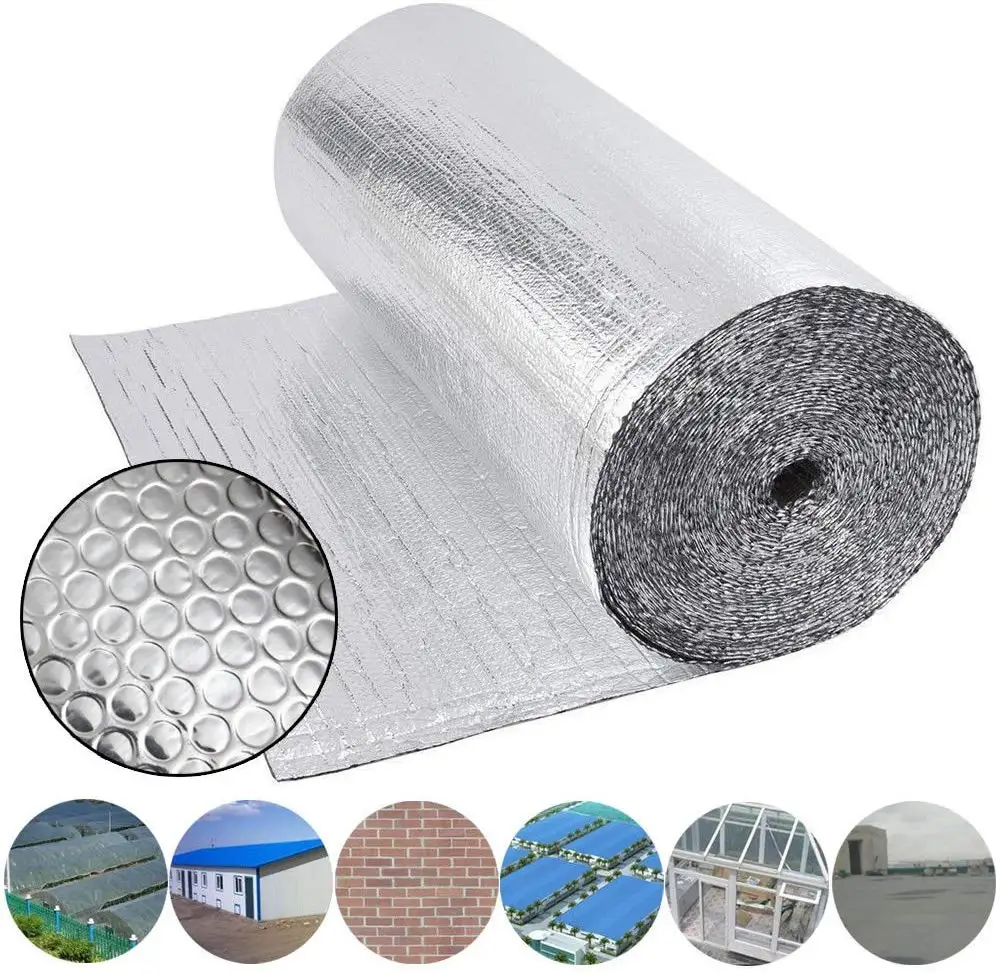

Heat Bubble Insulation
Custom Services
We can customize the bubble/foam foil insulaton material color, structure, bubble thickness as you need!
Application & Installation
Application
vehicles.

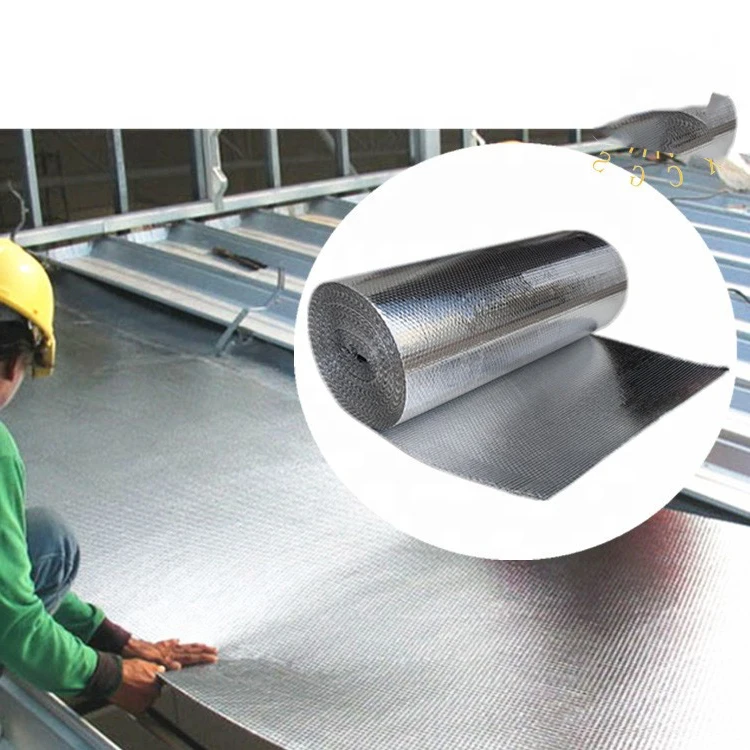

Installation Methods
1.Purchase approximately 10% more for overlapping and to provide the proper air gap between the purlins
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the
screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.
2.Cover the metal roof purlins with double-sided adhesive tape. Unroll the foil wrap insulation and attach it to the first purlin.
3.Secure the bubble foil to the framing members with furring strips. Use a drill equipped with a screwdriver bit to drive the
screws into the framing members.
4.Cover the seams of the bubble insulation with foil tape.
Shipping & Delivery
Company Information
Suzhou Star New Material Co., Ltd. was established in 1999, with total registered capital of 75 million RMB until now. Star is a national high-tech enterprise, specialized in soft packaging materials and developing e-commerce mailing package, energy-saving thermal packaging materials to expand the group of companies.Star Group has five entity factories so far. Star Group has its own independent industrial park, covering area of 62280 M2, with 920 employees. ....
RAQ
Q1. Can I have a sample order for Bubble/Foam Foil Insulation?
A: Yes, we welcome sample order to test and check quality. Mixed samples are acceptable.
Q2. What about the lead time?
A:Normally 7-12 days after we get the deposit
Q3. Do you have any MOQ limit for Bubble/Foam Insulation order?
A: Have no MOQ limited,if the material is Stock
Q4. How about the Payment?
A: Small amount accept Paypal, Mass Amount 30% T/T, Remit the rest balance after shipment before surrendering the BL( Against the BL copy)
Q5. How to proceed an order?
A: U can directly sent me a mail to xcbwk(at)xcgs.com for your required details .
