TVM802B паяльная машина с двойным видением SMD дешевый паяльный аппарат SMT монтажный чип 46 Кормушками полностью


Поделиться:


Цена:*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-18-2025 0.36 $* 0.95 $*
Aug-18-2025 0.85 $* 0.97 $*
Jul-18-2025 0.49 $* 0.77 $*
Jun-18-2025 0.62 $* 0.46 $*
May-18-2025 0.15 $* 0.92 $*
Apr-18-2025 0.56 $* 0.23 $*
Mar-18-2025 0.98 $* 0.7 $*
Feb-18-2025 0.12 $* 0.28 $*
Jan-18-2025 0.23 $* 0.94 $*

Характеристики



Introduction
TVM802B improve on the basic of TVM802A, meet the need of more reel feeders.With high performance and high dependabillty.Have a good reputation in the market.


Feature
1. intelligent double vision.
2. 46pcs standard reel feeders.
3. upgrade HIWIN square slide rails.
4. newly second-generation roll feeder.


Part list
1.Main feeder Standard configuration:8mm-22pcs,12,mm-3pcs,16mm-1pcs.
2.The second feeder (TVM802A have no second feeder) Standard equipment:8mm-18pcs,12mm-3pcs,16mm-1pcs(The feeder could be made on customer's requirement.)
3.Industrial-strength up visual system With professional visual algorithms to determine the center of the components, calculate the position offset and angel offset so that we can pick and place efficiently.
4.Mute vacuum pump With 2 built-in imported mute vacuum pump and a blow air pump.
5.Manual man-machine interface.
6.Chip place zone Put the chips here, just need to set the corresponding coordinates.
7.PCB place zone Place the PCB here while the SMT processing.
8.Exclusive development of Ethernet Device interface Industrialstrength Ethernet interface connect conveniently to guarantee the machine reliable operation.
9. Industrial-strength under visual system.It's able to identify the Mark point and determine the coordinates of component by manual or automatic control.
10.Intelligent placement head The welldesigned placement head has realized that double suction,vacuum test,missing part check,automatic dialing materials.

The TVM802 software was developed by ourselves. The software is available in English. And our software will be updated, as soon as there is an update, the salesman will send new software to your mailbox.

The TVM802 machine has one year warranty, lifetime maintenance. We have a professional after-sales team. As long as there is a problem with the machine within one year after purchase, we will repair it for free. If there is a need to replace the accessories, we will send them to your hands for free.(Generally we use TNT/DHL. 3-5 business days to your hands)


Main parameter


Model
TVM802B
Max applicable PCB
20*20mm----270*330mm
Max XY Moving area
395*445mm
Placement head quantity
2
Positioning accuracy
±0.025mm
Max mounting capability
5000CPH(With camera)/7000CPH(Without camera)
Motor
Closed-loop Motor
Driver
Closed-loop Driver
Applicable Components
0402--5050,SOP,TQFP,QFN,BGA etc
Components supply
Tape reel,bulk,Tray
Tape width & Feeders number
Total=46PCS 8mm=38PCS,12mm=6PCS,16mm=2PCS
UP Visual system
Identify angle deviations and position deviations
Down Visual system
Automatic identify mark point of PCB
Pump
1 vacuum pump(-92KP), 1 blow pump
Vacuum pump
2 -92KPA (Mute type pump) and 1 positive pump
Power
125W
Power supply
AC220V/AC110V
Gross weight
58KG
Net Weight
45KG
Volume
0.32CBM
Support software
Protl99/Altium Designer/Eagle/Pads/ Allegro

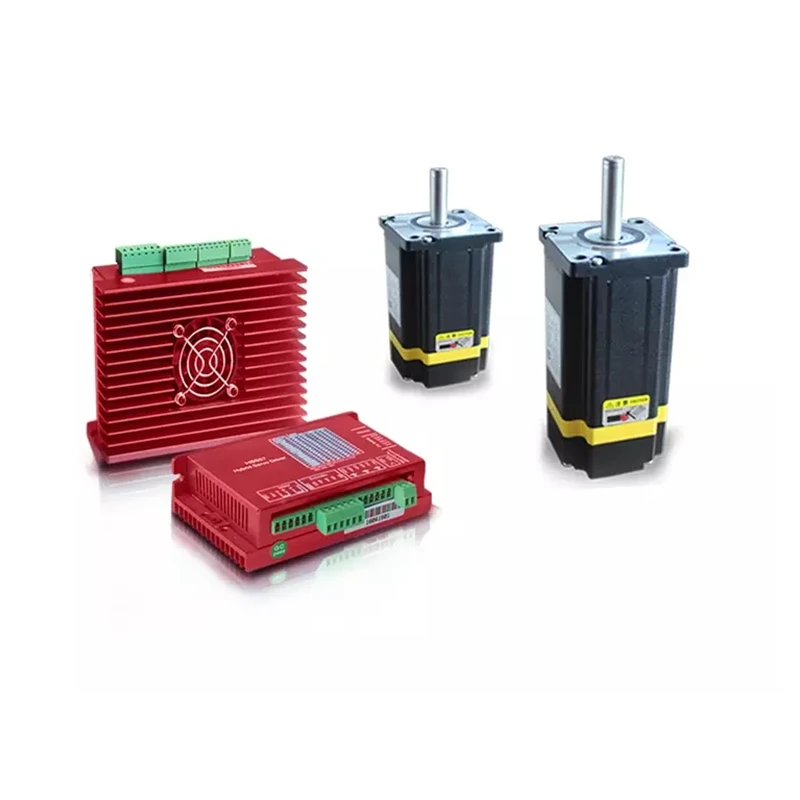

Closed-loop motor+Closed-loop driver

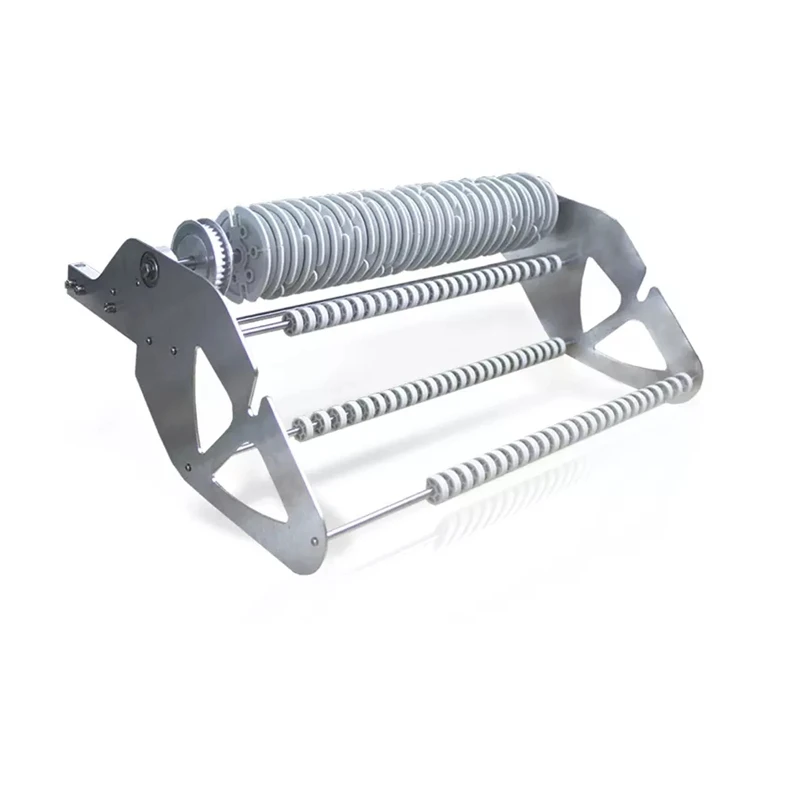

Updated reels

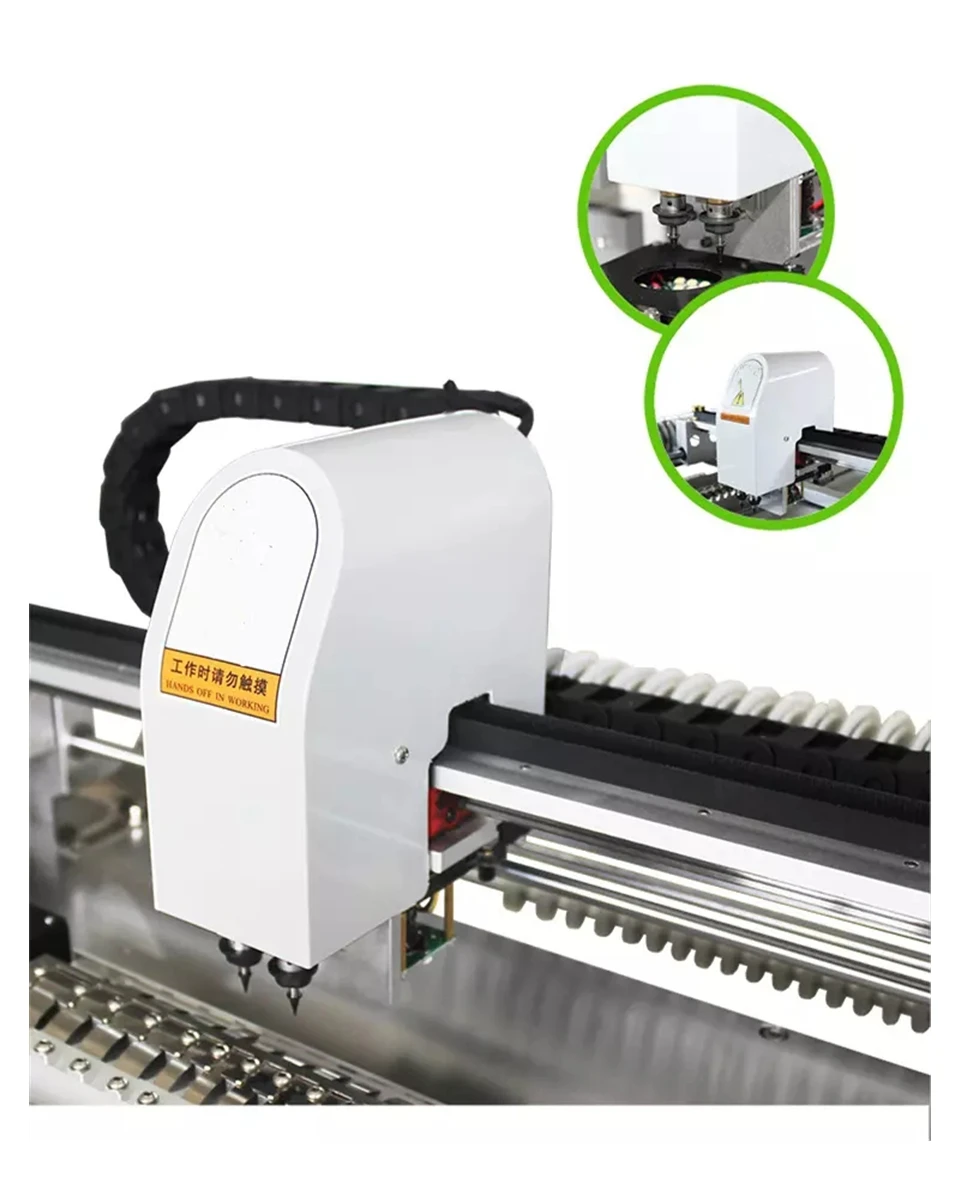

Mounting heads




Nozzles




Package




Wenzhou Yingxing Technology Co.,Ltd
Specialises in SMT Production Line (PNP Machine)more than 9 years.




Our Services
1.Video technical support
2.24-hour online support
3.Goods tracking support
4.Free broken parts(Within 1 YEAR warranty )


FAQ
Q:How is the training?
A:After buying our machines,your engineers can go to our company or it is so easy to operate the machine according the training video and user manual,the user manual will come with the machine together.

Q:Is it hard to use these machines?
A:No,not hard at all.For our previous clients,at most 2 days is enough to learn to operate the machines.

Q:Does your machines have quality certificate?
A:All of our machines have passed CE certificate,ISO14001(BCC),ISO9001(IQNET) and have own patent.

Q:The Warranty of the machine?
A:One year,then the parts will be free for the buyer in the warranty.

Q:English version for these machines?
A:Yes
