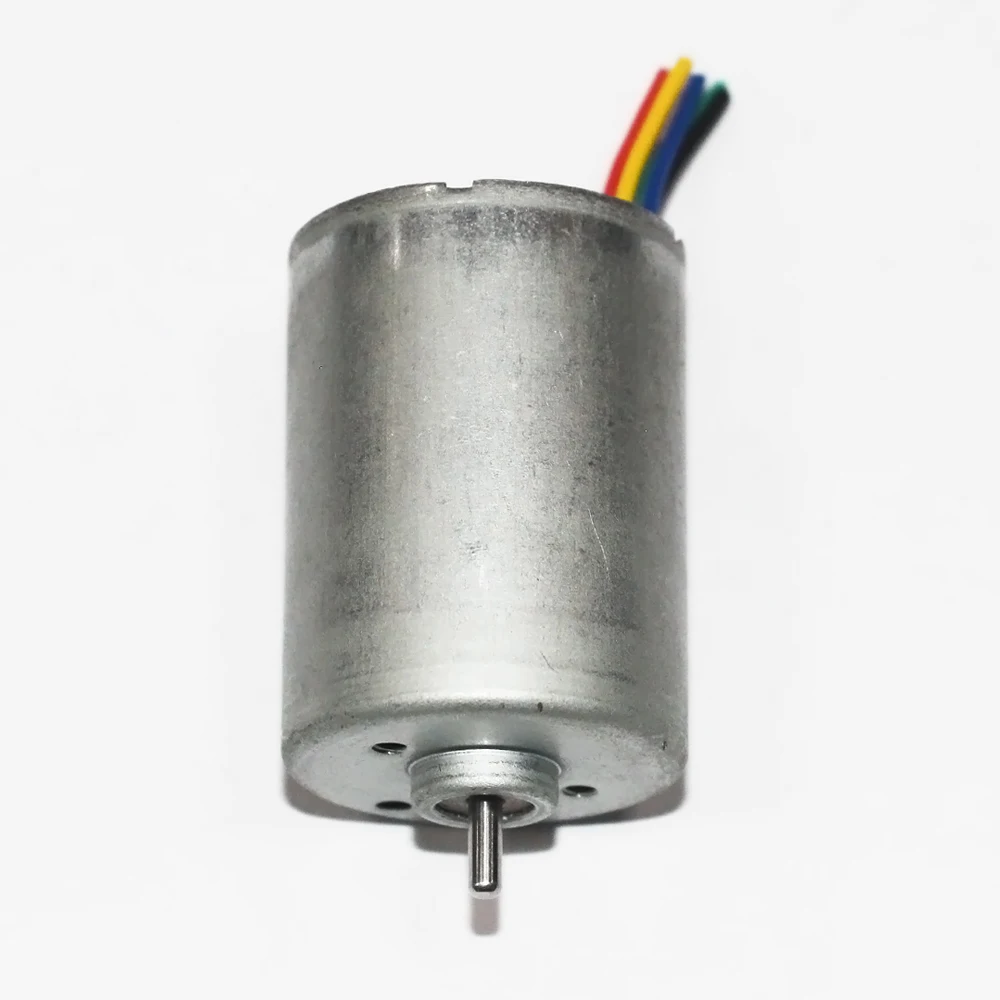

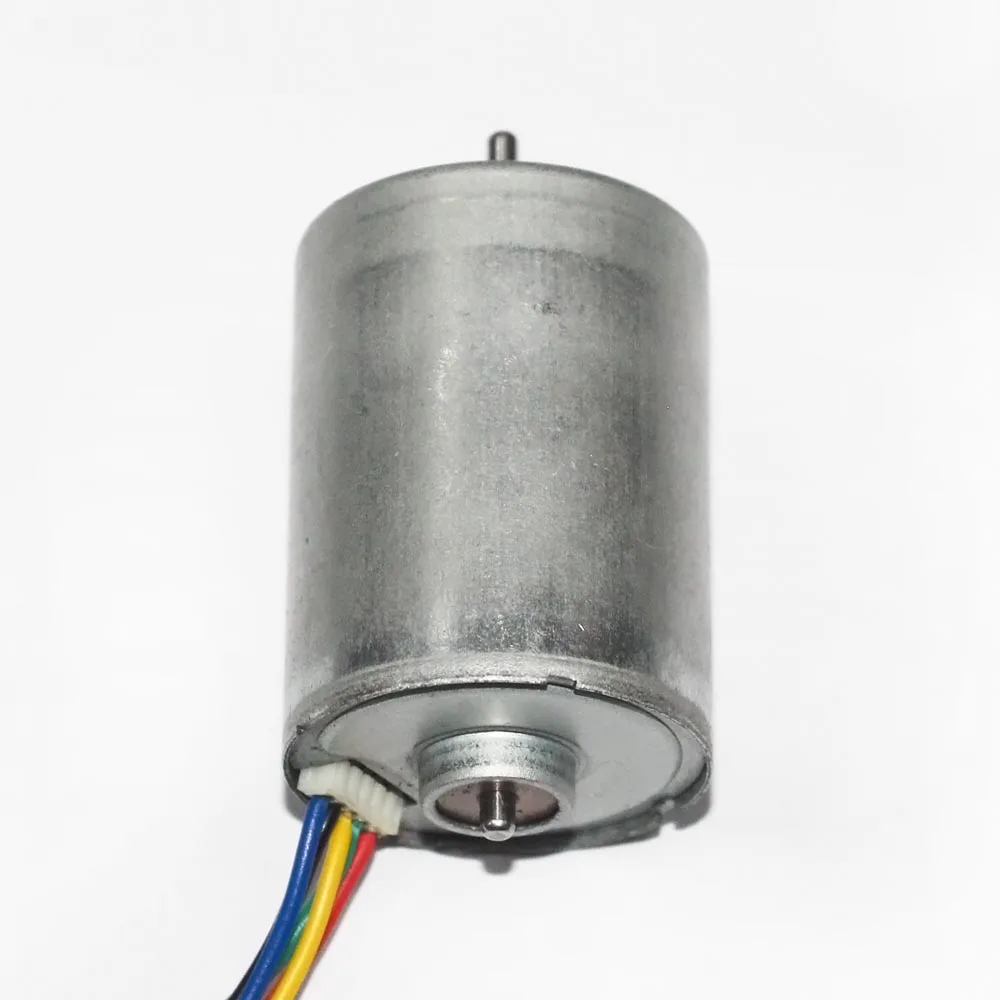

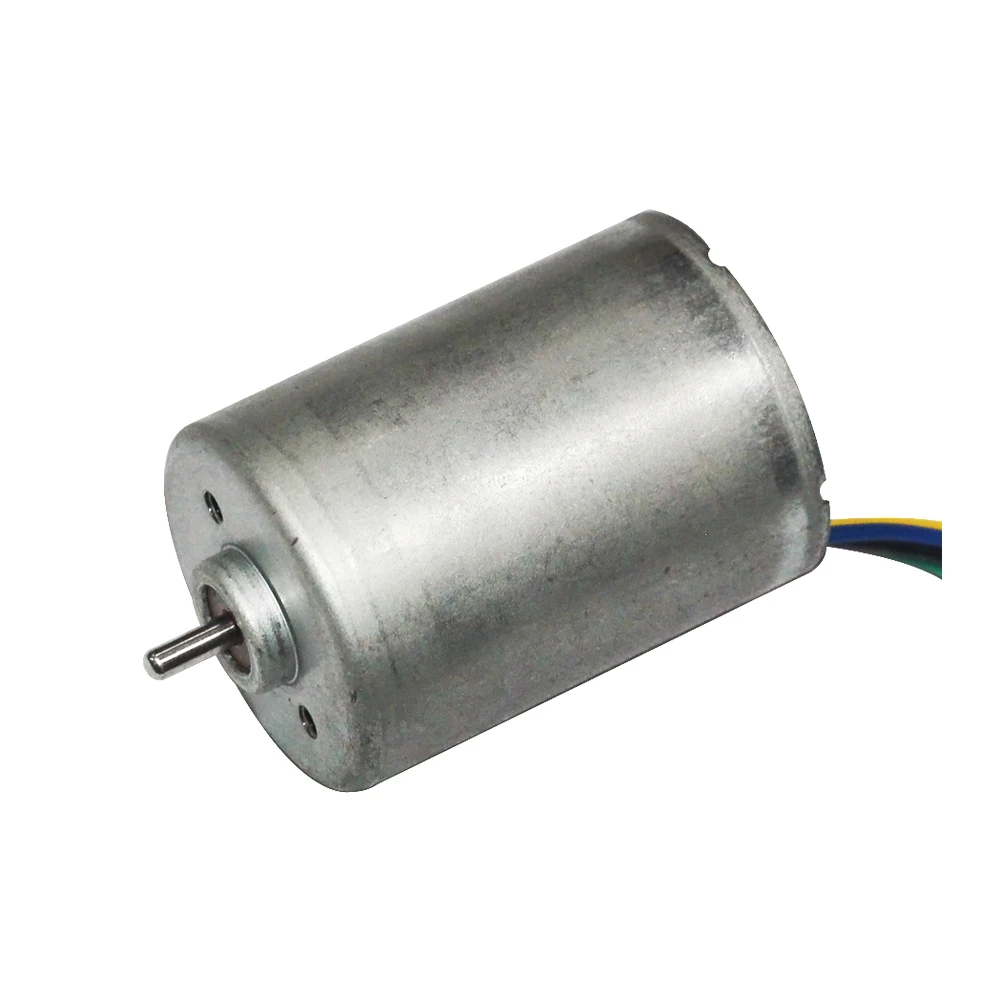

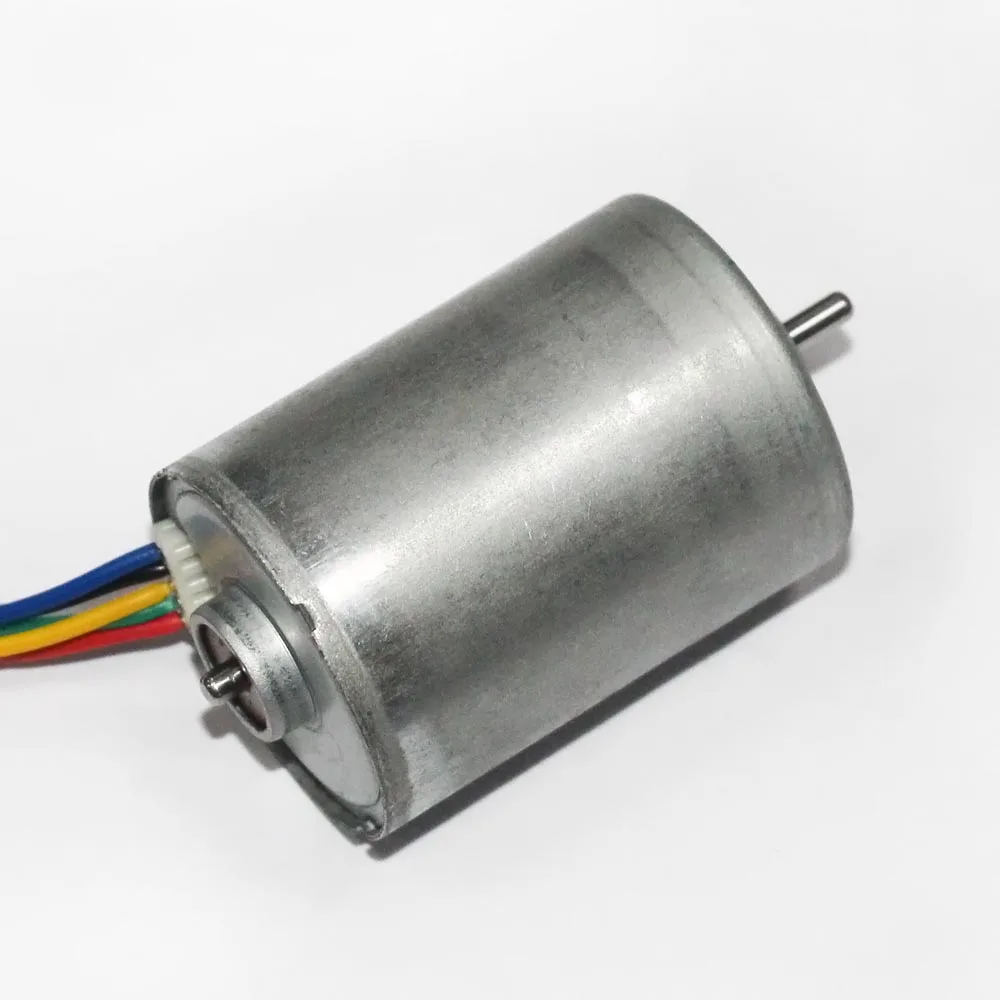

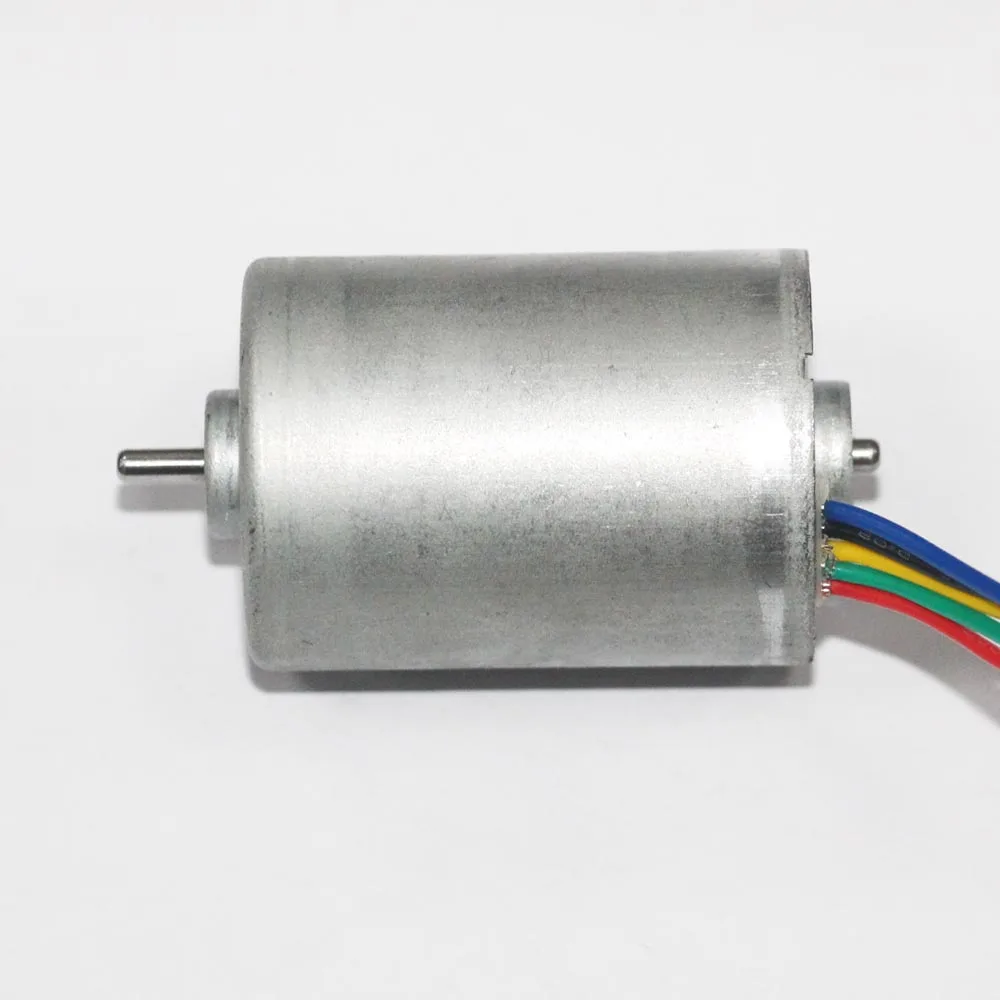

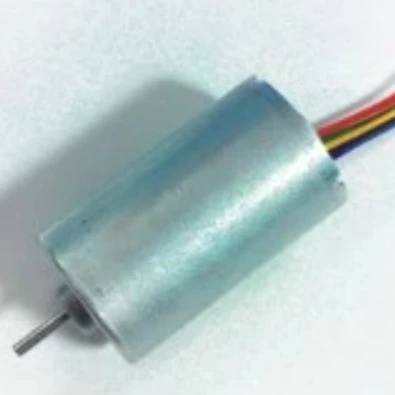

Высококачественный маленький бесщеточный двигатель постоянного тока 28 мм 12 В 24 в 9 18 BL2847i B2847M с
- Категория: >>>
- Поставщик: Shen,Zhen,Xin,Dong,Hui,Technology,Co.,Ltd
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-20-2025 | 7.69 $* | 7.76 $* |
| Aug-20-2025 | 7.84 $* | 7.5 $* |
| Jul-20-2025 | 6.67 $* | 6.51 $* |
| Jun-20-2025 | 7.53 $* | 7.79 $* |
| May-20-2025 | 6.22 $* | 6.3 $* |
| Apr-20-2025 | 7.76 $* | 7.84 $* |
| Mar-20-2025 | 7.91 $* | 7.55 $* |
| Feb-20-2025 | 7.75 $* | 7.49 $* |
| Jan-20-2025 | 7.40 $* | 7.55 $* |
Характеристики
Product Description
- Size: Ø28.0* 47.0mm
- Built-in driver (Controller with hall sensor)
- PWM pulse wide speed range
- Clockwise/counter-clockwise rotation
- FG speed feedback signal
- Low EMC Low noise
- Long life: 3000hrs Min.
- Over-current protection
- Over-voltage protection
- Under-voltage protection
- Customization acceptable
| Model | B2847M-S01 | B2847M-S02 | B2847M-S03 | B2847M-S04 | |
| Voltage(V) | Operating Range | 6-12 | 8-15 | 8-15 | 8-26 |
| Rated | 6 | 12 | 12 | 24 | |
| No Load | Speed (rpm) | 3100 | 5100 | 4800 | 6800 |
| Current (A) | 0.17 | 0.14 | 0.15 | 0.10 | |
| Rated Load | Torque (mNm) | 18.0 | 35.0 | 21.0 | 50.0 |
| Speed (rpm) | 2401 | 3677 | 4058 | 5172 | |
| Current (A) | 1.20 | 1.74 | 1.03 | 1.58 | |
| Output P. (W) | 4.53 | 13.5 | 8.92 | 27.1 | |
| Stall | Torque (mNm) | 76.0 | 124 | 132 | 207 |
| Current (A) | 2.50 | 2.50 | 2.50 | 2.50 | |
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
All 28mm bldc motor with driver series:
| Model | Voltage(V) | No Load | Rated Load | Stall | ||||||
| Operating Range | Rated | Speed (rpm) | Current (A) | Torque (mNm) | Speed (rpm) | Current (A) | Output P. (W) | Torque (mNm) | Current (A) | |
| B2838M-S01 | 6-12 | 7.4 | 4400 | 0.15 | 7.0 | 4100 | 0.68 | 3.0 | 38.0 | 1.6 |
| B2838M-S02 | 8-26 | 12 | 3900 | 0.09 | 12.0 | 3200 | 0.58 | 4.1 | 69.4 | 1.6 |
| B2838M-S03 | 8-26 | 24 | 7640 | 0.15 | 18.0 | 4700 | 0.9 | 9.0 | 48.0 | 2.50 |
| B2838M-S04 | 8-26 | 24 | 9400 | 0.18 | 24.0 | 5800 | 1.38 | 14.6 | 60.0 | 2.50 |
| B2838M-S05 | 8-26 | 24 | 16000 | 0.30 | 20.0 | 13000 | 1.75 | 27.4 | 40.0 | 2.50 |
| B2847M-S01 | 6-12 | 6 | 3100 | 0.17 | 18.0 | 2401 | 1.20 | 4.53 | 76.0 | 2.50 |
| B2847M-S02 | 8-15 | 12 | 5100 | 0.14 | 35.0 | 3677 | 1.74 | 13.5 | 124 | 2.50 |
| B2847M-S03 | 8-15 | 12 | 4800 | 0.15 | 21.0 | 4058 | 1.03 | 8.92 | 132 | 2.50 |
| B2847M-S04 | 8-26 | 24 | 6800 | 0.10 | 50.0 | 5172 | 1.58 | 27.1 | 207 | 2.50 |
Notice: Data in this typical specification sheet are for other certain customer. Voltage, rated torque, speed, current, power and shaft extension feature & dimension can be changed to meet customer specific requirement.
Packaging & Shipping
 |  |
 |  |
 | |
Company Information
Shenzhen Xin Dong Hui Technolgoy is professional micro motor/engine manufacturer for more than 15 years.
Product capacity: Brush Dc Motor:Φ6mm—Φ60mm
Brushless Dc Motor:Φ24mm-Φ52mm
Coreless Brush/Brushless DC Motor:Φ4mm—Φ45mm
Gear/Planetary Gear Dc Motor:Φ4mm—Φ60mm
Stepper Dc Motor:Φ6mm—Φ24mm
Vibration Dc Motor:Φ4mm—Φ45mm
Motor Voltage Range: DC1.5V-220V
Speed Range:0.1-80,000RPM
Output Torque:0.01-500Kg.cm
Shaft Length:0.1-150mm
Gearbox Ratio:1:4---1:5000
FAQ
Q: Are you trading company or manufacturer ?
A: We are the manufacturer with 15years experiences.
Q:What's your main products?
A: Dia10~52mm DC Micro Motor and Gear Motor,Auto dc motor, Electric motor, Gear Motor, DC Motor, Brush DC motor, Brushless DC motor,Spur Gear motor, Micro Motor, Vibration motor etc.
Q:What's the main usage of the micro dc gear motor?
A: Our motor widely used in Home Appliance,Office Equipment,Health-care appliance,Sanitation industry, High-class toy,Banking System,Electronic and electrical tools,automation industry, bank equipments,payment equipments,vending machines,power door lock,electric door lock.
Q:Do you accept OEM/ODM?
A: Sure,Our R&D team have 7 experienced enginners,tell us your needs and we could make it.
Q:What i need to provide if i want to make a customized order?
A: Please kindly tell us the voltage,speed,torque and overall dimension.
Q:What if i don't know the above data?
A: Please tell us the usage we will give you professional advance.
Q: How about Sample order?
A: Sample is available,the extra fee due to the model type.
Q: Which shipping way is available?
A: Sample and small order by DHL, UPS, FedEx, TNT, EMS, China Post more fast but expensive
Bulk order by air or by sea cheap but slow.
Q: How long is the deliver time?
A:Sample Order takes 7-15 workdays.Bulk Order takes 15-25workdays.
Q: How about the payment term?
A: Payment by T/T, PayPal. Sample order 100% in advacne,bulk order more than 5000USD, 30-50% deposit, the balance paid before shippment.
