Поделиться:


Цена:39 800,00 $ - 42 950,00 $*

Количество:



Описание и отзывы


Трекер стоимости

Месяц Минимальная цена Макс. стоимость
Sep-19-2025 47362.47 $* 49730.90 $*
Aug-19-2025 46964.43 $* 49312.42 $*
Jul-19-2025 39402.38 $* 41372.52 $*
Jun-19-2025 46168.32 $* 48476.79 $*
May-19-2025 40198.46 $* 42208.82 $*
Apr-19-2025 45372.17 $* 47641.4 $*
Mar-19-2025 44974.12 $* 47223.31 $*
Feb-19-2025 44576.55 $* 46805.2 $*
Jan-19-2025 44178.44 $* 46387.93 $*

Характеристики

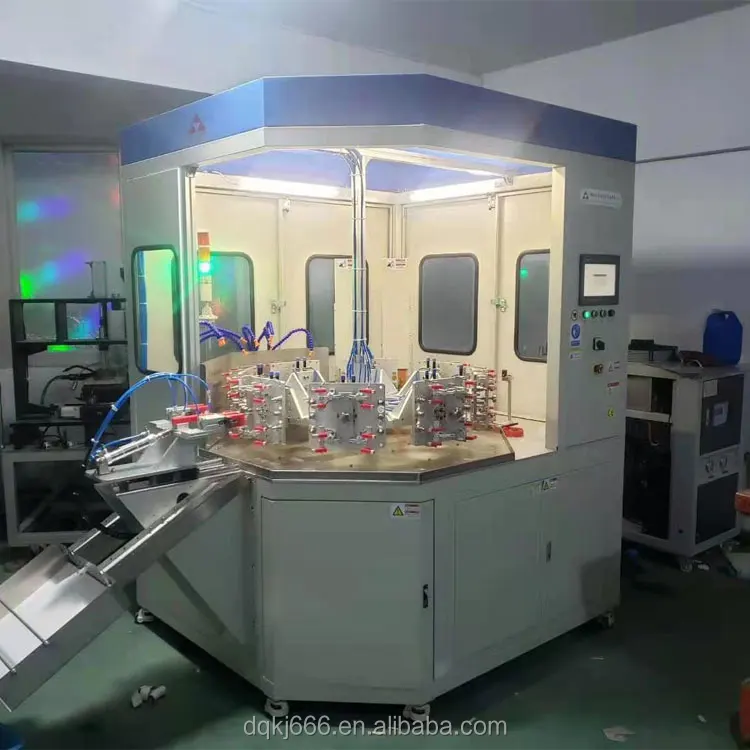

Chinese suppliers high frequency welding machine automatic,brass distributor turntable welding machine








Note: The equipment used 16 stations,each station welding two products


Technical parameters of high frequency welding machine automatic series products
Welding beat
(8-15) s two products
Operator requirements
1 general worker
High frequency machine model
All digitalFD-40H
Number of high frequency machines
2 sets
Feeding form
Manual feeding and automatic welding
Unload feeding form
Manual or automatic unload feeding
Display size
10-inch touch screen
High frequency machine type
DSP full digital control
Section heating
5 segments
Number of stored products
8 types
Max power
50kW
Max input current
80A
Rated power
30KW
Rated current
45A
Motor type
Servo motor
Max lifting stroke
200mm
Sensor lifting speed
100mm/s
Lifting accuracy
0.1mm
Tooling base type
Special ceramics
Number of tooling bases
16 piece
Nitrogen protection function
Equipped with nitrogen protection function
Air cooling function
Equipped with air cooling function
Water cooling function
Equipped with independent water cooling system
Lighting function
Station, distribution box lighting
Working desk
Aluminum alloy
Sink type
304 stainless steel
Equipment size
1450*1600*2360mm
Equipment weight
400kg
Industrial chiller (optional)
3P
Water quality requirements
Scale free purified water
Cooling water flow
4L/min
Cold water pressure
4-8bar
Max water temperature
of cooling water inlet
35℃
Cooling water PH
7.0-9.0


Memo:
This automatic induction welding system is a custom brazing welding line for different metal parts brazing welding, if you have any other requests, please contact us for customizing the appropriate technical solution.








Application fields:
The induction brazing soldering system is a customized induction heating system, mainly used for all kinds of air conditioner parts, tubes, pipes, valves, bathroom accessories, refrigerators, electrical home appliances, and automotive parts brazing welding jobs.
















Q: How to install your machine?
A: We have paper installation instructions and video, and we will teach till you learn it.
Q: How is your quality control?
A: We have a professional team responsible for product testing and packaging before delivery, you can be assured to purchase.
Q: How many days can the machine arrive after I bought it?
A: Usually 5-10 days(excluding holiday),large machines take 20-30 days.
Q: If the machine get damaged, what can I do ?
A: We will give you some spare parts free of charge during the one-year shelf life of the machine.For the customers who have bought the machine, if there is any problem with the machine, they can take a photo or record a video to us. We will guide the customers to perform the repair.If we still cannot solve the problem, we can send our engineers to your factory.
Q. How about the warranty?
A: All our products have one year quality warranty, during the warranty time, the spare parts replacement is free. And we provide life long time technical support and other assistance.
