Высокоточное пусковое реле автомобильное 12 В 500
- Категория: Auto Relays >>>
- Поставщик: Yueqing,Kuanghong,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 10.12 $* | 11.14 $* |
| Aug-18-2025 | 9.48 $* | 9.88 $* |
| Jul-18-2025 | 8.82 $* | 8.85 $* |
| Jun-18-2025 | 9.84 $* | 9.68 $* |
| May-18-2025 | 8.53 $* | 8.85 $* |
| Apr-18-2025 | 9.12 $* | 9.41 $* |
| Mar-18-2025 | 9.28 $* | 9.20 $* |
| Feb-18-2025 | 9.89 $* | 9.12 $* |
| Jan-18-2025 | 9.11 $* | 9.69 $* |
Характеристики
Product Description

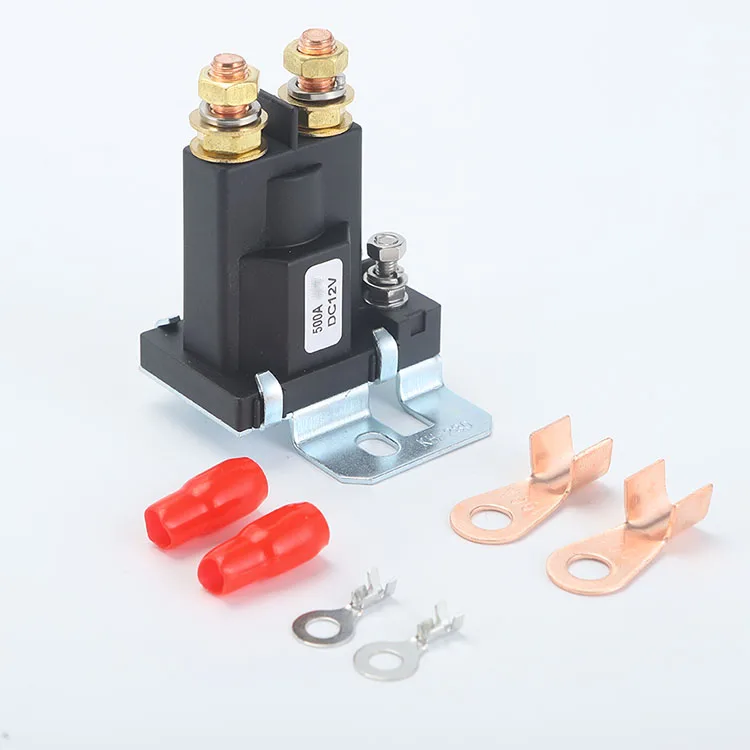

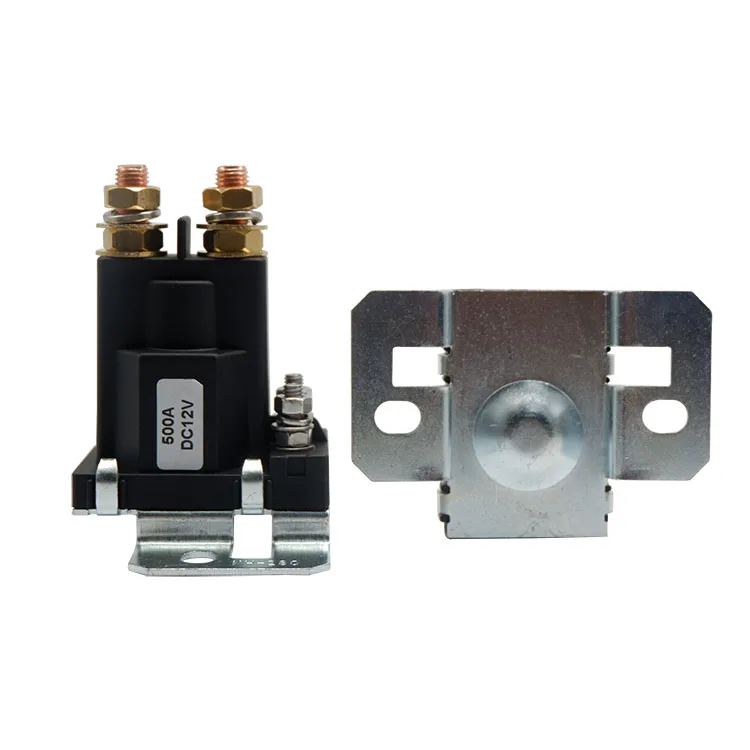

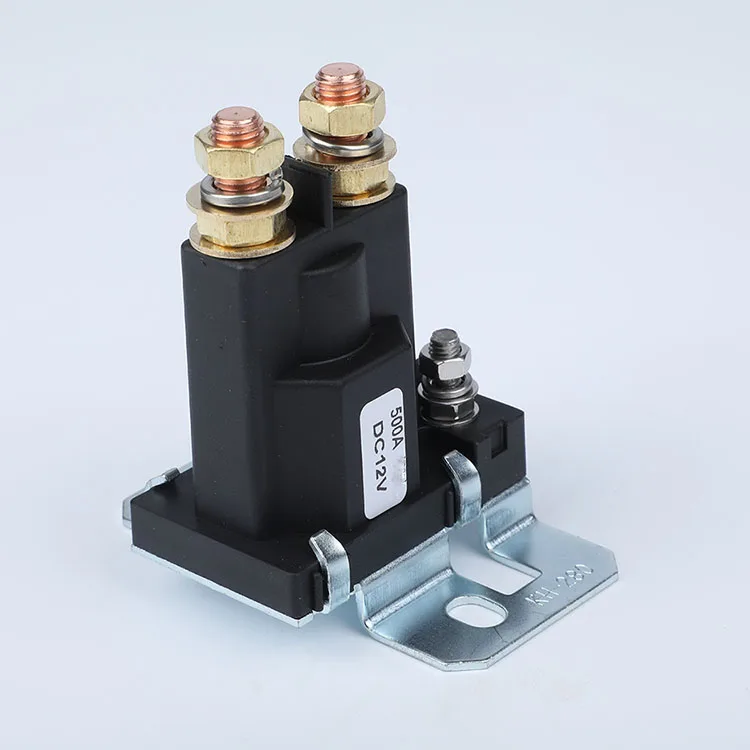

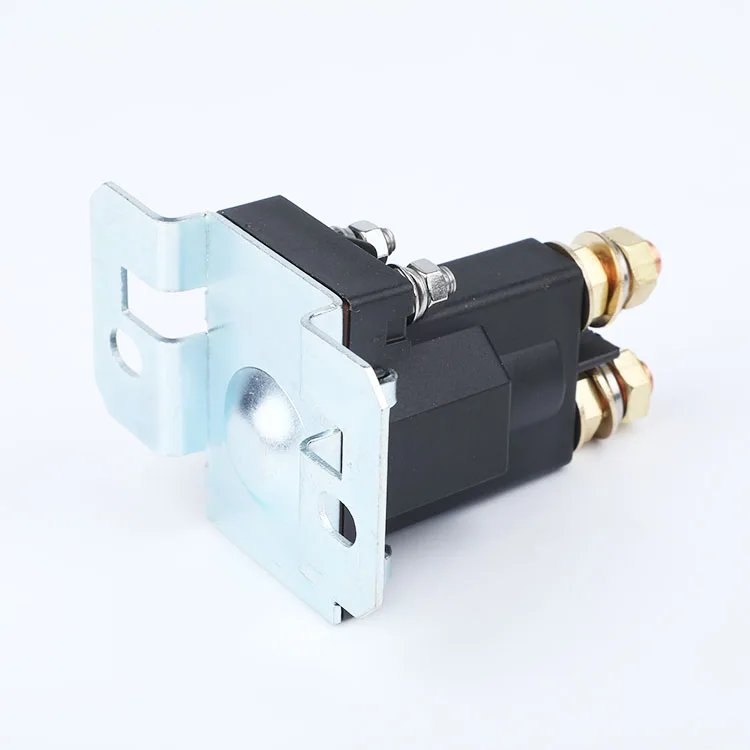

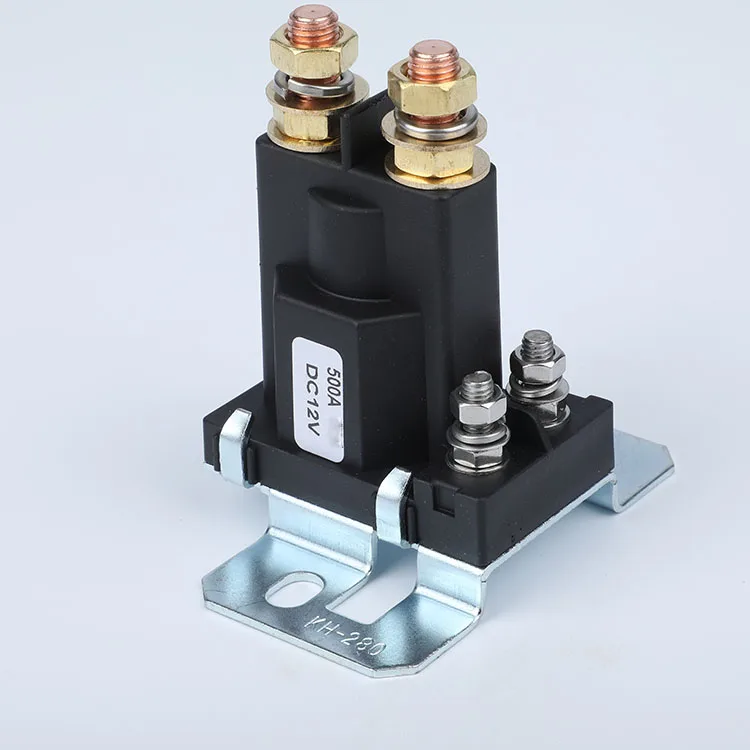

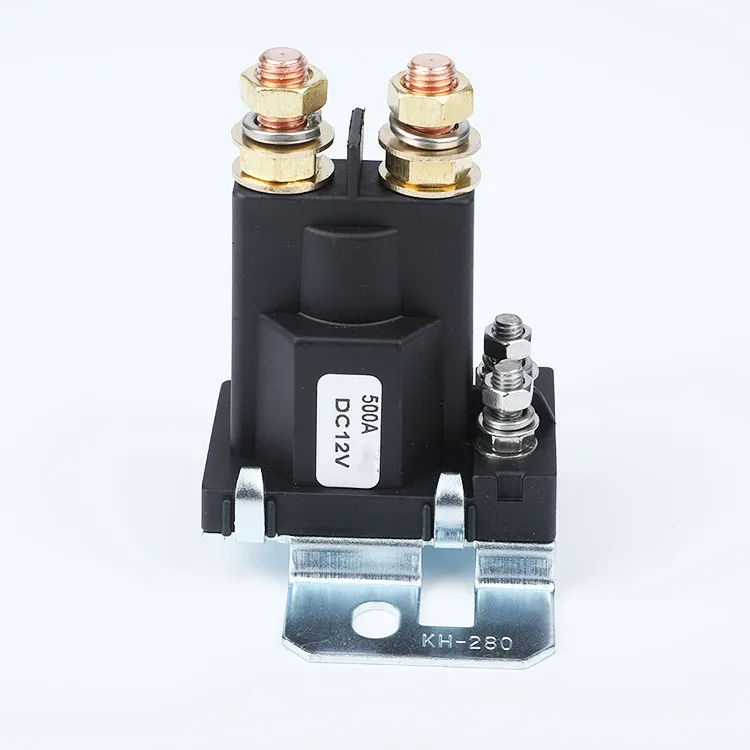

Name | Automotive Relay |
Contact Material | Silver Alloy |
Colour | Black |
Shape | Square |
Size | 79.7*56.4*85mm |
Characteristic | 12V 7.2W |
CONTACT DATA
Contact Material | AgSnO12 |
Contact Form | 1H(1A) |
Contact Ratings | NO:500A 14VDC |
Contact Resistance | 100mMax at6VDC 1A |
Max Switching Current | 500A |
Max Switching Voltage | 75VDC |
Max Switching Power | 7000W |
Life Expectancy Electrical | 100,000 Operations(at 30 Operations/minute) |
Life Expectancy Mechanical | 100,000 Operations |
COIL SPECIFICATION
Nominal Voltage（VDC） | 12 | ||
Coil Resistance（Ω） | 7.2W | 20 | |
Max Operate Voltage（VDC） | 6.0~8.0 | ||
Mix Release Voltage（VDC） | 1.2~3.6 | ||
Max Applicable Voltage(VDC) | 15.6 | ||
CHARACTERISTICS
Temperature Range | -30℃~+80℃ | ||
Vibration Resistance | 10~55Hz，1.5mm | ||
Shock Resistance | Operations Extremes | 10g | |
Damage Limits | 100g | ||
Humidity | 40%~85% | ||
Insulation Resistance | 100mΩ Min at 500VDC | ||
Safety Standard | CCEE | ||
Dielectric Strength Between Open Contacts | 500VAC（for one minute/sec） | ||
Between Contact And Coil | 750VAC(for one minute/sec) | ||
Operate Time | 7ms | ||
Release Time | 5ms | ||
NOTICE：7.2W can only be used for startup and can only work for a short time.
