Product Description
Main Applications

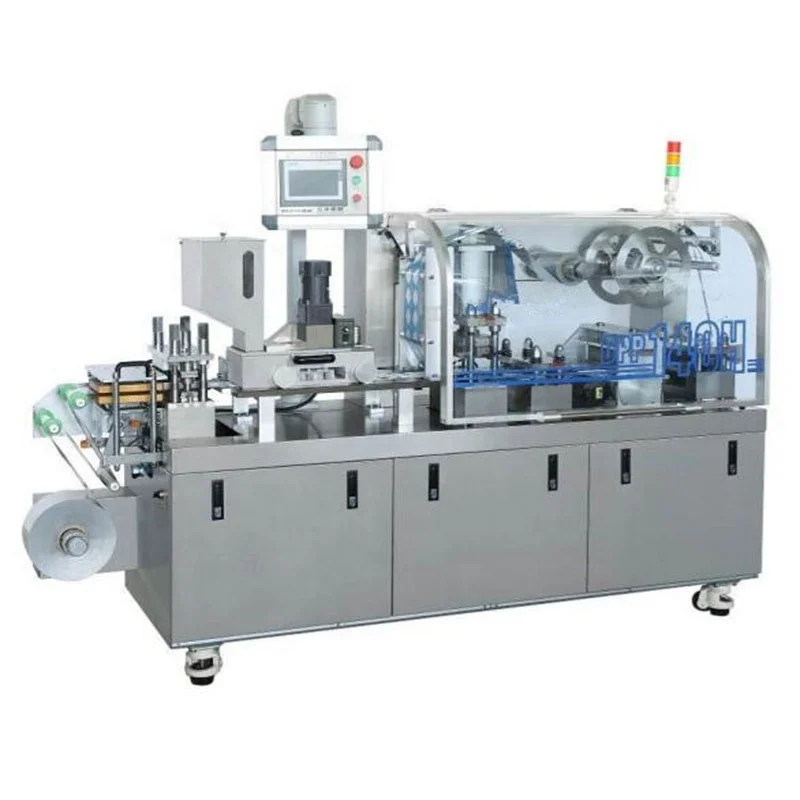

DPP-140H alu-alu alu-pvc blister packaging machine is our company many years of manufacturing experience, the latest products designed for pharmaceutical factory carefully, the machine integrates light, machine, electricity, gas, by the PLC programmable control, has pretty appearance, convenient operation, complete function, quick connect type mould replacement is more convenient, durable, deeply customer consistent high praise。
Features：
（2）The machine is equipped with a set of heat-sealing - punching station safety cover；
（3）The machine structure is more reasonable, the working platform is balcony type, no dead corner, easy to clean, maintenance more convenient；
（4）Equipped with PVC, PTP pieces stop and automatic alarm function；
（5）The safety cover is opened and the automatic alarm function is provided；
（6）Two station adjustment, is the forming, punching and cutting station, the operation is more convenient；
（7）Quick connection mold, easy to replace the mold, quick, single person can be completed in a short time; The forming mechanism, heat sealing mechanism and blanking mechanism of different molds have the same positioning datum, and the parts that need to be adjusted all have the scale indication。
（8）Forming, heat sealing, indentation, punching and cutting station CAM box body and box seat, for cast steel molding, never deformation, will not be damaged；
（9）Forming, heat sealing, indentation, blanking and other main working positions are floor type, so that the center of gravity is more stable and durable; Small occupation area, large space, cleaning more convenient。
（10）Electricity, gas, water are independent, simple structure, more safe, easy to maintain and operate。
Technical Parameter
Model | DPP-140H |
Punching Frequency | 20-50 Cutters/min |
（AL/AL）15-30（Times/Min） | |
Capacity | 36000～72000 pcs/hour |
Adjusting range of travel | 40～110mm |
Max.forming area | 130×100mm |
Max.forming depth | 14mm |
Standard plate size | 80×57mm |
Main Motor | 1.1kw |
Feeder power supply | 0.28KW |
Air requirement | ≥0.11m3/min |
PVC and PTP(Width×thickness) | PVC 140×0.25～0. 5mm PTP 140×0.02～0.03mm |
Overall size | 2510×750×1450mm |
Weight | 1600kg |

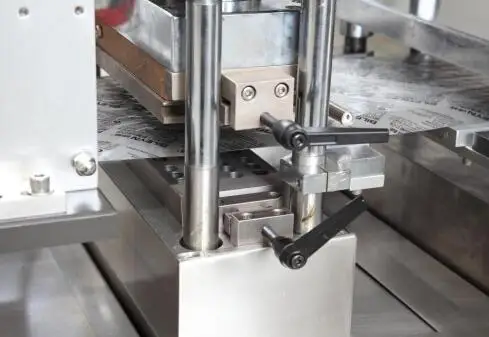

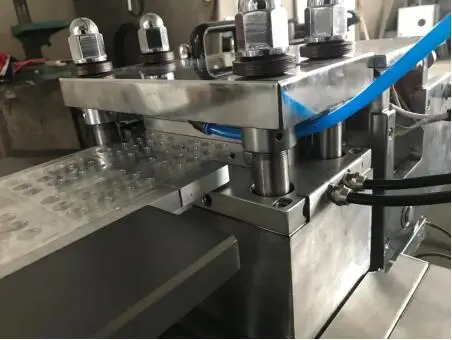

Forming station and quick connection die

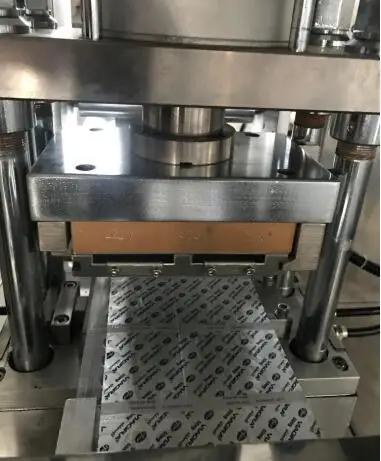

Heat sealing station (quick connection die)
Servo traction
