Pvc granule pelletizing extrusion line/plastic granulating
- Категория: >>>
- Поставщик: Zhangjiagang,Aicheng,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21420.66 $* | 22491.92 $* |
| Aug-16-2025 | 21240.57 $* | 22302.2 $* |
| Jul-16-2025 | 17820.55 $* | 18711.33 $* |
| Jun-16-2025 | 20880.54 $* | 21924.28 $* |
| May-16-2025 | 18180.90 $* | 19089.47 $* |
| Apr-16-2025 | 20520.92 $* | 21546.55 $* |
| Mar-16-2025 | 20340.94 $* | 21357.40 $* |
| Feb-16-2025 | 20160.33 $* | 21168.53 $* |
| Jan-16-2025 | 19980.37 $* | 20979.64 $* |
Характеристики
Products Description
___________________________________________________________________________________
___________________________________________________________________________________
Extrusion Part
1. forced extruding 2. high quality
3.wide adaptability
4.long working life
5.low shearing speed
6.hard decomposition
7.good compounding& plasticization effect
8.direct shaping of powder material and etc
Special designed plate type hydraulic screen changer for no stopping, no leaking Changing screen time ≤ 2 sec Share hydraulic
station with first single screw extruder Install the bracing die
station with first single screw extruder Install the bracing die

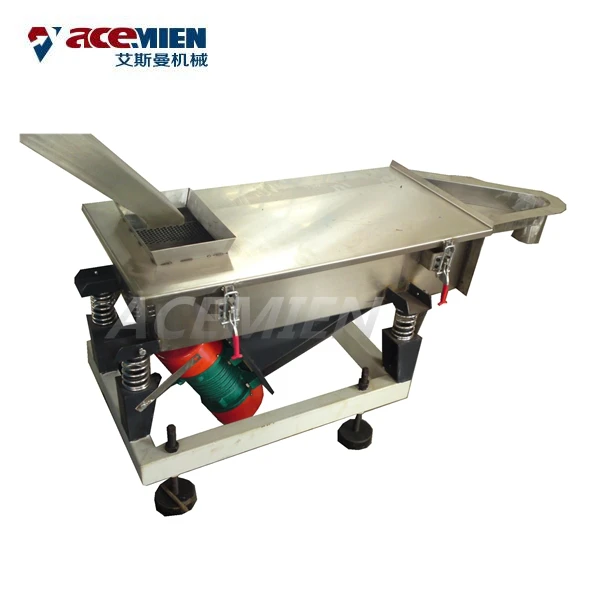

Vibrator
Name: Vibration dryer
Technical parameters:
1.Motor power: 0.5KW
2.Part of contacting material: stainless steel
Technical parameters:
1.Motor power: 0.5KW
2.Part of contacting material: stainless steel
Motor power: 5.5KW Rotary speed: 120-1200rpm Dimension of blade: Ф120x60mm Dimension of final product: Ф3x3mm Speed controlled by
frequency inverter Basic material of rotary blades: high-quality alloy steel
frequency inverter Basic material of rotary blades: high-quality alloy steel
Motor power: 0.4KW Part of contacting material: stainless steel
Blower Motor power: 3KW Part of contacting material: stainless steel
Storage silo Volume: 1.25 M3 Part of contacting material:
stainless steel
stainless steel

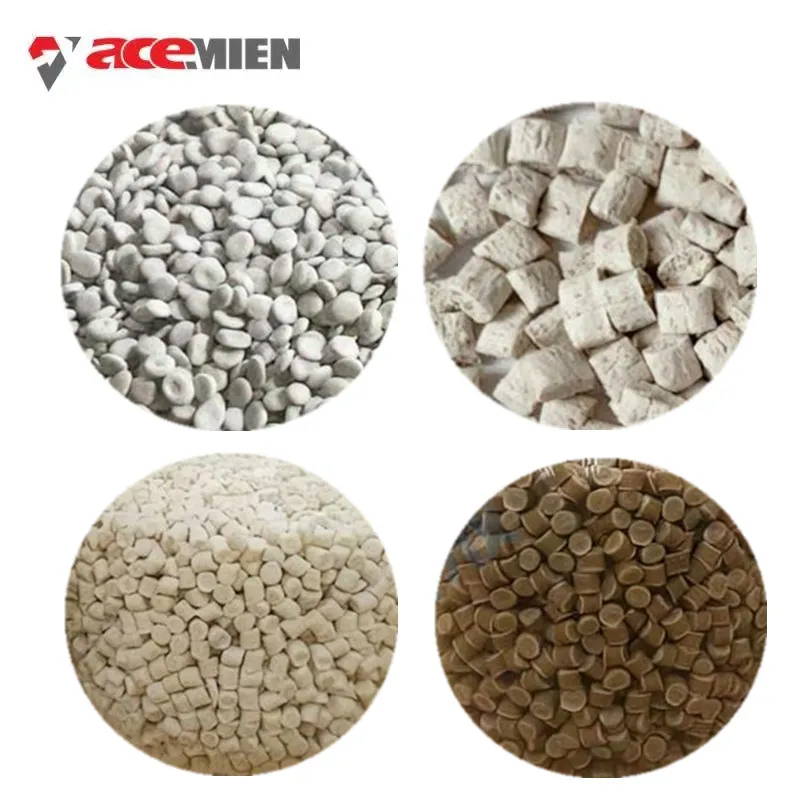

Product Application
___________________________________________________________________________________
Machine List
______________________________________________________________________________________________________________________
No. | Machine | Qty. | Remark |
1 | Belt conveyor | 1set | |
2 | 500L Compactor | 1set | 500L 55KW |
3 | 100/30 single screw extruder | 1set | 110KW |
4 | Hydraulic screen changer & Extrusion mould | 1set | |

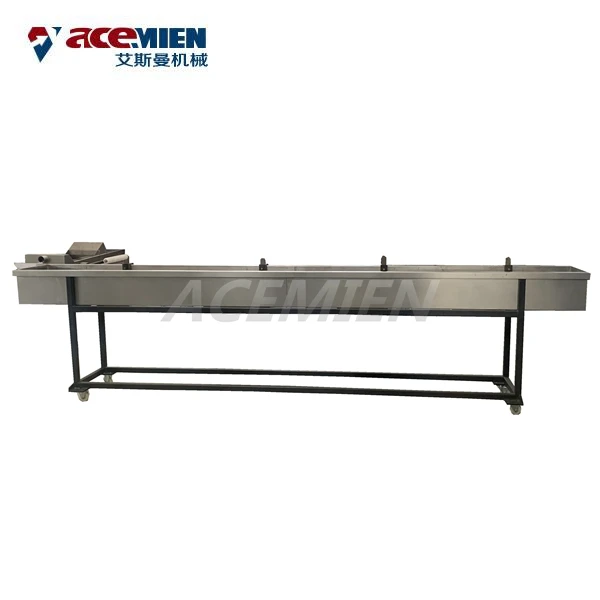

5 | Water tank | 1set | 4000mm |
6 | Strong-air dryer | 1set | |
7 | Pelletizer | 1set | |
8 | Vibrator | 1set | |
9 | Blower & Silo | 1set | 1.25 m3 |
10 | Electric control cabinet | 1set | 380V 50HZ 3PH |
Features
1. Allow free assembling of the screw component, based on raw material type.
2. Using the suitable die head for palletizing, such as water ring cutting, under-water cutting and hot face cutting.
3. High efficient force feeder ensures stable high capacity material feeding, low power consumption.
4. Main screw has vacuum exhaustion.
5. Water ring granulator machine, attached with dryer.

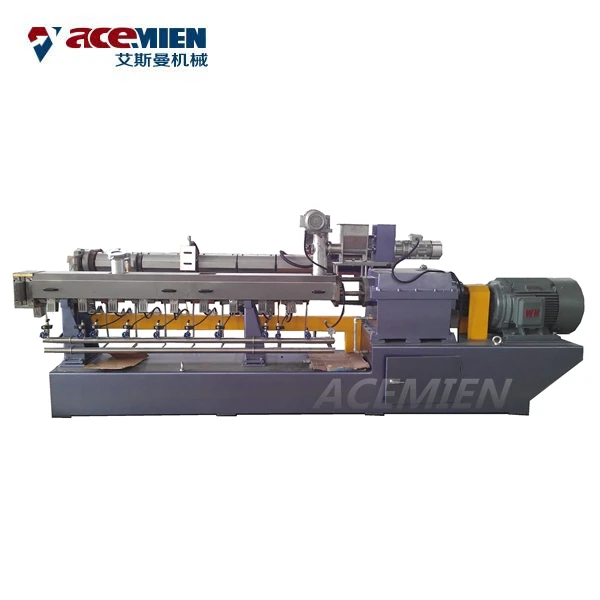

6. Single screw extruder, with specially designed screw, barrel, venting system, ensure the good quality of the final products.
7. Pelletizing style: standard cutting with extrusion mould. Even cutting ensures with good shape.
Uses and advantages
1.Suitable for the production of various Waste plastics and recycled particles ;
2.Has a high natural material composition , Reduce petroleum - based raw materials and carbon dioxide emissions ;
3. Excellent product performance stability , Longer shelf life ;
4.The output is high , and the discoloration of the product is small ;
5. Electromechanical separation makes the operation easier , Safer to use ;
6.Both the screw and barrel adopt high strength ;
7.Made of quenched and tempered nitrided structural steel , durable ;
8.The whole set of equipment covers an area of 30-100 square meters ;
9.It can be big or small , small investment , high return .
Customer Photos
______________________________________________________________________________________________________________________
Company Profile
______________________________________________________________________________________________________________________
VR
ABOUT US
ZHANGJIAGANG ACEMIEN MACHINERY CO.,LTD is located in Zhangjiagang city, China which is nearby Shanghai city.Focuses on plastic extrusion and recycling equipment manufacturing field,such as pipe extrusion machine、foam board extrusion line,door panel /windows board extruder,plastic profile production line, corrugated pipe production machine, ,plastic sheet extruder,plastic pelletizing
machine,waste plastic washing line and so on.
The factory covers an area of 10,000 square meters, with a construction area of nearly 13,000 square meters. The company has more than 100 employees and an annual output of more than 3, 5 million.Our company has rich experience in the plastic machinery making industry.
machine,waste plastic washing line and so on.
The factory covers an area of 10,000 square meters, with a construction area of nearly 13,000 square meters. The company has more than 100 employees and an annual output of more than 3, 5 million.Our company has rich experience in the plastic machinery making industry.
After-sales service
______________________________________________________________________________________________________________________
Service Before Sale
1. 24 hours online. Your inquiry will be quick reply by email. Also can go through all questions with you by any online chatting tools (Wechat, Whatsapp, Skype, Viber, QQ, TradeManager )
2. Professionally and patiently introduction, details pictures and working video to show machine
Service On Sale
1. Test every machine and inspect the machine seriously.
2. Send the machine picture which you order, then packing it with standard export wooden box after you confirm the machine is ok.
3. Delivery: If ship by sea .after delivery to seaport. Will tell you the shipping time and arrival time. Finally, send all original documents to you by Express For Free. If delivery it by Express to your door (DHL, TNT, Fedex, etc) or by air to your airport, Or logistic to the warehouse which you request. We will tell you
the tracking number after delivery.
the tracking number after delivery.
Service After Sale
1. 24 hours online to solve any problem. Supply you English manual book and technical support, maintain and install video to help you solve the problem, or dispatch worker to your factory. All the symbols on the equipment should be in English. Seller is responsible to provide general layout plan, electric plan, installation direction, and manual book in English to Buyer on time.
ACEMIEN will provide long-term technical guide.
ACEMIEN will provide long-term technical guide.
FAQ
______________________________________________________________________________________________________________________
Q1. Are you a factory or a trading company?
A1: Yes, we are manufacturer with more than 10 years' experience.
Q2. Are there other machine not listed in the catalog?
A2. ACEMIEN provides all different types of plastic extrusion solutions. If you cannot find the exact machine you are looking for, please contact us, we will be happy to develop with you and become your long-term trustworthy Chinese factory!
Q3.How long is the warranty period?
A3.All of our products have one year warranty.
Q4.I’m a foreign customer,if the machine some part is broken one day,how can we get help from you?
A4.If the machine part is broken,during warranty we will sending spare parts to you without any charge and help you make it change to new by phone or whatsapp or video.If out of warranty,we will also provide you spare part but with raw material cost,and we also will help you change to new instead of broken part.We provide spare parts and technical service whole machine lifetime .
