Испытательное оборудование Pundit для бетона ультразвуковой импульсный скоростной инженерный тест
- Категория: Other Test Instruments >>>
- Поставщик: Hebei,Gaotiejian,Testing,Instrument,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2797.27 $* | 2937.57 $* |
| Aug-18-2025 | 2773.29 $* | 2912.12 $* |
| Jul-18-2025 | 2327.58 $* | 2443.58 $* |
| Jun-18-2025 | 2726.15 $* | 2862.29 $* |
| May-18-2025 | 2374.41 $* | 2493.57 $* |
| Apr-18-2025 | 2679.44 $* | 2813.27 $* |
| Mar-18-2025 | 2656.0 $* | 2789.92 $* |
| Feb-18-2025 | 2632.20 $* | 2764.16 $* |
| Jan-18-2025 | 2609.67 $* | 2739.97 $* |
Характеристики
Pundit test concrete ultrasonic pulse velocity test equipment price
Product Description

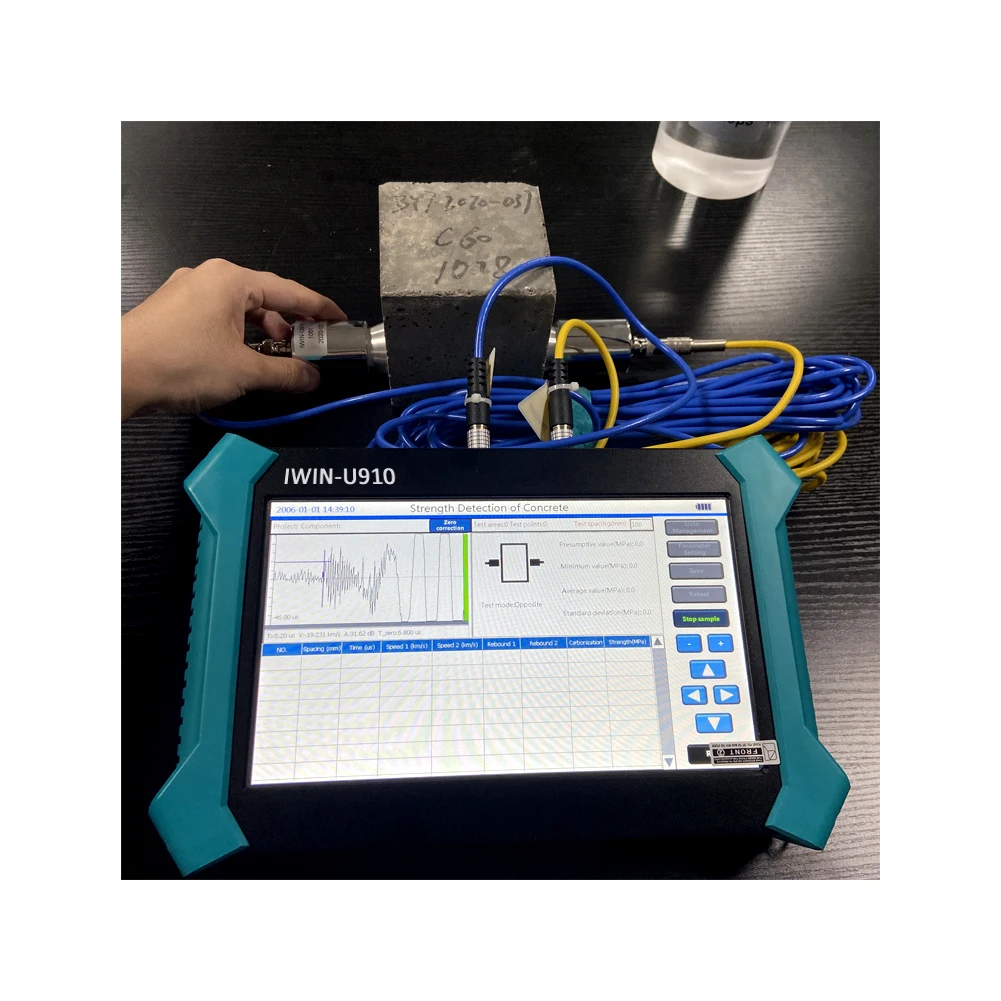

U910 / U920 ultrasonic pulse velocity tester, use for structural concrete compressive strength, crack depth, crack width and defect detection;Diaphragm wall integrity testing, which integrates five functions of pile testing, ultrasonic rebound comprehensive method for strength measurement, defect detection, crack sounding and width measurement.Geological exploration, rock integrity, weathering evaluation test; mechanical properties of non-metallic materials such as rock mass and concrete.
Product Model | IWIN-U910 | IWIN-U920 |
Master control unit | Built-in A9 industrial control motherboard | |
Display | 10.1 inch, high brightness, TFT color LCD capacitive screen | |
Operational mode | Touch screen | |
Storage mode | Built-in Electronic Hard Disk (> 8GB) +Large Capacity U Disk | |
Data transmission mode | Wireless Cloud Transport (Options) | |
Acquisition mode | Single-channel manual point-by-point acquisition | Manual Point-by-Point Collection of Single and Double Channels |
Number of disposable profiles | - | - |
Channel Number | 1 transmit + 1 receive | 1 transmit + 2 receive |
Trigger mode | Signal triggering | |
Sampling period (μs) | 0.05-409.6 Multistage Options | |
Acoustic Time Accuracy (μs) | 0.05 | |
Acoustic time range (μs) | 1677700 | |
Width measurement function | range: 0 ~ 10mm; | |
accuracy: 0.01 mm; | ||
Dynamic range (dB) | 146 | |
Bandwidth (kHz) | 1~500 | |
Receiving Sensitivity (UV) | ≤10 | |
Gain Accuracy (dB) | 0.5 | |
Emission Voltage (V) | 65, 250, 500 and 1000 | |
communication interface | USB, Bluetooth, Wifi | |
Working hours (h) | ≥ 8 | |
Power supply mode | Built-in lithium battery | |
External 220V~16V AC/DC | ||
work environment | Temperature - 10 (℃)~ + 40 (℃) | |
Humidity (RH) < 90% | ||
Host Size (mm) | 300 x 200 x 55 | |
Packaging & Shipping
Company Information
Iwintesting equipment company is a high-tech enterprise focusing on the research and development, production and sales of engineering quality test and testing instruments. The company serves in the construction, the railroad, the highway, the water conservancy, the electric power, the university and the scienitic research institute.
To provide quality products, services and solutions for the industry,And establish a good long-term cooperative relationship with it. Our company always abides by the business philosophy of“customer first, quality firrst”.Do a good customer service,All products of the company implement the "three guarantees policy"
FAQ
Q:What equipments do you supply?
A: We supply metal testing, pile testing, concrete testing, soil testing, cement testing, asphalt testing, rock testing and other building lab equipments.
Q: Are your company a trading one or a factory?
A: Factory+ trade (integration), More than 10 years focusing on test instruments field.
Q: After an order is placed, when to deliver?
A: Generally about 10-25days, If we have inventory, we can arrange shipment within 3 days Please be aware that our production lead times depend on specific items and item quantities.
Q: What about the warranty with after-sales services?
A: The testing machine is guaranteed for 12 months by gaotiejian, we can help you to repair your problem con troller freely, even it's not from our factory. After the warranty, the professional after-sale service team will provide perfect technical support and help guests solve problems encountered while using our product, handles guest problems and complaints in a professional and timely.
Q: What about the product' services and qualit?
A: Each instruments must be carried out 100% quality examination and test when shipping and delivery goods Product use training, each of our product provide video training to show you how to install operate We can arrange engineer to train the operation of equipment to customer s company when you need. products are widely recognized and trusted by users.
