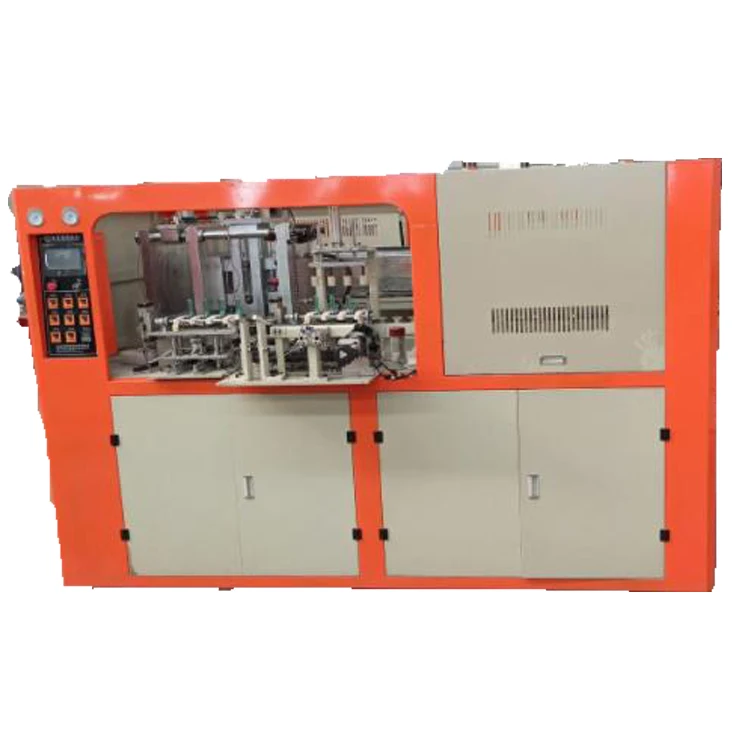

Формовочная машина для выдувания пластиковых бутылок
US $20000-$50000
3-литровая Автоматическая выдувная машина для пластиковых
- Категория: Stretch Blow Moulding Machines >>>
- Поставщик: Shanghai,Ipanda,Intelligent,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.91 $* | 0.42 $* |
| Aug-18-2025 | 0.14 $* | 0.66 $* |
| Jul-18-2025 | 0.39 $* | 0.94 $* |
| Jun-18-2025 | 0.84 $* | 0.36 $* |
| May-18-2025 | 0.20 $* | 0.67 $* |
| Apr-18-2025 | 0.6 $* | 0.13 $* |
| Mar-18-2025 | 0.96 $* | 0.49 $* |
| Feb-18-2025 | 0.30 $* | 0.26 $* |
| Jan-18-2025 | 0.94 $* | 0.51 $* |
Характеристики
Product Description
Features
1. Fully automatic man-machine interface, convenient operation, stable operation of the whole machine, few failures, and fast blowing speed;
2. Low energy consumption, high degree of automation and simple operation.
3. The structure is simple, and the main body of the oven adopts a slideway integration, which is convenient for maintenance;
4. The air circuit design action and blowing are divided into two parts to meet the needs of different air pressures for blowing and action.
5. With automatic alarm, automatic fault detection and judgment kinetic energy, the scrap rate is less than 0.2%.
Product details
Stable performance

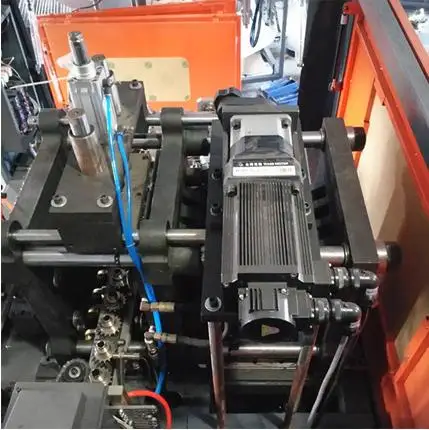

servo transmission, servo mold clamping system, high positioning accuracy, fast speed, stability, good reliability, simple structure, the main body of the oven is integrated with a slideway, which is convenient for maintenance

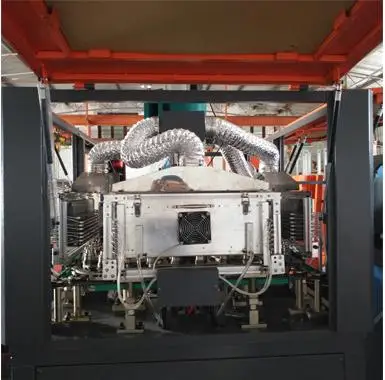

It adopts infrared tube heating,
strong penetrating power and uniform heating. The width and height of the reflector can be adjusted, which can be suitable for heating preforms of different structures.
Flow Chart
Working process
category | project | unit | |
raw material | /t | Pet,pp | |
Volume | L | 2 | |
Theoretical output | Pcs/h | 1800 | |
maximum height | mm | 320 | |
The maximum diameter | mm | 105 | |
Maximum bottle mouth diameter | mm | 18-95 | |
Bottle specifications | Clamping force | kg | 36000 |
Bottle spacing | mm | 114.3 | |
Mold thickness | mm | 180 | |
Tie rod stroke | mm | 332 | |
Base model material | mm | 50 | |
Mold opening stroke | mm | 130 | |
Number of cavities | 2 | ||
Forming group specifications | |||
Blowing pressure | Kg/cm2 | 30 | |
High pressure air consumption | Ltr/min | 2400 | |
Low pressure operating pressure | Kg/cm2 | 7 | |
Low pressure air consumption | Ltr/min | 1000 | |
Air freeze desiccant | Kcal/hr | 5400 | |
Chiller | Kcal/hr | 3900 | |
Assist | |||
Power specifications | KW | 40 | |
heating power | KW | 18 | |
Power specifications | Heating power | KW | 40 |
Host size | M | 3.0*1.6.1.8 | |
Host weight | KG | 2500 | |
Conveyor size | M | 1.8*1.0*2.8 | |
Equipment Specifications |
VR
Service
Before order service
We will according to your requirement make details quotation for you.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.
We can send you some our machine running video similar to your product.
If you come to china,we can pick you up from airport or station near our city.
After order service
We will start to make machine,and take some picture by 10 days of our production process .
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
Our engineer can design the layout according to your requirement.
We will supply commission service if customer need.
After-sales service
We will testing machine ,and take some video and picture to you if u not come to china inspect machine.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 1 years guaranteen.In 1years you can get all spare parts free from us.we can send you by express.
After testing machine we will packing machine ,and delievery container on time.
We can send our engineer to you country help you install and testing machine.we can training you technical staff free until they can running machine independent.
Our company will give you all machine with 1 years guaranteen.In 1years you can get all spare parts free from us.we can send you by express.
Company Profile
Our Advantages
FAQ
Q1: What is your company's main products?
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
Palletizer, Conveyors, Filling Production line, Sealing machines, Capping Machines, Packing Machines, and Labeling Machines.
Q2: What is delivery date of your products?
Delivery date is 30 working days usually most of the machines.
Delivery date is 30 working days usually most of the machines.
Q3: What is payment term?
Deposit 30% in advance and 70% before shipment the machine.
Q4:Are you manufacturer or trading company?
We are manufacture verified by ALIBABA and we have our own design team.
Q5:Where are you located? Is it convenient to visit you?
We are located in Shanghai. Traffic is very convenient.
Q6:How can you guarantee quality?
1.We have completed working system and procedures and we follow them very strictly.
2.Our different worker is responsible for different working process, their work is conflrmed,and will always operate this process, so very experienced.
3. The electrical pneumatic components are from the world famous companies,such as Germany^ Siemens, Japanese Panasonic etc.
4. We will do strict test running after the machine is finished.
5.0ur machines are certified by SGS,ISO.
Q7:Can you design the machine according to our requirements?
Yes. We not only can customize the machine according to your technicaldrawing, but also can he new machine according to your requirements.
Q8:Can you offer overseas technical support?
Yes. We can send engineer to your company to set the machine and train your.
