Многофункциональная гусеничная геотехническая буровая установка CK350 с
- Категория: Mine Drilling Rig >>>
- Поставщик: Cruking,Engineering,Equipment,(Xiamen),Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 16422.23 $* | 17243.46 $* |
| Aug-19-2025 | 16284.16 $* | 17098.19 $* |
| Jul-19-2025 | 13662.7 $* | 14345.47 $* |
| Jun-19-2025 | 16008.61 $* | 16808.97 $* |
| May-19-2025 | 13938.52 $* | 14635.35 $* |
| Apr-19-2025 | 15732.7 $* | 16519.20 $* |
| Mar-19-2025 | 15594.35 $* | 16374.64 $* |
| Feb-19-2025 | 15456.96 $* | 16229.8 $* |
| Jan-19-2025 | 15318.19 $* | 16084.30 $* |
Характеристики
CK350 Cruking brand rock buster r100 crawler type hydraulic dth plataforma de perforacion del pozo de agua
Feature
The mutifunctional drill rig of geothemal well is an improved device. Equipped with the Yuchai four cylinder engine, the drill rig meets national standards for emissions and environment. Meanwhile, the hydraulic system, supporting configuration and appearance, etc. have been optimized, thus improving the performance and working efficiency. The double rotation motor increased the rotaty torque and revolving speed.
The one-ton winch is optional for the multifunctional drilling rig of geothermal well, make the lifting easier. In addition, the 1.5m supporting oil sylinder is also optional, making the loading and tracsport convenient.
Specification
| CK 350 crawler water well drilling rig | |||
| The weight(T) | 8.6 | Drill pipe diameter(mm) | Φ89 Φ102 |
| The hole diameter(mm) | 140-325 | Drill pipe length(m) | 1.5m 2.0m 3.0m 6.0m |
| Drilling depth(m) | 350 | Rig lifting force(T) | 22 |
| One-time advance length(m) | 6.6 | Rapid rise speed(m/min) | 18 |
| Walking speed(km/h) | 2.5 | Fast feeding speed(m/min) | 33 |
| Climbing angles(Max.) | 30 | Width of loading(m) | 2.7 |
| Equipped capacitor(kw) | 92 | Hoisting force of winch(T) | 2 |
| Using air pressure(MPA) | 1.7-3.4 | Swing torque(N.m) | 6200-8500 |
| Air consumption(m3/min) | 17-36 | Dimension(mm) | 6000*2000*2550 |
| Swing speed(rpm) | 66-135 | Equipped with hammer | Medium and high wind pressure series |
| The penetration efficiency(m/h) | 15-35 | High leg stroke(m) | 1.4 |
| The engine brand | Yuchai engine | ||

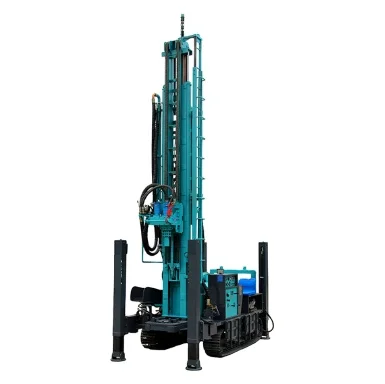

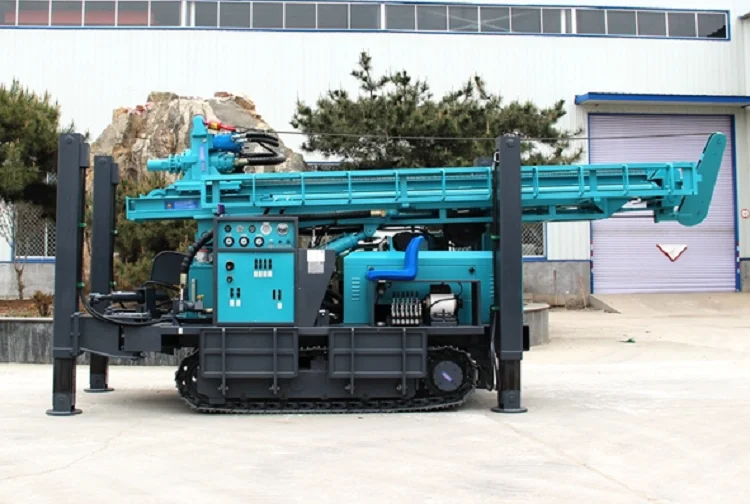

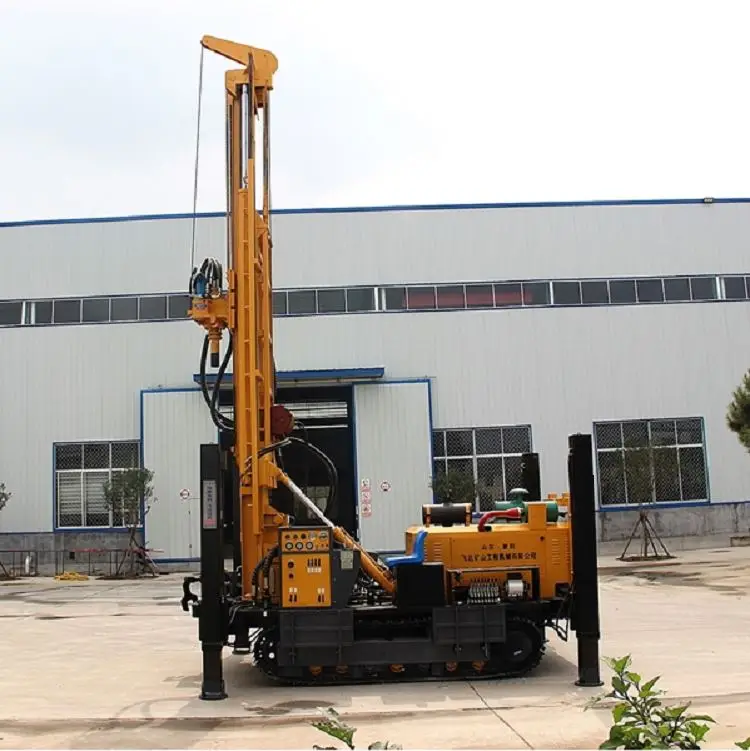

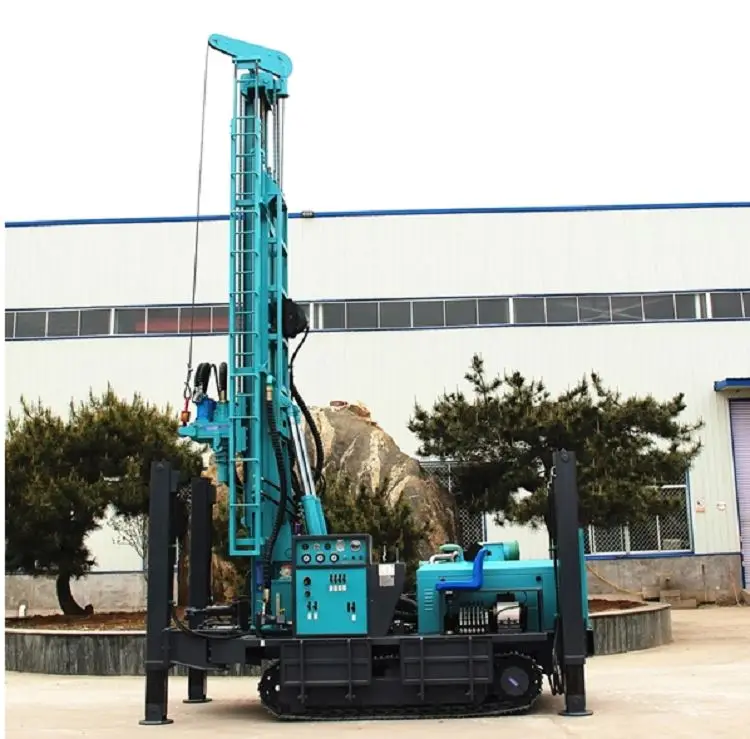

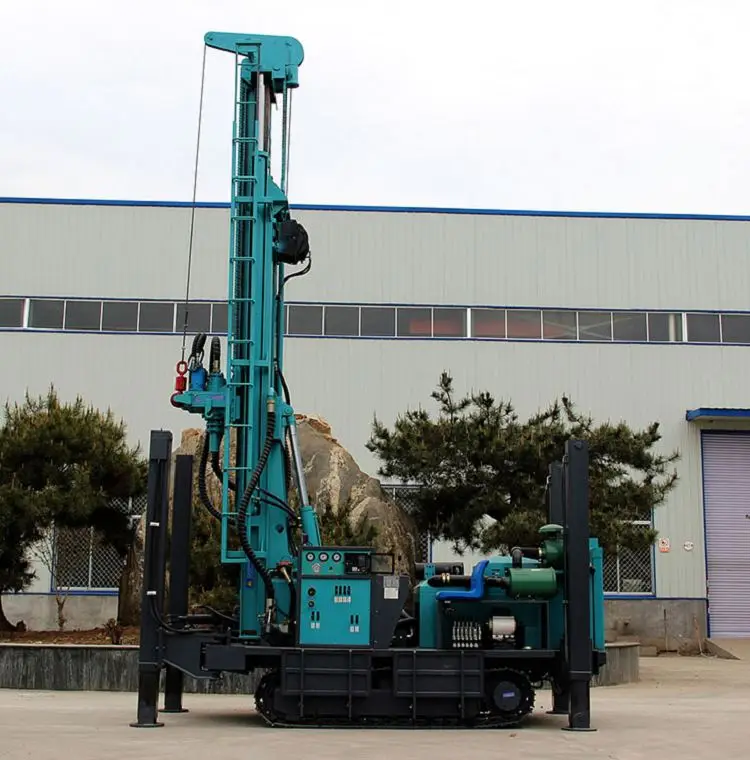

Product Picture
