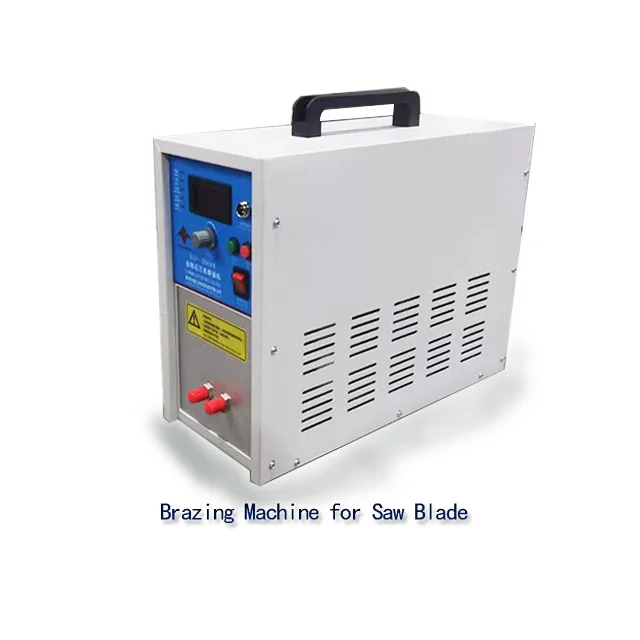

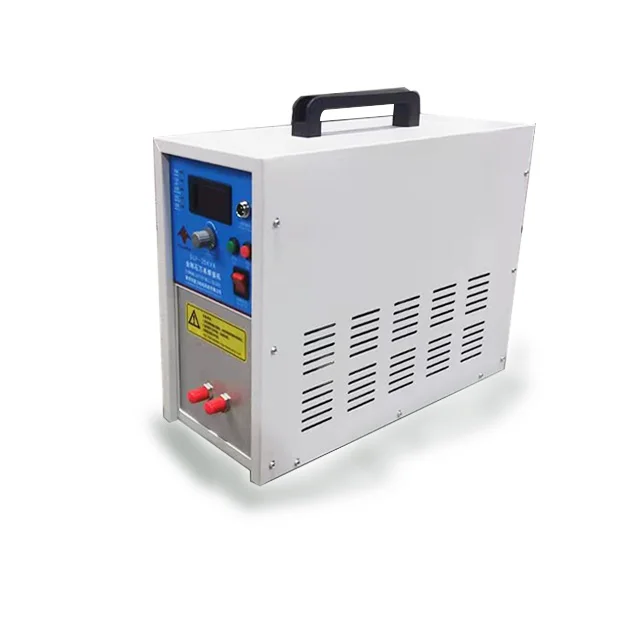

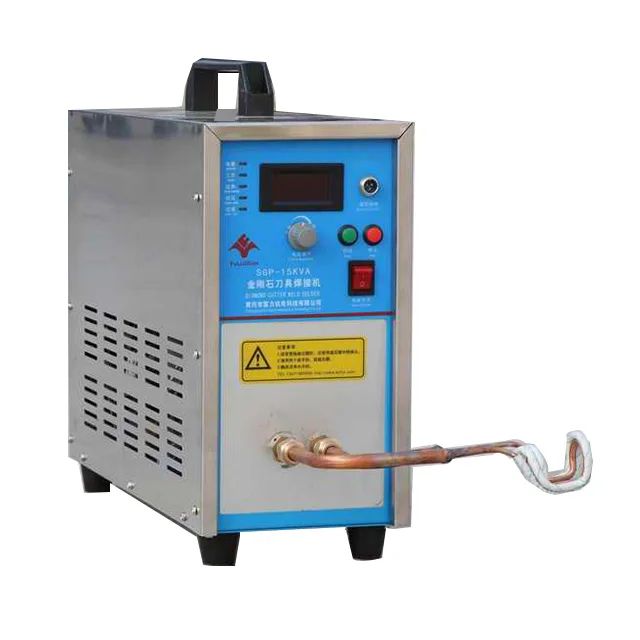

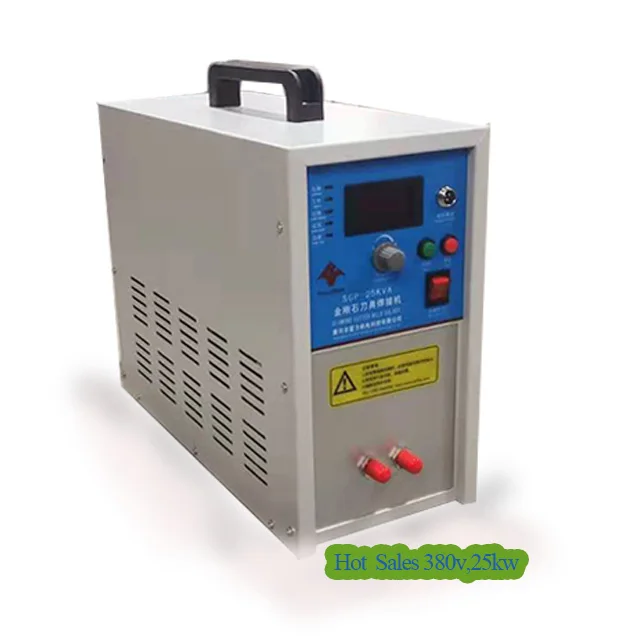

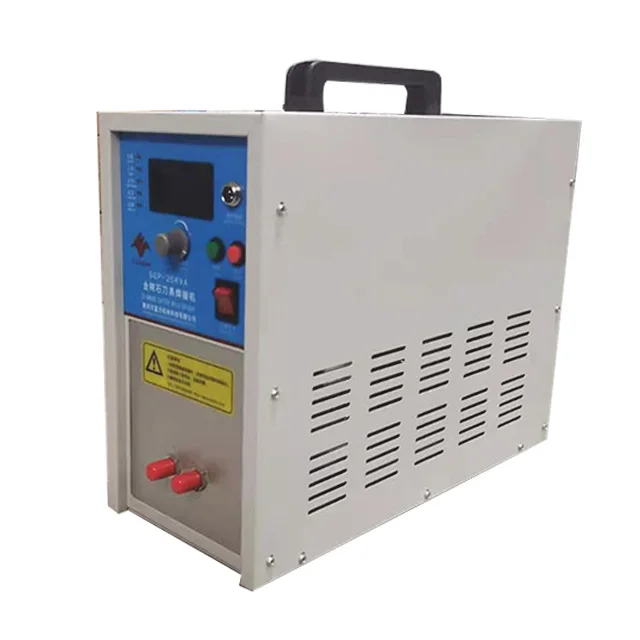

diamond tools segment silver welding solder gang saw brazing machine

Products description:

1.IGBT solid state inversion technology based

2.Phase locking technology realizes powers & frequency tracking automatically

3.Perfect protective circuit and cooling system (water and air)design,which ensure the good reliability of machine

4.Low energy consumption: converts up to 97.5% above of the expended energy into useful heat

5.Easy operation and installatio

6.Can substitute traditional heating methods.

Model	SGP-25KVA		Load Rate	≤100%
Output oscillating current	300-1300A		Cooling WaterPressure	0.05-0.1Mpa
Supply Power	3PHASE 380V 50HZ		Size	540*200*450mm
Duty Cycle	20-60Khz		Power	25kva
Input Voltage	320-420v		N.W	28kg





Feature:

1. For welding the diamond segments ,grinding wheel;

2.  Environment friendly design , voltage instability;

3.  The machine can be automatic temperature control to realize with equipment;

4.  High power ,High heating Speed, widely application range that can use various diamond tools;

5.  Imported key parts ,lowest hitch, Small in size and taken easily.

Main Parts Introduction :

1.Germany SIEMENS INFINEON IGBT Module. ( 30-100KHZ oscillation frequency, fast response time, superhigh stability, almost spatter-free welding )

2.Japan Nichicon electrolytic capacitor. ( filter capacitor )

3.Imported transistor integrated block.

4.All water pipe use thermostability, High pressure resistance best quality material.

5.Main card, signal circuit, drive circuit board,control circuit board and component6.are adopted:Toshiba, Hitachi,Motorola, China's top manufacturers.

7.International advanced all-solid-state semiconductor power devices.

8.Technical advantage:perfect control, alarm display circuit, getting full automatic tracking frequency, continuous adjustable power, safe dependable protection,clear and accuracy data display and etc.

9.Superiority Advantages: fast heating, wide application, small size, easy installation, simple operation, low power consumption, high efficiency.
