Полностью автоматическая машина для упаковки кофейных и чайных пакетиков в саше закусок
- Категория: Packaging Line >>>
- Поставщик: Shanghai,Shenhu,Packaging,Machinery,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 0.64 $* | 0.46 $* |
| Aug-16-2025 | 0.47 $* | 0.28 $* |
| Jul-16-2025 | 0.34 $* | 0.47 $* |
| Jun-16-2025 | 0.18 $* | 0.39 $* |
| May-16-2025 | 0.91 $* | 0.13 $* |
| Apr-16-2025 | 0.3 $* | 0.39 $* |
| Mar-16-2025 | 0.44 $* | 0.36 $* |
| Feb-16-2025 | 0.57 $* | 0.43 $* |
| Jan-16-2025 | 0.42 $* | 0.84 $* |
Характеристики
Product Description

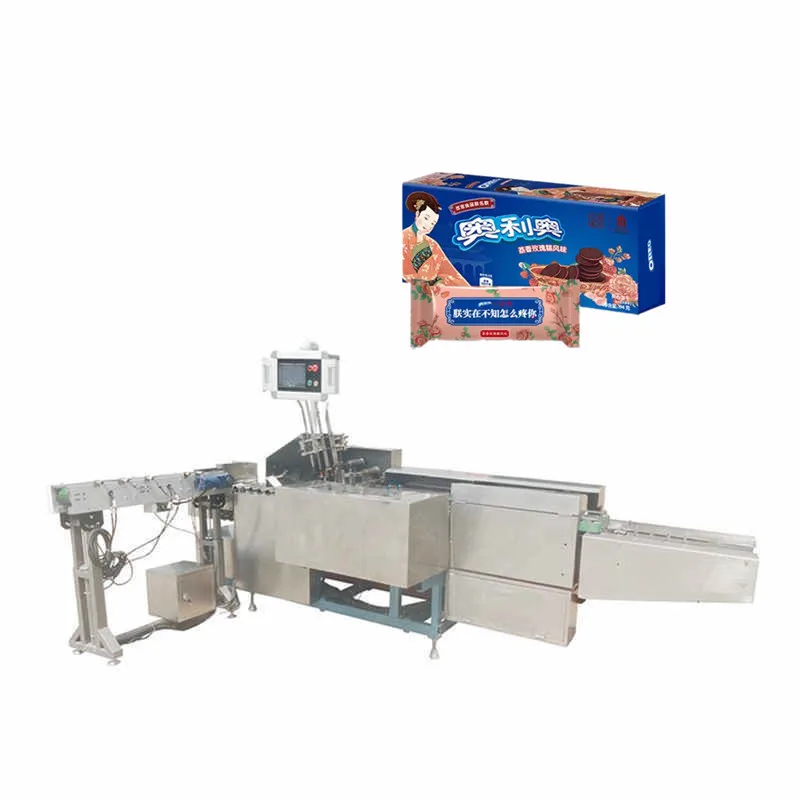

Full automatic coffee tea bag sachet carton packing machine snack food box cartoning machine
Horizontal Carton Box Packing Machine uses advanced PLC system. It can be widely used in the industries of beverage, pharmacy, food, cosmetics, chemicals, commodities and so on. The working process are as follows: Loading of products; then carton box is automatically drop and opened, products are automatically loaded successively into the carton box; and tongues at both ends is completed inserted or glued.
Features
1. No products, no box dropping.
2. Stop automatically if products position not correct into carton.
3. Stop automatically if no cartons or out of leaflet continues.
4. Hand index dial wheel for adjust different size boxes.
5. High speed servo system.
| model | HTZH-80 | HTZH-100 | HTZH-120 | HTZH-200 |
| Box size | L:49-120mm W:30-80mm H:14-50mm | L:5-220mm W:20-120mm H:12-70mm | L:70-180mm W:35-85mm H:14-50mm | L:70-200mm W:35-75mm H:15-70mm |
| Speed | 40-80 pcs/min | 50-100 pcs/min | 50-120 pcs/min | 60-200 pcs/min |
| Power | 1.5kw | 1.5kw | 1.5kw | 5kw |
| Box quality | / | 250-350 g/square | 250-350 g/square | 300-350 g/square |
| Dimension | 1300*1200*1500mm | 4300*1500*1650mm | 3100*1100*1550mm | 4070*1680*1680mm |
| Wight | 950kg | 1200kg | 1400kg | 3000kg |
| Voltage | 220V/380V/50Hz | 380V/50Hz | 220V/50Hz | 380V/50Hz |
| Air pressure | / | 0.5-0.7Mpa | ≥0.6Mpa | 0.5-0.7Mpa |
| Product Application | It is widely used for different packing including drug, food, commodity and cosmetic. For drug industry such as: cover box for solid torch and capsule, soft box for liquid paste, grease and colloid, tray box for vial, ampule bottle, and injector, as well as bottle box for solid and liquid drug and bag bx for powder and grain products. For food field such as: carton for cans, sweet, chocolate, candy, biscuit, wine, and freezing food, and so on. For commodity and cosmetic industry such as: carton for cream, grease, lotion, colloid, soap, lamp, computer floppy disk. | |||

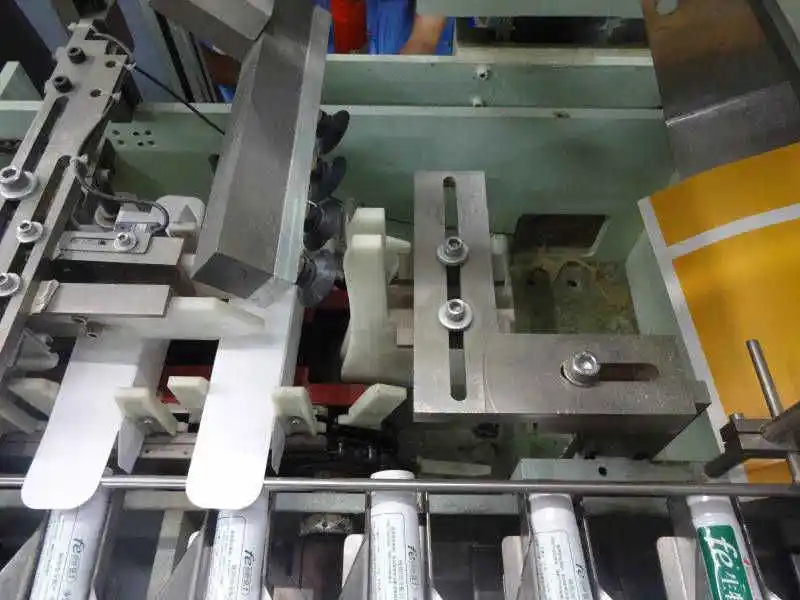

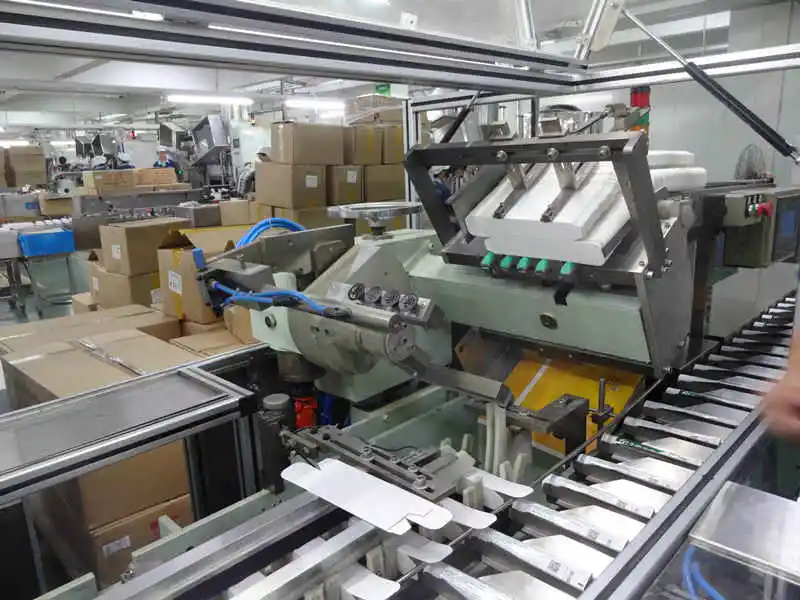

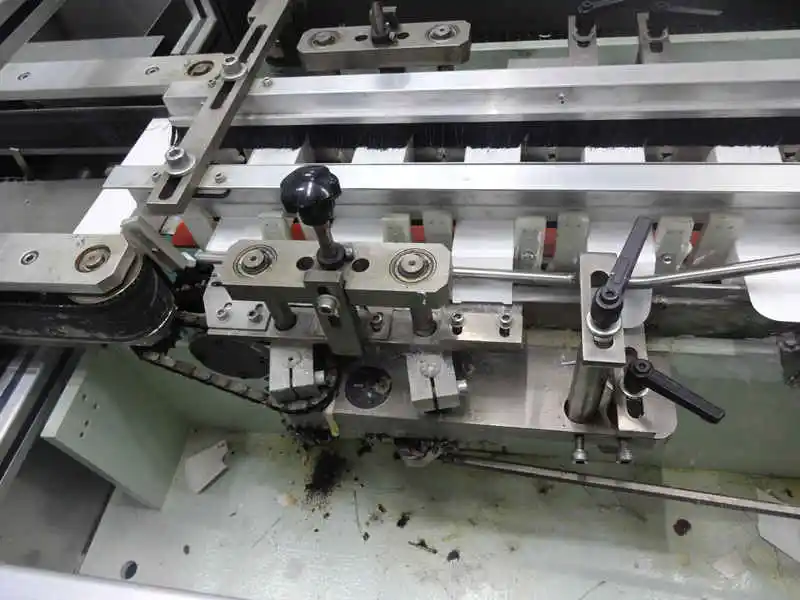

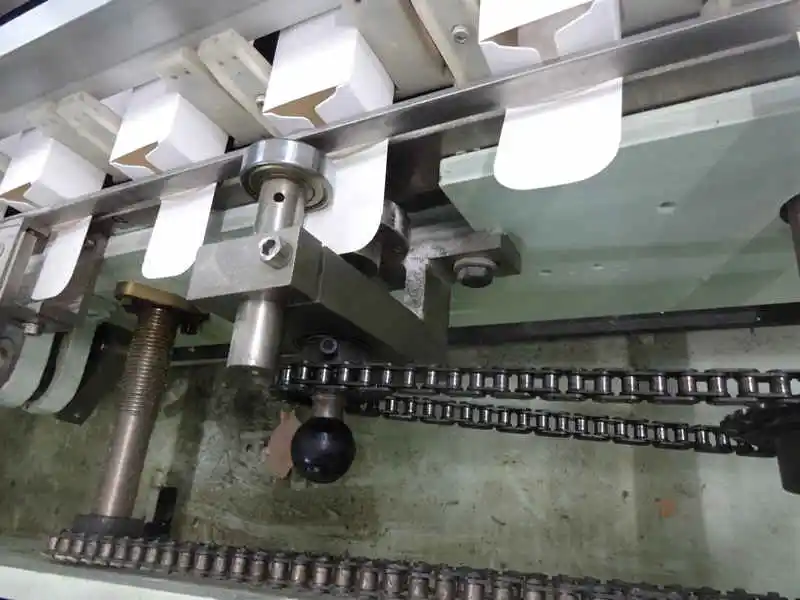

Workflow and Product Details
Advantages and Application Area
About Us
Exhibition and Coustomer
Packaging and Shipping
