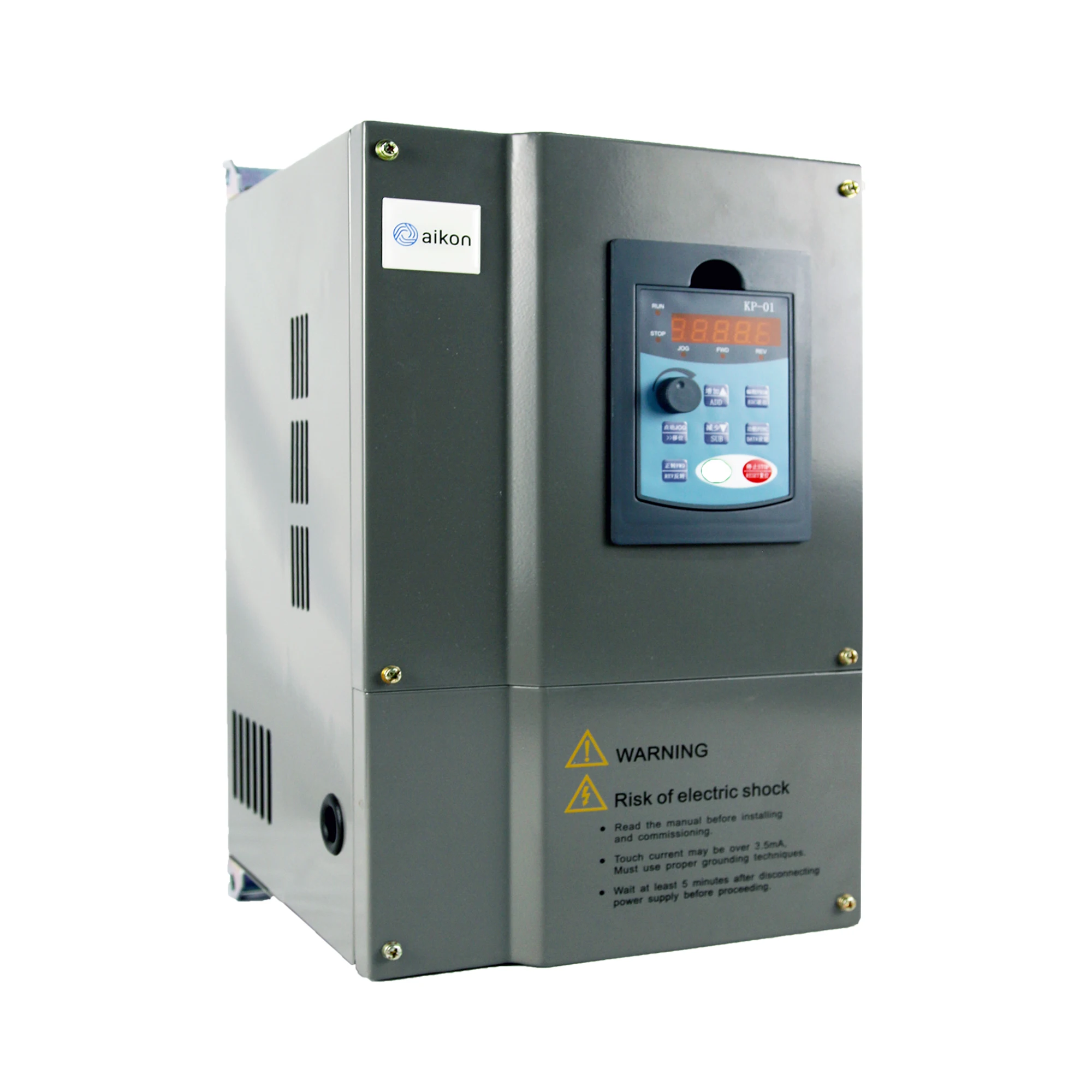

280kw 3 фазный двигатель переменного тока vfd частотно-регулируемый инвертор
- Категория: Frequency Changer >>>
- Поставщик: Shanghai,Pumping,Tech,International,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Aug-15-2025 | 6753.65 $* | 6888.60 $* |
| Jul-15-2025 | 5477.20 $* | 5587.0 $* |
| Jun-15-2025 | 6646.55 $* | 6779.99 $* |
| May-15-2025 | 6593.91 $* | 6725.13 $* |
| Apr-15-2025 | 5264.18 $* | 5369.37 $* |
| Mar-15-2025 | 6487.59 $* | 6617.89 $* |
| Feb-15-2025 | 6434.9 $* | 6563.98 $* |
| Jan-15-2025 | 6380.0 $* | 6508.43 $* |
Характеристики
Welcome
Product Description
| PDES Technical parameter | |
| Power | 280Kw |
| Input rated voltage and frequency | 3PH AC 380V 50/60Hz |
| Allowable voltage range | 380V |
| Output voltage | 3PH AC 380V 50/60Hz |
| Analog input signal | In: 0~10v; 0~20mA |
| Analog output signal | 0/4-20 mA |
| Output frequency / accuracy | 0.1~400.0 Hz / 0.1Hz |
| RS485 | Standard RS485 communication function (Modbus) |
| Protection mechanism | Overload protection, over-voltage protection can be set under voltage protection |
| can be set, short circuit protection, over-current protection, parameter locking | |
| Overload protection | 120% Rated current /60s |
| 150% rated current /3s | |
| Protection class | IP20 (IP55/IP65 is also available) |
| Ambient temperature / humidity | -10℃ to 40℃ (no ice) / below 95% (no condensation) |
| Altitude | ≤1000m (over 1000m, need to downshift) |
| Display | 4-digit nixie tube display, indicator light display, display setting frequency, |
| output frequency, output current, DC bus, etc4-digit nixie tube display, indicator light display, display setting frequency, output frequency, output current, DC bus, etc | |
| Installation mode | Wall mounted, standard 35mm guide rail installation (under 5.5kW) |
More Products
Application
Payment&Transport
Certifications
FAQ
Q:Can you accept customized products?
A:Yes,of course. We provided OEM and ODM services for some internationally top brands.
Q:What’s the terms of payment?
A1:For OEM Orders, we accept 30% deposit,and 70% when goods ready to ship.
A2:For Ready to Ship In- Stock items, we need full payment paid before shipping.
Q:what kind of product quality your factory offer?
A:We offer the most competitive prices with best quality.
Q:Can you give me a discount?
A:We mainly do wholesale service,our discount is based on your order quantity.
Q:What is your main market?
A:Our brands are well known in Russia,Europe, Africa, Middle East, Southeast Asia and South America.
Q:What's the cargo ready time?
A: If less than 100 pcs, the delivery is 15 days after the receipt of the payment. If more than 100 pcs, please contact us with more details.
