Горизонтальный или вертикальный криогенный резервуар
- Категория: Chemical Storage Equipment >>>
- Поставщик: Henan,Jianshen,Metal,Metenrial,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 16065.11 $* | 16868.14 $* |
| Aug-19-2025 | 15930.17 $* | 16727.21 $* |
| Jul-19-2025 | 13365.90 $* | 14033.9 $* |
| Jun-19-2025 | 15660.99 $* | 16443.15 $* |
| May-19-2025 | 13635.73 $* | 14317.34 $* |
| Apr-19-2025 | 15390.89 $* | 16160.57 $* |
| Mar-19-2025 | 15255.96 $* | 16018.61 $* |
| Feb-19-2025 | 15120.96 $* | 15876.88 $* |
| Jan-19-2025 | 14985.5 $* | 15734.11 $* |
Характеристики
Product Description
High pressure 2.16Mpa low temperature liquid LCO2 storage tanks
Liquid cyogenic co2 tank is for double wall, inner layer adopts S30408 stainless steel and outer layer adopts Q245R alloy steel, vertical or horizontal structure, adopt vacuum powder insulation, with the advantage of compact structure, low daily evaporation rate, small footprint, centralized control, safe, reliable, easy operation and maintenance.
Application

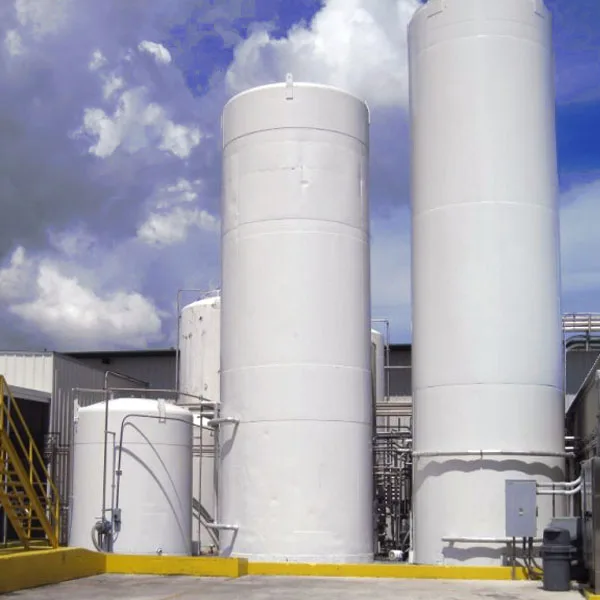

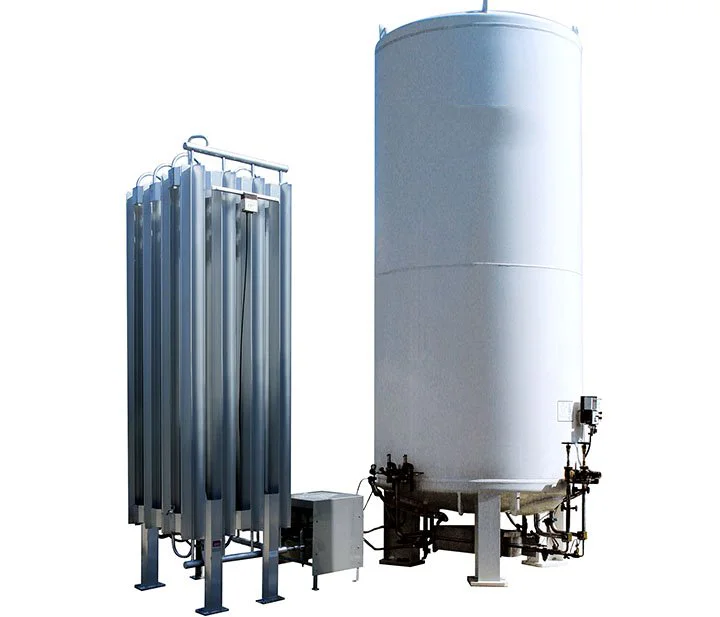

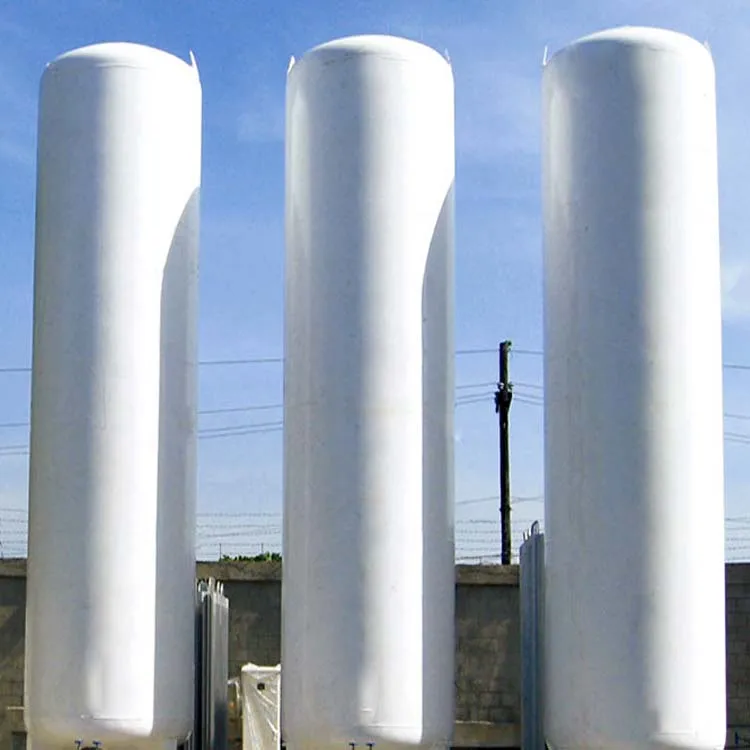

Product Show of Liquid cyogenic co2 tank
With rapid scientfic and technological development, the material-stored technology by use of Liquid cyogenic co2 tank under normal temperature gets mature day by day. Compared with other storage methods, stainless steel storage tank built in a small area, thus reducing storage tank cost. It is simple in structure and easy in construction, thus reducing construction cost.
Product Process
Certifications
Certification of Liquid cyogenic co2 tank
We can guarantee the safety of our products. We've got all the certification to meet the high standard. And we have professional and strict quality control. Each step in the manufacturing process has been strictly monitored to guarantee Liquid cyogenic co2 tank in high quality.
Parameters
Parameter of Liquid cyogenic co2 tank Parameters are for reference, we can customized from 5000 liter to 150000 liter, both vertical and horizontal tank | ||||||||||||
Model | Volume (cbm) | Working Pressure (Mpa) | Empty container (kg) | Type | The rate of evaporation (%) | Outline Size (Dia * height) mm | ||||||
JSSM5-L0.8 | 5 | 0.8 | 3825 | Vertical | 0.29 | 1916*5260 | ||||||
JSSM5-W0.8 | 5 | 0.8 | 3950 | Horizontal | 0.29 | 1916*5260 | ||||||
JSSM10-L0.8 | 10 | 0.6/0.8 | 6450/6675 | Vertical | 0.25 | 2316*6000 | ||||||
JSSM10-W0.8 | 10 | 0.6/0.8 | 6450/6675 | Horizontal | 0.25 | 2316*6000 | ||||||
JSSM15-L0.8 | 15 | 0.6/0.8 | 8145/8415 | Vertical | 0.22 | 2516*6760 | ||||||
JSSM15-W0.8 | 15 | 0.6/0.8 | 8145/8415 | Horizontal | 0.22 | 2516*6760 | ||||||
JSSM20-L0.8 | 20 | 0.6/0.8 | 9700/9940 | Vertical | 0.22 | 2516*8430 | ||||||
JSSM20-W0.8 | 30 | 0.6/0.8 | 15240/15540 | Horizontal | 0.21 | 2516*8430 | ||||||
JSSM40-L0.8 | 40 | 0.6/0.8 | 17905/18005 | Vertical | 0.18 | 3120*9725 | ||||||
JSSM50-W0.8 | 50 | 0.6/0.8 | 22310/22715 | Horizontal | 0.16 | 3120*11917 | ||||||
JSSM100-L0.8 | 100 | 0.6/0.8 | 42179/44020 | Vertical | 0.12 | 3524*17110 | ||||||
JSSM150-W0.8 | 150 | 0.6/0.8 | 64755/66750 | Horizontal | 0.12 | 3824*21950 | ||||||
Our Company
Henan Jian Shen Metal Metenrial Co.Ltd has now become a high-tech enterprise integrating research, production, sales and services after years of steady development. Our vision - TO be a supplier of choice in the Pressure Vessels as well as OEM manufacturing with the emphasis of being being lowest in cost and highest in customer satisfaction and quality.
Packing & Delivery

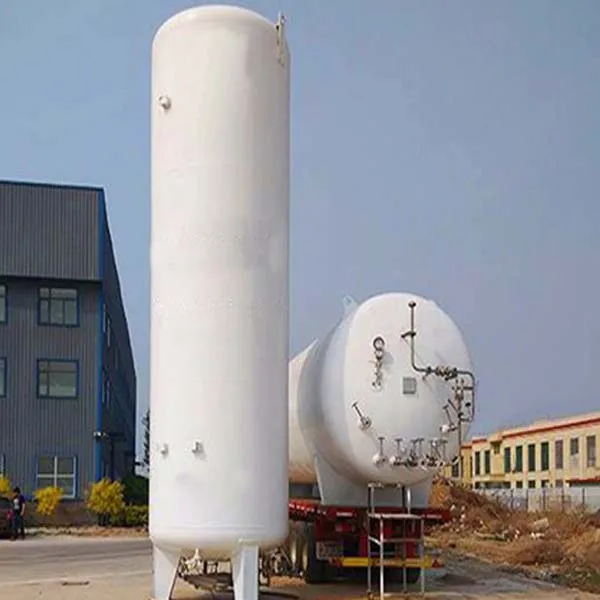

Transport of Liquid cyogenic co2 tank
Sea transportation. Seaworthy packing or according to customers requirements
Under 10ton(10000liters) tank can be put into container during shipping.
