AWS-PP(018) Customizable Water Bottle Recycling Washing Machine
Product Description
With years of technology modification and process experience precipitation, ACERETECH has a variety of different solutions for recycling PP PE scraps (LDPE/LLDPE film, PP woven bags, PP non-woven, PE bags, milk bottles, cosmetic containers, vegetable and fruit boxes). With advanced modular design, ACERETECH can freely combine each standard module to provide to customers specialized solutions.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Aceretech Recyclable Plastics Include:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
* PP/OPP/BOPP/CPP film, woven bag,
non-woven fabric (melt blown)
* PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
* PVB crushed material, flakes
* PU
Product Paramenters
Device parameters | ||||||
Size | Capacity | Motor Power | Equipment footprint | |||
AWS PP BAGS 05 | 500kg/h | 560KW | 150m 2 | |||
AWS PP BAGS 10 | 1000kg/h | 680KW | 300m 2 | |||
AWS PP BAGS 20 | 2000kg/h | 750KW | 450m 2 | |||
Unit energy consumption | ||
Content | Average energy consumption per ton of bottle | |
Electricity | 65-85KW | |
Water | 4-6.5T | |
Detergent (optional) | 2-4KG | |
Suitable Products
Product Detail

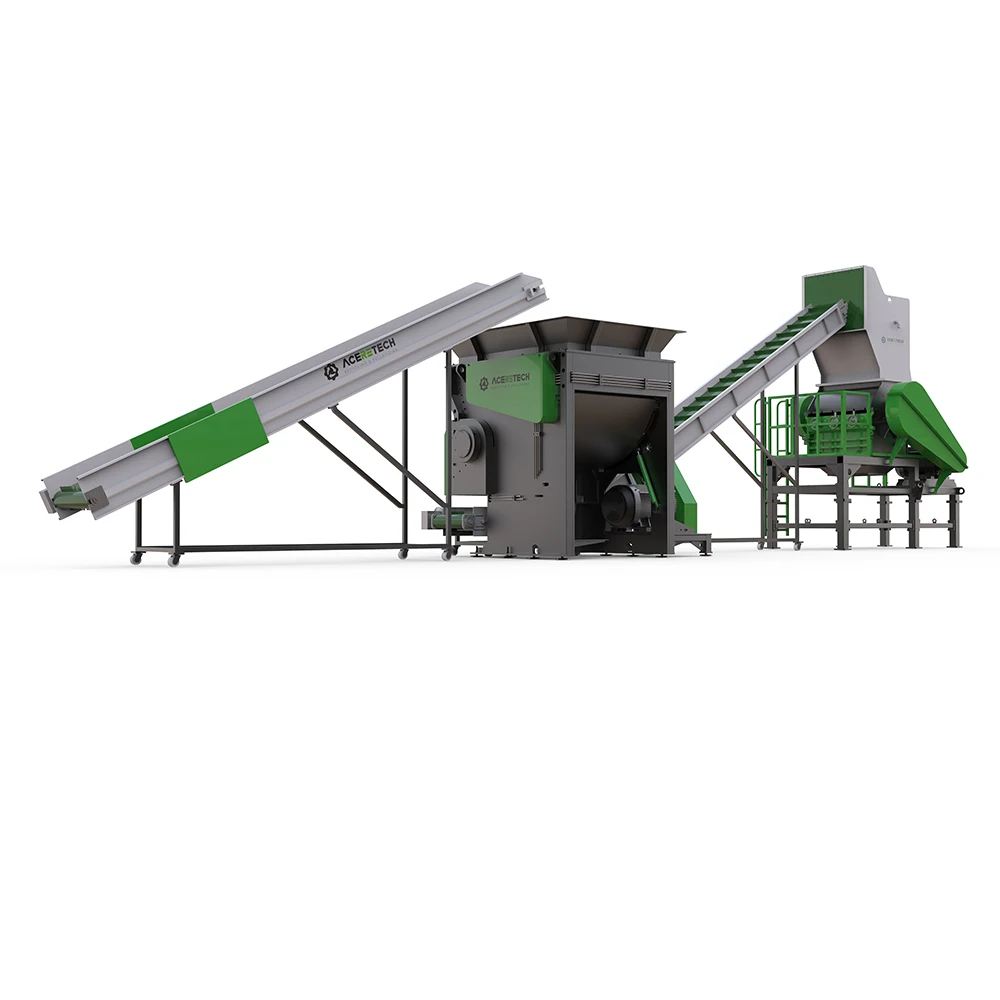

Belt Conveyor
Conveying raw materials into next parts. Controlled by inverter, belt speed is adjustable.
Shredder
Shredding the materials into small size(30-60mm).
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Crusher
Crushing the materials into small size(10-15mm).
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Friction Washer Is Specialized For Soft Materials Washing
It can remove above 90% contaminates from materials.
Floating Tank
Washing the crushed PP pieces, and separating sinking materials out.
There are rollers for pressing materials down into water, heavy materials sink to the bottom, and transported out by sinking screw conveyer.
Floating materials are transported into the floating screw by special roller.
There are rollers for pressing materials down into water, heavy materials sink to the bottom, and transported out by sinking screw conveyer.
Floating materials are transported into the floating screw by special roller.
Centrifugal Dryer
Centrifugal dryer to remove water out.
Pipeline Dryer
Pipeline dryer with warm air.
Intelligent Control System
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
