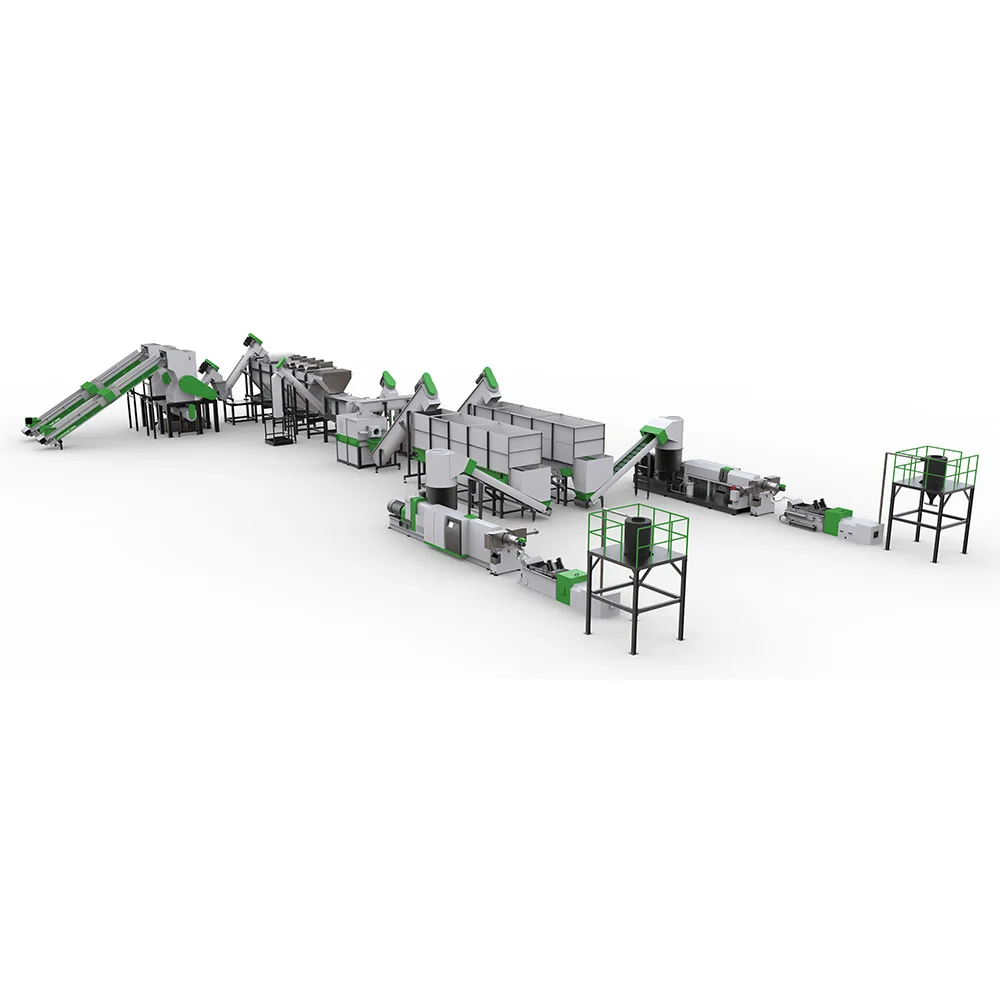

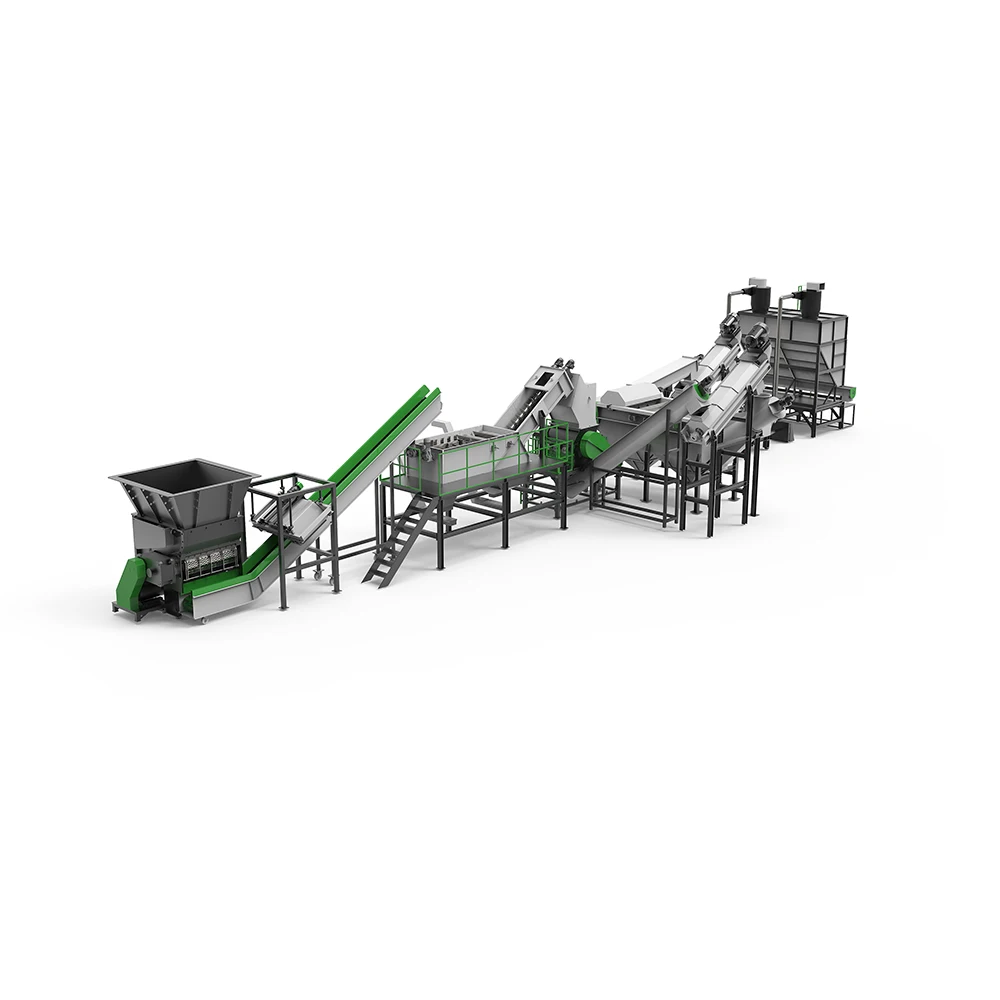

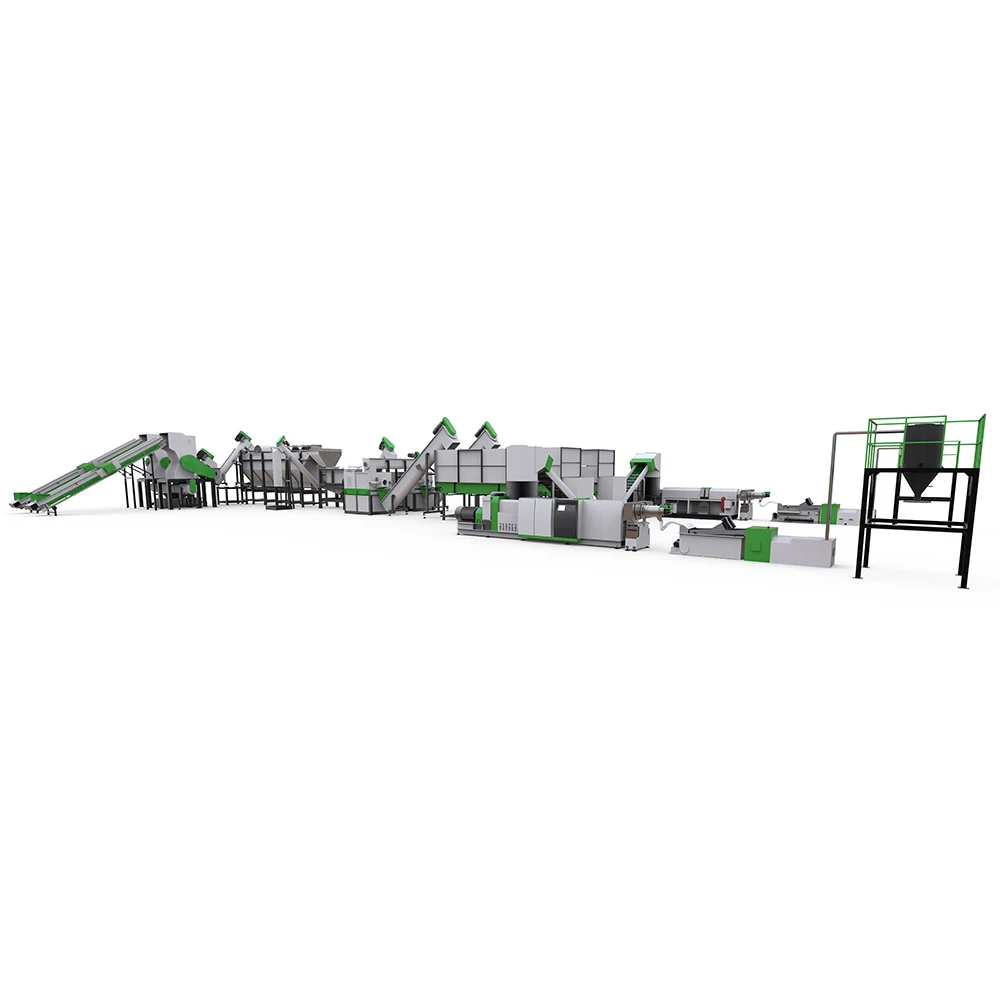

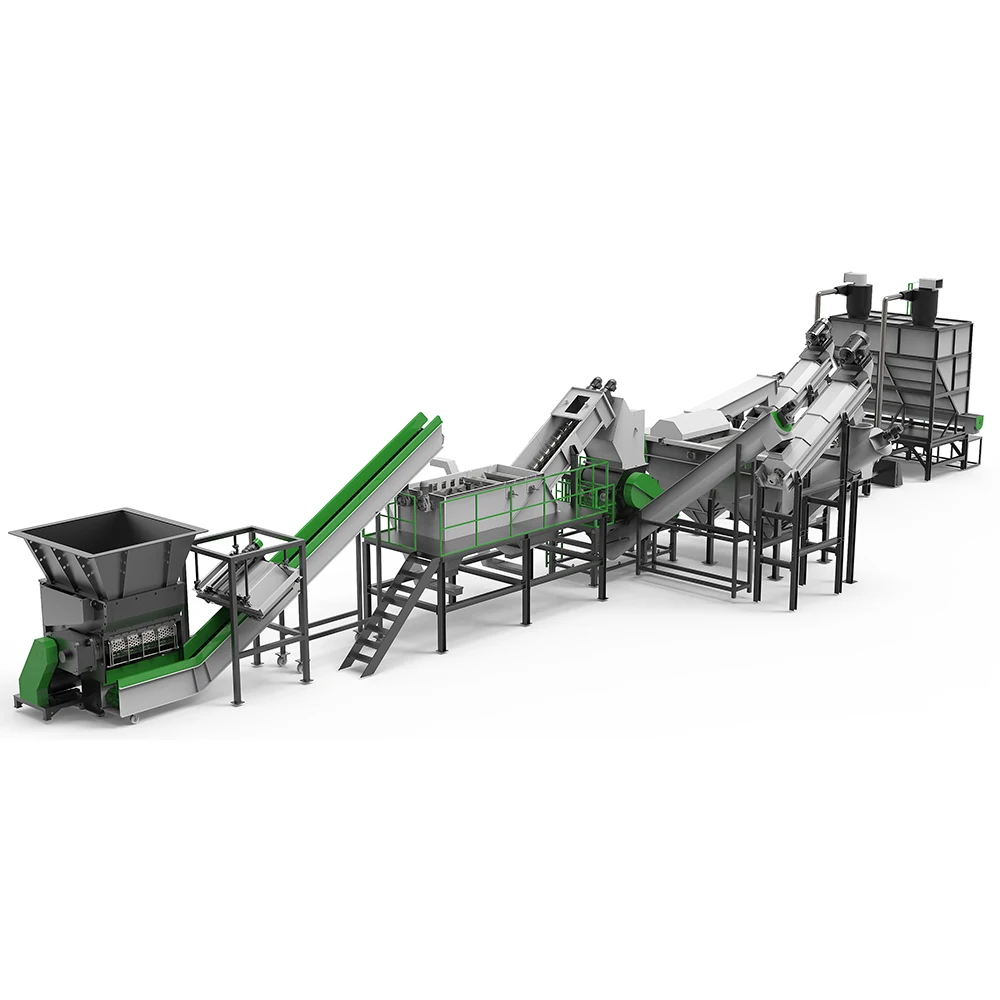

AWS-HDPE(027) OEM ODM Pet Plastic Washing Machine
Product Description
With years of technology modification and process experience precipitation, ACERETECH has a variety of different solutions for recycling PP PE scraps (LDPE/LLDPE film, PP woven bags, PP non-woven, PE bags, milk bottles, cosmetic containers, vegetable and fruit boxes). With advanced modular design, ACERETECH can freely combine each standard module to provide to customers specialized solutions.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Aceretech Recyclable Plastics Include:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
* PP/OPP/BOPP/CPP film, woven bag,
non-woven fabric (melt blown)
* PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
* PVB crushed material, flakes
* PU
Product Paramenters
Device parameters | ||||||
Size | Capacity | Motor Power | Equipment footprint | |||
AWS-HDPE10 | 1000kg/h | 150KW | 150m 2 | |||
AWS-HDPE20 | 2000kg/h | 190KW | 260m 2 | |||
AWS-HDPE30 | 3000kg/h | 250KW | 380m 2 | |||
AWS-HDPE45 | 4000kg/h | 400KW | 450m 2 | |||
Unit energy consumption | ||
Content | Average energy consumption per ton of bottle | |
Electricity | 50-80KW | |
Water | 0.8-1.5T | |
Compressed air | 0.5-1m 3 | |
Steam (optional) | 0-100KG | |
Detergent (optional) | 0-3KG | |
Suitable Products
Product Detail

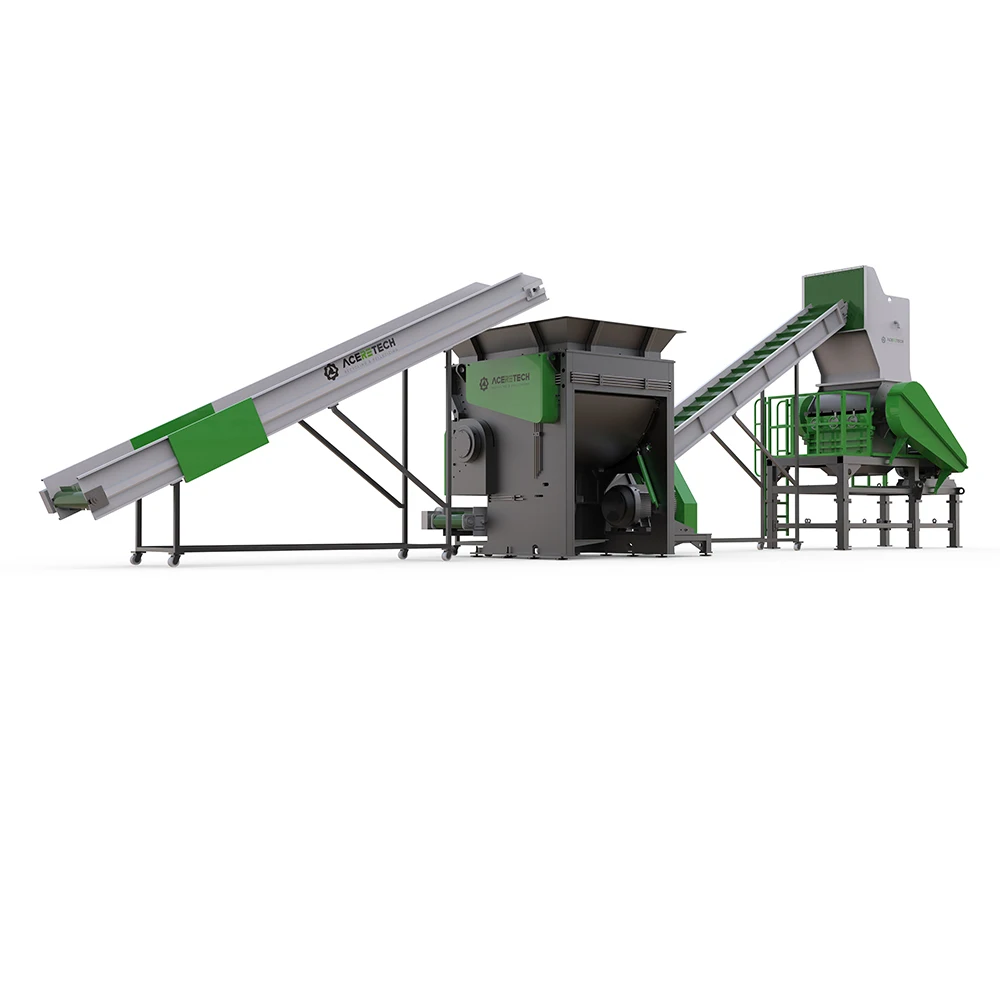

Belt Conveyor
Conveying raw materials into next parts. Controlled by inverter, belt speed is adjustable.
Shredder
Shredding the materials into small size(30-60mm).
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Crusher
Crushing the materials into small size(10-15mm).
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Screw Loader
For feeding the material from granulator to Washing tank. It is a conveyor machine.
Washing And Separating Tank
For additional separation and cleaning of heavy contaminants with gravity > 1g/cm3 from scraps plastic, the material is pushed
underwater to separate off the final heavy contaminants and discharge the material directly into the screw loader.
underwater to separate off the final heavy contaminants and discharge the material directly into the screw loader.
Low-Speed Friction Washing Machine
For further cleaning and dewatering of the material.
High speed special rotor, built in mild steel stainless screen with 3mm hole size screen surface cleaning device by water spray
nozzles. 1 set of water pump for water circulation.
High speed special rotor, built in mild steel stainless screen with 3mm hole size screen surface cleaning device by water spray
nozzles. 1 set of water pump for water circulation.
Centrifugal Dryer
Multi purpose unit, will wash the remaining surface contaminants from material and dry the plastic flakes.
Subsequently the flakes will be centrifugally dried.
Washer/dryer housing built in stainless steel welded construction.
Reinforces, mild circular screen size Φ2.8mm in polygon 4 piece version for higher washing/drying effect.
Include cover opening device.
Subsequently the flakes will be centrifugally dried.
Washer/dryer housing built in stainless steel welded construction.
Reinforces, mild circular screen size Φ2.8mm in polygon 4 piece version for higher washing/drying effect.
Include cover opening device.
Pipeline Drying And Silo System
Pipeline drying and silo system.
Conveyed flakes into storage silo.
The final flakes moisture can be controlled within 1%.
Conveyed flakes into storage silo.
The final flakes moisture can be controlled within 1%.
Intelligent Control System
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
