AWS-HDPE(002) Стабильная производственная стиральная
- Категория: Recycle Washing Line >>>
- Поставщик: Jiangsu,Aceretech,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 2380.94 $* | 2499.16 $* |
| Aug-18-2025 | 2360.28 $* | 2478.40 $* |
| Jul-18-2025 | 1980.59 $* | 2079.3 $* |
| Jun-18-2025 | 2320.81 $* | 2436.81 $* |
| May-18-2025 | 2020.86 $* | 2121.36 $* |
| Apr-18-2025 | 2280.20 $* | 2394.21 $* |
| Mar-18-2025 | 2260.25 $* | 2373.51 $* |
| Feb-18-2025 | 2240.37 $* | 2352.31 $* |
| Jan-18-2025 | 2220.5 $* | 2331.34 $* |
Характеристики

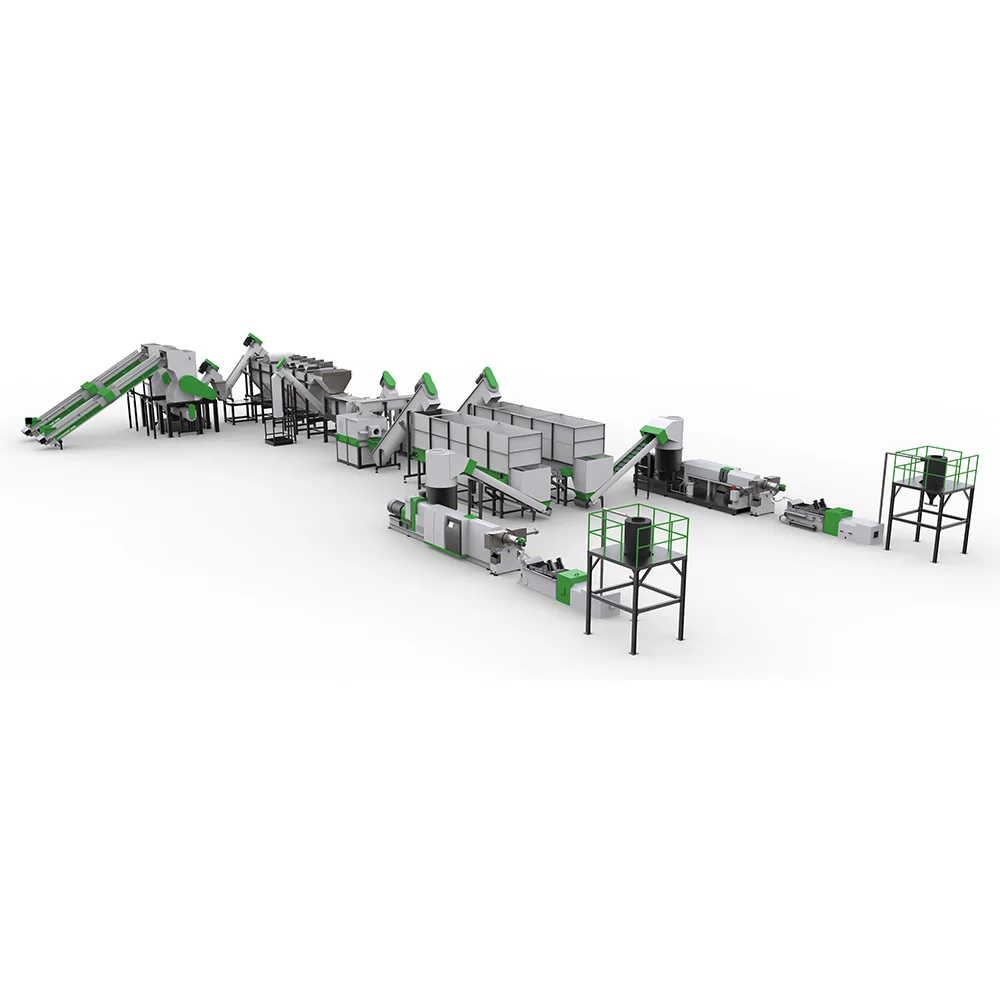

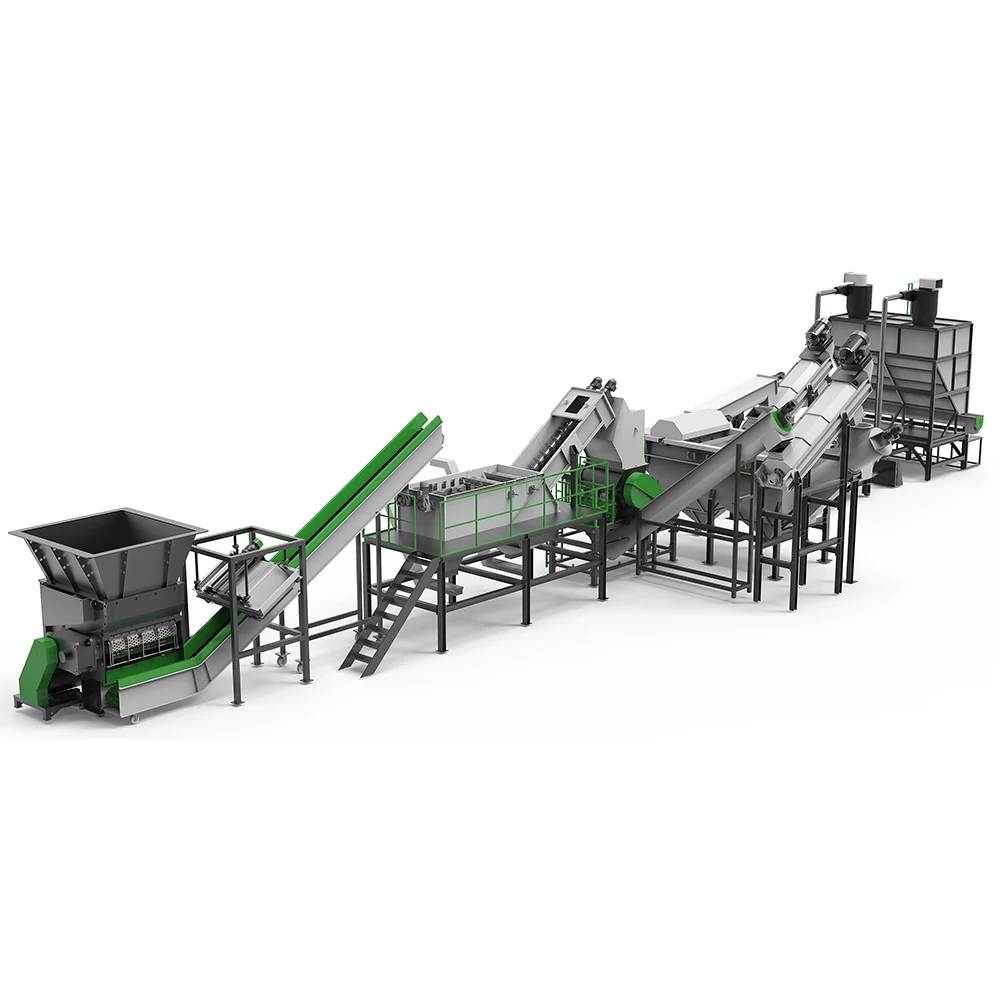

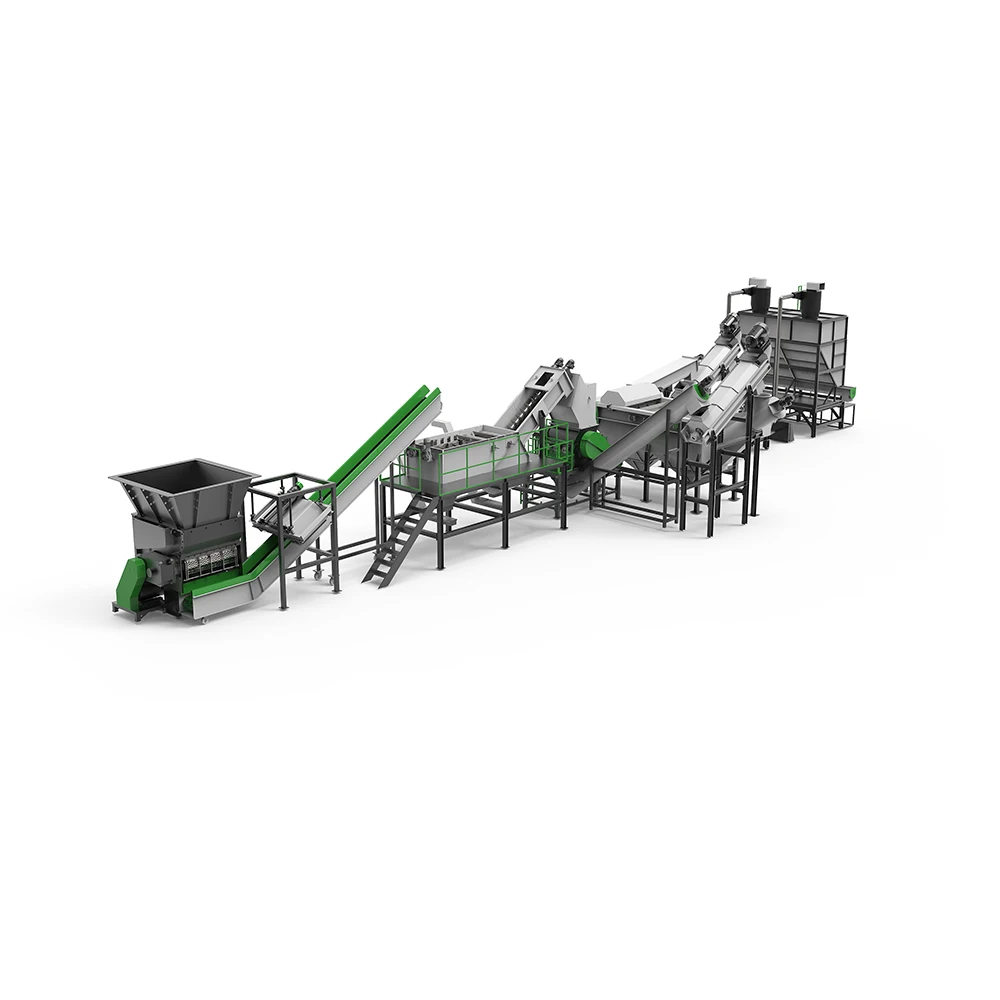

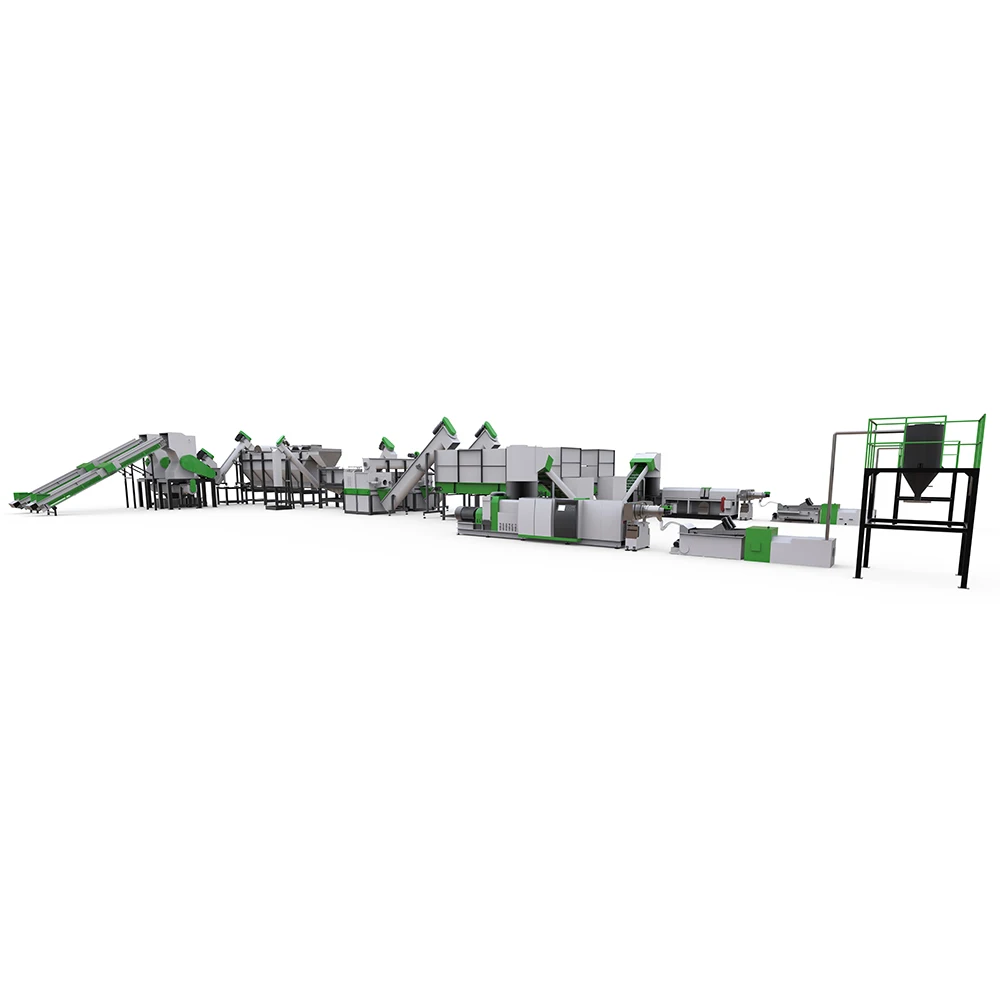

AWS-HDPE(002) Stable Production Recycling Washing Equipments
Product Description
With years of technology modification and process experience precipitation, ACERETECH has a variety of different solutions for recycling PP PE scraps (LDPE/LLDPE film, PP woven bags, PP non-woven, PE bags, milk bottles, cosmetic containers, vegetable and fruit boxes). With advanced modular design, ACERETECH can freely combine each standard module to provide to customers specialized solutions.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Product Name : AWS- HDPE/PP/PS/ABS/PC/PET Plastic Washing Recycling Machine
In the field of HDPE/PP/PS/ABS/PC/PET recycling projects. Most of the materials come from urban and industrial collection sites,their sizes vary, and the composition of raw materials is different from country to country, even though the composition of HDPE/PP/PS/ABS/PC/PET in the same country is totally different.
ACERETECH team integrated the cleaning line technology in Europe and China and continuously optimized it. Finally, it developed a series of modular equipment that can adapt to the different characteristics of HDPE/PP/PS/ABS/PC/PET materials. Aiming at blow molding packaging bottle/box/cup/barrel/bucket and injection waste recycling. It can realize a cleaning and recycling line and handle hard materials at the same time. And flexible plastic.
Including sorting, size reduction, metal removing, cold and hot washing, high efficiency friction washing and drying modular.
Which can remove ferrous and nonferrous metals, sand, oil, glue, paper and many other different contaminants efficiency.
Aceretech Recyclable Plastics Include:
* LLDPE/LDPE/HDPE/PE/EPE film, crushed material, lithium battery film, foamed pearl cotton
* PP/OPP/BOPP/CPP film, woven bag,
non-woven fabric (melt blown)
* PA66 fishing net, silk, factory trim, carpet
* PET/BOPET bottle flakes, film, silk, waste cloth, foam,optical film
* PTT wire
* EPS/XPS crushed material, cold briquetting foam, hot melt foam, insulation board
* HIPS/PC/ABS home appliance housing, electronic waste, factory plastic
* PVB crushed material, flakes
* PU
Product Paramenters
Device parameters | ||||||
Size | Capacity | Motor Power | Equipment footprint | |||
AWS-HDPE10 | 1000kg/h | 150KW | 150m 2 | |||
AWS-HDPE20 | 2000kg/h | 190KW | 260m 2 | |||
AWS-HDPE30 | 3000kg/h | 250KW | 380m 2 | |||
AWS-HDPE45 | 4000kg/h | 400KW | 450m 2 | |||
Unit energy consumption | ||
Content | Average energy consumption per ton of bottle | |
Electricity | 50-80KW | |
Water | 0.8-1.5T | |
Compressed air | 0.5-1m 3 | |
Steam (optional) | 0-100KG | |
Detergent (optional) | 0-3KG | |
Suitable Products
Product Detail

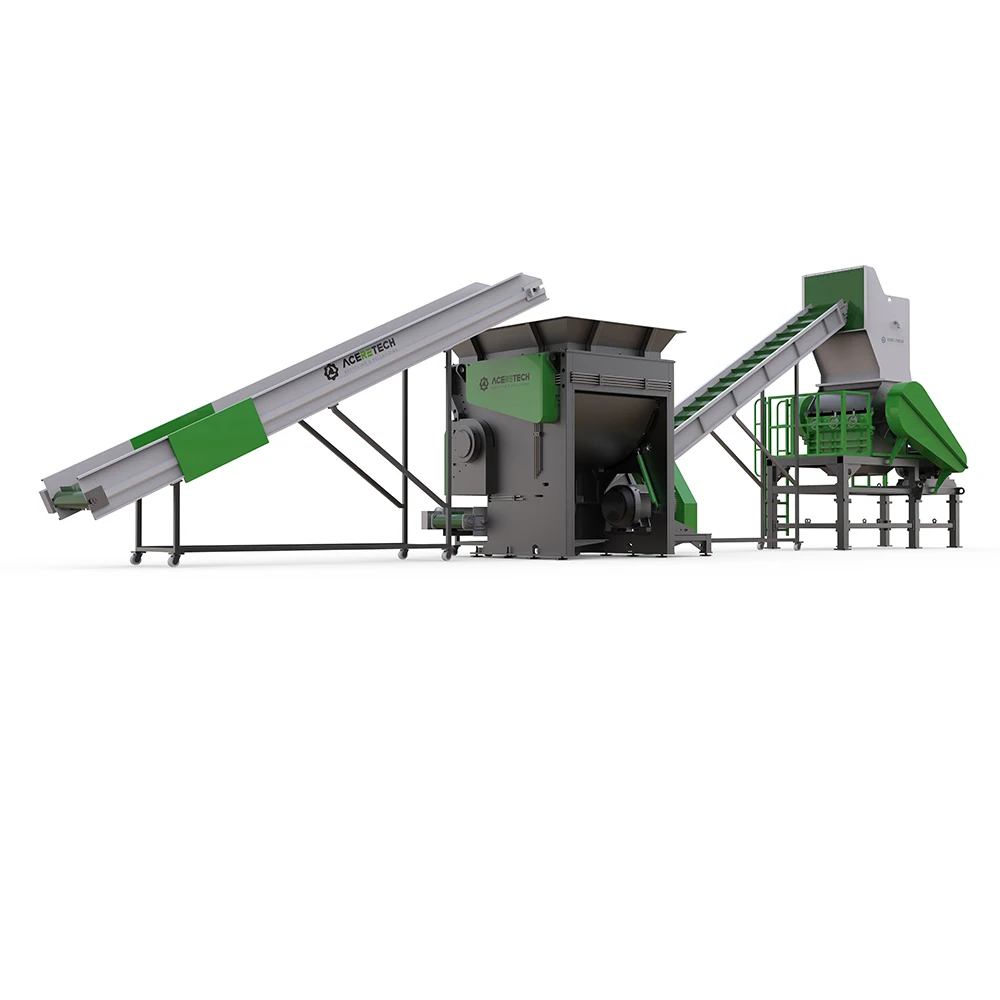

Belt Conveyor
Conveying raw materials into next parts. Controlled by inverter, belt speed is adjustable.
Shredder
Shredding the materials into small size(30-60mm).
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
With hydraulic pusher.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Crusher
Crushing the materials into small size(10-15mm).
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Wet crushing can removing sand and earth during crushing, and protecting knives.
Motor driver.
Belt transmission.
Protection cover for “V” belts for safety.
Screw Loader
For feeding the material from granulator to Washing tank. It is a conveyor machine.
Washing And Separating Tank
For additional separation and cleaning of heavy contaminants with gravity > 1g/cm3 from scraps plastic, the material is pushed
underwater to separate off the final heavy contaminants and discharge the material directly into the screw loader.
underwater to separate off the final heavy contaminants and discharge the material directly into the screw loader.
Low-speed Friction Washing Machine
For further cleaning and dewatering of the material.
High speed special rotor, built in mild steel stainless screen with 3mm hole size screen surface cleaning device by water spray
nozzles. 1 set of water pump for water circulation.
High speed special rotor, built in mild steel stainless screen with 3mm hole size screen surface cleaning device by water spray
nozzles. 1 set of water pump for water circulation.
Multi Purpose Unit
Multi purpose unit, will wash the remaining surface contaminants from material and dry the plastic flakes.
Subsequently the flakes will be centrifugally dried.
Washer/dryer housing built in stainless steel welded construction.
Reinforces, mild circular screen size Φ2.8mm in polygon 4 piece version for higher washing/drying effect
Include cover opening device.
Subsequently the flakes will be centrifugally dried.
Washer/dryer housing built in stainless steel welded construction.
Reinforces, mild circular screen size Φ2.8mm in polygon 4 piece version for higher washing/drying effect
Include cover opening device.
Pipeline Drying And Silo System
Conveyed flakes into storage silo.
The final flakes moisture can be controlled within 1%.
The final flakes moisture can be controlled within 1%.
Intelligent Control System
With CE/CSA/TUV/SGS/ISO standard, all parameters can be set on the touch screen.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
1.Electric control component: (Schneider), e.g. Circuit-breaker, AC contact, press button, pilot lamp.
2.For electrical controlling of the entire system.
3.Safety interlock principle.
4.All electrical units: LS, Schneider, ABB.
Product Cleaning
Product cleaning
Our Company
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
● ACERETECH is original manufacturer.
● If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
● The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
● After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by the standard export package for shipment.
●According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH US.
● ACERETECH is original manufacturer.
● If you interested in our products and we can fulfill your request , you may pay a visit to ACERETECH Factory.
● The meaning of visiting supplier, since seeing is believing, ACERETECH Machinery with own manufacture and developed& research team, we can send you engineers and make sure the high efficiency after-sales service.
SEE ACERETECH MACHINE HOW TO ENSURE THE QUALITY
● In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
● Each component before assembly needs strict control by inspecting personnel.
● Each assembly is in charge by a master who has working experience for more than 15 years
● After all the equipment are completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in customers' factory
THE AFTER-SALE SERVICE OF ACERETECH MACHINERY
● After finishing the production, we will debug the production line, take photos, videos and send them to customers via mail or instant tools.
● After the commissioning, we will package the equipment by the standard export package for shipment.
●According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
● Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.
IF YOU WOULD LIKE TO KNOW MORE INFORMATION ABOUT US, PLEASE DO NOT HESITATE TO CONTACT WITH US.
