TX-4060 Heightened printing products are higher Servo Motor High Precision Screen Printing Machine For Tin
- Категория: Screen Printers >>>
- Поставщик: Hangzhou,Taoxing,Printing,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 9520.26 $* | 9996.67 $* |
| Aug-19-2025 | 9440.87 $* | 9912.10 $* |
| Jul-19-2025 | 7920.83 $* | 8316.90 $* |
| Jun-19-2025 | 9280.58 $* | 9744.41 $* |
| May-19-2025 | 8080.19 $* | 8484.72 $* |
| Apr-19-2025 | 9120.14 $* | 9576.21 $* |
| Mar-19-2025 | 9040.87 $* | 9492.37 $* |
| Feb-19-2025 | 8960.67 $* | 9408.68 $* |
| Jan-19-2025 | 8880.54 $* | 9324.59 $* |
Характеристики
Product Description
This series of machine can be started and stopped at any position, using servo motor Be applied to the flat printing for sheet metal, sheet metal box, plastic products, leather, cloth, paper etc.
Specification
Model | TX-4060ST-SERVO |
Printing Thickness | ≤450mm |
Max printing area | 400*600mm |
Air pressure | 4.0~6.0 kfg/c㎡ |
Size of printing table | 500*700mm |
voltage/Power | 220V/2KW |
max size of screen frame | 700*1000mm |
Size of package | 1260*910*1650mm |
Max printing speed | 1000(PCS/H) |
Gross weight | 492(KG) |
Features and Performance
1. vertical structure with the motor driven printing plate goes up and down vertically, and the motor driven print head moves left/right.
2. PLC+ touch screen, both printing and screen lifting are driven by independent servo motors.
3. The switching of printing/re-inking turret is driven by Taiwan brand air cylinder, photoelectric eye control stroke, independent adjustment.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.
2. PLC+ touch screen, both printing and screen lifting are driven by independent servo motors.
3. The switching of printing/re-inking turret is driven by Taiwan brand air cylinder, photoelectric eye control stroke, independent adjustment.
4. Set manual/semi-automatic /automatic three modes , the break time of printing is digital controlled.
5. Independent designed head rising and down setting, makes it convenient to clean the scraping blade/reclaiming blade、screen plate during loading and unloading.
6. Double guide column master the clamps arm, and install the adjusting device to adjust the distance between plates at the same time, which is convenient to tune.

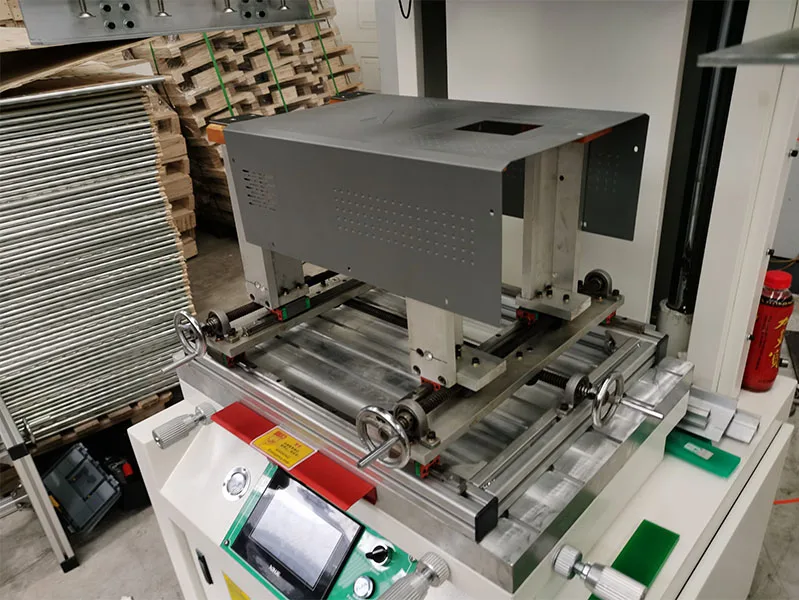

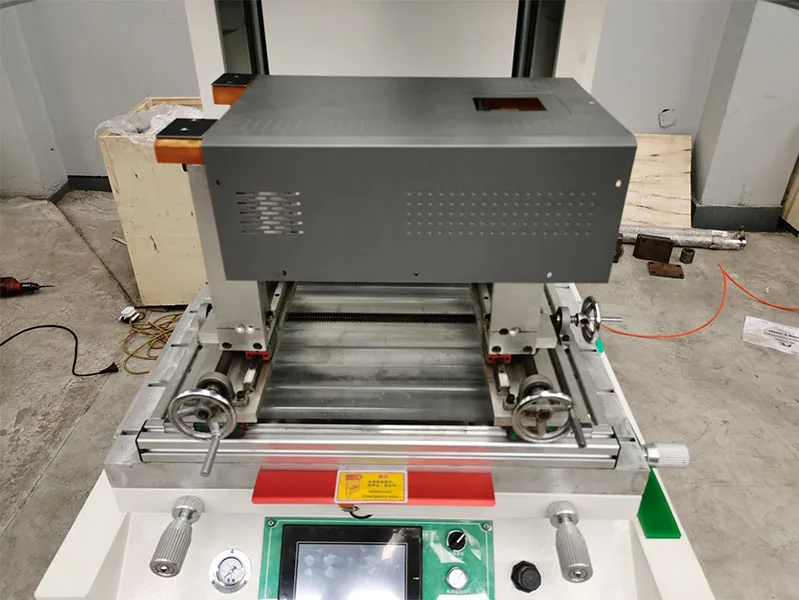

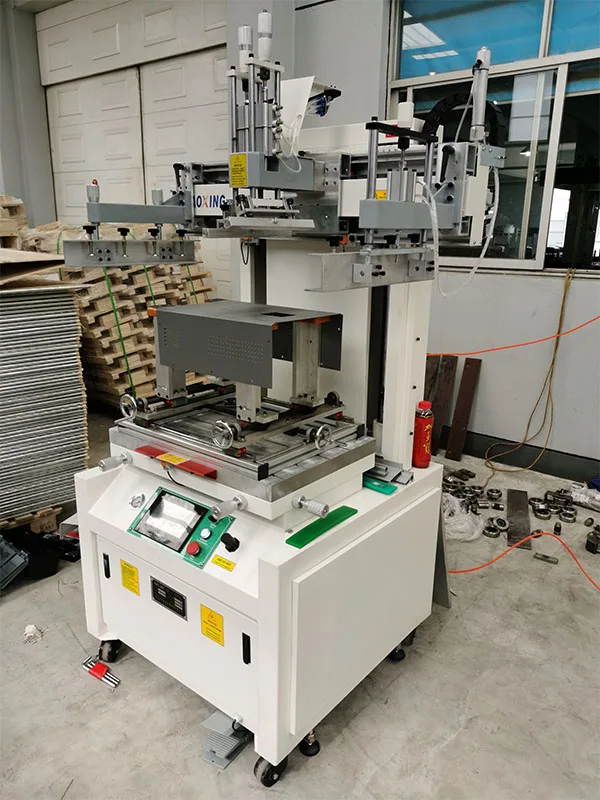

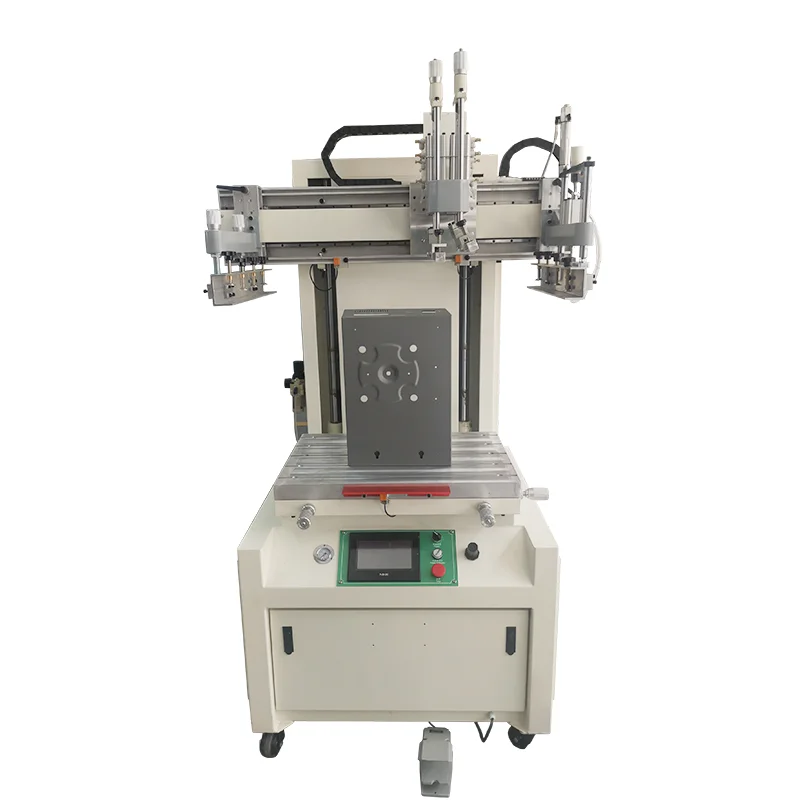

Machine image
Packing & Delivery
Safety and Fast Transportation
1. Packing: Plywood Case for Each Machine
2. Payment terms: T/T (40% deposit to start the production, 60% paid before delivery)
3. Delivery date：14 business days after received the payment.
4. Delivery means: By sea from Shanghai
FAQ
Q: Are you a factory or trading company?
A: We are a professional manufacturing factory specialize in printing equipment with more than 20 years experience, committed to supplying our customer top quality and dedication to the constant improvements of quality, reliability, productivity and the competitiveness of our products and services.Q: How to get a quotation?
A: Please send us an inquiry directly. We need to get specific details, such as material, size, color, thickness, quantity, etc.
Q: Can you do the production as customized?
A: Yes, we have a professional technique team, we could produce the machine depends on your requirements.
Q: What are your terms of payment?
A: We accept TT/LC/PAYPAL/Western union, every payment term we can discuss.
Q: How long is the warranty time?
A: All Taoxing products carry up to a full year warranty. Supply wearing parts with favorable price and long term after-sales service. We believe in total customer satisfaction, aside from our no-hassle guarantee.
