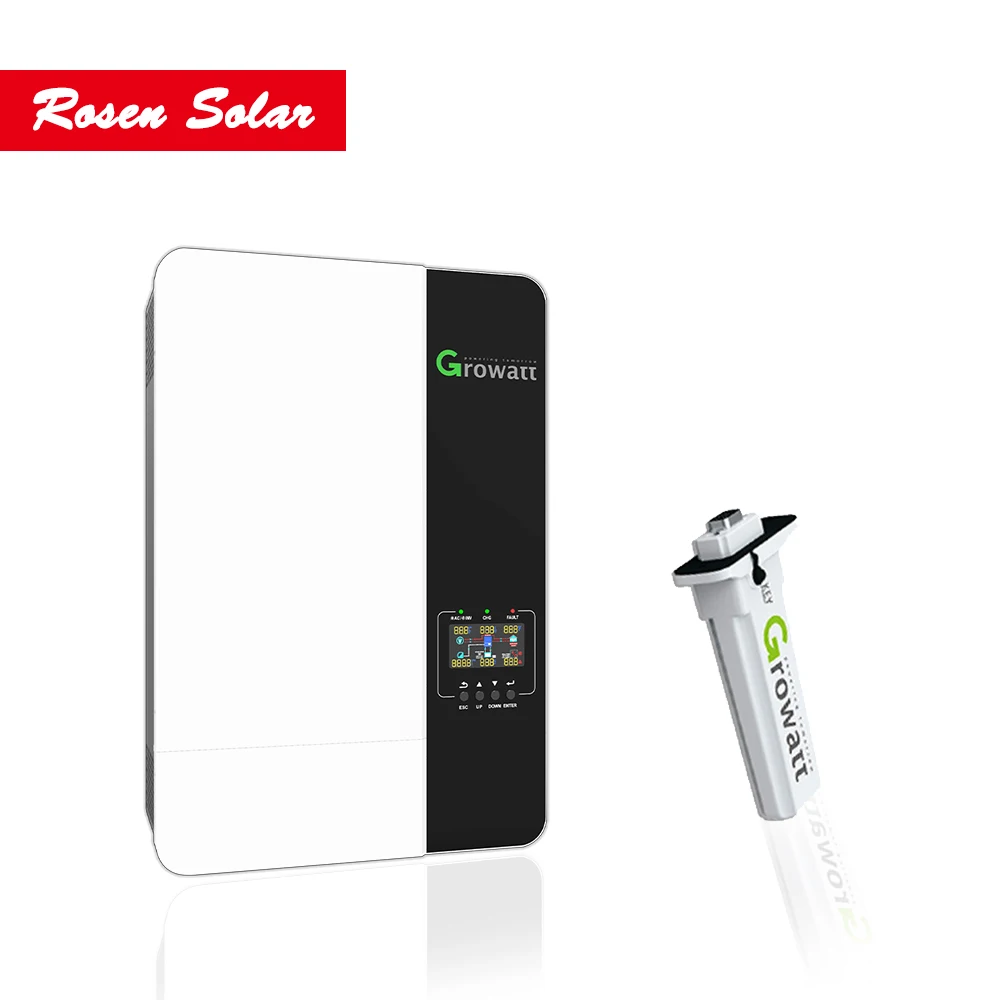

Rosen solar Growatt Off-grid Solar Spf 5000 Es 48vdc 5000kva Pv

Цена:360,00 $ - 395,00 $*

Количество:

Product Description

Application

Technical Specification

Datasheet	SPF 2000TL HVM-24	SPF 3000TL HVM-24	SPF 2000TL HVM-48	SPF 3000TL HVM-48	SPF 5000TL HVM/HVM-P
Battery Voltage	24VDC			48VDC
Battery Type	Lithium/Lead-acid
INVERTER OUTPUT
Rated Power	2000VA/ 2000W	3000VA/ 3000W	2000VA/ 2000W	3000VA/ 3000W	5000VA/ 5000W
Parallel Capability	No						6 units maximum
AC Voltage Regulation (Battery Mode)	230VAC ± 5% @ 50/60Hz
Surge Power	4000VA	6000VA	4000VA	6000VA	10000VA
Efficiency (Peak)	93%
Waveform	Pure sine wave
Transfer Time	10ms typical, 20ms Max
SOLAR CHARGER
Maximum PV Array Power	1500W			1800W		4500W
MPPT Range @ Operating Voltage	30VDC ~ 80VDC			60VDC ~ 115VDC
Maximum PV Array Open Circuit Voltage	102VDC			145VDC
Number of Independent MPP Trackers/ Strings Per MPP Tracker	1/1
Maximum Solar Charge Current	50A			30A		80A
Maximum Efficiency	98%
AC CHARGER
Charge Current	30A			15A		60A
AC Input Voltage	230 VAC
Selectable Voltage Range	170-280 VAC (For Personal Computers) ; 90-280 VAC (For Home Appliances)
Frequency Range	50Hz/60Hz (Auto sensing)
PHYSICAL
Protection Degree	IP20
Dimension (W/H/D)	315/400/130mm						350/455/130mm
Net Weight (kgs)	8	8.5	8	8.5	11.5
OPERATING ENVIRONMENT
Humidity	5% to 95% Relative Humidity(Non-condensing)
Altitude	<2000m
Operating Temperature	0°C - 55°C
Storage Temperature	-15°C - 60°C
