Микропивоварня 300 л 500 1000 Пивоваренная система под ключ микропивоварня
- Категория: Fermenting Equipment >>>
- Поставщик: Shandong,Tonsen,Equipment,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-16-2025 | 21420.25 $* | 22491.85 $* |
| Aug-16-2025 | 21240.58 $* | 22302.69 $* |
| Jul-16-2025 | 17820.77 $* | 18711.82 $* |
| Jun-16-2025 | 20880.58 $* | 21924.94 $* |
| May-16-2025 | 18180.42 $* | 19089.12 $* |
| Apr-16-2025 | 20520.72 $* | 21546.32 $* |
| Mar-16-2025 | 20340.74 $* | 21357.64 $* |
| Feb-16-2025 | 20160.4 $* | 21168.4 $* |
| Jan-16-2025 | 19980.75 $* | 20979.89 $* |
Характеристики
Hot Sales Products
Product Name | 300l 500l 1000l micro brewery turnkey beer brewing system micro brasserie a vendre |
Brewhouse Type | 2 Vessel/ 3 Vessel/4 Vessel |
Heating way: | Steam heating / Electric heating / Direct fire heating |
Material: | SUS 304,SUS 316,Red copper outshell |
Spare Parts | 25% head space; Full sanitary butterfly valves; Equip with Electromagnetic valve; 360°coverage CIP spraying ball; Tube level with measurements; False bottom/ sieve plate for lauter tun; Raker with VFD for mash/lauter Tangential port for whirlpool Sparge ring for lauter tun; Thermowell with high accuracy temperature sensor: PT100 Ice water pipe: PPR; Ice water pipe insulation: Rock-Wool; Stainless steel manway(option:glass manway) Option:led lamp Other special request, can be customized according for your brewhouse |
Manufacture Arts | 100% TIG welding with pure argon gas shield; Interior Finish: Overall polishing to ≤0.6μm without dead corner Inner tank inside surface fully acid washed and passivated after polishing;form protective film, easy to clean, no sanitary dead angle. |
WHY CHOOSE TONSEN
***The material is good-grade SUS304 stainless steel, all of which are from ZHANGJIAGANG
POSCO or SHANXI TISCO.
***The chief designer has more than 20 years of experience in beer equipment design, with advanced technology design concepts.
***Plasma cutting, professional polishing equipment, 100% argon arc welding, and argon gas protection.
***Short delivery cycle, round the clock after-sales service.
*** Use ABB motor for all brewing pumps, with small noise, high efficiency; The small vart of home brew equipment uses the wheel, move freely.
****Provide on-site guidance and installation services, and provide free beer training and formulation. Three years warranty on main equipment, One year warranty on spare parts and auxiliary equipment.
POSCO or SHANXI TISCO.
***The chief designer has more than 20 years of experience in beer equipment design, with advanced technology design concepts.
***Plasma cutting, professional polishing equipment, 100% argon arc welding, and argon gas protection.
***Short delivery cycle, round the clock after-sales service.
*** Use ABB motor for all brewing pumps, with small noise, high efficiency; The small vart of home brew equipment uses the wheel, move freely.
****Provide on-site guidance and installation services, and provide free beer training and formulation. Three years warranty on main equipment, One year warranty on spare parts and auxiliary equipment.

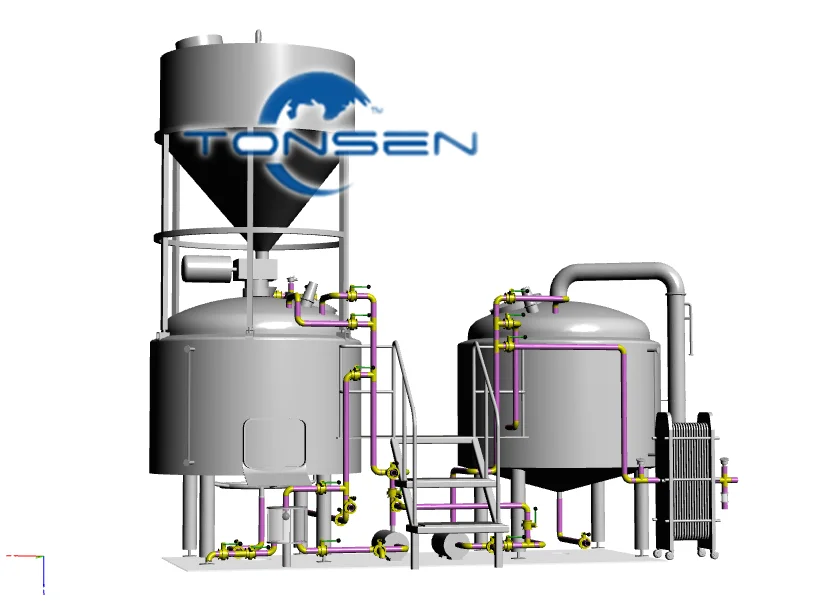

Brewhouse system
Product Details

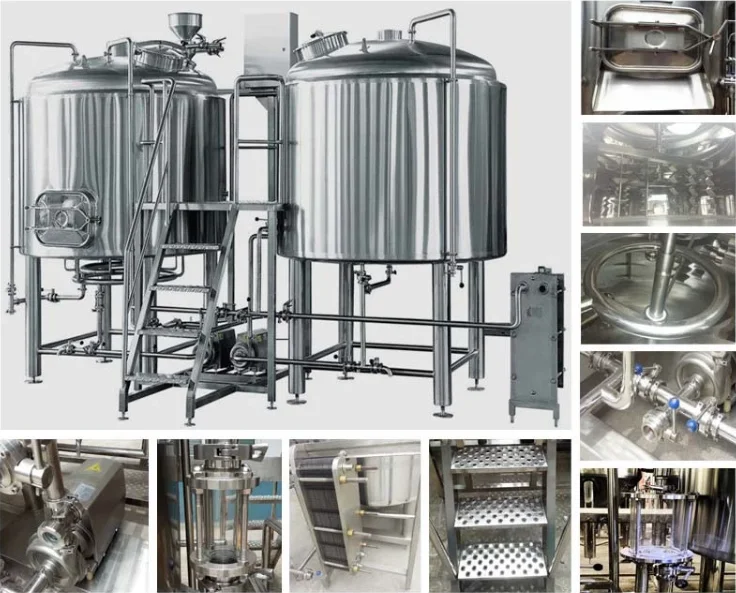

Brewhouse system
Brew house system consists of Mash Tun, Lauter Tun, Boiling Kettle, Whirlpool kettle, Hop Dosing Equipment.The main equipment adopted international quality standards of sanitary 304 stainless steel,to deal with the tank by plasma cutting ,pure Ar-shielding welding,mechanized automatic polishing machine.
The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency. The saccharification system heating has many forms, such as steam heating, electric heating pipe heating, direct fire heating, heat conducting oil heating and so on.
Brew house system consists of Mash Tun, Lauter Tun, Boiling Kettle, Whirlpool kettle, Hop Dosing Equipment.The main equipment adopted international quality standards of sanitary 304 stainless steel,to deal with the tank by plasma cutting ,pure Ar-shielding welding,mechanized automatic polishing machine.
Our scientific Dimple Jacket production technology can utmost ground realizes the effect of heat conduction,use high quality rock wool or polyurethane materials to insulation for the inner tank, effectively prevent heat energy leakage from the tank. advanced Lauter Tun raker systems and automatic hydraulic lifting technology,can ensure mash filter uniform and comprehensive. The brew house system could be included two-vessels brew house, three-vessels brew house and four-vessels brew house. Two-vessels brew house includes mash/lauter tun and kettle/whirlpool tank. Three-vessels includes mash tank, lauter tun and kettle/whirlpool tank. Four-vessels includes mash tank, lauter tun, boiling kettle and whirlpool tank.
The capacity is bigger, the vessels is more. It is just in order to reduce the brewing time, improve the working efficiency. The saccharification system heating has many forms, such as steam heating, electric heating pipe heating, direct fire heating, heat conducting oil heating and so on.
Fermenting system
Fermentation systems is made up of Fermentation Tank and Bright Beer Tank quantities are based on customer’s request. According to different fermenting request, structure of fermentation tank be be designed accordingly.Generally Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast. Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 100-200 mm.conic bottom install inlet and outlet pipes,valves,temperature transducer,etc,with the help of PLC auto-control, the equipment can reach to automatic and semi-automatic control. The height of conic bottom is a quarter of the total height.the ratio of tank diameter and height of tank is 1：2～1：4, the cone angle usually between 60°～90°.
Fermentation systems is made up of Fermentation Tank and Bright Beer Tank quantities are based on customer’s request. According to different fermenting request, structure of fermentation tank be be designed accordingly.Generally Fermentation Tank structure is dished head and cone bottom,with Polyurethane installation and dimple cooling jackets .There is a cooling jacket on tank cone section,columnar part has two or three cooling jackets.This not only can meet the relevant requirements of cooling, guarantee cooling rate of fermentation tank, also help to precipitation and storage the yeast. Tank internal and external wall are made of international quality standards of sanitary 304 stainless steel,the Polyurethane insulation thickness between the inner and outer is 100-200 mm.conic bottom install inlet and outlet pipes,valves,temperature transducer,etc,with the help of PLC auto-control, the equipment can reach to automatic and semi-automatic control. The height of conic bottom is a quarter of the total height.the ratio of tank diameter and height of tank is 1：2～1：4, the cone angle usually between 60°～90°.
Pre-sales Service
1.Help the clients to confirm the configuration list 2.Supplying different beer craft specification 3.Designing the drawing according to the client's floor plan and your requirement
4.Showing the detailed diagram of the tanks
After-sales Service
1.We provide turnkey system, onsite installation service for brewery projects.
2.It’s available for us to send engineers to guide install
3.Life time guarantee
4.Online technology consult
3.Life time guarantee
4.Online technology consult
Company Profile
FAQ
1.Q:How many years does your warranty ?
A:The main equipment for 3 years, auxiliary ones for 1 year.
2.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 4 top-level technicists worked in this business over 15 years, 3 senior engineers worked over 8 years, workers average production experience is 3 years.
3.Q: Can you do OEM or ODM?
A: Yes, we can do.
4.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
5.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.
6.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
7.Q;can this equipment be different design?
A:Sure
We are factory supplied with good quality,more competitive price and installation service. Lifetime guarantee are assured.
Whether you are creating a business or brewery renovation project, come here!
A perfect solution is always for you!
A:The main equipment for 3 years, auxiliary ones for 1 year.
2.Q;What’s your advantage ?
A:We are pioneer and know this business. Our 4 top-level technicists worked in this business over 15 years, 3 senior engineers worked over 8 years, workers average production experience is 3 years.
3.Q: Can you do OEM or ODM?
A: Yes, we can do.
4.Q: How to control temperature ?
A:PLC or digital display meter can control the temperature via connecting with the PT100 sensor.
5.Q: Is possible to supply installation in our country ?
A: Yes, we could supply engineer to supply installation guidance and training.
6.Q: Can your factory produce equipment according to our drawing or samples?
A: Yes, we can do.
7.Q;can this equipment be different design?
A:Sure
We are factory supplied with good quality,more competitive price and installation service. Lifetime guarantee are assured.
Whether you are creating a business or brewery renovation project, come here!
A perfect solution is always for you!
