Буровая установка для воздушного компрессора rock буровая бурения скважин
- Категория: Mine Drilling Rig >>>
- Поставщик: Jining,Hengwang,Mining,Machinery,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-18-2025 | 0.75 $* | 0.54 $* |
| Aug-18-2025 | 0.92 $* | 0.10 $* |
| Jul-18-2025 | 0.61 $* | 0.46 $* |
| Jun-18-2025 | 0.13 $* | 0.5 $* |
| May-18-2025 | 0.35 $* | 0.13 $* |
| Apr-18-2025 | 0.25 $* | 0.54 $* |
| Mar-18-2025 | 0.45 $* | 0.39 $* |
| Feb-18-2025 | 0.85 $* | 0.47 $* |
| Jan-18-2025 | 0.51 $* | 0.16 $* |
Характеристики
Product Description

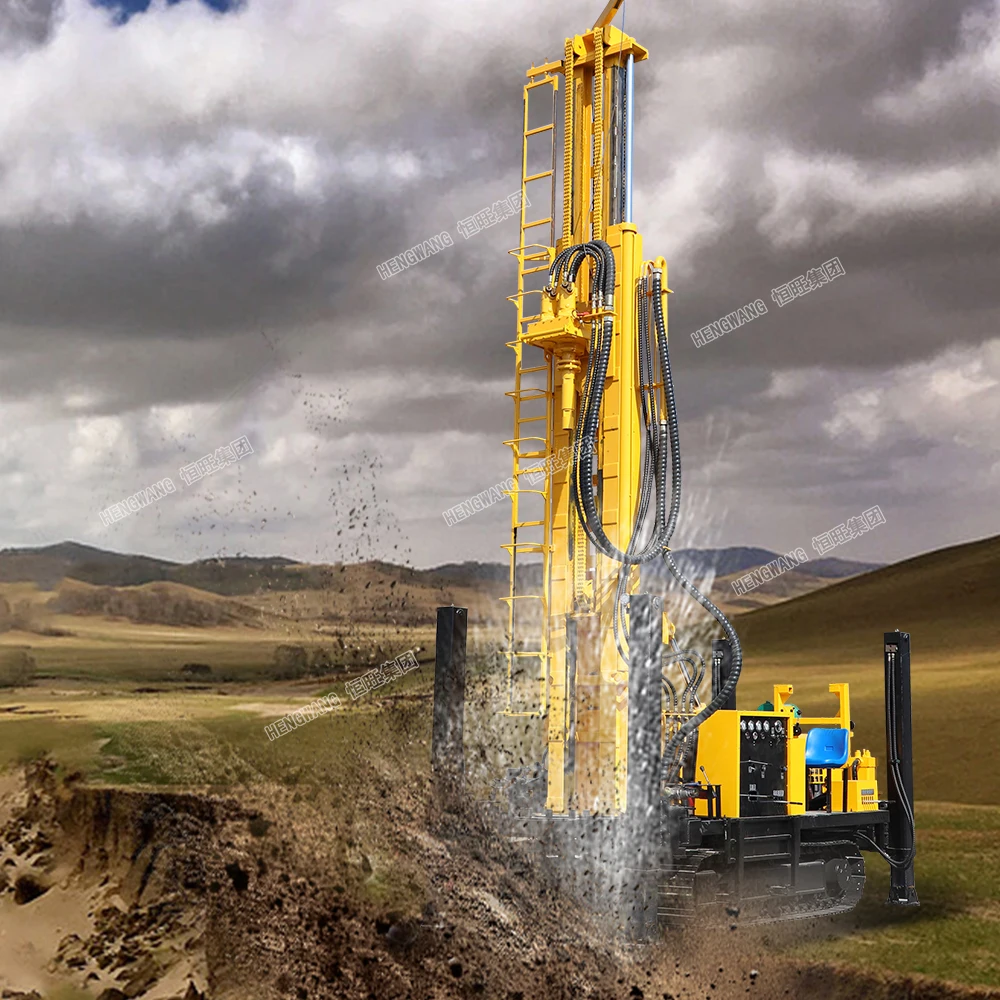

rock air compressor drilling rig machine water well hammer dth drill rig
pneumatic dth drilling rig mainly drilling rock,it need use together with air compressor . it has fast drilling speed . pneumatic dth water well drilling rig machine can drill 20-40m per hour . high drilling effective .the engine is 85kw ,more powerful . pneumatic drilling rig it has 4 high hydraulic leg which can lifting 1.6m height can easy loading on the truck .Pneumatic drilling rig has steel crawler . steel crawler mainly used in mountain area , rubber crawler mainly can protect the ground, not suitable mountain area use.
Pneumatic drilling rig mast can customized max.height is 6m .normally the mast height is 3m .
28ton High lifting force of crawler pneumatic drilling rig ,1.5ton lifting force of winch .
Hydraulic can be change to Famous brand . diesel engine also can be changed according your requirements .
It can add mud pump and foam pump .
We have enough experience for South America ,Southeast Asia,North America ,Africa etc .
Technical Parameter
rock air compressor drilling rig machine water well hammer dth drill rig
Total Weight | 8000kg | ||||
Dimension(L * W * H) | 5500*1950*2780mm | ||||
Drill Diameter | 140-325mm | ||||
Drilling depth | 300m | ||||
Once promotion distance | 3000(mm) | ||||
Walking speed | 2.5 km/h | ||||
Gradeability | 30° | ||||
ground clearance | 250mm | ||||
working pressure | 1.7-3.3 Mpa | ||||
air consumption | 17-33 m3/h | ||||
main machine power | 92 kw | ||||
rotating speed | 55-115 r/min | ||||
rotating torque | 8500-10000 N.m | ||||
drill pipe | Dia.76mm Dia.89 Dia.102 | ||||
drill pipe length | 3m /pc | ||||
Detailed Images

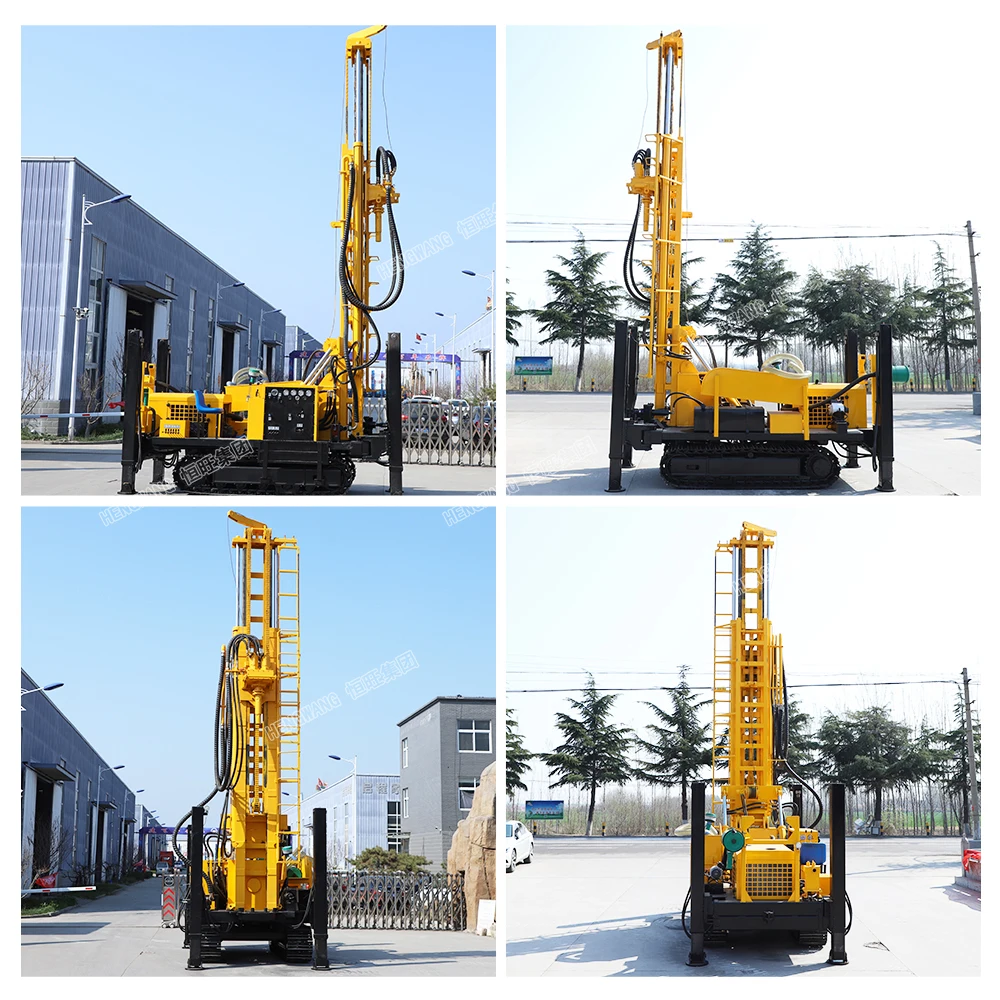

water well bore hole drilling rig machine
1.double rotary motor have high torque
2.engine we use China famous brand 92kw diesel engine .
3.English/Spanish Version operate handle
4.with 1.5ton or 2.5ton winch ,it has hook for lifting drilling rod .
5.excavator metal crawler chassis which is more wearable .
rock air compressor drilling rig machine water well hammer dth drill rig

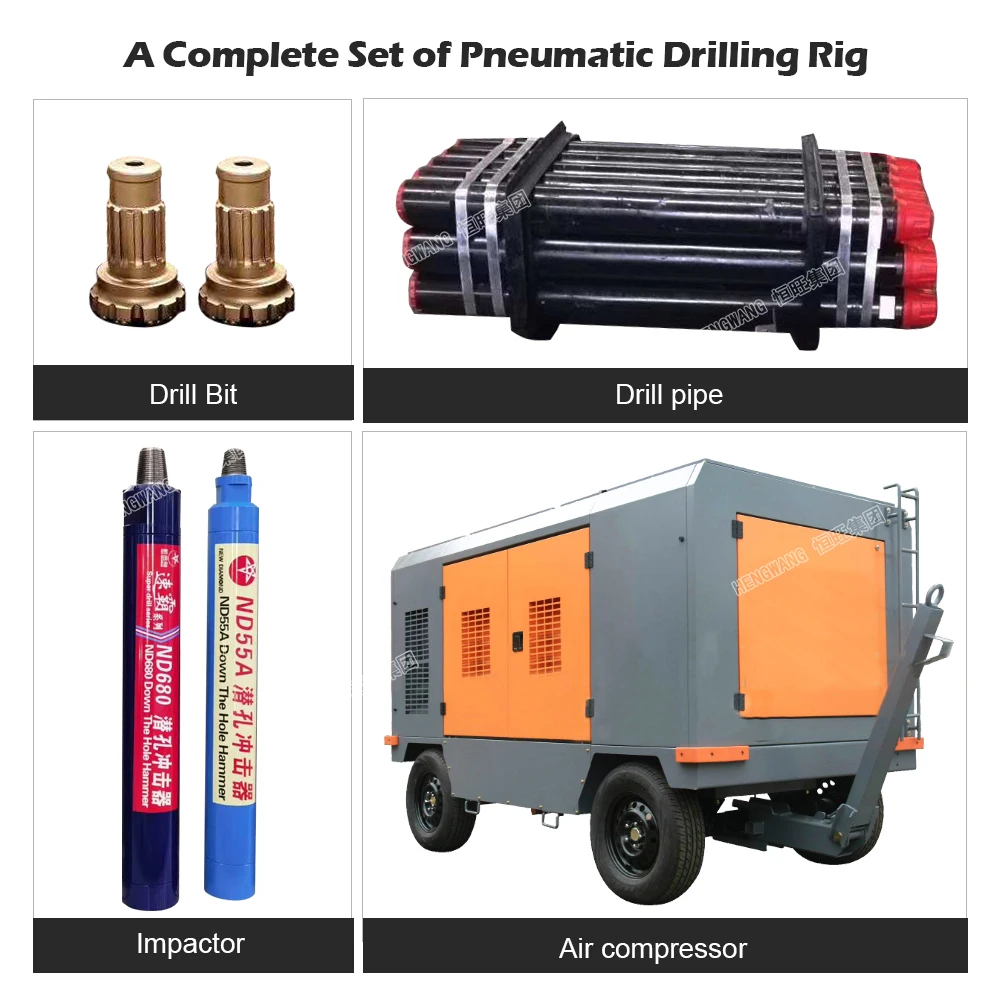

Pneumatic drilling rig accessories mainly include drill rod , impactor ,drill bits ,etc .
Also pneumatic drilling rig must use air compressor .
Related Product
Packing & Delivery
Pneumatic drilling rig mainly loading in 20GP container or 40HQ container .
rock air compressor drilling rig machine water well hammer dth drill rig
Product Usage
Pneumatic dth air water well drilling rig machine mainly drilling rock . it also can add mud pump to finish mud pump drilling ,mainly used in rock mountain and plain area .Deep Air Compressor T

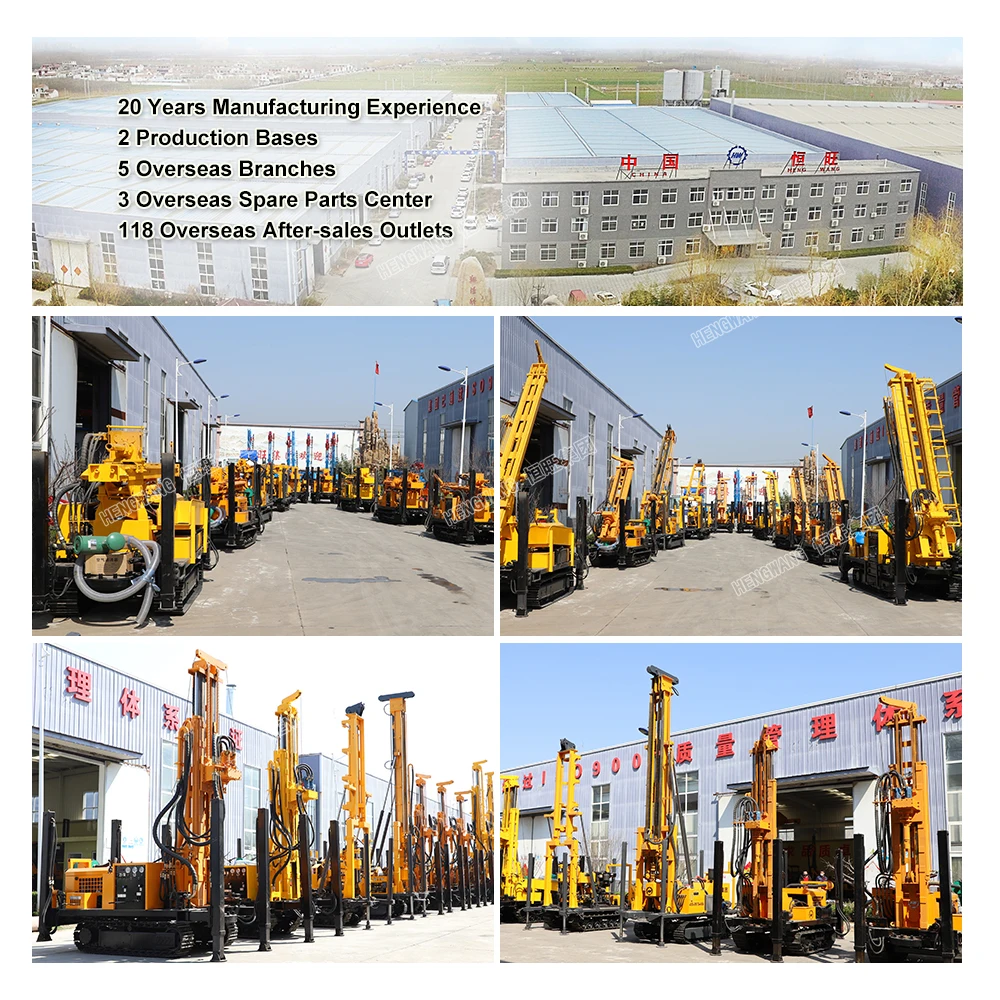

Our Company
We company have passed ISO ,SGS ,CE ,TUV ,BV ,etc certificates .
