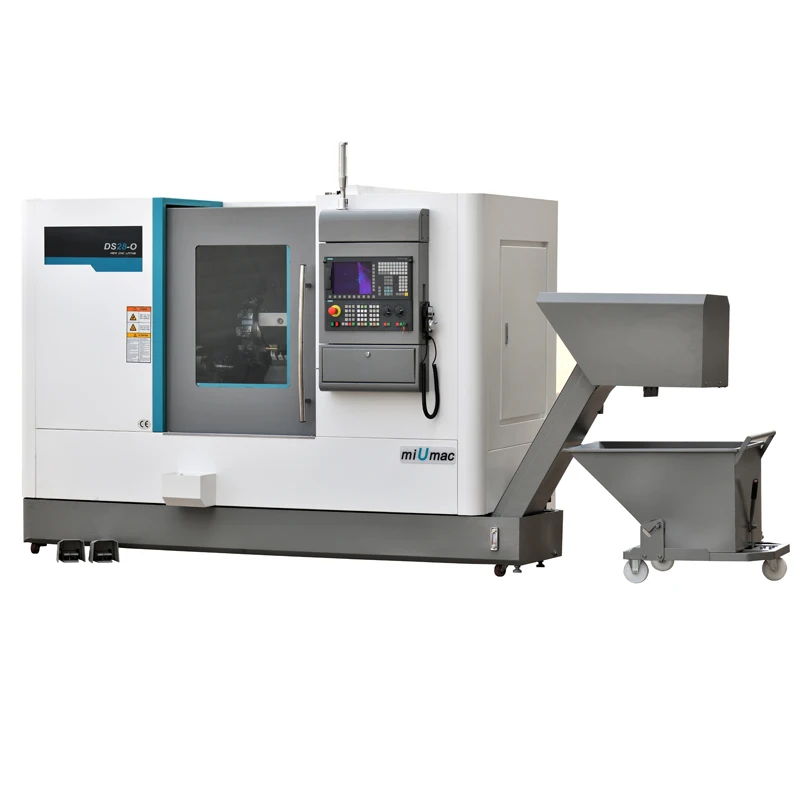

Новый большой стружки косые кровать токарный станок с компьютерным числовым программным управлением Цена

Новый большой стружки косые кровать токарный станок с компьютерным числовым программным управлением Цена

Цена:*

Количество:

FEATURES AT A GLANCE

Product Features

1. Aseismatic capability, high strength and good quality cast iron.

2. Main motor and spindle driven through wide-angle belt.

3. Taiwan high precision linear guide ways.

4. Ball screw pre-extended structure to reduce the heat-deformation and improve the precision and rigidity.

5. Adopting Japan NSK special screws angular contact ball bearing group.

Right elevation

Left elevation

Back elevation

PRODUCT SPECIFICATIONS

MODELS	DS28-O/500	DS28-O /1000	DS28-O /1500
CAPACITY
Max. swing over bed	Ф520mm
Max. cutting diameter for disc parts	Ф420mm	Ф420mm	Ф500mm
Max. cutting diameter for axle parts	Ф300mm
Max. cutting length	500mm	1000mm	1500mm
TRAVEL
X travel	255mm	270mm	270mm
Z travel	600mm	1050mm	1550mm
FEED
Rapid feed speed of X/Z	30/24m/min
Linear guide ways width of X/Z	35/ 45mm
Ball screw of X	Ø32×10 mm	Ø32×10 mm	Ø32×10 mm
Ball screw of Z	Ø40×10 mm	Ø40×10 mm	Ø50×10 mm
SPINDLE
Max. speed of spindle	4000rpm	2500rpm	2500rpm
Spindle nose	A2-6	A2-8	A2-8
Diameter of spindle bore	Ф65mm	Ф80mm	Ф80mm
Hydraulic chuck	8″	10”	10”
Spindle motor power	11/15kw	15/18.5kw	15/18.5kw

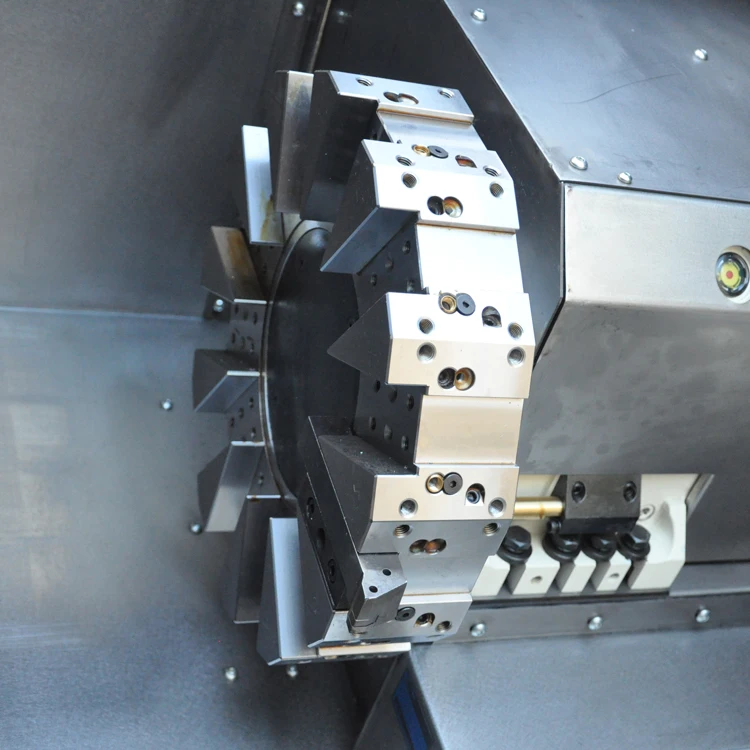

TOOL POST
Tool number	12-T hydraulic
Outside diameter of cutting tool shank	25×25mm
Inner dia. of cutting tool shank	Ф40mm

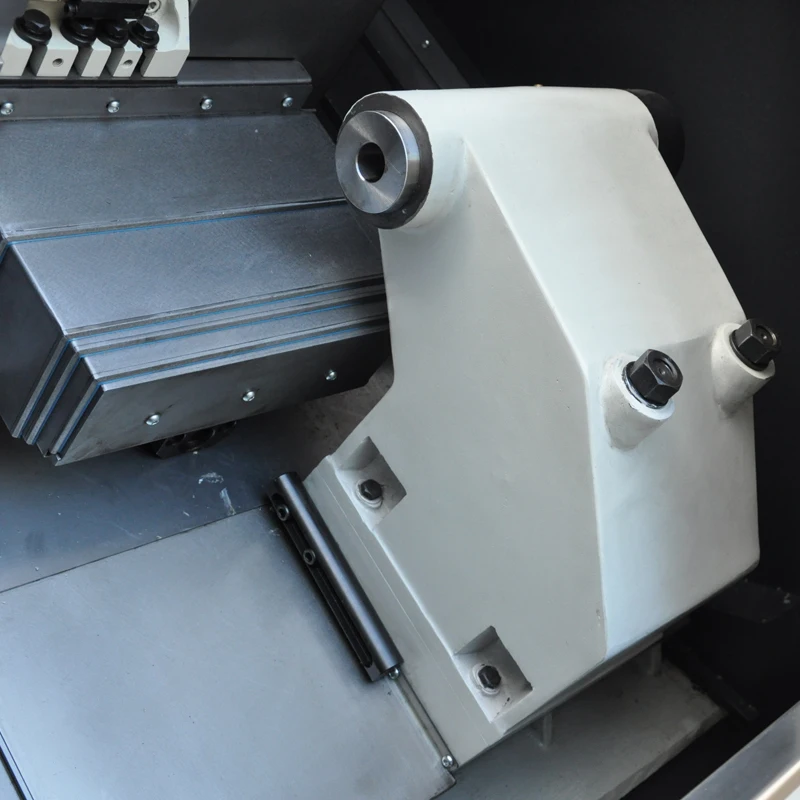

TAILSTOCK
Tailstock sleeve dia.	Ф80mm
Tailstock sleeve travel	120mm
Taper hole of tailstock quill	M.T.No.4	M.T.No.5	M.T.No.5
OTHERS
Positioning accuracy of X/Z	≤0.010/0.012mm
Repeated positioning accuracy	≤0.003/0.005mm
Power of coolant pump	180W
Capacity of lubrication pump	2L
Bed structure	45° slant bed integrated with stand
Overall dimensions(L×W×H)	2880×1850×2000mm	4800×1850×2000mm	5300×1850×2000mm
Net weight	4300kg	5500kg	6500kg
