Wood Pellet Mill
Высокоэффективная машина для производства древесных гранул

Высокоэффективная машина для производства древесных гранул

Категория: Wood Pellet Mill >>>
Поставщик: Luoyang,Luodate,Machinery,Equipment,Co.,Ltd.

Цена:*

Количество:

Описание и отзывы

Трекер стоимости

Месяц	Минимальная цена	Макс. стоимость
Sep-17-2025	0.76 $*	0.85 $*
Aug-17-2025	0.34 $*	0.45 $*
Jul-17-2025	0.7 $*	0.60 $*
Jun-17-2025	0.25 $*	0.82 $*
May-17-2025	0.34 $*	0.57 $*
Apr-17-2025	0.45 $*	0.80 $*
Mar-17-2025	0.1 $*	0.19 $*
Feb-17-2025	0.4 $*	0.71 $*
Jan-17-2025	0.98 $*	0.5 $*

Характеристики

Customer Review

1-2 T/H Biomass Pellet Production Line

5 T/H Wood Pellet Production Line in Nepal

Product Description

1. Scope of application: this machine can be used in the rice husk, straw, cotton stalk, wood chips, palm shell , sunflower,olive and other raw materials.

2. Main drive adopts high accuracy gearbox for high efficiency.

3. Frequency conversion (Electromagnetic speed control) feeder, with overload protection device,equipped strong magnetic security device.

4. High output, low noise, convenient operation and maintenance.

5. Main parts of the bearing and standard parts are imported.

6. Equipped with between Φ6 and Φ12 more aperture and the thickness of the ring die, users can choose according to the different needs.

Process of Biomass Production Line

The biomass production line is designed based on the raw material ,the size of the raw material and what kind of final product are you looking for

Wood Chipper

If the raw material you plan to use id wood log,or wood branch.We will use this wood chipper to chip them into small chips.In this way,the wood chips can be processed by the next machine without damaging it.

We also have other type of wood chipper and wood shredder for different kind of raw materials.

Wood Grinder

This wood grinder will process wood chips and small wood branches into fine sawdust..With a cyclone system to collect the dust. Reduce to dust pollution to a great extent.Also,the collected sawdust from the cyclone can be put to make pellet directly,avoid wasting of the raw materials.

This step is to prepare for making pellets.

Dryer

The dryer system is to make the sawdust dry to a suitable humidity that can be pelletized.

This step is not necessary to every biomass production line.We will equip this machine according to the humidity of your raw materials.

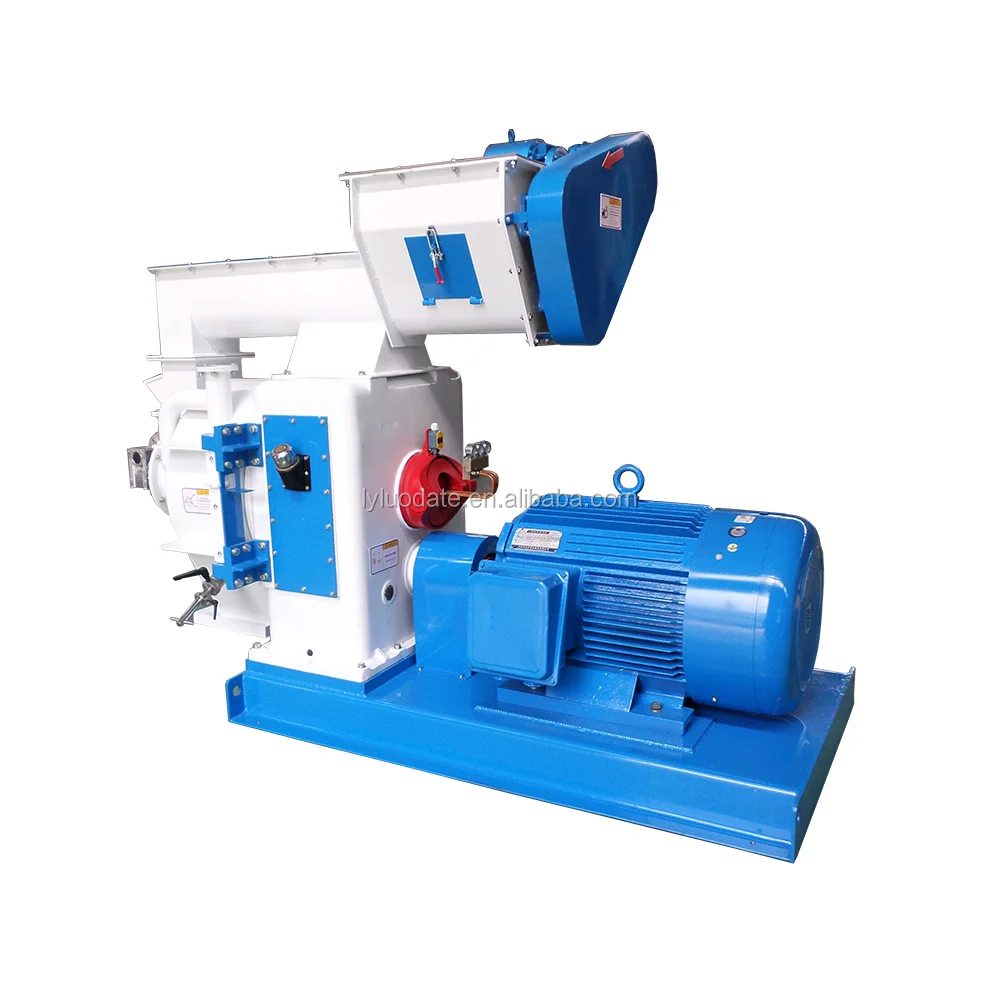

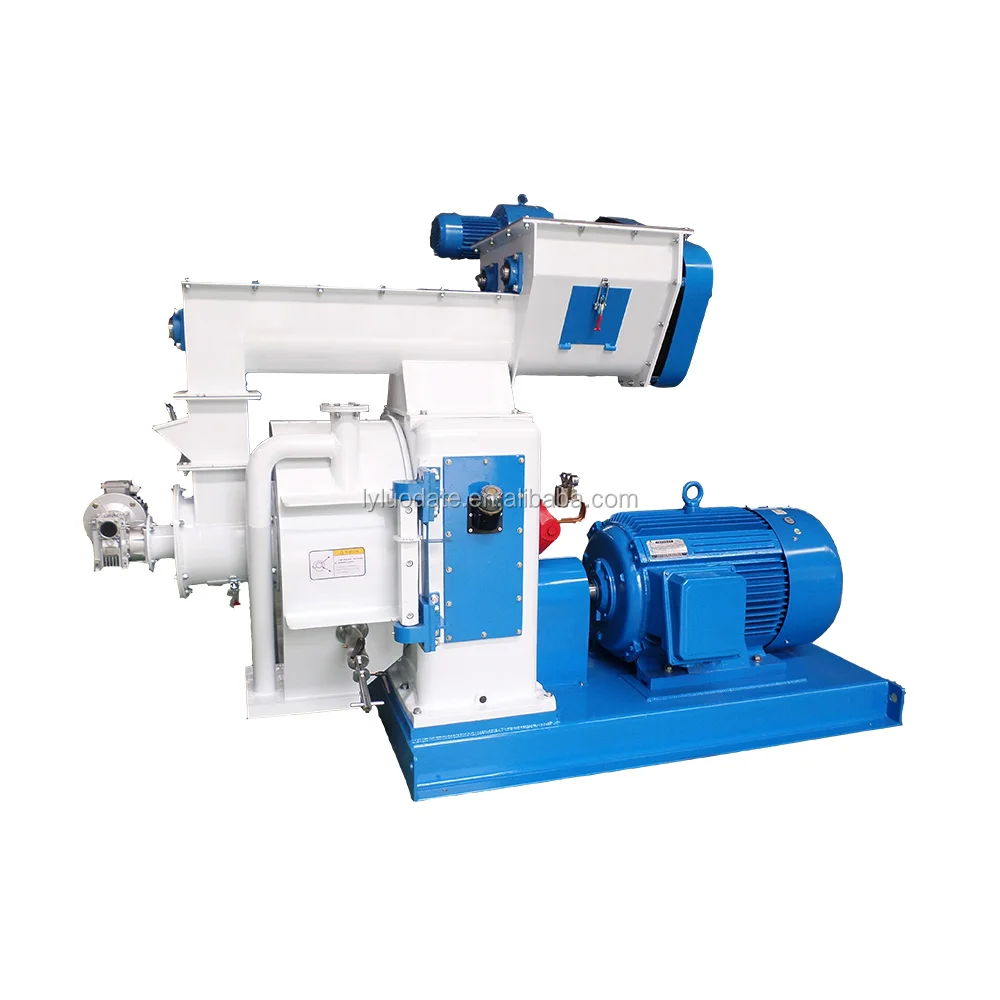

Pellet mill

Pellet mill is the key to this production line.The processed raw material(sawdust)will be make into pellet .

Our pellet mill use ring die model,more durable and wear resistant than flat die model.

Cooler

The fresh made pellet can be very hot and in this state it is not suitable to put them into storage.

The cooler use counter current method to cool down the pellets into indoor temperature. So customer can sell or store them safely.

Technical Parameter

Model	Main Power(kw)	Pellet Size(mm)	Inner Diameter of Ring Die(mm)	Capacity(t/h)
SZLH250	22	6-12	250	0.1-0.2
SZLH320	37/45			320	0.3-0.5
SZLH350	55			350	0.5-0.8
SZLH400	75/90			400	0.8-1.5
SZLH420	90/110			420	1.5-2
SZLH508	132/160			508	2-3

FOR MORE INFORMATION PLEASE CONTACT US DOWN BELOW.

Spare Parts

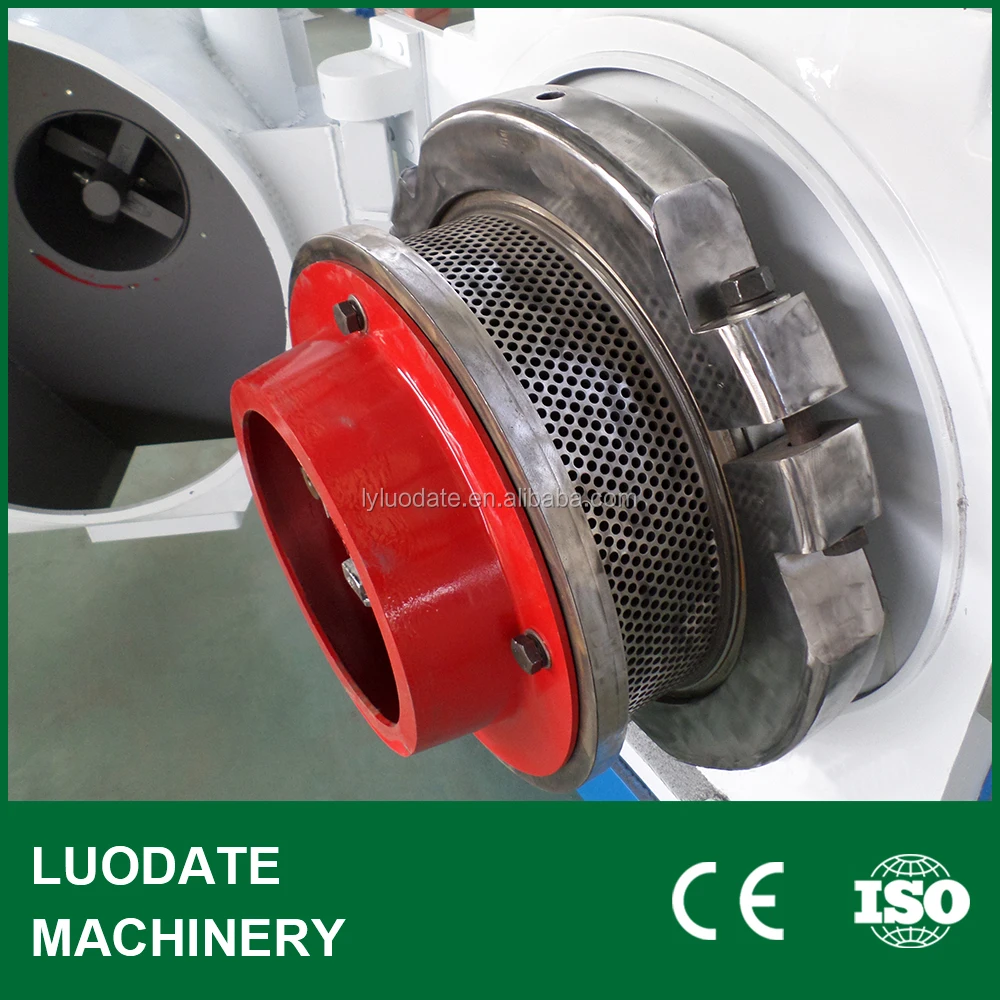

Ring Die

All pellet mill equipped with ring die mould, ensure the long serve-life and good quality of pellet feed.Especially suitable for
large capacity feed production plant. The ring die is made of stainless steel and easy to change ,which guarantee the quality of
the machine and easy operation.

Roller

Full stainless steal roller ensured the quality and serve-life of the spare part. And easy operation to change.As an important spare part of pellet mill, the engineers of our company continuously improving the quality and the effect of the roller.

Application&cases

Biomass Pellet Production can be used for fuel production :home fireplace,all kinds of boiler, heat system, power plant anf many other different places

Or all kinds of animal feed production,we will customized for you according the raw materials you use , the animal you want to feed and the capacity you need.

10 t/h Wood Pellet Production Line

1-2 t/h Biomass Pellet Production Line in Denmark

Company Profile

Our company was established in 1990, located in Luoyang which is famous for scenic, peonies blooming and long history as thirteen ancient dynasties capital and heavy industry.

We are a professional manufacturer which gathers the research, development, production, manufacturing, sales and service. Now we are committed to feed machine, complete sets of mechanical engineering, biomass machine and the design, manufacture and installation of biomass pellet production line.

Careful design, superb manufacturing, fine construction and full range of services all keep our product quality in the leading position.

Packing & Delivery

Standard international export packing.

feed pellet mill machine was covered with plastic bags and was loaded in the wooden box that with steel frame structure. Spare parts will be protected in water proof bags and boxes.
