Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine

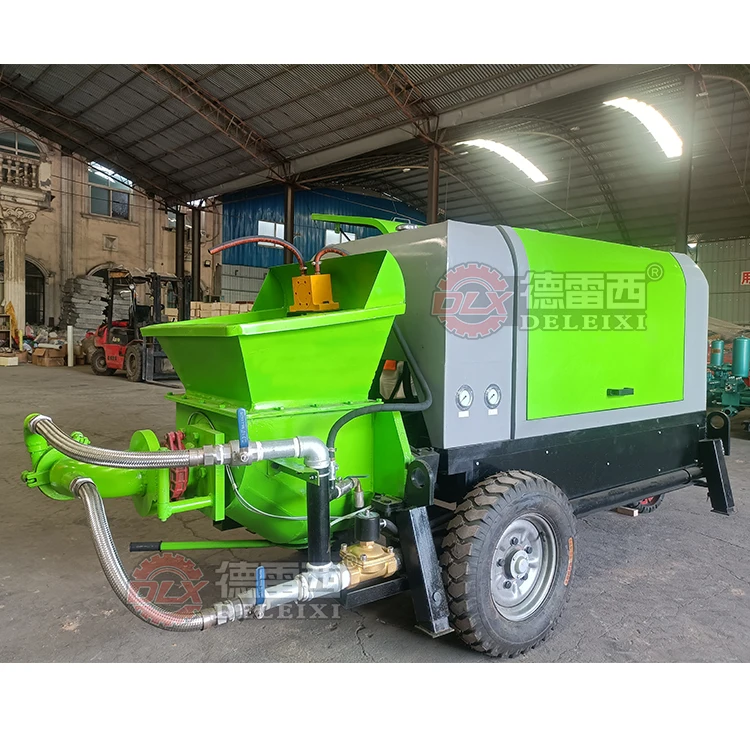

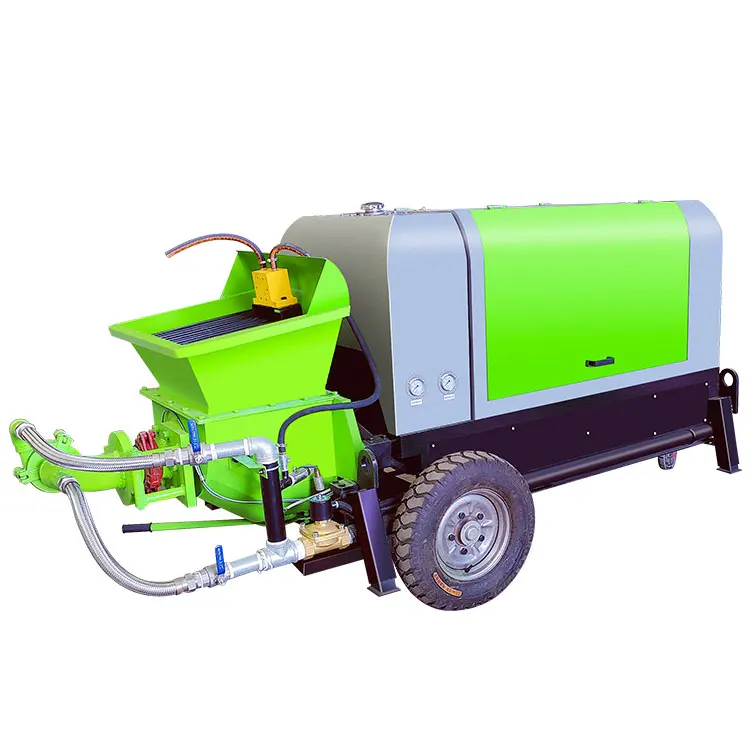

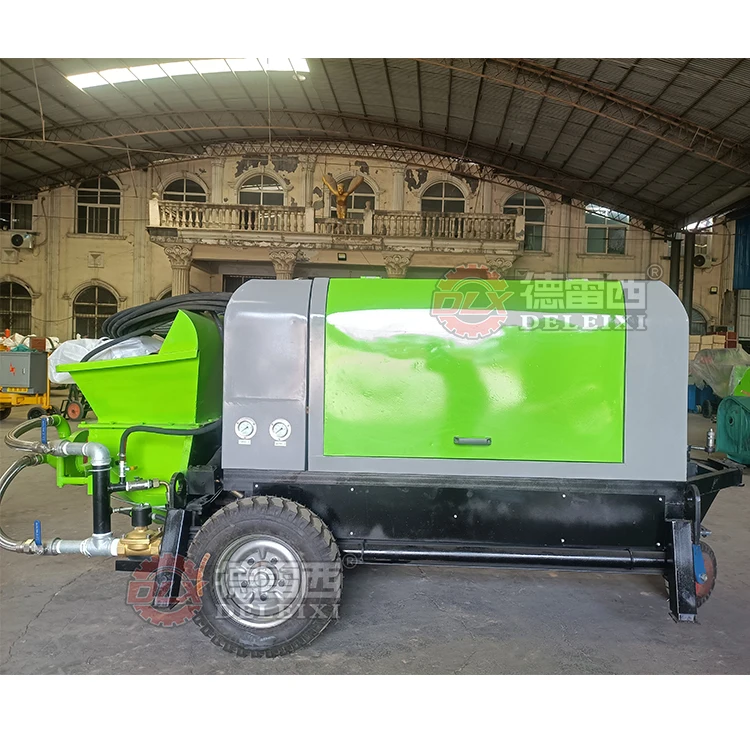

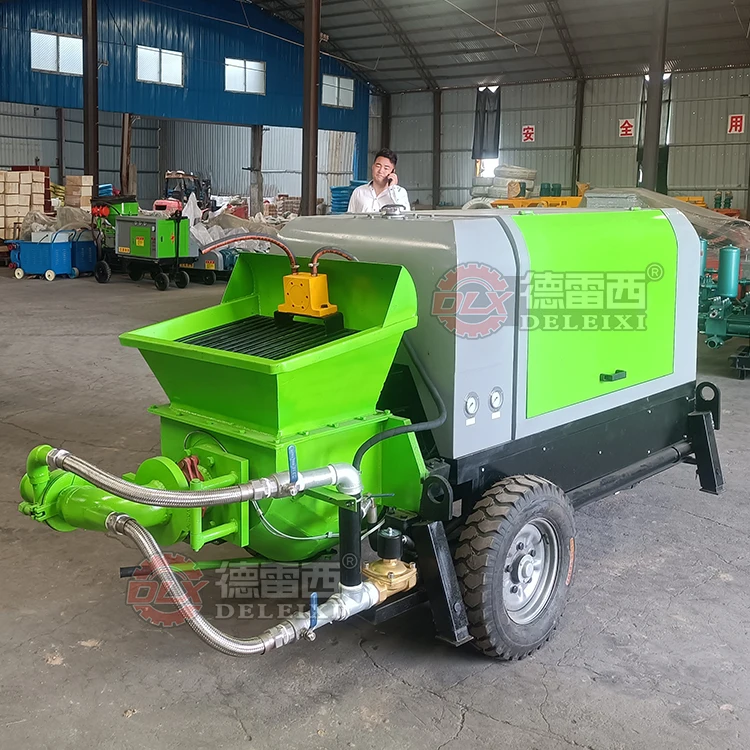

WYSP/800 pumping wet spraying machine is a new product developed by our company according to the needs of national infrastructure construction. It is widely used in the pumping and spraying of small aggregate concrete, and is suitable for engineering tunnel support, slope anchoring and spraying support, etc. It has the characteristics of advanced technology, simple operation and perfect functions.
Model Number | WYSP/800 |
Rated production capacity | 3-6m³/h |
Maximum outlet pressure | 5MPa |
Maximum particle size | 15mm |
Maximum spray distance | Horizontal :100m Vertical: 30m |
Slump range | 16-20cm |
Working Rated Pressure of Wind Road | >0.6MPa |
Air consumption | 10m³/min |
Rebound rate | ≤10 |
Main motor power | 22KW |
(Matching) gear pump model | GJ2050/L |
Accelerating agent addition ability | 0-180L/h |
Diameter of material cylinder | 120mm |
Conveying pipe diameter | 75mm |
Loading height | 1000mm |
Dimensions | 2700*1200*1350mm |
Weight | 1200kg |
Structure and working principle:

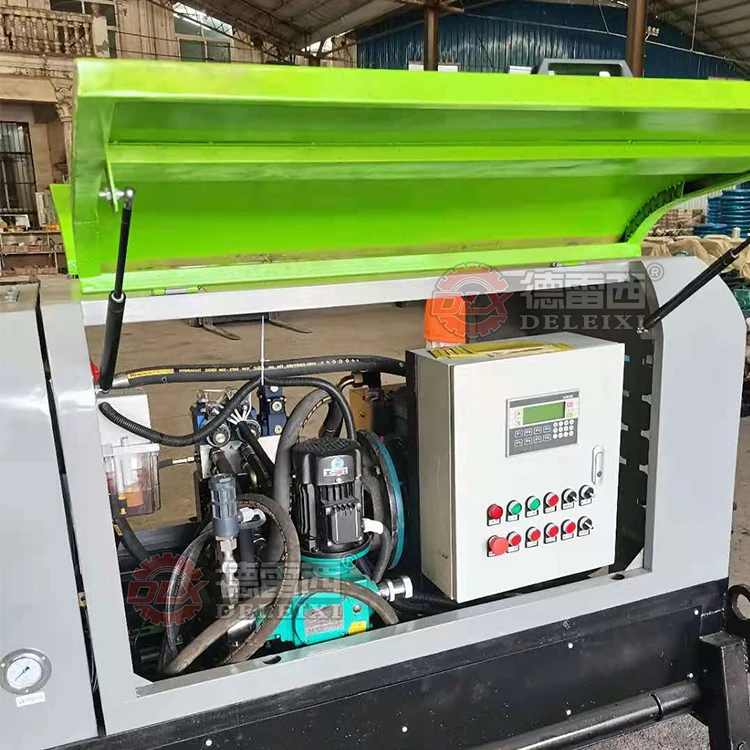

WYSP/800 pumping wet spraying machine is mainly composed of frame assembly, oil pump motor unit, hydraulic and solenoid valve reversing system, PLC integrated electrical automatic control system, concrete pumping system, pneumatic conveying system, and accelerator adding device , Hopper device, injection system, lubricating cooling system, etc. Mainly by PLC controller, inductive proximity switch to control the electromagnetic reversing valve, oil cylinder, tilt cylinder and other hydraulic components, and finally make the S-tube swing valve and piston, material cylinder and other pumping systems open and close regularly to carry out continuous suction. , Draining operation.Highway Drilling Coring Machine Concrete Rock Drilling Machine
Packing and Shipping
1. Packaging: 1)Wrapped by proctective film;
2)Packed by standard import & export wooden cases or carton boxes.
2. Shipping: By logistics; by automobile; by train; by shipping; by air etc.
Core Drill Concrete Big Core Cutting Machine Drill Drilling Machine Concrete
Changge Deleixi Machinery Equipment co. LTD is a manufacturer of processing machine our products include steel bar cutting machine,steel bar bending machine,straightening cutting machine,stirrup bending machine,plate compactor,tamping rammer ,trowel machine and so on, with well-equipped testing facilities and strong technical force.With a wide range, good quality, reasonable prices and stylish designs, our products are very popular in Mid-east,Africa,European ,American .ect, they are widely used in building ,road,railway and other area.Our products are widely recognized and trusted by users and can meet continuously changing economic and social needs.We welcome new and old customers from all walks of life to contact us for future business relationships and mutual success!Hi
Diamond Core Drill Bit For Reinforced Concrete Core Cutting Machine 200mm
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
1.We have more than10 years manufacture and export experience.
2.Exporting to all over the world,win high reputation among customers.
3.CE, ISO 9001 and Strict Production Guideline to guarantee the high quality of our products.
4.Near the Qingdao port convenient for exporting.
5.Customer service staff 24 hours online,offer free technical support.
6.Factory and Competitive Price we offer.
7.Strong Research & Development technical team.
8.Various machinery to meet all your needs at our factory.
9.Engineers are available to guide the installation and take care of other problems.
10.We offer OEM&ODM service to meet all your requirements.
Diamond Core Drill Bit For Reinforced Concrete Core Cutting Machine 200mm
1) How can I place order?
A: You can contact us by email about your order details, or place order on line.
2) How can I pay you?
A: After you confirm our PI, we will request you to pay. T/T (HSBC bank) and Paypal, Western Union are the most usual ways we are
using. Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
3) What's the order procedure?
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
A: First we discuss order details, production details by email or TM. Then we issue you an PI for your confirmation. You will be
requested to do pr -epaid full payment or deposit before we go into production. After we get the deposit, we start to process the
order. We usually need 7-15days if we don't have the items in stock. Before production has been finished, we will contact you for
shipment details, and the balance payment. After payment has been settled, we start to prepare the shipment for you.
4)How do you take care when your clients received defective products?
A: replacement. If there are some defective items, we usually credit to our customer or replace in next shipment.
5)How do you check all the goods in the production line?
A: We have spot inspection and finished product inspection. We check the goods when they go into next step production procedure.
Horizontal Diamond Power Tools For Core Sampling Of Concrete And Asphalt Borehole Concrete Drilling Hole Core Cutting Machine
