Характеристики
Product Description

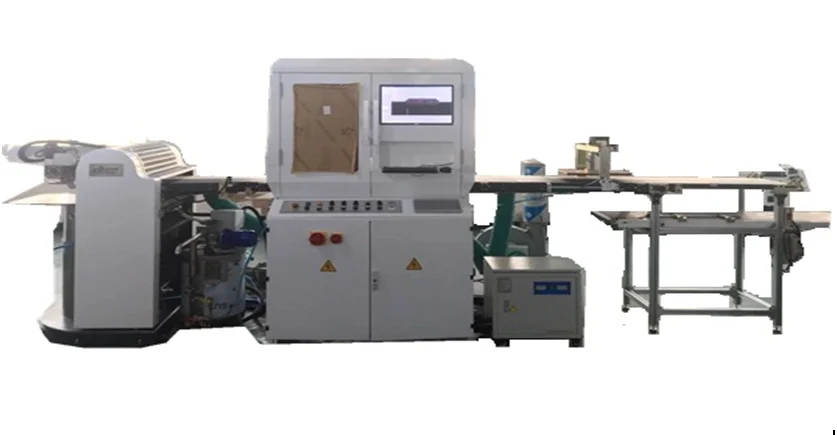

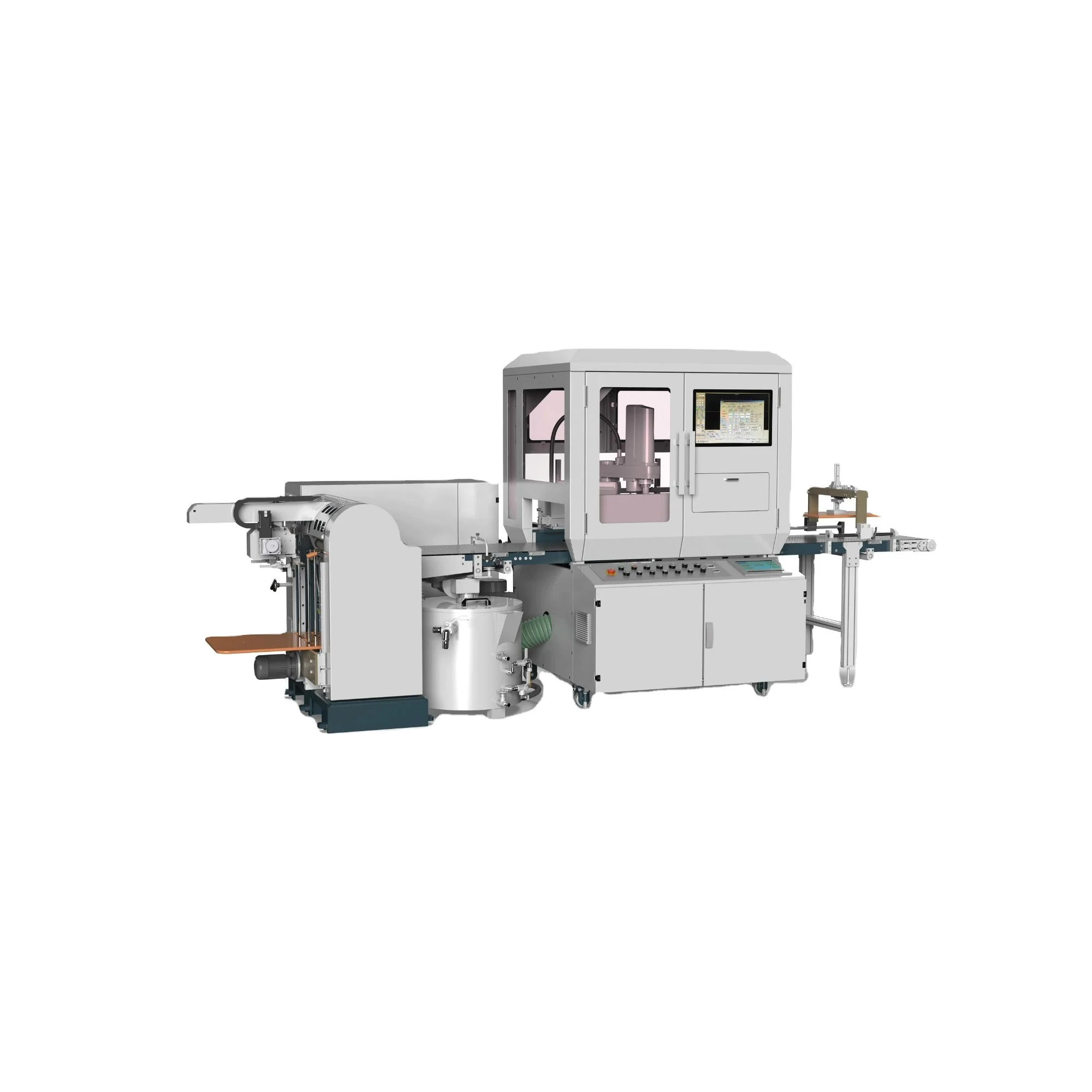

HM-ZD350FX Automatic Gluing and Spotter Machine is an automatic equipment with multifunction for high- precision positioning of small-sized premium boxes and hard cover.
This machine adopts PLC , man-machine control and CCD positioning system, which enable the machine to feed paper, gluing and spotter the box automatically and fluently. The feeder, the gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting and high efficiency. The spotting
unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm, with even faster speed.
This machine adopts PLC , man-machine control and CCD positioning system, which enable the machine to feed paper, gluing and spotter the box automatically and fluently. The feeder, the gluer and the conveyor are driven by servo system which has continuously variable transmission and enjoys high accuracy, easy adjusting and high efficiency. The spotting
unit adopts camera tracing system and robot arm to pick and spot the greyboard, enhancing the spotting accuracy to ±0.05mm, with even faster speed.
Details Images
Specification
Model | HM-ZD350FX | ||
Paper Size B=Length, A=Width | A(Max.) | 450mm | |
A(Min.) | 50mm | ||
B(Max.) | 600mm | ||
B(Min.) | 110mm | ||
Thickness | 80-160gsm | ||
Finished Box Size | L(Max.) | 350mm | |
L(Min.) | 45mm | ||
W(Max.) | 250mm | ||
W(Min.) | 45mm | ||
H(Max.) | 120mm | ||
H(Min.) | 12mm | ||
Paper Pile Height Max. | 300mm | ||
Greyboard Pile Height Max. | 850mm | ||
Glue tank Volume | 14L | ||
Air Supply | 100L/min, 0.8MPa | ||
Speed | <25pcs/min | ||
Power/Voltage | 15kW/AC380V | ||
Net Weight | 1900kg | ||
Machine Dimension | 4100x2200x1900mm | ||
Features function
1. Suit to all kinds of paper and box shells positioning process;
2. Suit to all kinds of paper and cardboard positioning process(For HM-ZD350E only)
3. Parameter adopts computer digital setting
4. Auto error stop and display
5. Automatic feed paper
6. 24-hours control for glue pre-heating
7. Servo System for controling the whole machine.
8. CCD positioning system and robot arm for positioning the box shells.
9. Automatic control system of glue viscosity (optional)
2. Suit to all kinds of paper and cardboard positioning process(For HM-ZD350E only)
3. Parameter adopts computer digital setting
4. Auto error stop and display
5. Automatic feed paper
6. 24-hours control for glue pre-heating
7. Servo System for controling the whole machine.
8. CCD positioning system and robot arm for positioning the box shells.
9. Automatic control system of glue viscosity (optional)
Materials&Outputs
Packing & Delivery
Vacuum Packing+Wooden Case
