Автоматическая склеивающая машина для картонных коробок
- Категория: Packaging Forming Machines >>>
- Поставщик: Cangzhou,Lighten,Import,&,Export,Trading,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 21420.49 $* | 22491.92 $* |
| Aug-19-2025 | 21240.10 $* | 22302.69 $* |
| Jul-19-2025 | 17820.48 $* | 18711.83 $* |
| Jun-19-2025 | 20880.52 $* | 21924.10 $* |
| May-19-2025 | 18180.88 $* | 19089.75 $* |
| Apr-19-2025 | 20520.32 $* | 21546.85 $* |
| Mar-19-2025 | 20340.75 $* | 21357.43 $* |
| Feb-19-2025 | 20160.93 $* | 21168.12 $* |
| Jan-19-2025 | 19980.52 $* | 20979.24 $* |
Характеристики
Product Description
Good quality auto corrugated carton box folder gluer machine/glue machine/box folding machine
Whole machine description and feature:

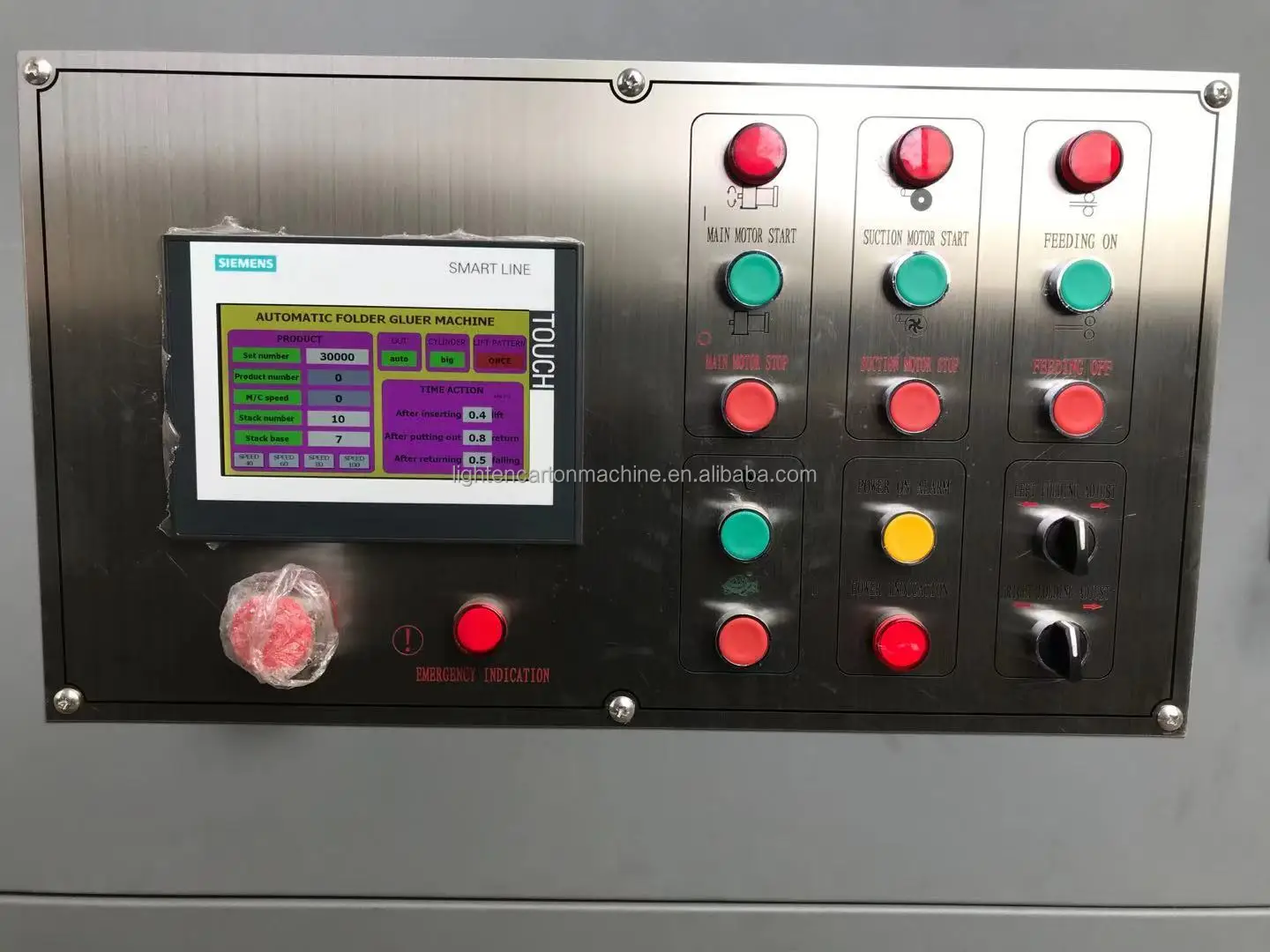

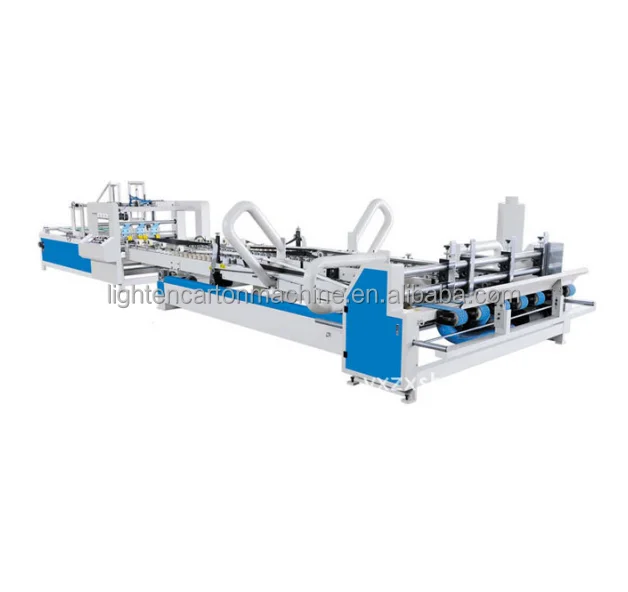

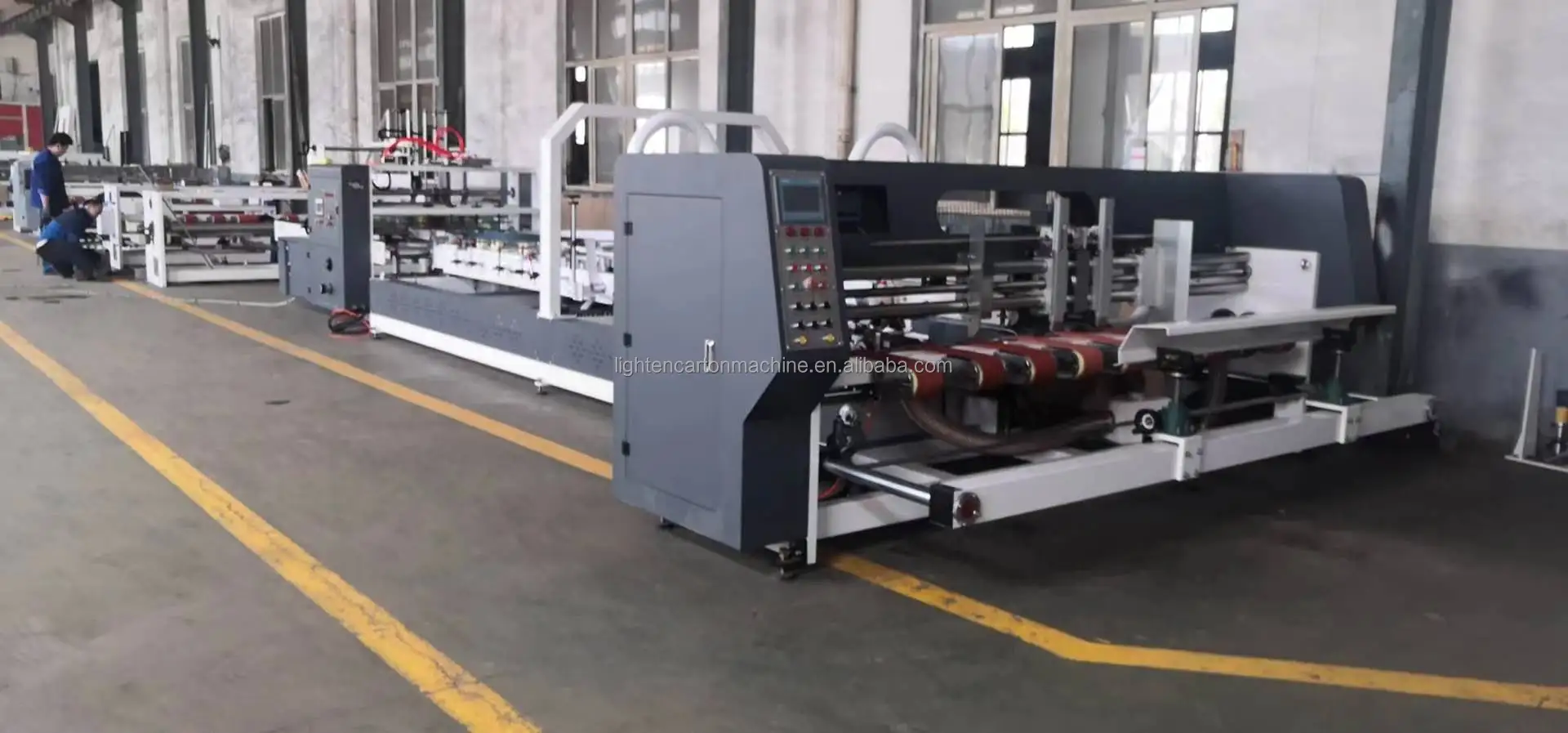

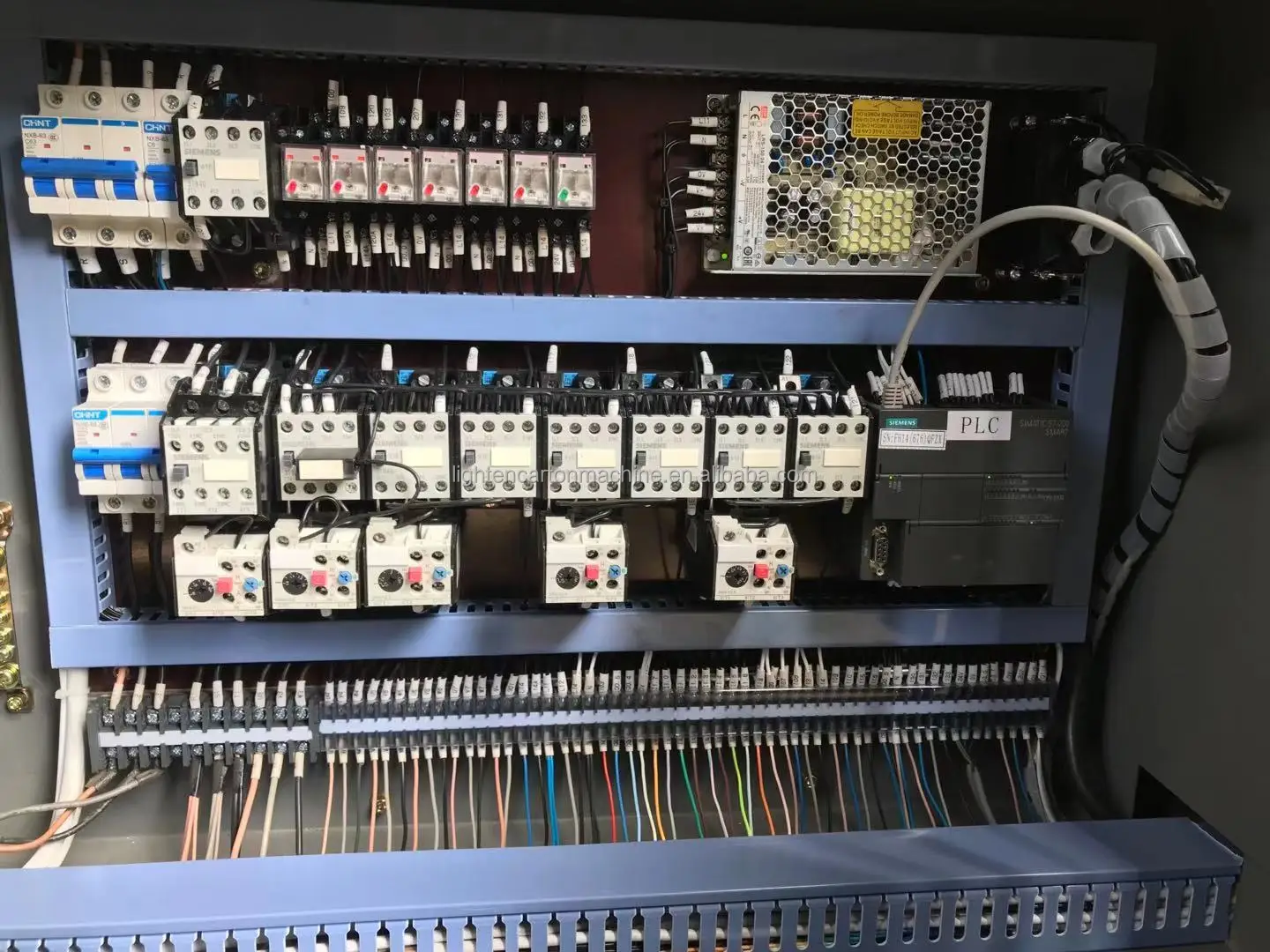

QS-2600 series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section,counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable.Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.
QS-2600 series automatic folder gluer machine consist of three sections: vacuum feeding section, gluing and folding section,counter and stacker section. Frequency conversion motor with quality inverter adjust speed. PLC and Touch screen control system for easy operation and running stable.Average speed is 150sheets/min. Energy conservation and high speed, saving labor cost.
Feeding section:
1.Vacuum suction feeding to feed warping paperboard easily
2.Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3..Scorer wheel adjustable, suit for 2-8mm thick paperboard
4.Second creasing struction can impress again the paperboard which was not creased well
guling and Folding section
1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2.Stainless steel glue wheel adopted,long life snd saving glue cost
3.Imported quality rubber belt adopted,automatic folding
4.With paperboard rectify device snd creasing rectify device
Counter and Stacker section:
1.Stacking and counting are simple and reliable
2.Digital control,operation easily and reliable. No-stop put in data and automatic counting
3.With rectification function.
4.Counting and put out by pneumatic, stable and quickly
1.Vacuum suction feeding to feed warping paperboard easily
2.Quality electromagnetic clutch and brake adpoted, feeding section controled independent, operation easily
3..Scorer wheel adjustable, suit for 2-8mm thick paperboard
4.Second creasing struction can impress again the paperboard which was not creased well
guling and Folding section
1.Simpless structure and high reliability, glue quantity adjustable, cleaning easily
2.Stainless steel glue wheel adopted,long life snd saving glue cost
3.Imported quality rubber belt adopted,automatic folding
4.With paperboard rectify device snd creasing rectify device
Counter and Stacker section:
1.Stacking and counting are simple and reliable
2.Digital control,operation easily and reliable. No-stop put in data and automatic counting
3.With rectification function.
4.Counting and put out by pneumatic, stable and quickly
Product Paramenters
Model | QF- 2200 | QF- 2400 |

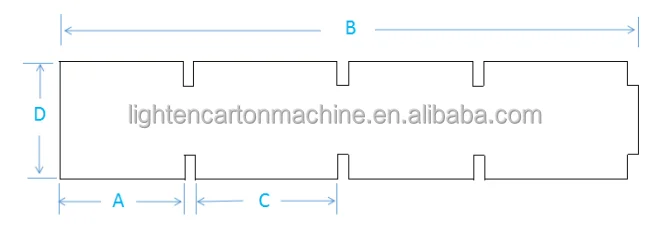

Max. feeding paperboard size (mm) | 1100*2200 | 1200*2400 |
Min. feeding paperboard size (mm) | 200*900 | 300*900 |
Power required | 12 kw 380V 3phase 50HZ | 12 kw 380V 3phase 50HZ |
Paperboard thickness | 3 or 5 layer cardboard | 3 or 5 layer cardboard |
Control way | PLC touch screen | PLC touch screen |
Machine weight | 5.5 tons | 5.5 tons |
Dimensions | L11000 X W2800 X H1600 | L11000 X W3000 X H1600 |
