Product Overview

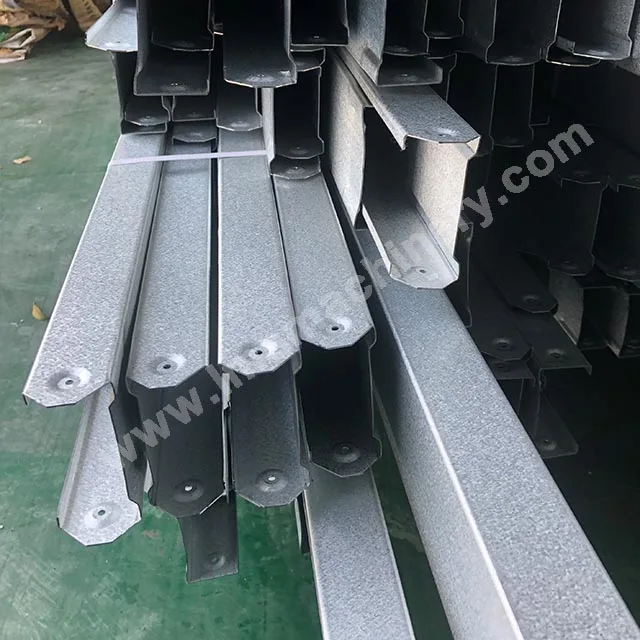

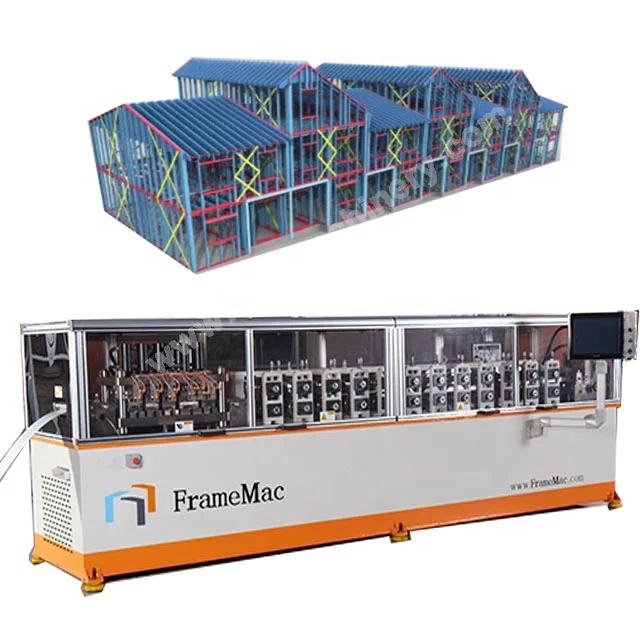

C89 Light gauge steel house frame machine

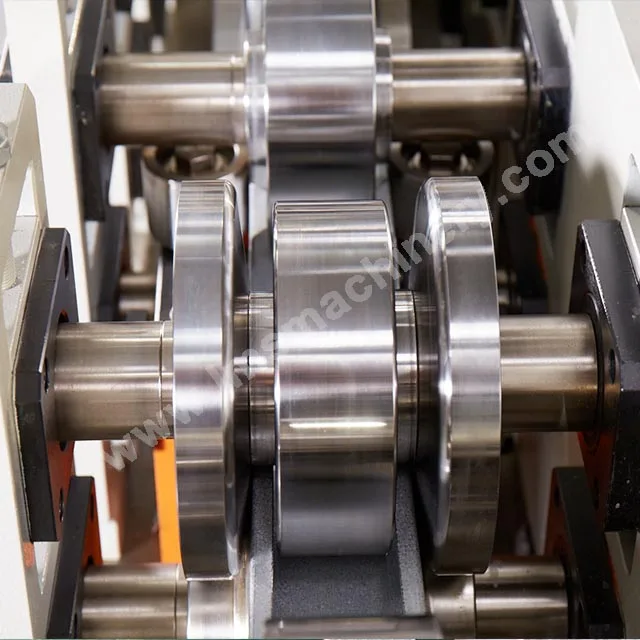

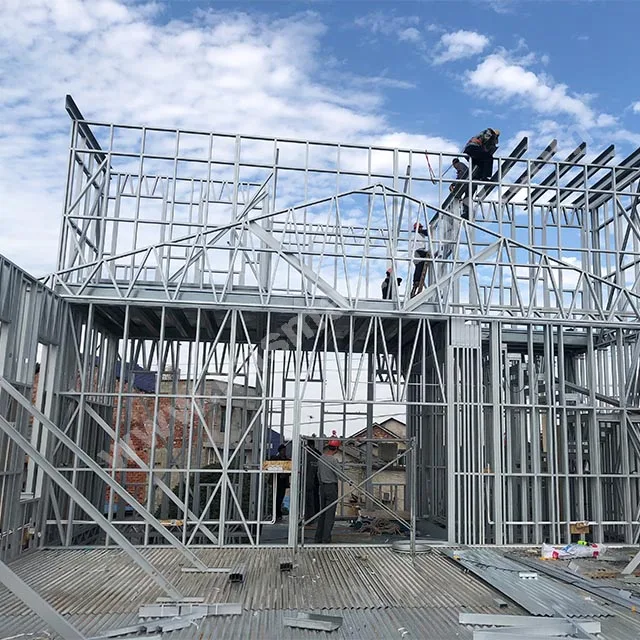

FrameMac cold-formed thin-walled light steel forming unit consists of material automatic unwinding and discharging machine, material leveling device, forming machine, automatic punching, cutting, receiving table and control cabinet. According to the specific requirements of light steel villa construction, it is equipped with: dimple screw hole, chamfer, web through hole, small side shear, pipeline hole, web shrinkage, shearing and other stamping die and coding device. It adopts professional-grade industrial computer CNC automatic control, which has the characteristics of wide application range, high product precision, high degree of automation, material saving and high degree of automation. It is aimed at the continuous innovation of assembly buildings and diversified structural forms on the market. Special equipment can be designed and manufactured according to customer requirements, and supporting equipment such as floor decking/adjustable C steel can be provided.

FEATURES AT A GLANCE

PRODUCT CONFIGURATION

Profile Shape	C Shape
Profile Size	89(90) mm
Material Thickness	0.7-1.2 mm, G300-G550 Zinc-Alum Steel Coil
Operation System	17 inches Touchable Screen, with Linux system

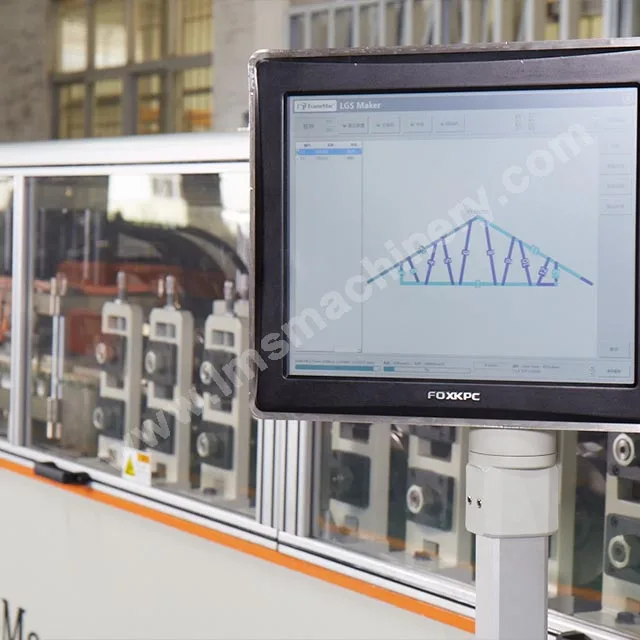

Production Control System	Self-devoloped FrameMac LGS machine Controlling Software
Design Software	Optional Architectural design software of well-known domestic and foreign brands
Standard Machine Speed	300-900 m/h
Max. Machine Speed	1000 mm/S
Main Machine Motor Power	7.5 kw
Power Supplier	380V, 50Hz, 3Phrases, Customized
Hydraulic Motor Power	5.5 kw
Total Machine Power	16.5 kw
Hydraul Cylinder Volume	120L
Constant Temperature Device	Constant Temperature Device is Optional in Alpine Area
Hydraulic Coolant System	Self Cooling, Optional refrigeration device for high strength production, air cooling and AC cooling

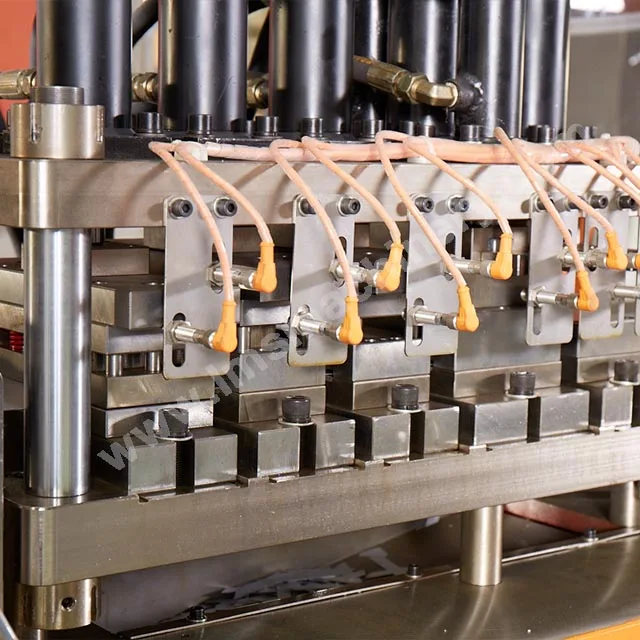

Punching, Cutting Mould	dimple hole, Chamfer cut, Web notch, lip cut, service hole, bolt hole and shearing
Hole Punching Accuracy	± 0.5 mm
Inkjet Printer	Standard
Machine Size	475010201500 mm
Machine Weight	4600 kgs
Decoiler	2000 kgs,auto decoiling
Smartpod Factory	Optional
