Портативное 1-фазное зарядное устройство для электромобиля SAE J1772 16 А тип
- Категория: New Energy Vehicle Parts & Accessories >>>
- Поставщик: Zhengzhou,Saichuan,Electronic,Technology,Co.,Ltd.
Поделиться:
Описание и отзывы
Трекер стоимости
| Месяц | Минимальная цена | Макс. стоимость |
|---|---|---|
| Sep-19-2025 | 0.27 $* | 0.22 $* |
| Aug-19-2025 | 0.17 $* | 0.14 $* |
| Jul-19-2025 | 0.27 $* | 0.73 $* |
| Jun-19-2025 | 0.56 $* | 0.53 $* |
| May-19-2025 | 0.31 $* | 0.86 $* |
| Apr-19-2025 | 0.98 $* | 0.86 $* |
| Mar-19-2025 | 0.1 $* | 0.60 $* |
| Feb-19-2025 | 0.26 $* | 0.14 $* |
| Jan-19-2025 | 0.40 $* | 0.5 $* |
Характеристики
Products Description
2. Higher safety level, support outdoor using
3. Authoritatively certificated from CE, CCC, ROHS and so on
4. 1-year warranty for after-sale service
5. Customized service on LOGO, length, color and inner box
Customized Serivce
Products accept OEM, ODM and related customization. Acceptable custom parts include but are not limited to.
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO
· The color of the plug, LOGO
· Cable length, color, LOGO
· The pattern on the packing carton, LOGO
Cautions
· The charging cable is only for EV charging using
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product
· Don't submerge the charging cable in water
· Don't put finger into the charging plug
· Don't use the device when the cable is damaged
· Don't dis-assemble or refit the product
Description | Item No. | SC-EVC-005 SC-EVC-006 |
Electrical Performance | Rated current | 16A |
Rated voltage | 250V | |
Insulation resistance | >1000MΩ(DC500V) | |
Pins temperature rise | <50K | |
Withstand voltage | 2000V | |
Contact impedance | 0.5mΩMax | |
Mechanical Properties | Mechanical life | no-load plug>10000times |
Impact resistance | be able to afford 1m drop and 2tons vehicle run over pressure | |
Insertion force | 45N | |
Raw Material | Shell material | thermoplastics, flame retardant grade UL94-0 |
Pins | Copper alloy, silver plated+top thermoplastic | |
Environmental Performance | Temperature | -30℃~+50℃ |
Rated Current | Cable Specifification | Shell and cable |
16A Single Phase | 3x2.5mm²+2x0.5mm² | Shell color: black white optional Cable color: black orange optional |
32A Single Phase | 3x6mm²+2x0.5mm² |
Model | Plug Standard | Current | Phase | Power |
SC-EVC-001 | Type2 To Type2 | 16A | 1 Phase | 3.6KW |
SC-EVC-002 | Type2 To Type2 | 16A | 3 Phase | 11KW |
SC-EVC-003 | Type2 To Type2 | 32A | 1 Phase | 7.2KW |
SC-EVC-004 | Type2 To Type2 | 32A | 3 Phase | 22KW |

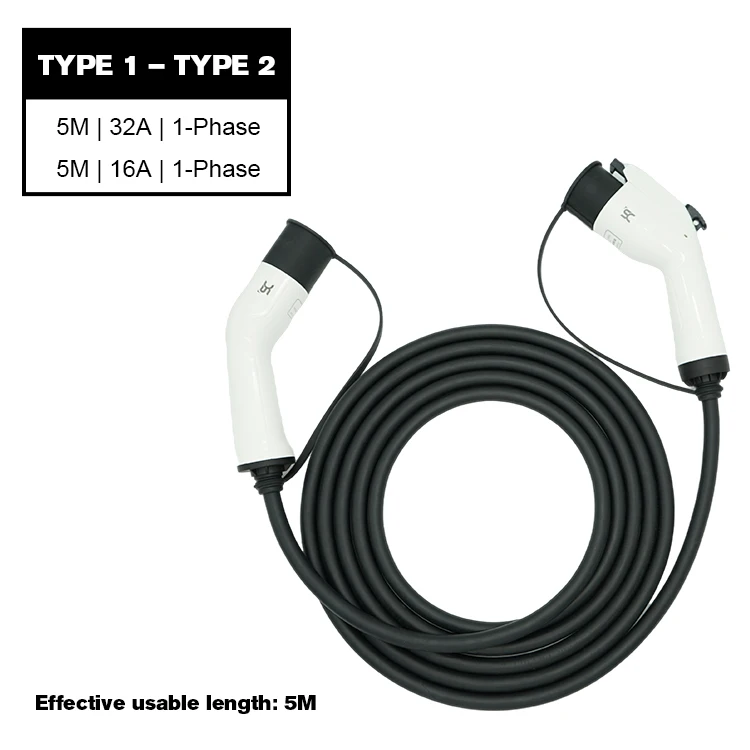

SC-EVC-005 | Type1 To Type2 | 16A | / | 3.6KW |
SC-EVC-006 | Type1 To Type2 | 32A | / | 7.2KW |
Products Categories
Company Profile
FAQ
Q: What are your payment terms?
A: Alibaba Trade Assurance, T/T, West Union, , etc.Q: Can we visit your company to inspect products before delivery?
A: Sure, You are welcome to visit our company to inspect us and our products.
Q: What about your packages?
A: plastic bags, carton box, pallet package, etc
Q:Are you a manufacturer factory or trading company?
A:Yes,we are a high-tech manufacturer factory focusing on research,development,design,production and sales of electrical interconnect system.
