Характеристики

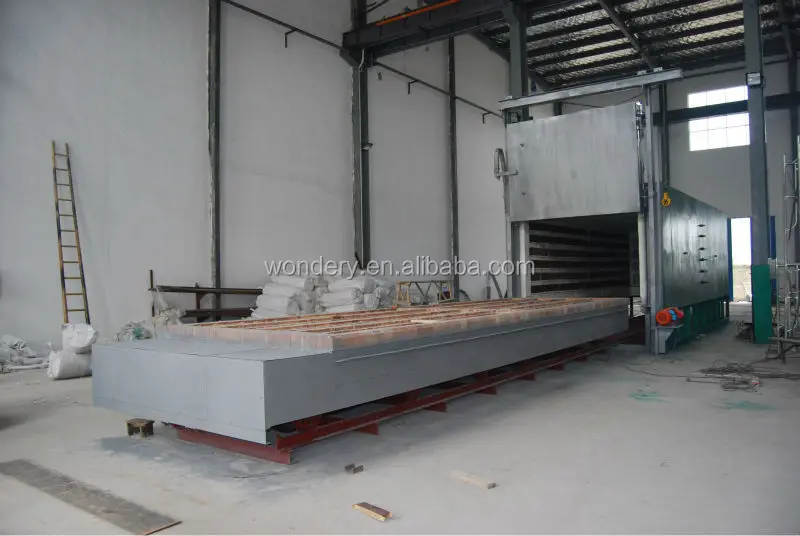

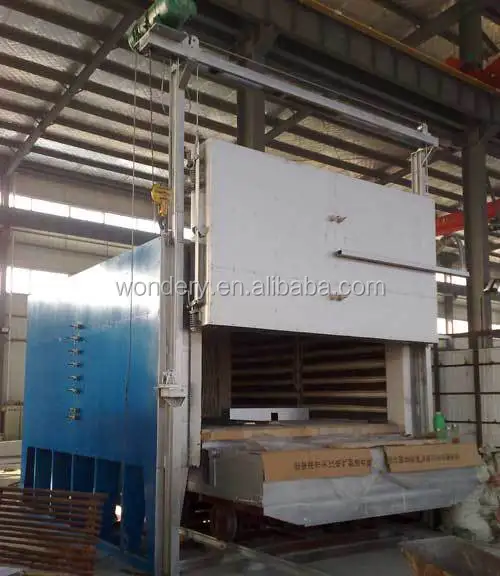

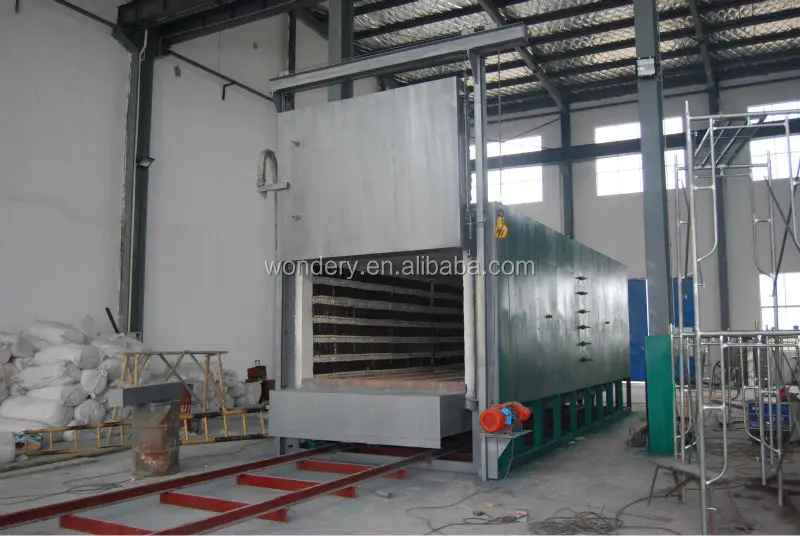

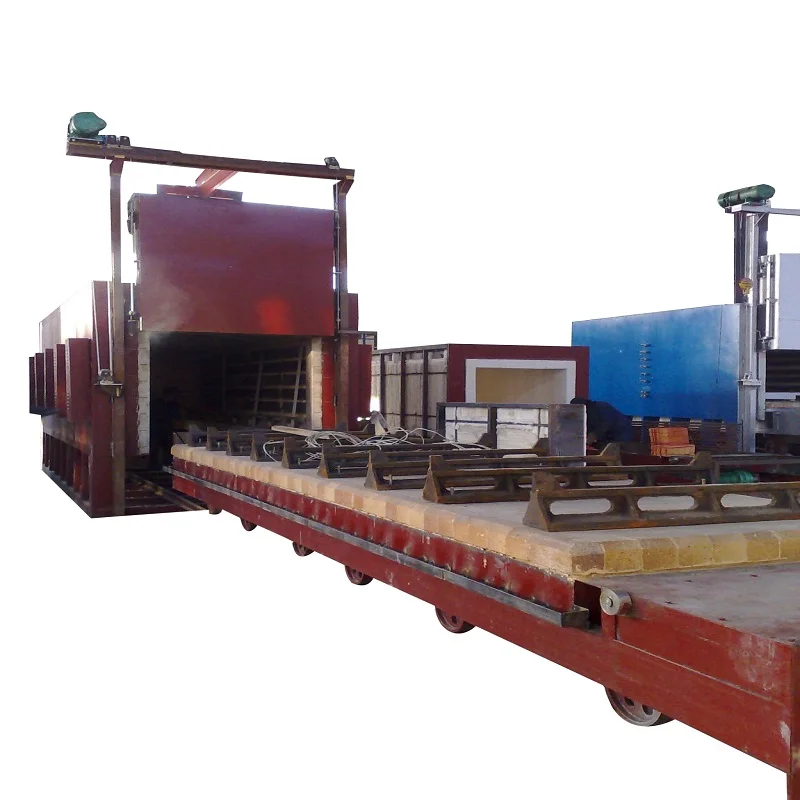

RT3-125-12 Energy Saving Electrical 1200 Degree Bogie Hearth Furnace For Manganese Steel
PRODUCTS DESCRIPTION
Product Application
RT3-125-12 resistance industrial bogie hearth furnace is mainly used for heat treatment of manganese steel, chrome-molybdenum steel, high-chromium steel and stainless steel workpieces.
The furnace is mainly comprised of furnace shell, lining, furnace door, furnace door up-down mechanism, compression system, bogie, heating element and temperature control system.
Electrical 1200 degree bogie hearth furnace Electrical 1200 degree bogie hearth furnace
RT3-125-12 Energy Saving Electrical 1200 degree Bogie Hearth Furnace | ||||
1 | Rated power | 125kW +5% （1-100%）adjustable | ||
2 | Power supply | 380V, 3phase, 50Hz | ||
3 | Rated temperature | 1200 ℃ | ||
4 | Temperature control zone | 1 zone | ||
5 | Temperature uniformity | ±10℃ | ||
6 | Temperature control accuracy | ±2℃ | ||
7 | Effective working size | 2000×1500×600mm(L×W×H) | ||
8 | Temperature control method | SCR, PID regulator, Guolong temperature controller with overtemperature alarm, paperless recorder | ||
9 | Heating element material | 0Cr27AL7Mo2 (resistance strip ) | ||
10 | Hearth plate material | Ni7N 30mm thick | ||
11 | Furnace lining | High temperature Refractory fiber | ||
12 | Furnace door opening method | Electrically lifted up by a hoist, sealed by spring | ||
13 | Bogie driving power | 2.2KW cycloidal pin gear speed reducer | ||
14 | Furnace surface temperature rise | ＜45℃+ room temperature | ||
Main Features
1) The trolley type furnace has a shell of welded steel plates and sectional steel. The structure is of thick material.
2) The hearth wall lining is an all-fiber structure, saving about 60% of power consumption compared with the traditional brick hearth.
3) Heating components: high temperature resistance alloy wires and strips.
4) Low noise, energy-friendliness, and stable performance.
5) Advanced CAD design.
6) Years of experiences in heat treatment process.
Detailed Images
Furnace Lining
The furnace lining empolys all fiber structure. The silicate aluminum fiber resists a maximum temperature of 1200℃.
Heating Element
Name: 0Cr25AL5 resistance spiral-shape alloy resistance strips.
Original: China
Push Rod Sealing Mechanism
Name: push rod sealing mechanism
Brand: domestic quality brand
Original: CHINA
The door and furnace door is tightly sealed together to prevent heat loss.
Control Cabinet
Name: GGD type electrical control cabinet
Brand: CHINT, SIEMENS, Schneider, Omron, etc.
Original: China, Germany, French, Japan, etc.
RELATED PRODUCTS
COMPANY PROFILE
WUXI WONDERY TRADING CO., LTD. is a professional supplier of industrial furnaces. Currently the company mainly supplies the industrial furnaces for heat treatment industry, motor industry, fastener industry, die casting industry, gravity casting industry, steel wire manufacturing industry, etc. Our main products are: aluminum melting furnace, copper melting furnace, zinc melting furnace, crucible melting furnace, rotary melting furnace, melting tower, reverberatory melting furnace, ladle preheater, lader baker, ingot molds,heat treatment furnace, pit type carburizing furnace, pit type nitriding furnace, box type resistance furnace, bogie hearth furnace, salt bath furnace, mesh belt furnace, etc. Established in year 2008, the company has gained rich experiences in development and design, quality control, and after-sales service. The company aims to serve every customer with quality products and excellent service. The company provides thoughtful services like technical consultation, installation and test-running, technical training, and maintenance. Our company is also able to design non-standard products as per customers' requests. We have exported our machines and equipment to the following countries and areas: Taiwan (CHINA), Vietnam, Thailand, Pakistan, India, Venezuela, Bolivia, Mexico, Argentina, Columbia, Australia, USA, Kenya, Ethiopia, Qatar, Egypt, etc. We are capable of providing thoughtful solutions for every individual customer based on their specific requirements, making sure that every potential customer is satisfied with our work.
CUSTOMER PRAISE
CERTIFICATION
PRODUCT PACKAGING
FAQ
1. What is the power supply of the industrial furnace?
The power supply of industrial furnace is to be decided by the customer's side. We are able to adjust the power supply (volt, and phase) through a transformer or of the customer's voltage directly so that the industrial furnace is ready for use at the end user's site.
2. What information should the customer provide to get an accurate quotation from us?
The customer should provide the related technical requirements, drawings, pictures, industrial voltage, planned output, etc.
3. What is the payment term?
The payment term is 40% down payment, and 60% before delivery (T/T mode).
4. What is the delivery time?
The delivery time of the machine is 15-30 days after receipt of down payment.
